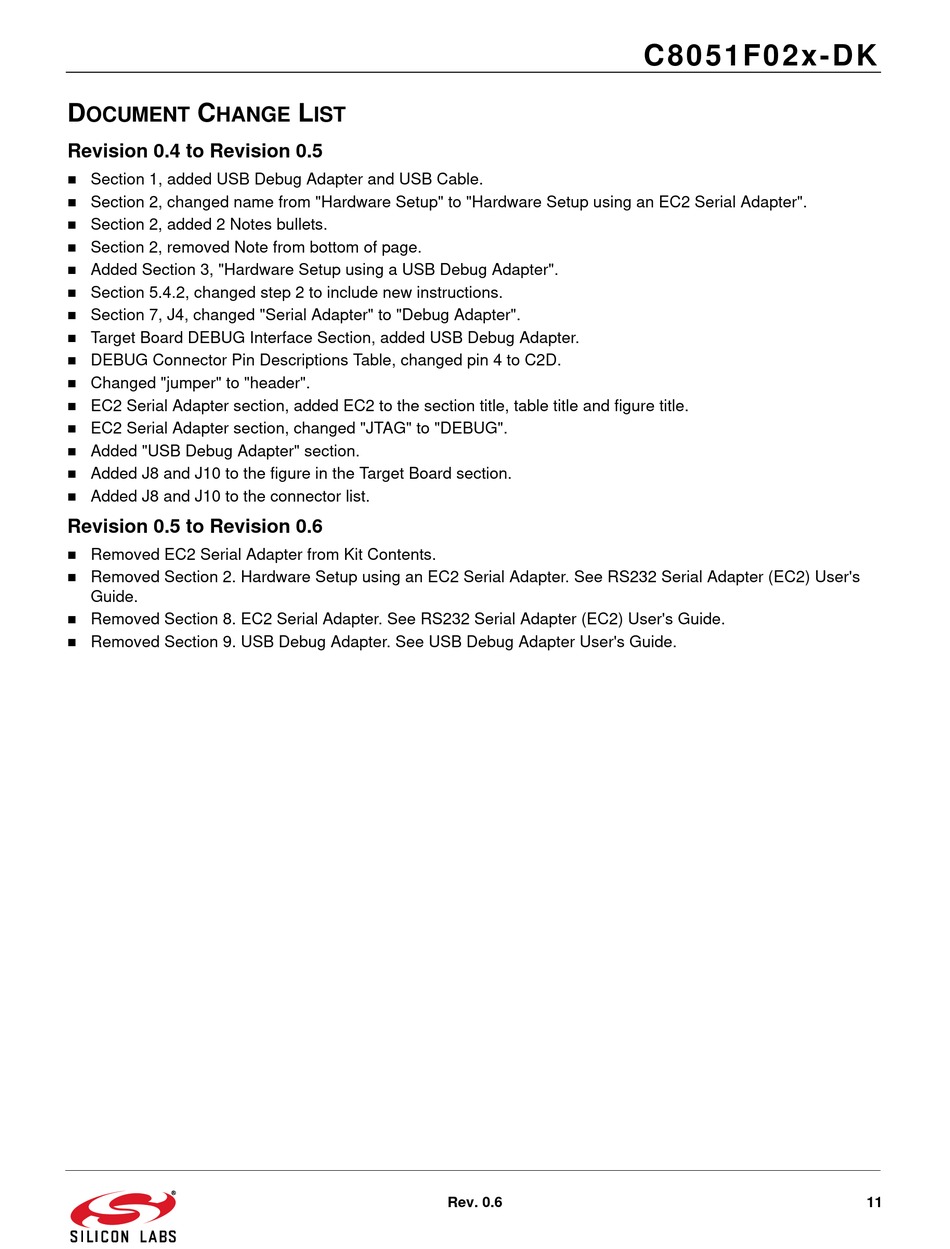

Silicon Laboratories C8051F02x-DK User Manual page 12

D C
OCUMENT HANGE
Revision 0.4 to Revision 0.5
Section 1, added USB Debug Adapter and USB Cable.

 Section 2, changed name from "Hardware Setup" to "Hardware Setup using an EC2 Serial Adapter".
 Section 2, added 2 Notes bullets.
Section 2, removed Note from bottom of page.

 Added Section 3, "Hardware Setup using a USB Debug Adapter".
Section 5.4.2, changed step 2 to include new instructions.

 Section 7, J4, changed "Serial Adapter" to "Debug Adapter".
 Target Board DEBUG Interface Section, added USB Debug Adapter.
DEBUG Connector Pin Descriptions Table, changed pin 4 to C2D.

 Changed "jumper" to "header".
 EC2 Serial Adapter section, added EC2 to the section title, table title and figure title.
EC2 Serial Adapter section, changed "JTAG" to "DEBUG".

 Added "USB Debug Adapter" section.
 Added J8 and J10 to the figure in the Target Board section.
Added J8 and J10 to the connector list.

Revision 0.5 to Revision 0.6
Removed EC2 Serial Adapter from Kit Contents.

 Removed Section 2. Hardware Setup using an EC2 Serial Adapter. See RS232 Serial Adapter (EC2) User's
Guide.
 Removed Section 8. EC2 Serial Adapter. See RS232 Serial Adapter (EC2) User's Guide.
 Removed Section 9. USB Debug Adapter. See USB Debug Adapter User's Guide.
L
IST
Rev. 0.6
C8051F02x-DK
11
