Table of Contents

T
ransceiver

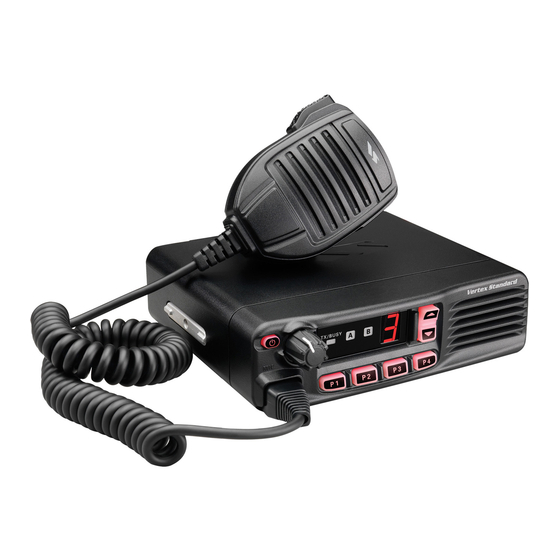

This manual is intended for use by experience technicians familiar with
similar types of equipment. Specifically, it contents installation information
required for the VX-4500/-4600 transceiver.
For information related to the service of the VX-4500/-4600 transceiver, re-
fer to the applicable manuals available separately.
When installing the VX-4500/-4600 transceiver, make sure to
plan the installation carefully and leave additional room in the
rear of the radio for cabling and accessory connections; in the
front of the radio for access, controls, and cabling; and to the
sides of the radio so that you may access and install the knob
screws or hex head bolts.
i
nsTallaTion
Vertex Standard LMR, Inc.
G
uide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VX-4500 and is the answer not in the manual?

Questions and answers

Related Manuals for Vertex Standard VX-4500

Summary of Contents for Vertex Standard VX-4500

  • Page 1 Specifically, it contents installation information required for the VX-4500/-4600 transceiver. For information related to the service of the VX-4500/-4600 transceiver, re- fer to the applicable manuals available separately. When installing the VX-4500/-4600 transceiver, make sure to plan the installation carefully and leave additional room in the rear of the radio for cabling and accessory connections;...

  • Page 2: Mounting Bracket Installation

    Use only the supplied Knob Screws with Washers, Hex Head Bolts, or equivalent size screws (HSM5X12). & n & n esktop ount with crew verheaD ount with crew esktop ount with apping crew verheaD ount with apping crew VX-4500/-4600 T ransceiVer nsTallaTion uide...

  • Page 3: Power Connection

    Power Connection VX-4500/-4600 transceiver operates only in negative ground electrical systems. Before starting the installation, make sure that the ground polarity of the vehicle is correct. Accidentally reversing the polarity will not damage the transceiver, but will cause the cable fuses to blow.

  • Page 4: Antenna Installation

    Trunk Lid Mount If can not meet the above distance at the trunk lid mount, Should be located at the the antenna must be placed in the center of the roof. above distance or more. VX-4500/-4600 T ransceiVer nsTallaTion uide...

  • Page 5: Base Station Installation

    Power Connection Operation of the VX-4500/-4600 transceiver from an AC line requires a power supply capable of providing at least 10 Amps (for 25 W model) or 15 Amps (for 45 W/50 W models) continuously at 13.6 Volts DC. Please contact your dealer to select an optimal power supply that satisfy these requirements.
  • Page 6 No portion of this manual may be reproduced without the per- mission of Vertex Standard LMR, Inc. Vertex Standard is a trademark of Vertex Standard LMR, Inc. All other trademarks are the property of their respective owners. ©2015 Vertex Standard LMR, Inc.
