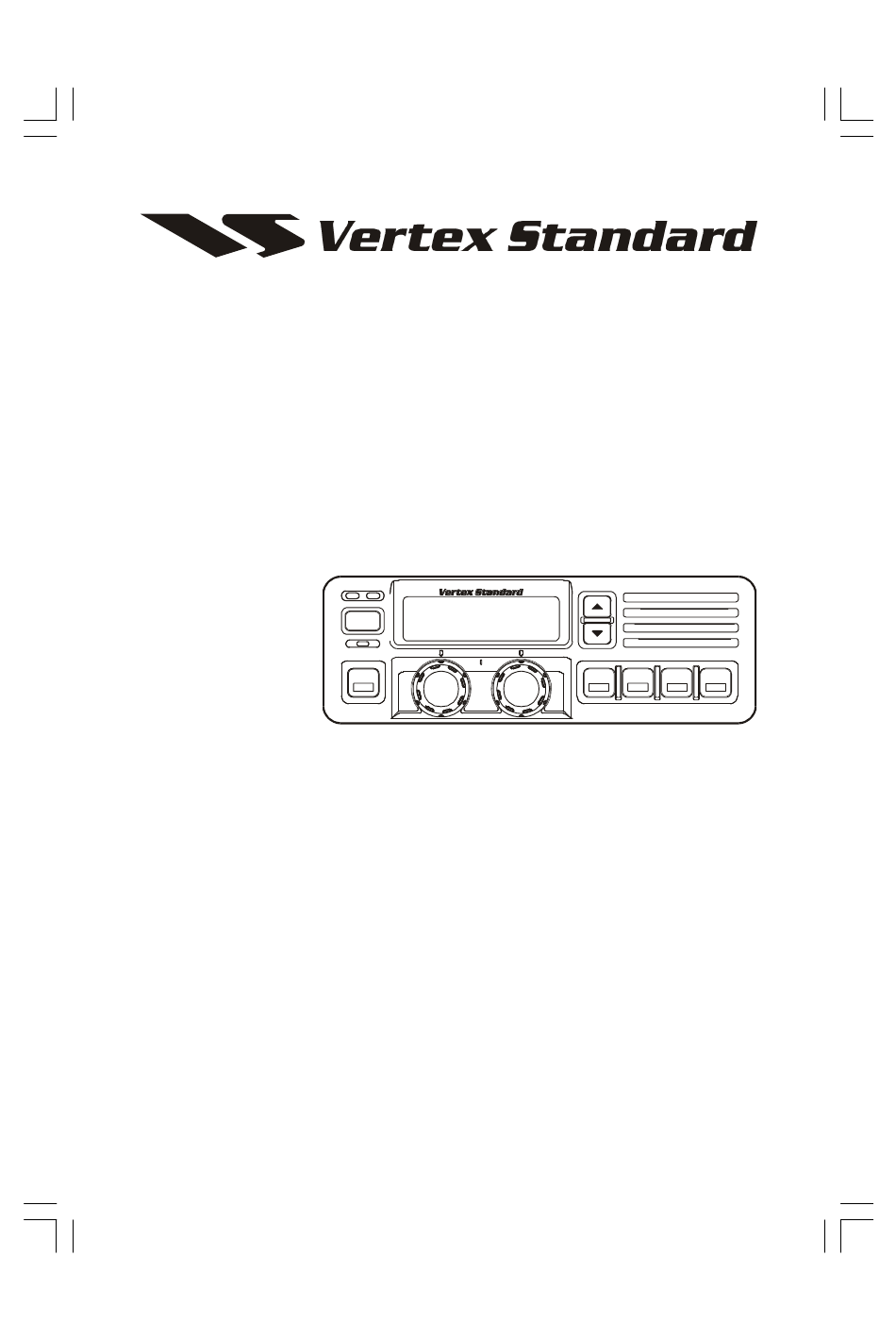

  • Page 1 VX-4000 PERATING ANUAL ANUAL DE PERACIÓN P O W E R VERTEX STANDARD CO., LTD. 4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan VERTEX STANDARD US Headquarters 17210 Edwards Rd., Cerritos, CA 90703, U.S.A. International Division 8350 N.W. 52nd Terrace, Suite 201, Miami, FL 33166, U.S.A.

  • Page 2: Safety / Warning Information

    Congratulations! You now have at your fingertips a valuable communications tool - a two-way radio! Rugged, reliable and easy to use, your radio will keep you in constant touch with your colleagues for years to come, with negligible maintenance down time. Please take a few minutes to read this manual carefully.
  • Page 3 Two sets of scanning channels, one set preset by the dealer and another which is operator-selectable. The pages which follow will detail the many advanced features provided on the VX-4000 transceiver. After reading this manual, you may wish to consult with your Network Ad- ministrator regarding precise details of the configuration of this equipment for use in your application.

  • Page 4: Controls And Connectors

    This button can be set up for special applications, such as high/low power selection, monitor, dimmer, talk-around, and call alert function, as determined by your network requirements and programmed by your VERTEX STANDARD dealer. The default function is set as Dimmer Button.

  • Page 5: Side Panel

    Programmable Function Button This button can be set up for special applications, such as high/low power selection, monitor, dimmer, talk-around, and call alert function, as determined by your network requirements and programmed by your VERTEX STANDARD dealer. Side Panel Microphone Jack (It is on both sides.)
  • Page 6 An external loudspeaker may be connected to this 2-contact, 3.5-mm mini-phone jack. Caution: Do not connect this line to ground, and be certain that the speaker has adequate capability to handle the audio output from the VX-4000. Antenna Cable with Connector Â...

  • Page 7: Basic Operation Of The Transceiver

    USC, GDS, GUS, PDS, PUS, DDW or UDW). If “ERR” is displayed instead, the transceiver has not yet been programmed with channel frequencies; switch off the power and contact your network administrator or VERTEX STANDARD dealer. If a scan mode indicator is displayed, you can press the SCAN button to display a channel number, and then press either the UP (p) or DOWN (q) button to change channels.

  • Page 8: Advanced Operation

    Programmable Function Button programming features are illustrated at the below, and their functions are explained on page ?. For further details, contact your VERTEX STANDARD dealer. For future reference, check the box next to each function that has been assigned to the Programmable Function Button on your particular radio, and keep it handy.

  • Page 9: Scanning Operation

    VX-4000 Operating Manual Scanning Modes There are eight scanning modes, described in the list below. Each channel can be independently enabled or disabled for scanning; only channels selected for scanning within the enabled group are scanned. Also, as mentioned before, each group can have up to two priority channels which are scanned more often than the non-priority channels.
  • Page 10 VX-4000 Operating Manual How to Select Channels to be Scanned If your radio has been configured by your Dealer to allow you, the operator, to make changes to the list of channels to be scanned, you can make these changes by following this simple process: À...
  • Page 11 VX-4000 Operating Manual How to Change the “User Priority” Channels Your Dealer may have configured your radio so as to allow you to make changes to the “User Priority” Channels (the channels you designate to be scanned more frequently than the others).
  • Page 12 Because local noise can be particularly troublesome in the VHF Low-Band frequency spectrum, the Low-Band version of the VX-4000 includes a Noise Blanker feature, which may be toggled on and off by pressing the A button for the appropriate length of time.
  • Page 13 VX-4000 Operating Manual EMG (Emergency) Press this key to initiate an emergency call (requires ANI board). When an emer- gency call is made, not tone is emitted and the display does not change. To end the emergency call, turn the transceiver power OFF.

  • Page 14: Optional Accessories

    VX-4000 Operating Manual SQL (Squelch Level) You can manually adjust the squelch level using this function: 1. Press the this key. A tone sounds and SQL appears on the display with the current squelch level. 2. Rotate the DIAL knob to select the desired level.
  • Page 15 This device complies with Part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference.
  • Page 16 Copyright 2001 VERTEX STANDARD CO., LTD. All rights reserved No portion of this manual may be reproduced without the permission of VERTEX STANDARD CO., LTD. 0105?-0? Printed in Japan.
