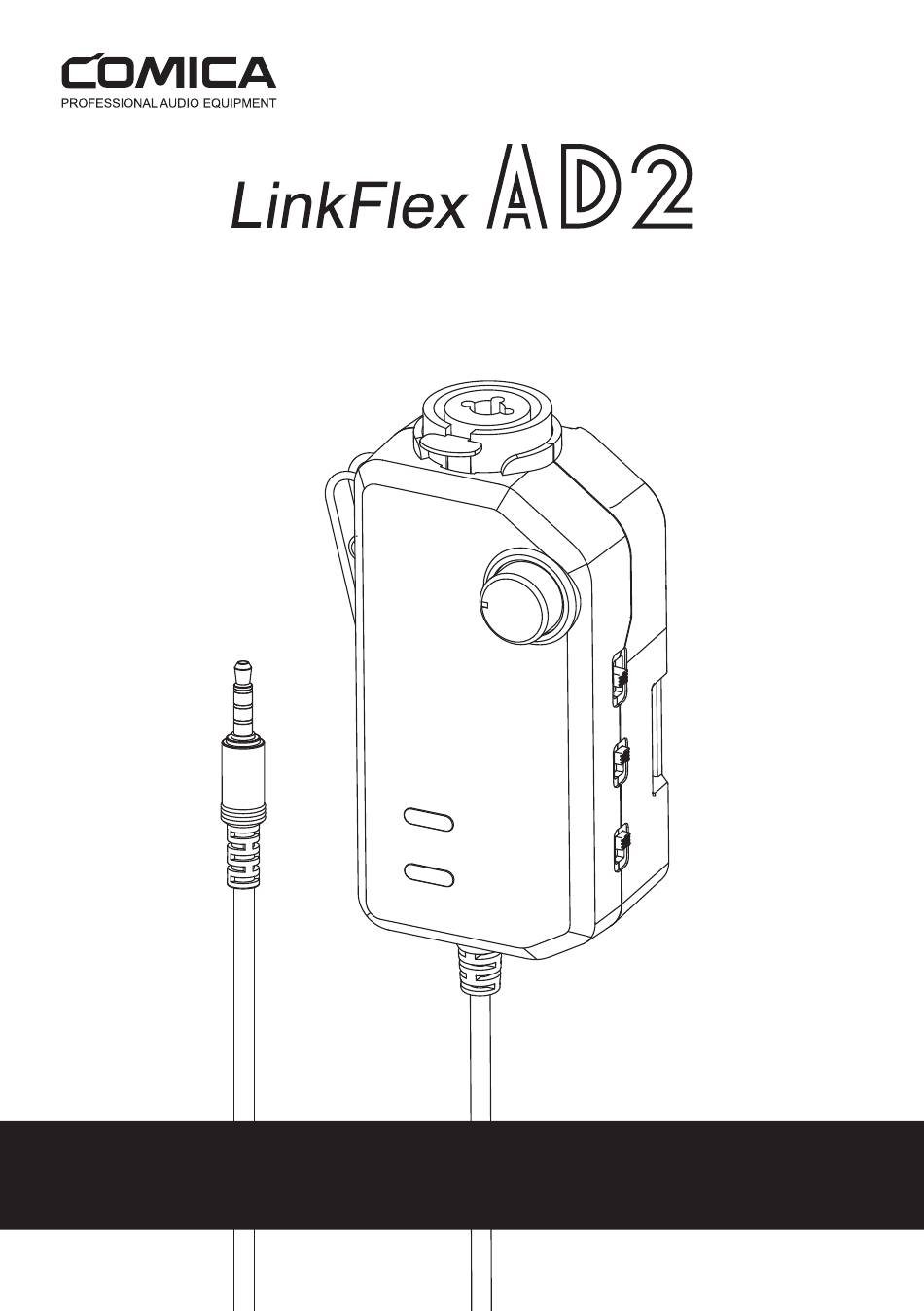

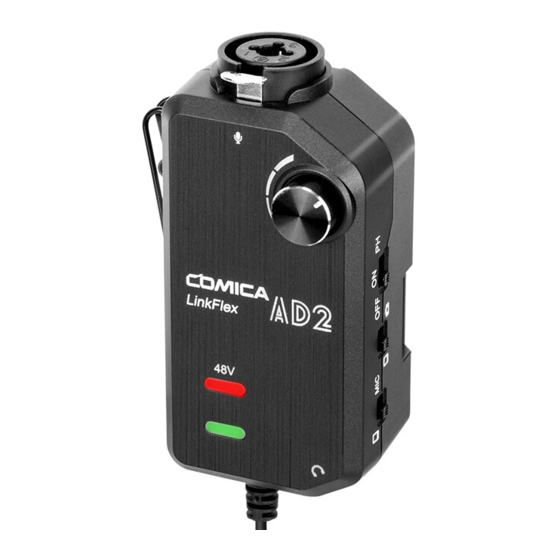

- Page 1 XLR/6.35mm Audio Preamp Adapter / Interface for Camera and Smartphone User Manual...
-
Page 3: Main Features
Foreword Thanks for purchasing COMICA LINKFLEX AD2 Main Features . XLR/6.35mm (For Instrument like Guitar etc.) Audio Adapter Interface . Universal for Camera and Smartphone . Support 48V Phantom Power . Audio Preamp and Gain Control . Mic/Device (Phone) Two Ways Audio Monitor... -
Page 4: Packing List
Notice When working with other products which have high sensitivity, the gain of our product should be adjusted to the appropriate position to avoid the situation of sonic boom or howling (it is recommended to adjust the gain to the minimum state when the product is turned on, and then adjust it step by step) When using with Lightning devices, please use the original adapter cable... - Page 5 Components and Instruction XLR Audio Input Jack 6.35mm Audio Input Jack Gain-Control Knob Power / Phantom Power Switch Phone/Camera Audio Output Switch Phone/Mic Monitor Switch 3.5mm Audio Output Plug Power Indicator Light Phantom Power Indicator Light 3.5mm Audio Monitor Output Jack Battery Cover Magic-tape Fixing Slot Belt Clamp...
- Page 6 Installation and Usage 1.Battery installation Press the battery cover and open it in the direction of the arrow.Install the 9V battery according to the corresponding positive and negative poles Battery Cover 9V Battery Positive Pole Negative Pole Please note that the positive and negative poles of the battery should corresponding to the positive and negative poles of the product...
-
Page 7: Usage Method
2. Usage method Hang the belt clamp on the belt to use Pass the Magic-tape through the Magic-tape Fixing Slot and attach it to the fixer for use... -
Page 8: Audio Input
3. Audio input This product supports XLR/6.35mm audio jack, please insert the microphone plug into the corresponding jack when using XLR Audio Plug 6.35mm Audio Plug The 6.35mm and XLR are in the same jack and cannot be used at the same time... - Page 9 4.Installation method (Take XLR audio plug for example) Step 1: Install the microphone 1. After installing the recording device, adjust the output mode according to the device :Smartphone Mode :Camera Mode 2. After installing the monitor headphones, please adjust the monitor mode according Step 2: to the requirements Install the monitor...
-
Page 10: Gain-Control Knob
5. Gain-control knob Rotate the audio gain-control knob to adjust the gain of the audio input Audio Input Audio Gain-Control Knob (Adjust the gain of the Audio Input) 6.MIC/Smartphone monitoring switch :Smartphone Playback Monitoring Mode :Microphone Real-time Monitoring Mode Smartphone Playback Monitoring Microphone Real-time Monitoring In the camera output mode, the switch does not work and only the microphone real-time... - Page 11 7. Smartphone/Camera output mode switch :Smartphone Output Mode; :Camera Output Mode Without the correct switch to the corresponding output mode will result in an unsuccessful recording Camera Output Mode Smartphone Output Mode 8. Power/ Phantom power switch OFF: Turn o ON: Turn on PH: Phantom Power Turn on...
- Page 12 Tech Parameters XLR x 1 Input 6.35mm x 1 3.5mm TRS Audio Output Monitoring Output 3.5mm TRS/TRRS Frequency Response 20Hz~20kHz, ±1dB Gain Maximum 20dB <0.1%, RL=2k , f=20Hz~20kHz, Vo=1Vrms Battery 9V 6LR61/6F22 x 1 Phantom Power OFF: 60mW Consumption Phantom Power ON: 130mW Net Weight 109g Dimension...
- Page 13 卡侬/6.35mm 相机手机专用 音频前置放大转接器/连接座 产品使用说明书...
- Page 15 前 言 感谢您购买科唛LINKFLEX AD2 产品主要功能 . 卡侬/6.35mm(吉他等乐器专用)多接口音频转换 . 手机/相机通用 . 支持48V幻像电输出 . 前置放大增益可调 . MIC/设备（手机）双向监听 . 底部腰带夹及魔术贴固定位设计...
- Page 16 注意事项 搭配部分灵敏度较高的产品使用时，需将本产品的增益调至 合适位置以避免出现爆音和啸叫的情况（建议在开机时将增 益调至最小状态，再逐级进行调节） 用于Lightning接口的设备使用时需搭配原装Lightning音频 转换线使用 该麦克风配合Android（安卓）系统的手机使用时，录音模 式下均可正常工作，视频模式下部分手机会出现不兼容情况 （此时建议使用第三方视频软件， 如：抖音，快手等） 该麦克风配合iOS系统（iPhone）的手机使用时，在录音及 视频模式下均可正常工作 本品属于高精密仪器类产品，请勿使用时掉落、碰撞或撞击 请勿将本设备放置在热源或干扰源附近使用，如散热器、烤 箱或冰箱空调旁边 请在干燥环境中对该产品进行保存 包装清单 转换器主体 腰带夹 魔术贴 XLR/6.35mm Audio Preamp Adapter / Interface for Camera and Smartphone User Manual 说明书 保修卡...
- Page 17 部件介绍及说明 卡侬音频输入接口 电源指示灯 6.35mm音频输入接口 幻象电源指示灯 增益调节旋钮 3.5mm监听输出接口 电源/幻象电源开关 电池盖 手机/相机音频输出切换开关 魔术贴固定槽 手机/麦克风监听切换开关 腰带夹 3.5mm音频输出接头...
- Page 18 安装与使用 1.电池安装 按下电池盖并朝箭头方向打开，按对应的正负极安装9V电池 电池盖 9V电池 正极 负极 请注意电池的正负极要对应产品正负极...
- Page 19 2.使用方式 通过腰带夹挂在腰带上使用 使用魔术贴带穿过 魔术贴固定槽，绑在固定物 上使用...
- Page 20 3.音频输入 本产品支持XLR和6.35mm音频接口，使用时请将麦克风插头 插入对应的接口即可 XLR音频插头 6.35音频插头 XLR和6.35mm音频接口在同一座子上，不能同时使用...
- Page 21 4.安装方式：（以XLR音频插头为例） 第一步： 安装麦克风 1.安装录音设备后请根据设备 调整输出模式 手机模式 相机模式 2.安装监听耳机后请根据需要 调整监听模式 第二步： 手机回放监听模式 安装监听耳机 麦克风实时监听模式 第三步： 安装录音设备（手机或相机）...
- Page 22 5.增益调节旋钮 旋转音频增益调节旋钮即可调整音频输入的增益 音频输入 音频增益调节 （调整“音频输入”的增益） 6.手机/麦克风监听切换开关 为手机回放监听模式； 为麦克风实时监听模式 手机回放监听 麦克风实时监听 在相机输出模式下该切换开关不起作用，只能 麦克风实时监听...
- Page 23 7.手机/相机输出模式切换 为手机输出模式； 为相机输出模式 如不切换正确的输出模式， 将会导致录音不成功 手机模式 相机模式 8.电源开关与幻象电源模式 OFF为关机；ON为开机；PH为幻象电源模式 开机 关机 幻象电源 如果您的麦克风需要幻象电源供电才能工作，请将 此开关拨到“PH”档...
- Page 24 技术参数 XLR x 1 输入 6.35mm x 1 音频输出 3.5mm TRS 监听输出 3.5mm TRS/TRRS 频响 20Hz ~ 20kHz, ±1dB 增益 最大增加20dB 总谐波失真 <0.1%, RL=2kΩ, f=20Hz ~ 20kHz, Vo=1Vrms 电池 9V 6LR61/6F22 x 1 幻象电关闭: 60mW 功耗 幻象电打开 130mW 产品重量 109g 产品尺寸...
- Page 28 Email: support@comica-audio.com...
