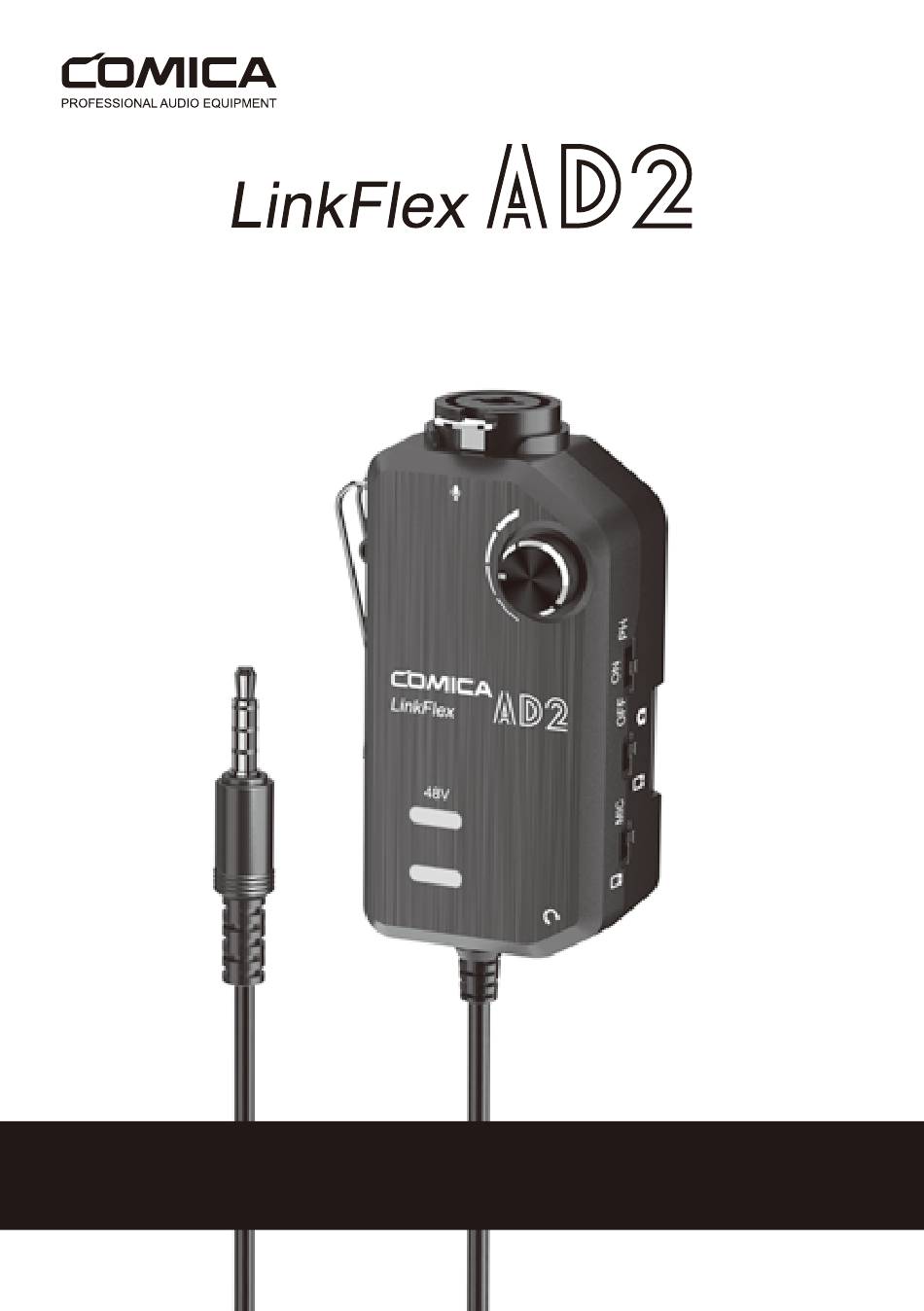

- Page 1 XLR/6.35mm--3.5mm Audio Preamp Adapter / Interface for Camera and Smartphone User Manual...
-
Page 2: Main Features

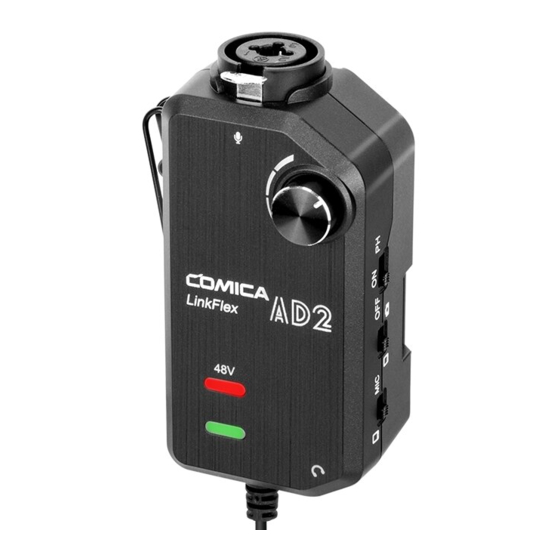

Foreword Thanks for purchasing COMICA LINKFLEX AD2 XLR / 6.35mm -- 3.5mm Audio Preamp Adapter / Interface for Camera and Smartphone The COMICA LINKFLEX AD2 is a XLR/6.35mm--3.5mm Audio Preamp Adapter / Interface for shooting videos with any camera and smartphone. -
Page 3: Package Contents
Notice When the adapter/interface works with iPhone with lightning audio input, you need to use the original adapter cable; For the Android system smartphone, the adapter/interface works well in audio mode, but video mode will happen with incompatibility trouble while working with some smartphone; (Then we suggest that you try the 3rd party’s video APP);... - Page 4 Components and Instruction XLR Audio Input Jack 6.35mm Audio Input Jack Gain-Control Knob Power / Phantom Power Switch Phone/Camera Audio Output Switch Phone/Mic Monitor Switch 3.5mm Audio Output Plug Power Indicator Light Phantom Power Indicator Light 3.5mm Audio Monitor Output Jack Battery Cover Magic-tape Fixing Slot Belt Clamp...
-
Page 5: Installation And Usage
Installation and Usage 1.Battery installation Press the battery cover and open it in the direction of the arrow.Install the 9V battery according to the corresponding positive and negative poles Battery Cover 9V Battery Positive Pole Negative Pole Please note that the positive and negative poles of the battery should corresponding to the positive and negative poles of the product... - Page 6 2. Usage method Hang the belt clamp on the belt to use; Pass the Magic-tape through the Magic-tape Fixing Slot and attach it to the fixer for use;...
- Page 7 3. Audio input This product supports XLR/6.35mm audio jack, please insert the microphone plug into the corresponding jack when using XLR Audio Plug 6.35mm Audio Plug The 6.35mm and XLR are in the same jack and cannot be used at the same time...
- Page 8 4.Installation method (Take XLR audio plug for example.) Step 1: Install the microphone 1. After installing the recording device, adjust the output mode according to the device :Smartphone Mode :Camera Mode 2. After installing the monitor headphones, please adjust the monitor mode according Step 2: to the requirements Install the monitor...
- Page 9 5. Gain-control knob Rotate the audio gain-control knob to adjust the gain of the audio input Audio Input Audio Gain-Control Knob (Adjust the gain of the Audio Input) 6. MIC/Smartphone monitoring switch :Smartphone Playback Monitoring Mode :Microphone Real-time Monitoring Mode Smartphone Playback Monitoring Microphone Real-time Monitoring In the camera output mode, the switch does...
- Page 10 7.Smartphone/Camera output mode switch :Smartphone Output Mode; :Camera Output Mode Without the correct switch to the corresponding output mode will result in an unsuccessful recording. Camera Output Mode Smartphone Output Mode 8.Power/ Phantom power switch OFF: Turn o ; ON: Turn on; PH: Phantom Power Turn on Turn o...
- Page 11 Tech Parameters Input XLR , 6.35mm Output 3.5mm audio output, 3.5mm headphone output 20Hz~20kHz, ±1dB Frequency Response Gain Range Maximum increase +20dB THD+Noise <0.02%, RL=2K , f=20Hz~20kHz, Vo=1Vrms Battery 9V 6LR61/6F22 x 1 Size 53x43x102mm Net Weight 109g Working Temperature 0℃...
- Page 12 Email: support@comica-audio.com...
