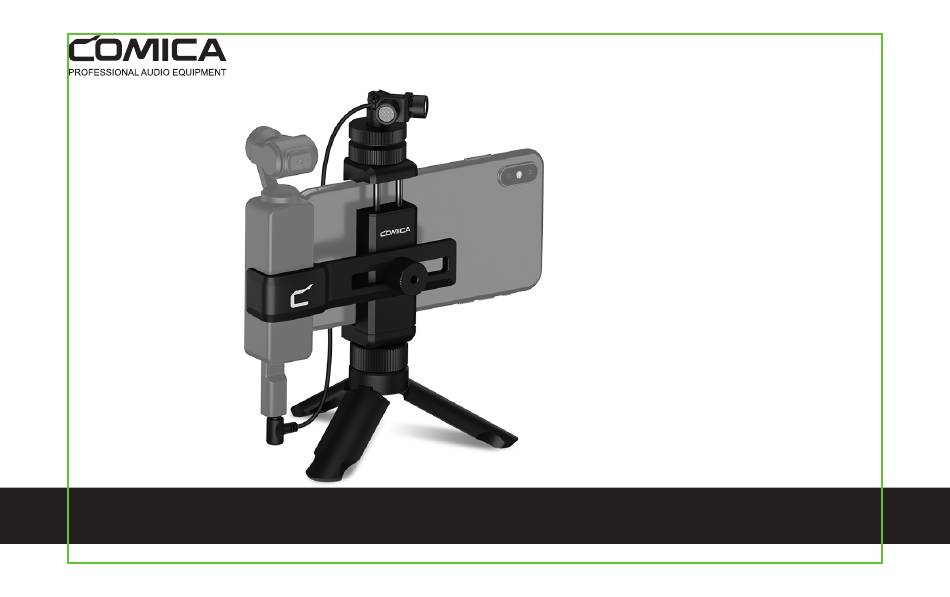

- Page 1 CVM-MT-K1 Mini & Flexible Smartphone Video Kit (For OSMO POCKET) User Manual...
- Page 2 Foreword Thanks for purchasing COMICA Mini & Flexible Smartphone Video Kit (For OSMO POCKET). This item is specially designed for OSMO POCKET, is a M/S stereo microphone with dual-mic design and ideal audio quality, 180 degree adjustable audio recording direction, metal housing construction and excellent shielding, and also equipped with smartphone monitor kit for more flexible use.
-
Page 3: Main Features
Packing Contents 1.Microphone 2.Windscreen 3.Smartphone Clamp 4.Tripod 5.Clamp for OSMO POCKET ① ② ③ ④ 6.Cold-shoe Mount 7.Lock Screw 8.User Manual 9.Warranty Card CVM-MT-K1 Mini & Flexible Smartphone Video Kit User Manual ⑤ ⑥ ⑦ ⑧ ⑨... - Page 4 Components Instruction ④ ③ 1. 3.5mm TRS Plug 2. Clamp for OSMO POCKET 3. Mic 4. Capsule ⑤ ⑩ 5. Microphone Locking Plate ⑥ 6. Cold-shoe Locking Plate 7. Smartphone Clamp ⑦ ② 8. Lock Screw ⑪ 9. Tripod 10. Cold-shoe 11.
- Page 5 Product Installation and Use 1.Fix the OSMO POCKET clamp to the Smartphone clamp by Locking screw OSMO POCKET clamp can be moved left and right for adjustment...
- Page 6 2.Pull the top of the smartphone clamp to the suitable position and put your phone; then put OSMO POCKET into OSMO POCKET clamp Put into your phone Adjust to the suitable distance Put into OSMO POCKET...
- Page 7 3.Adjust the phone left and right, and adjust OSMO POCKET up and down to the appropriate position Interface alignment Up and down adjustment Left and right adjustment...
- Page 8 4.Connect the mobile phone with OSMO POCKET and fix it with locking screw Insert the OSMO POCKET plug into smartphone interface Push the OSMO POCKET clamp Tighten the lock screw...
- Page 9 5.Install the Tripod Tripod...
- Page 10 6.Finish installment after Microphone and Windscreen Installation Microphone Windscreen 3.5mm TRS plug When the mic work with OSMO POCKET, you need to purchase OSMO POCKET audio adapter independently for connection...
-
Page 11: Specification
Specification 1.Frequency Response 2.Polar Pattern Frequency: 1000 Hz : X-Y 90° 3.Technology Parameters XY Cardioid Polar Pattern -30±2dB Sensitivity 60Hz~20kHz Frequency Response Signal / Noise >70dB >100dB Maximum SPL Output Socket 3.5mm TRS Plug 180° Maximum Rotate Degree 0℃~50℃ Working Temperature -20℃~60℃... - Page 12 5.安装支架 支架...
