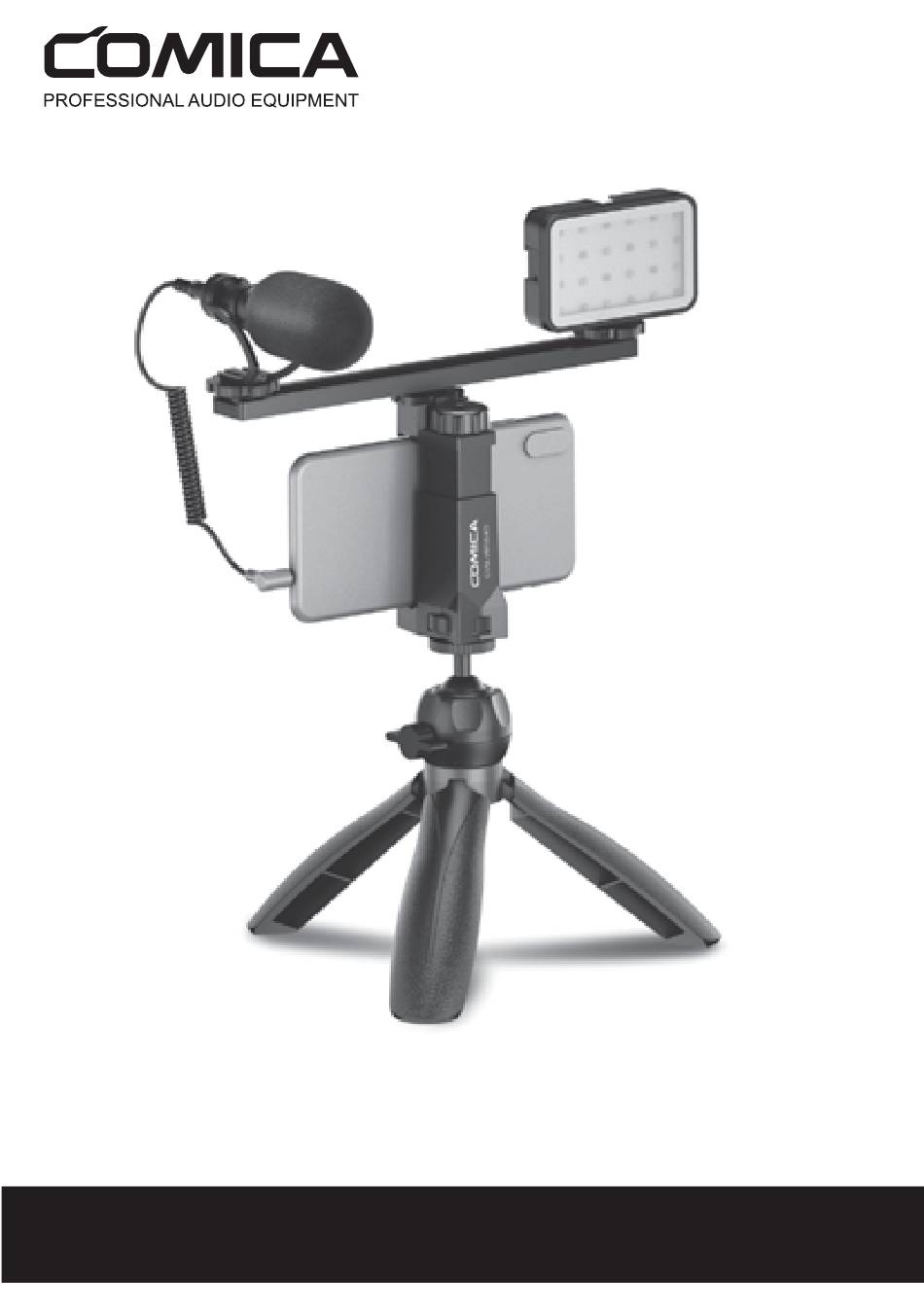

- Page 1 VM10-K5 Multi-functional Smartphone Video Kit User Manual...
- Page 2 Foreword Thanks for purchasing CVM-VM10-K5 Multi-functional Smartphone Video Kit Main Features . 360° Adjustable Rotation Ball Head, Support Horizontal and Vertical Shooting . Equipped with Cold Shoe Rod for Matching Di erent Accessories . Integrated with Bi-color LED Light for Versatile Shooting .
-
Page 3: Components Introduction
Components Introduction Cold Shoe Color Temperature/Brightness Switch Button Cold Shoe Power Switch Button Color Temperature/Brightness+ Color Temperature/Brightness－ Cold Shoe Mount Cold Shoe USB-C Charge Port 1/4 Threaded Hole Power Switch Button: Long press to turn on or o Color Temperature/Brightness Switch Button: Short press to switch color temperature or brightness. - Page 4 Windscreen 3.5mm TRS Audio Output Port Cold Shoe Mount 1/4 Threaded Hole 3.5mm TRS Audio Output Port: It can be inserted with 3.5mm TRS audio cable for audio output...
- Page 5 Cold Shoe Rod Cold Shoe Mount Cold Shoe Screwing Plate Locking Plate 1/4 Male Screw Lever 1/4 Male Screw Additional accessories can be attached to the cold shoe rod...
- Page 6 Installation and Operation Shooting Horizontally (With Cold Shoe Rod)： 1. Install as shown below...
- Page 7 2. Adjust the smartphone clamp to an appropriate height through the screwing plate, then install the smartphone and fix it 3. Connect the microphone and smartphone through the 3.5mm TRS-TRRS audio cable. TRS plug is for microphone, TRRS plug is for smartphone TRS Plug TRRS Plug...
- Page 8 Shooting Horizontally (Without Cold Shoe Rod)： 1. Install as shown below...
- Page 9 2. Connect the microphone and smartphone through the 3.5mm TRS-TRRS audio cable. TRS plug is for microphone, TRRS plug is for smartphone...
- Page 10 Shooting Vertically： 1. Install as shown below...
- Page 11 2. Rotate the smartphone clamp through 90° via the lever, then connect microphone and smartphone through the 3.5mm TRS-TRRS audio cable 90° Lever...
-
Page 12: Led Light
Specification Microphone： Polar Pattern Cardioid Frequency Response 60Hz ~ 20KHz >75dB Maximum SPL >105dB Sensitivity Range -35dB±2dB Operating Voltage 1V~5V DC Output Interface 3.5mm TRS Interface Dimensions Φ21mm x 85mm Net Weight Operating Temperature 0~50℃ Storage Temperature -10~60° LED Light： Power MAX:3.7W Color Temperature Range...
