interion 695546 Assembly Instructions

STEP 4
Attach Backrest "H" to the rear of mechanism with
Backrest Screws "I". NOTE: Fully tighten all screws.
L
x 3
I
H
ARM HEIGHT ADJUSTMENT
To adjust arm height, push button (1) in to allow the arms
to move up or down freely, release button (1) once the desired
height is reached.
SEAT HEIGHT ADJUSTMENT
To raise seat height, remove pressure from the seat
and lift handle (2). To lower seat height,
sit on the chair and lift handle (2).
FOOTRING HEIGHT ADJUSTMENT
To adjust footring height, loosen the adjustment knob (3),
adjust footring to desired height and then tighten
the adjustment knob (3) completely to secure footring into position.

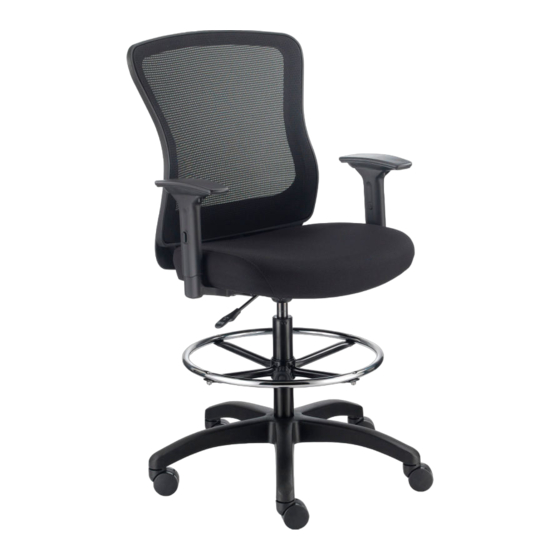

Mesh Back Task Stool
STEP 5
Place seat assembly onto Gas Lift "J". Push firmly on the
chair seat to securely attach seat assembly to seat post.
J
1
2
3
