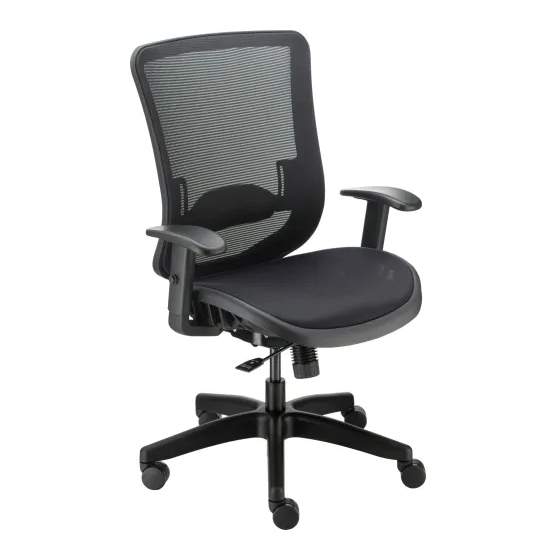

Heavy duty chair with high back & adjustable arms, mesh, black with aluminum frame

Advertisement

Quick Links

Assembly Instructions
Customer Service
US: 1-800-645-2986
Heavy Duty Chair With High Back & Adjustable
Arms, Mesh, Black with Aluminum Frame
Safety Information
Model: 695549C
ATTENTION: Make certain that all screws are fully
tightened before using chair. Lubricate all moving parts
and tighten all screws every 6 months or as needed.
STEP 1
Turn Base "B" upside down. Insert Casters
"A" into Base "B".
STEP 2
Attach Right Armrest "D" to Seat Cushion "C" with Armrest Screws "F"
and Flat Washers "G". Repeat for Left Armrest "E". NOTE: Arrows on
armrests point to front of seat cushion and fully tighten all screws.
