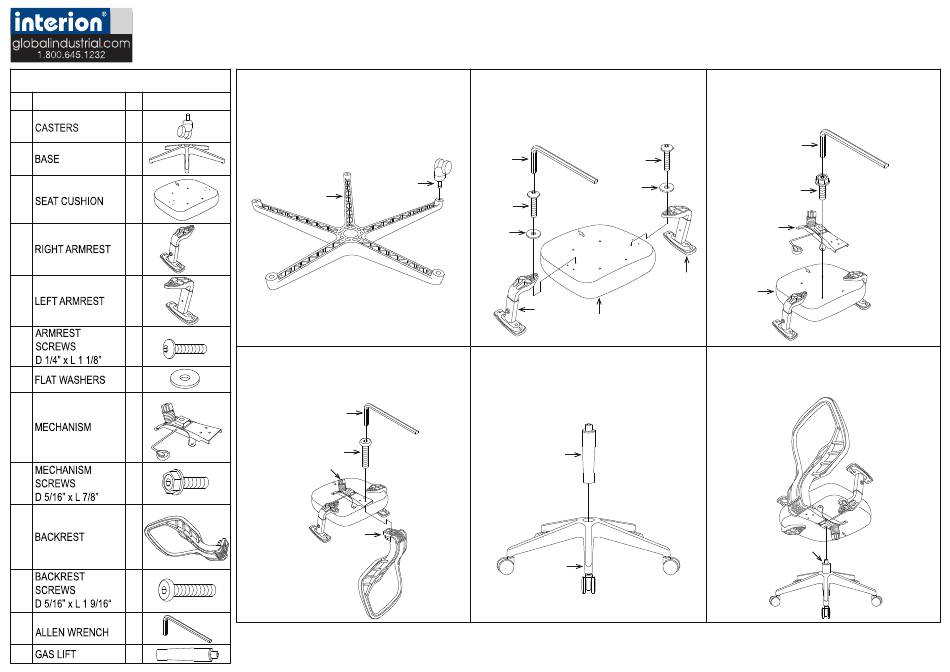

ASSEMBLY INSTRUCTIONS
Part List
Key
Description
Qty.
Part
5
A
1
B
1
C
1
D
1
E
6
F
G
6
H
1
I
4
J
1
3
K
L
1
M
1
ITEM NO.: 695729
Step 1
Turn Base "B" upside down.
Insert Casters "A" into Base "B".
B
Step 4
Attach Backrest "J" to the rear of Mechanism "H"
with Backrest Screws "K".
NOTE: Fully tighten all screws.
L
x 3
K
H
J
ATTENTION: Make certain that all screws are fully tightened before using chair.
Lubricate all moving parts and tighten all screws every 6 months or as needed.
Step 2
Attach Right Armrest "D" to Seat Cushion "C" with
Armrest Screws "F" and Flat Washers "G". Repeat for
Left Armrest "E". NOTE: Arrows on armrests point to
front of seat cushion and fully tighten all screws.
L
A
x 5
x 3
F
G
x 3
D
Step 5
Insert Gas Lift "M" into hole on Base "B".
M
B
Step 3
Attach Mechanism "H" to Seat Cushion "C" with
Mechanism Screws "I".
NOTE: Fully tighten all screws.
x 3
F
x 3
G
H
E
C
C
Step 6
Place seat assembly onto Gas Lift "M". Push firmly
on the chair seat to securely attach seat assembly to
seat post.
L
I
x 4
M
Advertisement
Table of Contents
Related Manuals for interion 695729
Summary of Contents for interion 695729
- Page 1 ASSEMBLY INSTRUCTIONS ITEM NO.: 695729 Step 1 Step 2 Step 3 Part List Turn Base “B” upside down. Attach Right Armrest “D” to Seat Cushion “C” with Attach Mechanism “H” to Seat Cushion “C” with Description Qty. Part Insert Casters “A” into Base “B”.
- Page 2 CONTROL INSTRUCTIONS ITEM NO.: 695729 ARM HEIGHT ADJUSTMENT To adjust arm height, push button (1) in to allow the arms to move up or down freely, release button (1) once the desired height is reached. BACK ANGLE ADJUSTMENT To lock, return the back to the upright position and push lever (2) in.
