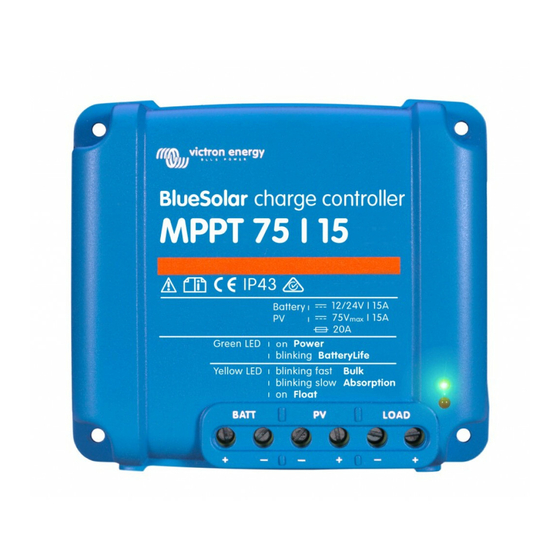

Victron energy BlueSolar MPPT 75/10 Manual
Charge controllers
Hide thumbs
Also See for BlueSolar MPPT 75/10:
Subscribe to Our Youtube Channel
Related Manuals for Victron energy BlueSolar MPPT 75/10
Summary of Contents for Victron energy BlueSolar MPPT 75/10
- Page 1 Manual Handleiding Manuel Anleitung Manual Användarhandbok BlueSolar charge controllers MPPT 75/10 MPPT 75/15...
-
Page 3: General Description
1 General Description 1.1 Ultra fast MPPT tracking Especially in case of a clouded sky, when light intensity is changing continuously, a fast MPPT algorithm will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers. 1.2 BatteryLife: intelligent battery management 1.2.1. - Page 4 1.5 Automatic battery voltage recognition The controller will automatically adjust itself to a 12V or a 24V system. 1.6 Three step charging The controller is configured for a three step charging process: Bulk – Absorption - Float. 1.6.1. Bulk stage During this stage the controller delivers as much charge current as possible to rapidly recharge the batteries.
-
Page 5: Safety Instructions
2 Safety instructions Danger of explosion from sparking Danger of electric shock ● It is advised to read this manual carefully before the product is installed and put into use. ● This product is designed and tested in accordance with international standards. The equipment should be used for the designated application only. -
Page 6: Installation
3. Installation 3.1. General ● Mount vertically on a non-flammable substrate, with the power terminals facing downwards. ● Mount close to the battery, but never directly above the battery (in order to prevent damage due to gassing of the battery). ●... - Page 7 3.3. Configuration of the controller (see figure 1 and 2 at the end of the manual)) A four pin header is available to select one of three battery management options: 3.3.1. No jumper: BatteryLife algorithm (see 1.2.2.) 3.3.2. Jumper between pin 1 and pin 2: conventional (see 1.2.1.) Low voltage load disconnect: 11,1V or 22,2V Automatic load reconnect: 13,1V or 26,2V 3.3.3.
- Page 8 3.7 Battery charging information The charge controller starts a new charge cycle every moring, when the sun starts shining. The maximum duration of the absorption period is determined by the battery voltage measured just before the solar charger starts up in the morning: Battery voltage Vb (@start-up) Maximum absorption time Vb <...
-
Page 9: Troubleshooting
4. Troubleshooting Problem Possible cause Solution Charger does Reversed PV connection Connect PV correctly not function No fuse inserted Insert 20A fuse Reversed battery Blown fuse Connect battery correctly connection Replace fuse A bad battery connection Check battery connection Use cables with larger cross Cable losses too high section Large ambient temperature... -
Page 10: Specifications
5 Specifications BlueSolar charge controller MPPT 75/10 MPPT 75/15 Battery voltage 12/24 V Auto Select Maximum battery current 10 A 15 A Maximum PV power, 12V 1a,b) 200 W (MPPT range 15 V to 70 V) Maximum PV power, 24V 1a,b) 400 W (MPPT range 30 V to 70 V) Automatic load disconnect Yes, maximum load 15 A... - Page 11 Figure 1a: configuration pins Figure 1b: pin numbering 4 3 2 1...
- Page 12 Figure 2: Battery management options EN: No bridge: BatteryLife algorithm NL: Geen brug: BatteryLife algoritme FR: Pas de pont : Algorithme BatteryLife DE: Keine Überbrückung: BatteryLife Algorithmus ES: Ningún puente: algoritmo BatteryLife SE: Ingen brygga: BatteryLife-algoritm EN: Bridge between pin 1 and 2: Low voltage disconnect: 11.1V or 22.2V Automatic load reconnect: 13.1V or 26.2V NL: Brug tussen pin 1 en 2:...
- Page 13 Figure 3: Power connections Figure 4: The Victron inverters model Phoenix 12/800, 24/800, 12/1200 and 24/1200 can be controlled by connecting the right side connection (1) of the inverter remote control directly to the solar charger load output Figure 5: For the Victron inverters model Phoenix 12/180, 24/180, 12/350, 24/350, the...
- Page 14 Distributor: Serial number: Version : 11 Date : 18 September 2015 Victron Energy B.V. De Paal 35 | 1351 JG Almere PO Box 50016 | 1305 AA Almere | The Netherlands General phone : +31 (0)36 535 97 00 Customer support desk...
