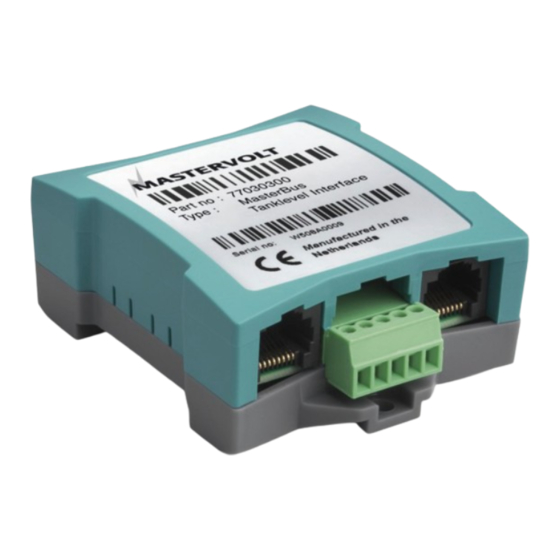

Mastervolt 77030300 User Manual

Masterbus tanklevel interface

Download this manual

USERS MANUAL / GEBRUIKERSHANDLEIDING

BETRIEBSANLEITUNG / MANUEL D'UTILISATION

MANUAL DE UTILIZACION / INSTRUZIONI PER L'USO

Tanklevel Interface

Interface between tank level sensor and MasterBus

MASTERVOLT

Snijdersbergweg 93,

1105 AN Amsterdam

The Netherlands

Tel.: +31-20-3422100

Fax.: +31-20-6971006

www.Mastervolt.com

MasterBus

ENGLISH:

NEDERLANDS:

DEUTSCH:

FRANÇAIS:

CASTELLANO:

ITALIANO:

PAGE 1

PAGINA 5

SEITE 9

PAGINA 13

PÁGINA 17

PÁGINA 21

Need help?

Do you have a question about the 77030300 and is the answer not in the manual?

Page 1 Interface between tank level sensor and MasterBus MASTERVOLT ENGLISH: PAGE 1 Snijdersbergweg 93, NEDERLANDS: PAGINA 5 1105 AN Amsterdam DEUTSCH: SEITE 9 The Netherlands FRANÇAIS: PAGINA 13 Tel.: +31-20-3422100 CASTELLANO: PÁGINA 17 Fax.: +31-20-6971006 ITALIANO: PÁGINA 21 www.Mastervolt.com Copyright © 2009 Mastervolt v 1.2 October 2009...
Page 2 The standard guarantee period is two years after without the prior written permission of Mastervolt is date of purchase. prohibited. This manual serves as a guideline for the safe and Liability effective operation of the Tanklevel Interface.
Page 3 Configuration for installers only Sensor type The sensor signal is a voltage, current or Resistive Resistive, current, resistance. voltage Sensor power Option for powered sensors. Smart: the sensor is Off, On, Smart switched On only if necessary. * See below Sensor damping Sensor fluctuations can be damped to different Light...
Page 4 Generic emission standard: EN 50081-1:1992, Generic Immunity standard: EN 50082-1:1997, Safety directive 2006/95/EC, with the following standard, Low voltage standard: EN 60950: 2000. Snijdersbergweg 93, 1105 AN Amsterdam, The Netherlands Tel : + 31-20-3422100 Fax : + 31-20-6971006 Email : info@mastervolt.com...
