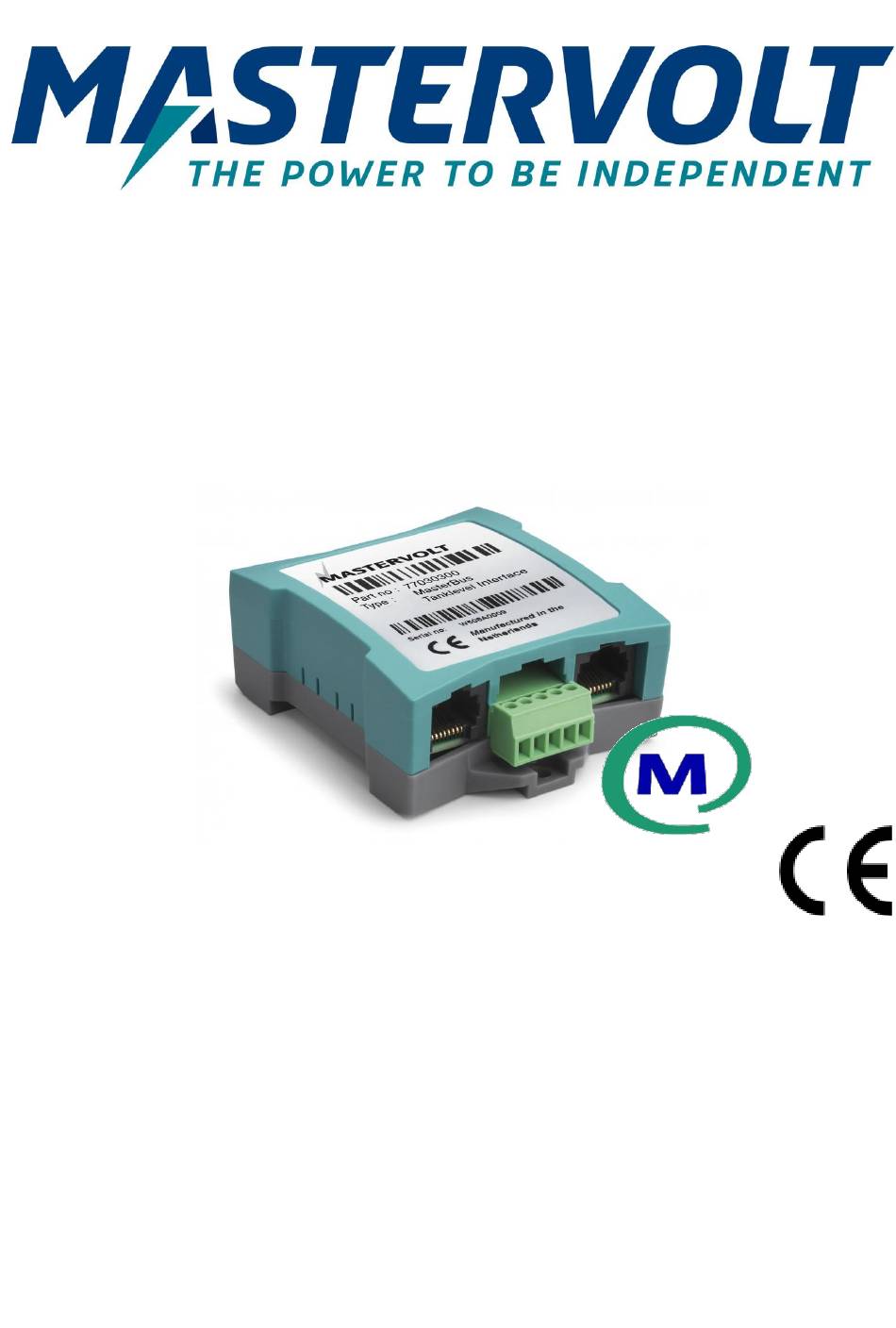

- Page 1 MasterBus Tanklevel Interface Interface between tank level sensor and MasterBus USER AND INSTALLATION MANUAL 10000016386/01...
-
Page 2: General Information
Interface. Keep this manual at a secure place! Warranty Mastervolt assures the product warranty of the Tanklevel Interface during two years after purchase, on the condition that the product is installed and used according to the instructions in this manual. -
Page 3: Installation
Tanklevel Interface – User and Installation Manual 2 INSTALLATION Step 1. Mount the Tanklevel Interface to any flat surface. The Tanklevel Interface comes with a DIN rail mount option. Alternatively, use the two mounting holes. Step 2. Insert the MasterBus cable (included, 1m) to integrate the interface into the MasterBus network. - Page 4 Tanklevel Interface – User and Installation Manual 3 CONFIGURATION Before you start This interface is calibrated by determining at which level the tank is full and at which level it is empty. The interface then calculates the tank level by interpolation. This min/max method of calibration only works for a linear tank, i.e.
- Page 5 Tanklevel Interface – User and Installation Manual Tank Type This option allows for indicating the fluid Fuel Fuel, Fresh water, type contained in the tank or its filling type. Grey water, Black Example: a fresh water tank empties on use water, Empties on use, and a grey water tank fills on use.
-
Page 6: Operation
Tanklevel Interface – User and Installation Manual 4 OPERATION The Tanklevel Interface can monitor any volume level in your system, using any powered or non- powered electric sensor that complies with the specifications. A typical application of this interface is monitoring the water or fuel tank level in a ship. -
Page 7: Specifications
Tanklevel Interface – User and Installation Manual 5 SPECIFICATIONS Model: MasterBus Tanklevel Interface Product code: 77030300 – Screw terminal Delivery also includes: – MasterBus terminator – MasterBus cable (1m) – User manual Battery voltage 0-63 V (< 200 mA), equals to the sensor supply voltage... - Page 8 Customer Service Customer Service Customer Service T: +31 (0) 20 34 22 100 T: +1 800 307 6702, Option 1 T: +64 9 415 7261 Option 1 E: info@mastervolt.com E: orderentry@marinco.com E: enquiries@bepmarine.com Technical Support Technical Support Technical Support T: +31 (0) 20 34 22 100...
