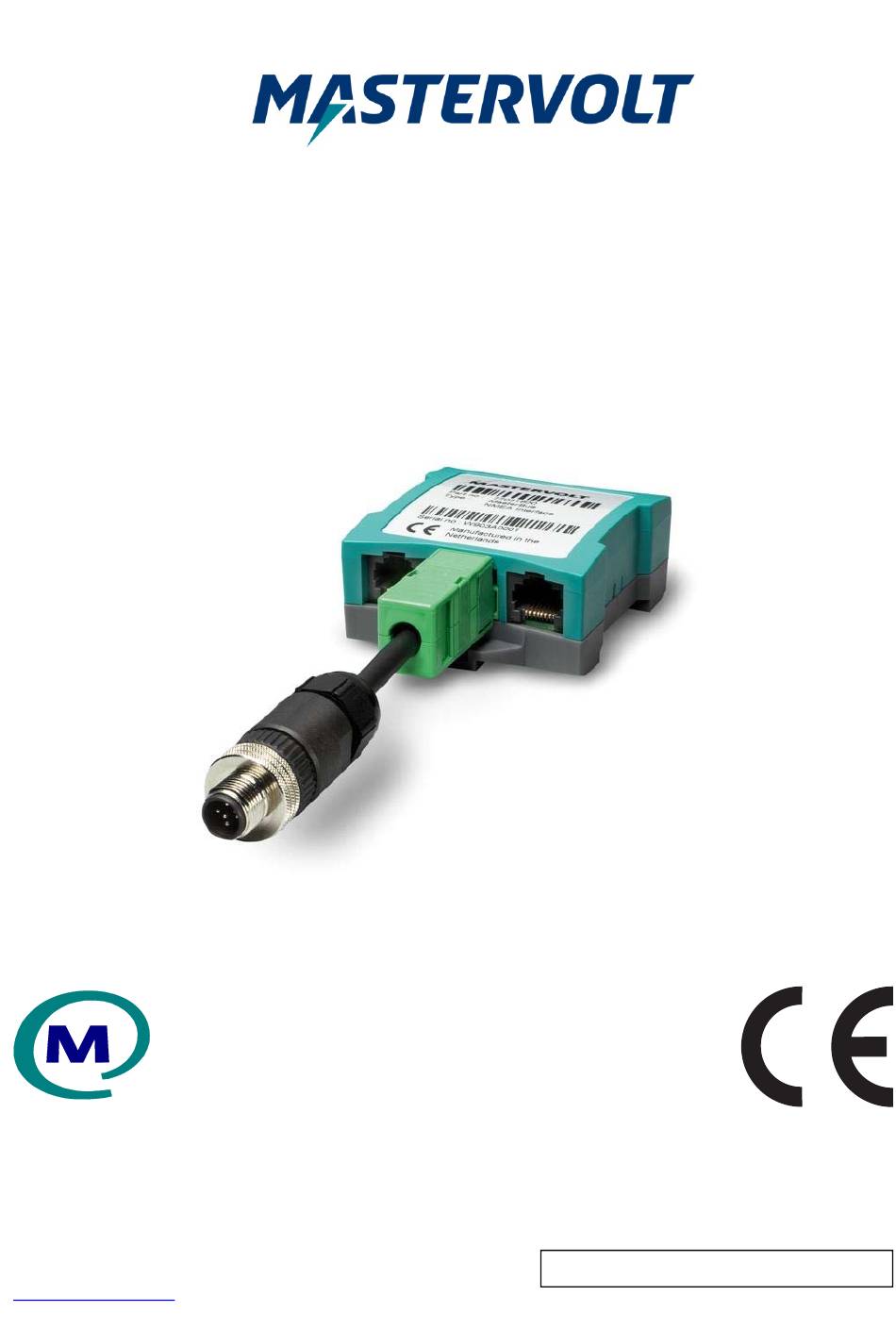

- Page 1 USER’S MANUAL MasterBus Philippi Interface Show your MasterBus products on your Philippi display MASTERVOLT Snijdersbergweg 93, 1105 AN Amsterdam The Netherlands Tel.: +31-20-3422100 ENGLISH: PAGE 1 Fax.: +31-20-6971006 www.mastervolt.com Copyright © 2017 Mastervolt 10000012262_03...
-
Page 2: General Information
Mastervolt products with MasterBus to a Philippi or all of the contents in this document in any form network. MasterBus products can be monitored and without the prior written permission of Mastervolt is configured from a Philippi display system monitor. prohibited. -
Page 3: Installation
3 INSTALLATION This interface is designed to connect a MasterBus network to a Philippi network (PBus). Most of the See figure 3 for the Philippi Interface connections. MasterBus products can now be monitored and controlled from a PSM2 Philippi display. See chapter NOTE: Notice the different configurations of the 4 for a complete list of compatible MasterBus MasterBus and PBus. - Page 4 4 OPERATION OF THE PHILIPPI DISPLAY The Philippi display can be used to control many ChargeMaster different products. The MasterBus products show up in the display just like other Philippi products. The following models can be monitored on the PSM2 display: ...
- Page 5 Mass Combi (Ultra) MLi Battery The following models can be monitored on the The following models can be monitored on the PSM2 display: PSM2 display: Mass Combi Ultra 12/3000 (38013000) MLI Ultra 12/2500 (66012500) Mass Combi Ultra 24/3500 (38023500) ...
-
Page 6: Manual Configuration
6 MANUAL CONFIGURATION In most cases it will not be necessary to do a manual configuration of the Philippi Interface. Only when you have more than six MasterBus devices that can be presented on the PBus, you might want to select yourself which six products are presented on the PBus. -
Page 7: Specifications
SPECIFICATIONS Model: MasterBus – Philippi interface Article number: 77031850 Delivery also includes: Philippi network compatible cable (length: 100mm), MasterBus Terminating device, MasterBus cable (1 meter) User’s manual Function of instrument: Interface between MasterBus network and Philippi network Language: English Current consumption: <40 mA MasterBus Powering: Din rail mounting:... - Page 8 Snijdersbergweg 93, 1105 AN Amsterdam, The Netherlands Tel : + 31-20-3422100 Fax : + 31-20-6971006 Email : info@mastervolt.com...
