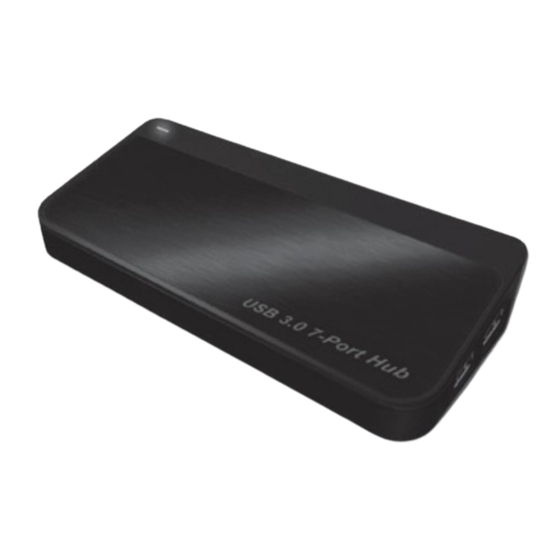

- Page 1 USB 3.2 Gen 1 Hub, 7-Port User's Manual...
-
Page 2: Table Of Contents
Table of Contents Introduction............1 - Features ................ 2 - Package Contents ............2 - System Requirements..........2 Product Overview ..........3 - Panel................3 Installation Verification ........4 Specification ............7 Regulatory Compliance ........9 - FCC Conditions ............9 - CE .................. - Page 3 Before attempting to connect, operate or adjust this product, please save and read the User's Manual completely. The style of the product shown in this User's Manual may be different from the actual unit due to various models. Safety Instructions Always read the safety instructions carefully: ■...
-
Page 4: Introduction
Introduction 3.2 Gen 1 7-Port Hub with power is the ideal solution for transferring data between your computer and external USB storage devices. The main feature of USB 3.2 Gen 1 7-Port Hub is equipped with two power supply ports(BC1.2 Charging ports) and provided power saving mode (five normal ports only). -
Page 5: Features
Features ■ Provide USB 3.2 Gen 1 7-port hub design ■ Backward compatibility with USB 2.0/USB3.0 specification ■ Support Low speed (1.5 Mbps)/ Full speed (12 Mbps)/ High speed (480 Mbps)/ Super speed (5 Gbps) ■ Support auto switching between self-power and bus- power mode Apple ®... -
Page 6: Product Overview
Product Overview Panel Item Description 1 DC Power Jack Connect to the supplied power adapter. 2 USB 3.2 Gen1 Connect to a USB device. Charging Port (two BC1.2 Charging ports) 3 USB 3.2 Gen1 Input Connect to a computer. Port 4 Led indicator 5 USB 3.2 Gen1 Output Connect to a USB device(5 ports) -
Page 7: Installation Verification
Installation Verification Please connect this hub to PC by a USB 3.2 Gen1 cable. The system will detect the device and install the required drivers automatically. After the installation finished, you can go to Device Manager to verify the entire installation. In Windows, expand the item of Universal Serial Bus Controller, the device will be displayed on the list when the device is working properly. - Page 8 Note: If there is a (question) or (exclamation) mark next to that item, then the hub is not properly installed. Please delete the item, unplug the hub and re-plug again.
- Page 9 In Mac, search the item of USB under System Report. OS X 10.8: Follow the path as below to open the Hardware List: Apple Menu on the top corner\About This Mac\More Info\System Report\USB\USB 3.0 SuperSpeed Bus...
-
Page 10: Regulatory Compliance
Regulatory Compliance FCC Conditions This equipment has been tested and found to comply with Part 15 Class B of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received and include interference that may cause undesired operation. - Page 12 USB 3.2 Gen 1 Hub, 7-Port User's Manual SDM V1.0...
