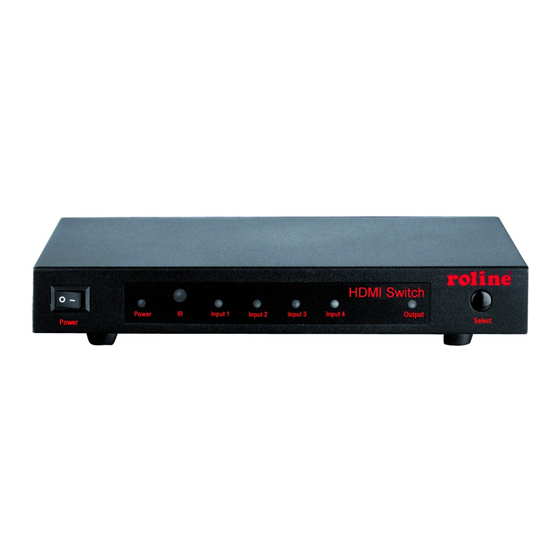

ROLINE HDMI Switch w/Remote Control, 4-way
USER MANUAL

Table Of Contents

1.0
Introduction..............................................................2
2.0 Specifications...................................................... .
2/3
Contents......................................................3
Descriptions.....................................................4
5.0 Connect and Operate.................................................
4
6.0 Troubleshooting.......................................................
5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 14.01.3564 and is the answer not in the manual?

Questions and answers

Summary of Contents for Roline 14.01.3564

  • Page 1 ROLINE HDMI Switch w/Remote Control, 4-way USER MANUAL Table Of Contents Introduction……………………………………………………..2 2.0 Specifications……………………………………………… . 3.0 Package Contents………………………………………….…..3 4.0 Panel Descriptions………………………………………….….4 5.0 Connect and Operate…………………………………………. 6.0 Troubleshooting………………………………………………. 1...
  • Page 2 ROLINE HDMI Switch w/Remote Control, 4-way ROLINE HDMI Switch w/Remote Control, 4-way 14.01.3564 Model No. 1.0 INTRODUCTION The HDMI Switch routes high definition video (in multiple resolutions up to 1080p) and digital audio from any one of the several sources to display units. All the inputs accommodate the connections of the high definition video sources simultaneously, such as satellite systems and HD DVD players.
  • Page 3 ROLINE HDMI Switch w/Remote Control, 4-way 2.0 SPECIFICATIONS Operating Frequency Video Amplifier Bandwidth 2.5Gpbs/250MHz Frequency Up to250MHz Resolutions(HDTV) Interlaced(50&60Hz) 480i,576i,1080i Progressive(50&60Hz) 480p,576p,720p,1080p Mechanical Size(H-W-D) 26mmx99mmx192mm Weight(Net) 500g Environmental 0 ℃ to +70℃ Operating Temperature Operating Humidity 10% to 85 % RH (no condensation) Storage Temperature -10℃...
  • Page 4 ROLINE HDMI Switch w/Remote Control, 4-way 4.0 PANEL DESCRIPTIONS 5.0 CONNECT AND OPERATE 1) Connect the HDMI input source into the HDMI switch. (Input cables are optional) *Please refer to connection diagram section. 2) Insert the DC side of 5v power supply into the switcher and then connect the AC side of the power supply into the wall outlet.
  • Page 5 ROLINE HDMI Switch w/Remote Control, 4-way 6.0 TROUBLESHOOTING If the product doesn’t appear to be functioning, make certain that the source and the destination device connected to the unit are functioning correctly.If there exist another problems,please check the below settlement carefully.
