Summary of Contents for Roline 14.01.3327
-
Page 3: Table Of Contents
Table of Content Introduction .................................1 Overview .............................1 Features ............................1 System Requirements............................2 Console side ..........................2 Computer side ...........................2 Installation ................................2 PC BIOS Notice .........................2 Console Connection ........................3 Computer Connection ......................3 Operations................................4 Front Panel ..........................4 Hotkey Commands ........................5 Rack Mount Kit ..............................7 Appendices ................................8 Specifications ..........................8 Troubleshooting........................9... -
Page 4: Introduction

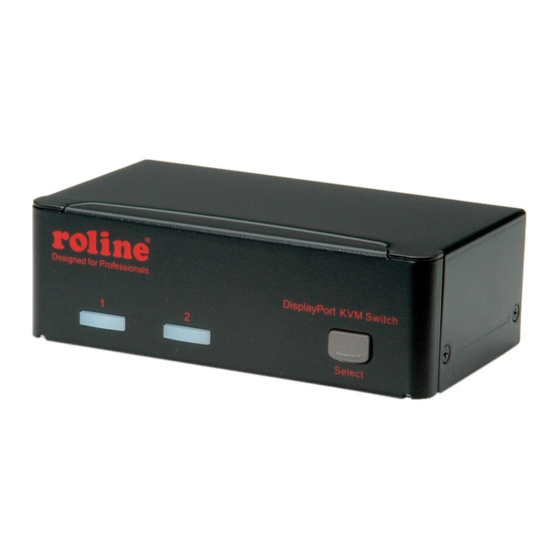

------------------------ Overview DisplayPort KVM Switch (14.01.3327) with hotkey control, fully compatible with USB specification, is the combination of USB KVM switch and USB peripherals sharing device. The DisplayPort display supports the resolution up to UXGA (1600 x 1200), WUXGA (1920 x 1200), Full HD (1920 x 1080p), WQXGA (2560 x 1600). -
Page 5: System Requirements
2. In PNP AND PCI SETUP, set PNP OS INSTALLED to YES and set USB IRQ to ENABLED. Note: 14.01.3327 is applicable for USB keyboard and mouse switching from one computer to the other. If you plan to share other peripherals such as a CCD camera, printer or scanner, it is required to shut down the driver of the computer before switching to another computer. -
Page 6: Console Connection
Console Connection Plug one monitor into the Console's Video port, a USB keyboard into the keyboard icon marked USB port on the Console, and a USB mouse into either of the two Console's USB peripheral ports. If needed, plug an USB peripheral (such as a USB printer) into the other USB peripheral port on the Console side as shown below. -
Page 7: Operations
------------------------ Operations Front Panel LED Indicators The LED turned green when the connected computer is powered-on. Its corresponding LED illuminated red when a connected computer is selected. Push Button A single push button on the front panel is used to switch port between the two connected computers. -
Page 8: Hotkey Commands
Hotkey Commands A Hotkey command is a short keyboard sequence for selecting a computer, activating computer scan, etc. KVM Switch interprets keystrokes for hotkeys all the time. A hotkey sequence starts with two left Ctrl keystrokes ( successively in 0.2 seconds ) followed by one or two more keystrokes. - Page 9 USB-Port Rule There are two options for the USB peripheral port setting on the Console side: When set to 'ON', the USB peripheral port follows computer selection. When set to 'OFF', the USB peripheral port stops following computer selection. Press the hotkey below to alternatively turn ON/OFF the USB Port Rule Press Left Ctrl + Press Left Ctrl + Press F7 Force the USB peripheral port following and staying with the currently selected computer by pressing the following hotkey...
-
Page 10: Rack Mount Kit
------------------------ Rack Mount Kit The figure below shows how to attach optional mounting brackets and cable that support the unit for standard 19-inch rack cabinet. -
Page 11: Appendices
------------------------ Appendices ˙Specifications Specification 14.01.3327 Console Port Computer Port Front panel push button Hot plug-and-play Automatic scan interval 3, 8, 15, 30 seconds Cable Length (Max) 3M(10ft) for USB Computer ON-LINE LED Computer Selected LED USB Type B x 2... -
Page 12: Troubleshooting
˙Troubleshooting Ensure that all cables are well seated and labeled associated with each computer to avoid confusion when connected to the unit. The unit has built-in power protection that works automatically when needed. When it works, USB communication halts and the only way to restart the unit properly is to remove all power sources (USB patch cables and power adapter), wait a few seconds, apply power sources and start again. - Page 13 Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY FOR DIRECT OR INDIRECT, SPECIAL, INCIDENTIAL OR CONSEQUENTIAL DAMAGES, LOSS OF PROFIT, LOSS OF BUSINESS, OR FINANCIAL LOSS WHICH MAY BE CAUSED BY THE USE OF THE PRODUCT EXCEEDS THE PRICE PAID FOR THE PRODUCT.
- Page 16 Package Contents 14.01.3327 2-Port KVM Switch (14.01.3327) User’s manual Rubber foot pad x 1 set PP5-GG4200-041 Printed in Taiwan...
