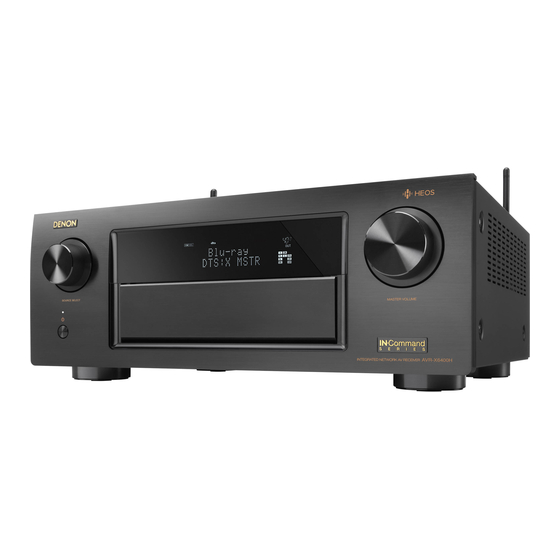

Page 1 Contents Connections Playback Settings Tips Appendix AVR-X6400H INTEGRATED NETWORK AV RECEIVER Owner’s Manual Front panel Display Rear panel Remote Index...
Page 2 Connecting a set-top box (Satellite tuner/cable TV) Part names and functions Connecting a DVD player or Blu-ray Disc player Front panel Connecting a Blu-ray Disc player compatible with the Denon Link Display HD function Rear panel Connecting a video camcorder or game console...
Page 3 Contents Connections Playback Settings Tips Appendix Playback Listening to FM/AM broadcasts Listening to FM/AM broadcasts Basic operation Tuning in by entering the frequency (Direct Tune) Turning the power on Changing the tune mode (Tune Mode) Selecting the input source Tuning in to stations and presetting them automatically (Auto Adjusting the volume Preset Memory) Turning off the sound temporarily (Muting)
Page 4 Contents Connections Playback Settings Tips Appendix Getting the HEOS App Selecting a sound mode HEOS Account Selecting a sound mode Playing from streaming music services Direct playback Listening to the same music in multiple rooms Pure Direct playback AirPlay function Auto surround playback Playing songs from your iPhone, iPod touch or iPad Description of sound mode types...
Page 5 Contents Connections Playback Settings Tips Appendix Audio Speakers Subwoofer Level Adjust Audyssey ® Setup Bass Sync Procedure for speaker settings (Audyssey ® Setup) Surround Parameter Error messages Restorer Retrieving Audyssey ® Setup settings Audio Delay Manual Setup Volume Amp Assign Audyssey ®...
Page 6 Contents Connections Playback Settings Tips Appendix Tips HEOS Account You have not signed in Tips You have already signed in Troubleshooting General Power does not turn on / Power is turned off Language Operations cannot be performed through the remote control unit Display on this unit shows nothing ZONE2 Setup / ZONE3 Setup No sound comes out...
Page 7 Contents Connections Playback Settings Tips Appendix Appendix About HDMI Video conversion function Playing back a USB memory devices Playing back a Bluetooth device Playing back a file saved on a PC or NAS Playing back Internet Radio Personal memory plus function Last function memory Sound modes and channel output Sound modes and surround parameters...
Page 8 Playback Settings Tips Appendix Thank you for purchasing this Denon product. To ensure proper operation, please read this owner’s manual carefully before using the product. After reading this manual, be sure to keep it for future reference. Accessories Check that the following parts are supplied with the product.
Page 9 Contents Connections Playback Settings Tips Appendix Inserting the batteries NOTE 0 To prevent damage or leakage of battery fluid: 0 Do not use a new battery together with an old one. Slide the rear cover off the remote control unit in the 0 Do not use two different types of batteries.
Page 10 Contents Connections Playback Settings Tips Appendix Features DTS Virtual:X (v p. 308) High quality sound DTS Virtual:X technology features DTS’s proprietary virtual height and virtual surround processing to deliver an immersive sound experience With discrete circuit technology, the power amplifier provides from any type of input source (stereo to 7.1.4 channel) and speaker identical quality for all 11-channels (175 Watts x 11-channels) configuration.
Page 11 HD” (v p. 312) This unit is equipped with our exclusive “Denon Link HD” technology. When connected to a Denon disc player that has Denon Link HD, the sound localization becomes more precise, with increased detail and definition. The system works by carrying the critical clock timing signals via the dedicated Denon Link HD connection, minimizing the jitter caused by conventional digital connections.
Page 12 Contents Connections Playback Settings Tips Appendix Auro-3D This unit is equipped with an Auro-3D decoder. With Auro-3D, Front Height (FHL + FHR), Surround Height (SHL + SHR) and Top Surround (TS/optional) are added to a conventional 5.1-channel system to achieve a natural and realistic sound field that is three-dimensional and fully immersive. You will be able to fully enjoy Auro-3D playback if you properly place the speakers for Auro-3D.
Page 13 Contents Connections Playback Settings Tips Appendix Digital video processor upscales analog video signals (SD High performance resolution) to HD (720p/1080p) and 4K (v p. 194) 4K 60Hz input/output supported Up to 1080p Up scaling This unit is equipped with a 4K video upscaling function that allows When 4K Ultra HD (High Definition) is used, an input/output speed of 60 analog video or SD (Standard Definition) video to be output via HDMI at frames per second (60p) is achieved for video signals.
Page 14 Contents Connections Playback Settings Tips Appendix HDMI connections enable connection to various digital AV The device is equipped with a AirPlay ® function in addition to devices (8 inputs, 3 outputs) network functions such as Internet radio etc. (v p. 126) You can enjoy a wide variety of content, including listening to Internet For connection to a broad range of digital sources, this unit features 8 Radio, playing audio files stored on your PC.
Page 15 Contents Connections Playback Settings Tips Appendix Playback of DSD and FLAC files via USB and networks Multi-Room audio (v p. 138) This unit supports the playback of high resolution audio formats such as 【MAIN ZONE】【ZONE2】/【ZONE3】 DSD (5.6 MHz) and FLAC 192 kHz files. It provides high quality playback of high resolution files.
Page 16 HEOS App (available for iOS, z Download the appropriate “Denon 2016 AVR Remote” App for your iOS or Android and Amazon devices), you can explore, browse, and play Android devices. This unit needs to be connected to the same LAN or Wi-Fi music from your own music library or from many online streaming music (wireless LAN) network that the iPhone or iPod touch is connected to.
Page 17 Contents Connections Playback Settings Tips Appendix Easy operation “Setup Assistant” provides easy-to-follow setup instructions First select the language when prompted. Then simply follow the instructions displayed on the TV screen to set up the speakers, network, etc. Easy to use Graphical User Interface This unit is equipped with a Graphical User Interface for improved operability.
Page 18 Contents Connections Playback Settings Tips Appendix Part names and functions Front panel For details, see the next page. Front panel Display Rear panel Remote Index...
Page 19 Contents Connections Playback Settings Tips Appendix C SOURCE SELECT knob This selects the input source. (v p. 92) D Remote control sensor This receives signals from the remote control unit. (v p. 9) E Display This displays various pieces of information. (v p. 22) F MASTER VOLUME knob This adjusts the volume level.
Page 20 Contents Connections Playback Settings Tips Appendix With the door open E STATUS button Each press of this switches the status information that is shown on the display. r t y u F Information button (INFO) This displays the status information on the TV screen. (v p. 253) G Cursor buttons (uio p) These select items.
Page 21 Contents Connections Playback Settings Tips Appendix N BACK button This returns to the previous screen. O ENTER button This determines the selection. P SETUP button This displays the menu on the TV screen. (v p. 170) Q AUX1 INPUT connectors Used to connect analog output compatible devices such as video Q3 Q4 camcorders and game consoles.
Page 22 Contents Connections Playback Settings Tips Appendix Display A Input signal indicators D Tuner reception mode indicators The respective indicator will light corresponding to the input signal. These light up according to the reception conditions when the input (v p. 203) source is set to “Tuner”.
Page 23 Contents Connections Playback Settings Tips Appendix L Input/output signal channel indicators The channel for input/output signals is displayed according to the setting configured for “Channel Indicators”. (v p. 249) When “Channel Indicators” is set to “Output” (Default) These light when audio signals are being output from the speakers. When “Channel Indicators”...
Page 24 Contents Connections Playback Settings Tips Appendix Rear panel e r t For details, see the next page. Front panel Display Rear panel Remote Index...
Page 25 Settings Tips Appendix B Denon Link HD connector Used to connect a Denon Link HD compatible Blu-ray Disc player. (v p. 80) C SIGNAL GND terminal Used to connect a ground wire for the turntable. (v p. 82) D Analog audio connectors (AUDIO) Used to connect devices equipped with analog audio connectors.
Page 26 “Connecting a set-top box (Satellite tuner/cable TV)” (v p. 78) C Check that the unit is in the standby mode. “Connecting a DVD player or Blu-ray Disc player” (v p. 79) “Connecting a Blu-ray Disc player compatible with the Denon Link HD function” (v p. 80) Front panel...
Page 27 Contents Connections Playback Settings Tips Appendix N PRE OUT connectors Used to connect a subwoofer with built-in amplifier or an external power amplifier. “Connecting the subwoofer” (v p. 41) “Connecting ZONE” (v p. 159) O Video connectors (VIDEO) Used to connect devices equipped with video connectors. “Connection 3 : TV equipped without an HDMI connector”...
Page 28 Contents Connections Playback Settings Tips Appendix Remote control unit A AVR operation buttons (AVR CONTROL MAIN, Z2, Z3) These switch the zone (MAIN ZONE, ZONE2, ZONE3) that is operated through the remote control unit. AVR CONTROL AVR CONTROL POWER POWER “Playback in ZONE2/ZONE3”...
Page 29 Contents Connections Playback Settings Tips Appendix G MUTE button (:) This mutes the output audio. “Turning off the sound temporarily (Muting)” (v p. 93) “Turning off the sound temporarily (Muting) (ZONE2/ AVR CONTROL AVR CONTROL ZONE3)” (v p. 165) POWER POWER Z 2 MAIN...
Page 30 Contents Connections Playback Settings Tips Appendix N POWER button (X) This turns the power on/off. “Turning the power on” (v p. 92) “Playback in ZONE2/ZONE3” (v p. 164) AVR CONTROL AVR CONTROL POWER POWER O TV operation buttons (TV X / TV MENU / TV INPUT) Z 2 MAIN MAIN...
Page 31 Contents Connections Playback Settings Tips Appendix o Contents o Cables used for connections Provide necessary cables according to the devices you want to Speaker installation connect. Connecting speakers Connecting a TV Speaker cable Connecting a playback device Connecting a USB memory device to the USB port Connecting an FM/AM antenna Subwoofer cable Connecting to a home network (LAN)
Page 32 Contents Connections Playback Settings Tips Appendix Speaker installation Determine the speaker system depending on the number of speakers you Place the FRONT left and right speakers an are using and install each speaker and subwoofer in the room. FL/FR equal distance from the main listening position. Speaker installation is explained using this example of a typical (Front speaker left/ The distance between each speaker and your TV...
Page 33 Contents Connections Playback Settings Tips Appendix Place the FRONT HEIGHT left and right speakers FHL/FHR directly above the front speakers. Mount them as (Front height speaker close to the ceiling as possible and aim them left/right): towards the main listening position. Mount the TOP FRONT left and right speakers on TFL/TFR the ceiling slightly in front of your main listening...
Page 34 Contents Connections Playback Settings Tips Appendix SHL/SHR Place the SURROUND HEIGHT left and right (Surround height speakers directly above the surround speakers. speaker left/right): Place the TOP SURROUND speaker directly (Top surround above the main listening position and aligned with speaker): the center channel speaker.
Page 35 Contents Connections Playback Settings Tips Appendix About Dolby Atmos Enabled speakers Dolby Atmos Enabled speakers reflect the sound off the ceiling to allow the sound to come from over your head by using a special upward- pointing speaker that is placed on the floor. You can enjoy the Dolby Atmos 3D sound even in an environment where speakers cannot be installed on the ceiling.
Page 36 Contents Connections Playback Settings Tips Appendix Height speakers layout 0 This unit is compatible with Dolby Atmos and DTS:X which offers an even wider and deeper surround sensation. 0 Dolby Atmos is not supported in a 5.1-channel or less speaker configuration. 0 DTS:X can be selected regardless of the speaker configuration.
Page 37 Contents Connections Playback Settings Tips Appendix o When 7.1-channel speakers are installed using o When 5.1-channel speakers are installed surround back speakers SW C SW C z1 22° - 30° z2 120° Listening position z1 22° - 30° z2 90° - 110° z3 135° - 150° 0 When using a single surround back speaker, place it directly behind the listening position.
Page 38 Contents Connections Playback Settings Tips Appendix o Layout including height speakers and ceiling n Ceiling speaker layout example speakers Combination of 5.1-channel layout and top front/top rear speakers. n Height speaker layout example Combination of 5.1-channel layout and front height/rear height speakers.
Page 39 Contents Connections Playback Settings Tips Appendix n Dolby Atmos Enabled speaker layout example n Auro-3D layout example Combination of 5.1-channel layout and front Dolby/surround Dolby Combination of 5.1-channel speakers with Front Height/Surround speakers. Height/Top Surround speakers. 0 For the best Auro-3D experience Surround Height speakers are recommended, however you may substitute Rear Height speakers from a Dolby Atmos speaker setup in place of Surround Height speakers.
Page 40 Contents Connections Playback Settings Tips Appendix Connecting speakers Here we connect the speakers in the room to this unit. Before connecting speakers NOTE NOTE 0 Disconnect this unit’s power plug from the power outlet before connecting the 0 Carry out the following settings when using a speaker with an impedance of 4 – 6 speakers.
Page 41 Contents Connections Playback Settings Tips Appendix o Connecting the speaker cables o Connecting the subwoofer Carefully check the left (L) and right (R) channels and + (red) and – Use a subwoofer cable to connect the subwoofer. Two subwoofers can (black) polarities on the speakers being connected to this unit, and be be connected to this unit.
Page 42 Contents Connections Playback Settings Tips Appendix o About the cable labels (supplied) for channel identification The channel display section for speaker terminals on the rear panel is color-coded for each channel to be identifiable. Attach the cable label corresponding to each speaker to each speaker cable. This makes it easy to connect the correct cable to the speaker terminals on the rear panel.
Page 43 Contents Connections Playback Settings Tips Appendix Attach the cable label for each channel to its speaker cable as shown in the diagram. Refer to the table and attach the label to each speaker cable. Then, make connection so that the color of the speaker terminal matches that of the cable label.
Page 44 Contents Connections Playback Settings Tips Appendix Speaker configuration and “Amp Assign” settings This unit has a built-in 11-channel power amplifier. In addition to the basic 5.1-channel system, a variety of speaker systems can be configured by changing the “Amp Assign” settings to suit the application, such as 7.1-channel systems, bi-amp connections and 2-channel systems for multi-zone playback.
Page 45 Contents Connections Playback Settings Tips Appendix Refer to the example connection for “Example connection for the Auro-3D 9.1-channel system” (v p. 57) when playing Auro-3D with a 9.1- channel system using the basic 5.1-channel system and the front height 0 In addition to the connections described in p.46 - 71, this unit allows for various and surround height speakers.
Page 46 Contents Connections Playback Settings Tips Appendix Connecting 5.1-channel speakers This serves as a basic 5.1-channel surround system. FRONT FRONT CENTER SURROUND SURROUND SURROUND BACK SURROUND BACK SPEAKERS Front panel Display Rear panel Remote Index...
Page 47 Contents Connections Playback Settings Tips Appendix Connecting 7.1-channel speakers o Example connections when using surround back speakers This 7.1-channel surround system is the same as a basic 5.1-channel system but with surround back speakers. FRONT FRONT CENTER SURROUND SURROUND SURROUND BACK SURROUND BACK ASSIGNABLE SPEAKERS...
Page 48 Contents Connections Playback Settings Tips Appendix o Example connections when using ceiling speakers This 7.1-channel surround system is the same as a basic 5.1-channel system but with ceiling speakers. FRONT FRONT CENTER SURROUND SURROUND SURROUND BACK SURROUND BACK ASSIGNABLE SPEAKERS TMR TML 0 Set “Floor”...
Page 49 Contents Connections Playback Settings Tips Appendix o Example connections when using height speakers This 7.1-channel surround system is the same as a basic 5.1-channel system but with front height speakers. FRONT FRONT CENTER SURROUND SURROUND SURROUND BACK SURROUND BACK ASSIGNABLE SPEAKERS FHR FHL 0 Set “Floor”...
Page 50 Contents Connections Playback Settings Tips Appendix o Example connections when using Dolby Atmos Enabled speakers This 7.1-channel surround system is the same as a basic 5.1-channel system but with front Dolby speakers. FRONT FRONT CENTER SURROUND SURROUND SURROUND BACK SURROUND BACK ASSIGNABLE SPEAKERS FDR FDL 0 Set “Floor”...
Page 51 Contents Connections Playback Settings Tips Appendix Connecting 9.1-channel speakers o Example connection when using one set of ceiling speakers FRONT FRONT CENTER SURROUND SURROUND SURROUND BACK SURROUND BACK ASSIGNABLE ASSIGNABLE SPEAKERS SBR SBL TMR TML HEIGHT 1 z The top front or top rear speakers can be connected instead of the top middle 0 Set “Height”...
Page 52 Contents Connections Playback Settings Tips Appendix o Example connection when using two sets of ceiling speakers FRONT FRONT CENTER SURROUND SURROUND SURROUND BACK SURROUND BACK ASSIGNABLE ASSIGNABLE SPEAKERS TRR TRL HEIGHT 1 HEIGHT 2 z You can change the combination of the HEIGHT1 and HEIGHT2 channels in the 0 Set “Floor”...
Page 53 Contents Connections Playback Settings Tips Appendix o Example connection when using one set of height speakers FRONT FRONT CENTER SURROUND SURROUND SURROUND BACK SURROUND BACK ASSIGNABLE ASSIGNABLE SPEAKERS FHR FHL SBR SBL HEIGHT 1 z The rear height speakers can be connected instead of the front height speakers. 0 Set “Height”...
Page 54 Contents Connections Playback Settings Tips Appendix o Example connection when using two sets of height speakers FRONT FRONT CENTER SURROUND SURROUND SURROUND BACK SURROUND BACK ASSIGNABLE ASSIGNABLE SPEAKERS FHR FHL RHR RHL HEIGHT 1 HEIGHT 2 z You can change the combination of the HEIGHT1 and HEIGHT2 channels in the 0 Set “Floor”...
Page 55 Contents Connections Playback Settings Tips Appendix o Example connection when using one set of Dolby Atmos Enabled speakers FRONT FRONT CENTER SURROUND SURROUND SURROUND BACK SURROUND BACK ASSIGNABLE ASSIGNABLE SPEAKERS SBR SBL FDR FDL HEIGHT 1 z The surround Dolby speakers can be connected instead of the front Dolby 0 Set “Height”...
Page 56 Contents Connections Playback Settings Tips Appendix o Example connection when using two sets of Dolby Atmos Enabled speakers FRONT FRONT CENTER SURROUND SURROUND SURROUND BACK SURROUND BACK ASSIGNABLE ASSIGNABLE SPEAKERS FDR FDL SDR SDL HEIGHT 1 HEIGHT 2 z You can change the combination of the HEIGHT1 and HEIGHT2 channels in the 0 Set “Floor”...
Page 57 Contents Connections Playback Settings Tips Appendix o Example connection for the Auro-3D 9.1-channel system This speaker configuration is optimized for Auro-3D playback. FRONT FRONT CENTER SURROUND SURROUND SURROUND BACK SURROUND BACK ASSIGNABLE ASSIGNABLE SPEAKERS FHR FHL SHR SHL HEIGHT 1 HEIGHT 2 z 1 z 2 z1 You can change the combination of the HEIGHT1 and HEIGHT2 channels in...
Page 58 Contents Connections Playback Settings Tips Appendix Channels output from the HEIGHT1 and HEIGHT2 speaker terminals can be changed to the following patterns according to the speaker systems being used. Set this from “Amp Assign” in the menu. (v p. 215) Combination of height speakers to be used Connected terminals Number of height/...
Page 59 Contents Connections Playback Settings Tips Appendix Connecting 11.1-channel speakers This system, which is based on a 5.1-channel system, plays back up to 11.1-channels at the same time. o Example connection when using two sets of ceiling speakers FRONT FRONT CENTER SURROUND SURROUND SURROUND BACK...
Page 60 Contents Connections Playback Settings Tips Appendix o Example connection when using two sets of height speakers FRONT FRONT CENTER SURROUND SURROUND SURROUND BACK SURROUND BACK ASSIGNABLE ASSIGNABLE ASSIGNABLE SPEAKERS SBR SBL FHR FHL RHR RHL HEIGHT 1 HEIGHT 2 z You can change the combination of the HEIGHT1 and HEIGHT2 channels in the 0 Set “Height”...
Page 61 Contents Connections Playback Settings Tips Appendix o Example connection when using two sets of Dolby Atmos Enabled speakers FRONT FRONT CENTER SURROUND SURROUND SURROUND BACK SURROUND BACK ASSIGNABLE ASSIGNABLE ASSIGNABLE SPEAKERS SBR SBL FDR FDL SDR SDL HEIGHT 1 HEIGHT 2 z You can change the combination of the HEIGHT1 and HEIGHT2 channels in the 0 Set “Height”...
Page 62 Contents Connections Playback Settings Tips Appendix o Example connection for the Auro-3D 10.1-channel system This speaker configuration is optimized for Auro-3D playback. Power amplifier FRONT FRONT CENTER SURROUND SURROUND SURROUND BACK SURROUND BACK ASSIGNABLE ASSIGNABLE SPEAKERS 0 Set “Height” - “Height Sp” to “5ch” in the menu when connecting in this configuration.
Page 63 Contents Connections Playback Settings Tips Appendix The combination of the HEIGHT1 and HEIGHT2 channels can be changed to the following patterns according to the speaker system being used. Set this from “Amp Assign” in the menu. (v p. 215) Combination of height speakers to be used Connected terminals Number of height/ Number of Dolby...
Page 64 Contents Connections Playback Settings Tips Appendix Combination of height speakers to be used Connected terminals SUBWOOFER2 Number of height/ Number of Dolby PRE OUT or Combination pattern HEIGHT1 SPEAKER HEIGHT2 SPEAKER ceiling speakers Speakers SURROUND BACK L SPEAKER z2 Front Height & Surr. Height & Top Front Height Surround Height Top Surround...
Page 65 Contents Connections Playback Settings Tips Appendix Bi-amp connection o 9.1-channel playback (bi-amp connection of front speakers) This system plays back 9.1-channels. You can use the bi-amp connection for front speakers. Bi-amp connection is a method to connect separate amplifiers to the tweeter terminal and woofer terminal of a speaker that supports bi-amplification. This connection enables back EMF (power returned without being output) from the woofer to flow into the tweeter without affecting the sound quality, producing a higher sound quality.
Page 66 Contents Connections Playback Settings Tips Appendix o 5.1-channel playback : Bi-amp connection of front, center and surround speakers This system plays back 5.1 channels. You can use the bi-amp connection for all front, center and surround speakers. (Bi-Amp) (Bi-Amp) FRONT FRONT CENTER SURROUND...
Page 67 Contents Connections Playback Settings Tips Appendix Connecting 9.1-channel speakers: Second pair of front speakers This system enables switching playback between front speakers A and B as desired. (B) (A) (A) (B) FRONT FRONT CENTER SURROUND SURROUND SURROUND BACK SURROUND BACK ASSIGNABLE ASSIGNABLE ASSIGNABLE SPEAKERS SBR SBL FHR FHL...
Page 68 Contents Connections Playback Settings Tips Appendix Connecting multi-zone speakers o 9.1-channel playback (MAIN ZONE) + 2-channel playback (ZONE2 or ZONE3) This type of configuration plays back 9.1-channels in MAIN ZONE and 2-channels in ZONE2. (Speakers can output audio from ZONE3 instead of ZONE2 (Assign Mode: 9.1ch + ZONE3)). MAIN ZONE FRONT FRONT...
Page 69 Contents Connections Playback Settings Tips Appendix o 7.1-channel playback (bi-amp connection of front speakers: MAIN ZONE) + 2-channel playback (ZONE2) This type of configuration plays back 7.1-channels in MAIN ZONE and 2-channels in ZONE2. You can use the bi-amp connection for front speakers in MAIN ZONE.
Page 70 Contents Connections Playback Settings Tips Appendix o 7.1-channel playback (MAIN ZONE) + 2-channel playback (ZONE2) + 2-channel playback (ZONE3) This type of configuration plays back 7.1-channels in MAIN ZONE and 2-channels in ZONE2 and ZONE3. MAIN ZONE FRONT FRONT CENTER SURROUND SURROUND SURROUND BACK...
Page 71 Contents Connections Playback Settings Tips Appendix o 9.1-channel playback (MAIN ZONE) + 1-channel playback (ZONE2) + 1-channel playback (ZONE3) This type of configuration plays back 9.1-channels in MAIN ZONE and 1-channel (monaural) in ZONE2 and ZONE3. MAIN ZONE FRONT FRONT CENTER SURROUND SURROUND...
Page 72 Contents Connections Playback Settings Tips Appendix o Connecting an external power amplifier You can use this unit as a pre-amp by connecting an external power amplifier to the PRE OUT connectors. By adding a power amplifier to each channel, the realness of the sound can be further enhanced. Select the terminal to use and connect the device.
Page 73 Contents Connections Playback Settings Tips Appendix Connecting a TV Connect a TV to this unit so that the input video is output to the TV. You can also enjoy audio from the TV on this unit. How to connect a TV depends on the connectors and functions equipped on the TV. ARC (Audio Return Channel) function plays TV audio on this unit by sending the TV audio signal to this unit via HDMI cable.
Page 74 Contents Connections Playback Settings Tips Appendix Connection 1 : TV equipped with an HDMI connector and compatible with the ARC (Audio Return Channel) Use an HDMI cable to connect a TV that is compatible with the ARC function to this unit. Set “HDMI Control”...
Page 75 Contents Connections Playback Settings Tips Appendix Connection 2 : TV equipped with an HDMI connector and incompatible with the ARC (Audio Return Channel) Use an HDMI cable to connect the TV to this unit. To listen to audio from TV on this unit, use an optical cable to connect the TV to this unit. OPTICAL HDMI Front panel...
Page 76 Contents Connections Playback Settings Tips Appendix Connection 3 : TV equipped without an HDMI connector Use a component video or a video cable to connect the TV to this unit. To listen to audio from TV on this unit, use an optical cable to connect the TV to this unit. OPTICAL VIDEO COMPONENT VIDEO...
Page 77 “Connecting a set-top box (Satellite tuner/cable TV)” (v p. 78) “Connecting a DVD player or Blu-ray Disc player” (v p. 79) “Connecting a Blu-ray Disc player compatible with the Denon Link HD function” (v p. 80) “Connecting a video camcorder or game console” (v p. 81) “Connecting a turntable”...
Page 78 Contents Connections Playback Settings Tips Appendix Connecting a set-top box (Satellite tuner/cable TV) This explanation uses the connection with a satellite tuner/cable TV STB as an example. Select the input connectors on this unit to match the connectors on the device that you want to connect to. (HDMI incompatible device) Satellite tuner/ Satellite tuner/...
Page 79 COMPONENT VIDEO AUDIO COAXIAL HDMI HDMI 0 When connecting a Blu-ray Disc player that is compatible with Denon Link HD, see “Connecting a Blu-ray Disc player compatible with the Denon Link HD function” (v p. 80). Front panel Display Rear panel...
Page 80 Connecting a Blu-ray Disc player compatible with the Denon Link HD function By making a Denon Link HD connection to a player compatible with the Denon Link HD function, you can enjoy higher quality playback compared with when only the HDMI connector connection is made.
Page 81 Contents Connections Playback Settings Tips Appendix Connecting a video camcorder or game console This explanation uses the connection with a video camcorders as an example. Connect a playback device to this unit, such as a video camcorder or game console. (HDMI incompatible device) Video Video camcorder...
Page 82 Contents Connections Playback Settings Tips Appendix Connecting a turntable This unit is compatible with turntables equipped with a moving magnet (MM) phono cartridge. When you connect to a turntable with a low output moving coil (MC) cartridge, use a commercially available MC head amp or a step-up transformer. If you set this unit’s input source to “Phono”...
Page 83 USB memory device 0 Denon does not guarantee that all USB memory devices will operate or receive power. When using a portable USB hard disk drive (HDD) which came with an AC adapter, use that device’s supplied AC adapter. NOTE 0 USB memory devices will not work via a USB hub.
Page 84 Contents Connections Playback Settings Tips Appendix Connecting an FM/AM antenna Connect the antenna, tune in to a broadcast and then move the antenna to AM loop antenna the location where there is least noise. Then use tape, etc. to fix the (supplied) antenna in this location.
Page 85 Contents Connections Playback Settings Tips Appendix o AM loop antenna assembly o Using the AM loop antenna Suspending on a wall Put the stand section through the bottom of the loop Suspend directly on a wall without assembling. antenna from the rear and bend it forward. Insert the projecting part into the square hole in the stand.
Page 86 Contents Connections Playback Settings Tips Appendix Connecting to a home network (LAN) This unit can connect to a network using a wired LAN or wireless LAN. Wired LAN You can connect this unit to your home network (LAN) to enable various types of playback and operations as described below.
Page 87 Contents Connections Playback Settings Tips Appendix Wireless LAN 0 When using this unit, we recommend you use a router equipped with the following When connecting to the network via wireless LAN, connect the external functions: antennas for Bluetooth/wireless connectivity connection to the rear panel 0 Built-in DHCP server and stand them upright.
Page 88 Contents Connections Playback Settings Tips Appendix Connecting an external control device REMOTE CONTROL jacks When this unit is installed in a location where the remote control signals cannot reach (installation in a cabinet etc.), it can still be controlled by the remote control by connecting a remote control receiver unit (sold separately).
Page 89 Contents Connections Playback Settings Tips Appendix TRIGGER OUT jacks When a device with TRIGGER IN jack is connected, the connected device’s power on/standby can be controlled through linked operation to this unit. The TRIGGER OUT jack outputs a maximum 12 V DC/150 mA electrical signal. 12 V DC/150 mA trigger-compatible device NOTE 0 Use a monaural mini-plug cable for connecting the TRIGGER OUT jacks.
Page 90 Contents Connections Playback Settings Tips Appendix Connecting the power cord After completing all the connections, insert the power plug into the power outlet. Power cord (supplied) To household power outlet (AC 120 V, 60 Hz) Front panel Display Rear panel Remote Index...
Page 91 Contents Connections Playback Settings Tips Appendix o Contents Playback network audio/service Listening to Internet Radio Basic operation Playing back files stored on a PC or NAS Turning the power on Getting the HEOS App Selecting the input source AirPlay function Adjusting the volume Spotify Connect function Turning off the sound temporarily (Muting)
Page 92: Input Source
Contents Connections Playback Settings Tips Appendix Basic operation Turning the power on POWER X AVR CONTROL AVR CONTROL POWER POWER Press POWER X to turn on power to the unit. Z 2 MAIN MAIN DEV. V. DEVICE DEVICE 0 You can press the input source select button when the unit is in standby mode to MENU MENU MENU...
Page 93 Contents Connections Playback Settings Tips Appendix Adjusting the volume Playback a DVD player/Blu-ray Disc player Use VOLUME df to adjust the volume. The following describes the procedure for playing DVD player/Blu-ray Disc player. 0 The variable range differs according to the input signal and channel level setting. Prepare for playback.
Page 94 Contents Connections Playback Settings Tips Appendix Playing a USB memory device Playing back music files stored on a USB memory device. Only USB memory devices conforming to mass storage class standards can be played on this unit. This unit is compatible with USB memory devices in “FAT16” or AVR CONTROL AVR CONTROL POWER...
Page 95 Contents Connections Playback Settings Tips Appendix Playing files stored on USB memory Browse the music on your USB memory device and devices select something to play. Insert a FAT32 formatted USB memory device into the 0 When you select something to play you will be asked how you want to USB port.
Page 96 2:45 -2:21 NOTE 0 Note that Denon will accept no responsibility whatsoever for any problems arising with the data on a USB memory device when using this unit in conjunction with the USB memory device. Front panel...
Page 97 Contents Connections Playback Settings Tips Appendix o Operations accessible through the option menu “Adjusting the audibility of dialog and vocals (Dialog Enhancer)” (v p. 133) “Adjusting the volume of each channel to match the input source (Channel Level Adjust)” (v p. 134) “Adjusting the tone (Tone)”...
Page 98 Contents Connections Playback Settings Tips Appendix Listening to music on a Bluetooth device Music files stored on Bluetooth devices such as smartphones, digital music players, etc. can be enjoyed on this unit by pairing and connecting this unit with the Bluetooth device. Communication is possible up to a range of about 98.4 ft/30 m.
Page 99 Contents Connections Playback Settings Tips Appendix Playing music from Bluetooth device Activate the Bluetooth settings on your mobile device. In order to enjoy music from a Bluetooth device on this unit, the Bluetooth Select this unit when its name appears in the list of device must first be paired with this unit.
Page 100 Contents Connections Playback Settings Tips Appendix Operation buttons Function Playback Pause Stop Skip to previous track / Skip to next track 0 Press STATUS on this unit during playback to switch the display between Title name, Artist name, Album name, etc. Front panel Display Rear panel...
Page 101 Contents Connections Playback Settings Tips Appendix Pairing with other Bluetooth devices NOTE 0 To operate the Bluetooth device with the remote control of this unit, the Bluetooth Pair a Bluetooth device with this unit. device needs to support the AVRCP profile. 0 The remote control of this unit is not guaranteed to work with all Bluetooth devices.
Page 102 Contents Connections Playback Settings Tips Appendix Reconnecting to this unit from a Bluetooth device After pairing is completed, the Bluetooth device can be connected without performing any operations on this unit. This operation also needs to be performed when switching the Bluetooth device for playback.
Page 103 Contents Connections Playback Settings Tips Appendix Listening to FM/AM broadcasts You can use the built-in tuner of this unit to listen to FM broadcasts and AM broadcasts. Make sure the FM antenna and AM loop antenna are connected to this unit first.
Page 104 Contents Connections Playback Settings Tips Appendix Listening to FM/AM broadcasts Use o p to select “FM” or “AM”, then press ENTER. When listening to an FM broadcast. Connect the antenna. (“Connecting an FM/AM antenna” (v p. 84)) When listening to an AM broadcast. Press TUNER to switch the input source to “Tuner”.
Page 105 Contents Connections Playback Settings Tips Appendix o Operations accessible through the option Tuning in by entering the frequency menu (Direct Tune) “Tuning in by entering the frequency (Direct Tune)” (v p. 105) You can enter the receiving frequency directly to tune in. “Changing the tune mode (Tune Mode)”...
Page 106 Contents Connections Playback Settings Tips Appendix Changing the tune mode (Tune Mode) Tuning in to stations and presetting them automatically (Auto Preset You can change the mode for tuning into FM and AM broadcasts. If you Memory) cannot tune in automatically with “Auto” mode, change the mode to “Manual”...
Page 107 Contents Connections Playback Settings Tips Appendix Presetting the current broadcast Channel Default settings 92.10 / 92.30 / 92.50 / 92.70 / 93.10 / 93.50 / 93.70 / 94.10 station (Preset Memory) 1 – 8 94.30 / 94.50 / 94.70 / 94.90 / 95.10 / 95.30 / 95.50 / 95.70 Your favorite broadcast stations can be preset so that you can tune them 9 –...
Page 108 Contents Connections Playback Settings Tips Appendix Specify a name for the preset Use ui to select a name label, then press ENTER. broadcast station (Preset Name) The screen that lets you edit the Preset Name is displayed. If you select “Set Defaults”, then the unit returns to displaying the You can set the name to the preset broadcast station or change it.
Page 109 Contents Connections Playback Settings Tips Appendix Skipping preset broadcast stations To set the stations you want to skip by stations (Preset Skip) A Use o p to select the group of broadcast stations you want to skip. Perform auto preset memory to save all the broadcasting stations that can B Use ui to select the broadcast station you want to skip.
Page 110 Contents Connections Playback Settings Tips Appendix Cancelling Preset Skip While the “Preset Skip” screen is displayed, use o p to select a group containing a broadcast station to cancel the skip for. Use ui to select a broadcast station to cancel the skip for.
Page 111 Contents Connections Playback Settings Tips Appendix Listening to Internet Radio Internet Radio refers to radio broadcasts distributed over the Internet. Internet Radio stations from around the world can be received. The Internet Radio station list on this unit the database service provided by TuneIn Radio service.
Page 112 Contents Connections Playback Settings Tips Appendix Listening to Internet Radio 0 The display switches between track title and radio station name etc. each time the main unit’s STATUS is pressed. Press INTERNET RADIO. You can also press R (HEOS Music). Use ui to select “TuneIn NOTE Internet Radio”, then press ENTER.
Page 113 Contents Connections Playback Settings Tips Appendix Playing back files stored on a PC or NAS This unit can play back music files and playlists (m3u, wpl) from DLNA compatible servers including PCs and NAS devices on your network. Supported file formats: For details, see “Playing back a file saved on a PC or AVR CONTROL AVR CONTROL...
Page 114 Contents Connections Playback Settings Tips Appendix Playing back files stored on a PC or Browse the music on your PC/NAS and select something to play. Use this procedure to play music files or playlists stored on DLNA files servers on your local network. 0 When you select something to play you will be asked how you want to queue up your music.
Page 115 Contents Connections Playback Settings Tips Appendix Use ui to select the “Play Now” or “Play Now & 0 The display switches between track title, artist name, and album title each time the Replace Queue”, then press ENTER. main unit’s STATUS is pressed. Playback starts.
Page 116 Contents Connections Playback Settings Tips Appendix o Operations accessible through the option menu “Adjusting the audibility of dialog and vocals (Dialog Enhancer)” (v p. 133) “Adjusting the volume of each channel to match the input source (Channel Level Adjust)” (v p. 134) “Adjusting the tone (Tone)”...
Page 117 Contents Connections Playback Settings Tips Appendix Getting the HEOS App You can use many online music streaming services from the HEOS App. Depending upon your geographical location, there are several options to choose from. For more information about which services are available in your area please visit http://www.HEOSbyDenon.com Download the HEOS App for iOS or Android by searching App Store, Google Play store or Amazon Appstore for “HEOS”.
Page 118 Contents Connections Playback Settings Tips Appendix o Changing your HEOS Account HEOS Account HEOS Accounts can be registered in “HEOS Account” (v p. 241) in the Tap the “Music” tab. menu of this unit or by tapping “Music” tab - “Settings” icon a in the HEOS App.
Page 119 Selecting a room/device AVR-X6400H Song Name 3 Tap the “Rooms” tab, and select AVR-X6400H if there are multiple HEOS devices. 0 Tap the Pencil icon e at the top right to switch edit mode. You can change the Rooms...
Page 120 Contents Connections Playback Settings Tips Appendix o Selecting the music track or station from music sources Music Tap the “Music” tab and select a music source. 0 All music services displayed may not be available in your location. This Phone USB Music Music Servers Playlists...
Page 121 Contents Connections Playback Settings Tips Appendix Browse the music to play. Album Now Playing After selecting a music track or radio station the app will Artist Album automatically change to the “Now Playing” screen. 10 Tracks,60 Mins.,2014 Track 01 0 When you select a music track to play you will be asked how you want to Rooms queue up your music.
Page 122 Contents Connections Playback Settings Tips Appendix Listening to the same music in multiple Rooms Rooms rooms Drag one room into another to group them Drag one room into another to group them Dining Dining The HEOS system is a true multi-room audio system that automatically Song Name 1 Song Name 1 synchronizes audio playback between multiple HEOS devices so that the...
Page 123 Contents Connections Playback Settings Tips Appendix o Ungrouping rooms Rooms Rooms Press and hold your finger on room that you want to Drag one room into another to group them Drag one room into another to group them remove from the group. Dining Dining Song Name 1...
Page 124 Contents Connections Playback Settings Tips Appendix o Grouping all rooms (party mode) Rooms Rooms You can easily group 16 rooms together into Party Mode by using a Drag one room into another to group them Drag one room into another to group them "pinch"...
Page 125 Contents Connections Playback Settings Tips Appendix o Ungrouping all rooms Rooms Rooms You can easily ungroup all of your rooms and exit Party Mode by using Drag one room into another to group them Drag one room into another to group them a "spread"...
Page 126 Contents Connections Playback Settings Tips Appendix AirPlay function Music files stored on your iPhone, iPod touch, iPad or iTunes can be Router played on this unit via the network. This unit 0 Source input will be switched to “HEOS Music” when AirPlay playback is started. 0 You can stop AirPlay playback by choosing other input source.
Page 127 Contents Connections Playback Settings Tips Appendix Playing songs from your iPhone, iPod Playing iTunes music with this unit touch or iPad Install iTunes 10, or later, on a Mac or Windows PC that If you update your “iPhone/iPod touch/iPad” to iOS 4.2.1 or later, you can is connected to the same network as this unit.
Page 128 Contents Connections Playback Settings Tips Appendix Selecting multiple speakers (devices) Perform iTunes playback operations with the remote control unit of this unit It is possible to play iTunes songs on your home’s AirPlay compatible speakers (devices) other than those of this unit. With this unit’s remote control unit, you can perform iTunes song play, pause, and auto search (cue) operations.
Page 129 Songs from an iPhone, iPod touch or iPad operating iOS 11.4 or later can be synced with multiple AirPlay 2 supported devices for simultaneous iPhone playback. Denon xxxxxxxx Speakers Play the song on your iPhone, iPod touch or iPad. AirPlay icon is displayed on the iPhone, iPod touch or iPad screen.
Page 130 Contents Connections Playback Settings Tips Appendix Spotify Connect function Spotify is the world’s most popular streaming service. If you subscribe to Playing Spotify music with this unit Spotify Premium, you can control your new speaker with your phone or tablet. Because Spotify is built-in to your speaker, you can still take calls or Download the “Spotify App”...
Page 131 Contents Connections Playback Settings Tips Appendix Convenience functions This section explains how to use convenient functions that can be used for each input source. These functions can only be set in the MAIN ZONE. AVR CONTROL AVR CONTROL POWER POWER Z 2 MAIN MAIN...
Page 132 Contents Connections Playback Settings Tips Appendix Playing back HEOS Favorites Adding to HEOS Favorites Press R (HEOS Music). While content is playing, press OPTION. The option menu screen is displayed. Use ui to select “HEOS Favorites”, then press ENTER. Use ui to select “Add to HEOS Favorites”, then press ENTER.
Page 133 Contents Connections Playback Settings Tips Appendix Deleting a HEOS Favorites Adjusting the audibility of dialog and vocals (Dialog Enhancer) While the HEOS Favorites content list is displayed, use ui to select the item you want to remove from HEOS This function adjusts the center channel frequency band to enhance the Favorites, then press OPTION.
Page 134 Contents Connections Playback Settings Tips Appendix Adjusting the volume of each channel Use o p to adjust the volume. to match the input source (Channel –12.0 dB – +12.0 dB (Default: 0.0 dB) Level Adjust) Use uio p to select “Exit”, then press ENTER. The volume of each channel can be changed while listening to music.
Page 135 Contents Connections Playback Settings Tips Appendix Adjusting the tone (Tone) Select “On” in step 3 and press i to select the sound range to be adjusted. Adjusts the tonal quality of the sound. Bass: Adjust bass. Press OPTION. Treble: Adjust treble. An option menu screen is displayed.
Page 136 Contents Connections Playback Settings Tips Appendix Displaying your desired video during If you selected “On” in step 3, press i and select audio playback (Video Select) “Source”. Use o p to select the input source for video you want This unit can display video from a different source on TV during audio to play back, then press ENTER.
Page 137 Contents Connections Playback Settings Tips Appendix Adjusting the picture quality for your Use o p to select the picture mode. viewing environment (Picture Mode) No picture quality adjustment is done (Default): with this unit. n Supported input sources : The standard mode suited for most CBL/SAT / DVD / Blu-ray / Game / AUX1 / Standard: living room viewing environments.
Page 138 Contents Connections Playback Settings Tips Appendix o Stopping the All Zone Stereo mode Playing the same music in all zones (All Zone Stereo) During playback in All Zone Stereo mode, press OPTION. You can play back the music being played back in MAIN ZONE An option menu screen is displayed.
Page 139 Contents Connections Playback Settings Tips Appendix Selecting a sound mode This unit allows you to enjoy various kinds of surround and stereo playback modes. Disc formats such as Blu-ray Disc and DVD, as well as being supported by digital broadcasting, and even by streaming movies and music from AVR CONTROL AVR CONTROL POWER...
Page 140 Contents Connections Playback Settings Tips Appendix o Switching the sound mode Selecting a sound mode Press MOVIE, MUSIC or GAME to display a list of the sound modes that can be selected. Each time you press MOVIE, MUSIC or GAME, Press MOVIE, MUSIC or GAME to select a sound mode.
Page 141 Contents Connections Playback Settings Tips Appendix Direct playback Pure Direct playback Sound recorded in source is played as is. This mode is for playback with higher sound quality than in Direct playback mode. Press PURE to select “Direct”. This mode turns off the main unit display and analog video circuit. Doing so suppresses noise sources that affect sound quality.
Page 142 Contents Connections Playback Settings Tips Appendix Auto surround playback This mode detects the type of input digital signal, and automatically selects the corresponding mode for playback. Perform stereo playback when the input signal is PCM. When the input signal is Dolby Digital or DTS, the music is played back according to the respective channel number.
Page 143 Contents Connections Playback Settings Tips Appendix Description of sound mode types Dolby sound mode Sound mode type Description Dolby Surround This mode uses Dolby Surround Upmixer to extend various sources to natural and realistic multi channels for playback. Use ceiling speakers such as top middle speakers to realize a three-dimensional sound field. Dolby Digital This mode can be selected when playing sources recorded in Dolby Digital.
Page 144 Contents Connections Playback Settings Tips Appendix DTS sound mode Sound mode type Description DTS Surround This mode can be selected when playing sources recorded in DTS. This mode is suitable for playing discs recorded in DTS-ES. DTS ES Dscrt6.1 The surround back channel added using the discrete method is played as an independent channel. Since all channels are independent, the 360-degree spacial expressiveness and sound localization are enhanced.
Page 145: Original Sound Mode
Contents Connections Playback Settings Tips Appendix Auro-3D sound mode Sound mode type Description Auro-3D This mode uses an Auro-3D decoder to create three-dimensional audio output using the Height Channel. It is ideal for playback of signals encoded as Auro-3D with a Height Channel. If signals not encoded as Auro-3D are input, an Upmixer called the Auro-Matic is used to create highly realistic three-dimensional audio output.
Page 146: Pure Direct
Contents Connections Playback Settings Tips Appendix Auto sound mode Sound mode type Description Auto In this mode, the type of digital signal input, such as Dolby Digital, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Atmos, DTS, DTS-HD, DTS:X, DTS-ES, PCM (multi-channel) is detected, and the playback mode switches automatically to the corresponding mode.
Page 147 Contents Connections Playback Settings Tips Appendix Sound mode that can be selected for each input signal The following sound modes can be selected using the MOVIE, MUSIC and GAME buttons. Adjust the sound field effect with the menu “Surround Parameter” to enjoy surround sound the way you like it. (v p. 172) Input signal Sound mode MOVIE button...
Page 148 Contents Connections Playback Settings Tips Appendix GAME button Input signal Sound mode MOVIE button MUSIC button Multi-channel z7 Stereo Dolby Digital Dolby Digital + Dolby Surround z8 Dolby Digital Dolby Digital + Neural:X z8 Dolby Digital Plus Dolby Digital Plus + Dolby Surround z8z9 Dolby Digital Plus Dolby Digital Plus + Neural:X z8 Dolby Atmos z8z10...
Page 149 Contents Connections Playback Settings Tips Appendix GAME button Input signal Sound mode MOVIE button MUSIC button DTS-HD HI RES DTS-HD MSTR DTS Express DTS-HD / DTS Express DTS-HD + Dolby Surround z8 DTS-HD + Neural:X z8 DTS-HD + Virtual:X z3 DTS:X DTS:X DTS:X MSTR...
Page 150 Contents Connections Playback Settings Tips Appendix o Views on the display Blu-ray Dolby D + A Shows a decoder to be used. In the case of the Dolby Digital Plus decoder, “y” is displayed. B Shows a decoder that creates sound output. “k”...
Page 151 Contents Connections Playback Settings Tips Appendix HDMI Control function A recent addition to the HDMI standard is CEC (Consumer Electronics Control), which allows control signals from one device to communicate with another device via the HDMI cable connection. Setting procedure Enable the HDMI Control function of this unit.
Page 152 Contents Connections Playback Settings Tips Appendix Smart Menu function This function can be used to configure the settings of this unit, select an o Now Playing input source and set Tuner and Internet Radio stations using the TV remote control. Enjoy content from the input source currently selected on this unit.
Page 153: Quick Select Plus
Contents Connections Playback Settings Tips Appendix o Setup Menu Displays a setup menu for configuring the settings of this unit. o Quick Select Calls up the QUICK SELECT items registered to this unit. NOTE 0 If the “HDMI Control” or “Smart Menu” settings have been changed, always reset the power to connected devices after the change.
Page 154 Contents Connections Playback Settings Tips Appendix Sleep timer function You can have the power automatically switched to standby once a set time has elapsed. This is convenient for viewing and listening while going to sleep. The sleep timer function can be set for each zone. AVR CONTROL AVR CONTROL POWER...
Page 155 Contents Connections Playback Settings Tips Appendix o Checking the remaining time Using the sleep timer Press SLEEP when the sleep timer is in operation. The remaining time appears on the display. Press MAIN, Z2 or Z3 to select the operating zone with the remote control.
Page 156 Contents Connections Playback Settings Tips Appendix Quick select plus function Settings such as the input source, volume level and sound mode can be registered to the QUICK SELECT 1 - 4 buttons. You can simply press one of the registered QUICK SELECT buttons in subsequent playbacks to switch to the group of saved settings in a batch.
Page 157 Contents Connections Playback Settings Tips Appendix Calling up the settings Press MAIN, Z2 or Z3 to select the operating zone with the remote control. The button for the selected zone is lit. Press QUICK SELECT. The Quick Select settings registered to the button you pressed are called up.
Page 158 Contents Connections Playback Settings Tips Appendix Changing the settings Press MAIN, Z2 or Z3 to select the operating zone with the remote control. The button for the selected zone is lit. Set the items below to the settings you want to register.
Page 159 Contents Connections Playback Settings Tips Appendix Playback in ZONE2/ZONE3 (Separate room) You can operate this unit to enjoy video and audio in a room (ZONE2 and ZONE3) that is different from the room where this unit is placed (MAIN ZONE). You can simultaneously play back the same source in both the MAIN ZONE, ZONE2 and ZONE3.
Page 160 Contents Connections Playback Settings Tips Appendix o Connection 2 : Connection through the video output connector and speaker output connector When “Assign Mode” in the menu is set to any of the following audio is output from speakers in ZONE2 or ZONE3. (v p. 215) n Assign Mode: 9.1ch + ZONE2 n Assign Mode: 9.1ch + ZONE3 MAIN ZONE...
Page 161 Contents Connections Playback Settings Tips Appendix Assign Mode: 9.1ch + ZONE2/3-MONO MAIN ZONE ZONE2 ZONE3 This unit VIDEO VIDEO COMPONENT VIDEO MONITOR MONITOR/ZONE2 ZONE2 VIDEO COMPONENT VIDEO Front panel Display Rear panel Remote Index...
Page 162 Contents Connections Playback Settings Tips Appendix o Connection 3 : Connection through the video output connector and external power amplifiers The audio signals of this unit’s ZONE2 and ZONE3 audio output connectors are played on the ZONE2 and ZONE3 power amplifiers. MAIN ZONE ZONE2 ZONE3...
Page 163 Contents Connections Playback Settings Tips Appendix 0 The analog audio signal and the 2-channel PCM signal input from HDMI connector or digital connectors (OPTICAL/COAXIAL) can be played back in ZONE2. 0 If you want to play back HDMI signals other than 2-channel PCM in ZONE2, set “HDMI Audio” to “PCM”. (v p. 246) 2-channel PCM signals are output from a device connected to the input source selected for ZONE2 and can be played back in ZONE2.
Page 164 Contents Connections Playback Settings Tips Appendix Playback in ZONE2/ZONE3 Press Z2 or Z3 to switch the zone mode. Z2 or Z3 button lights. Press POWER X to turn on the ZONE2 or ZONE3 power. POWER X AVR CONTROL AVR CONTROL POWER POWER The j indicator on the display lights.
Page 165 Contents Connections Playback Settings Tips Appendix o Adjusting the volume (ZONE2/ZONE3) Use VOLUME df to adjust the volume. At time of purchase, “Volume Limit” is set to “70 (–10 dB)”. (v p. 246) 0 Turn MASTER VOLUME after pressing ZONE2 SOURCE or ZONE3 SOURCE on the main unit to adjust the volume.
Page 166 Contents Connections Playback Settings Tips Appendix Menu map When using menu operations, connect this unit to a TV and operate this unit while viewing the TV. The recommended settings are configured for this unit by default. You can customize this unit based on your existing system and your preferences. Setting items Detailed items Description...
Page 167 Contents Connections Playback Settings Tips Appendix Setting items Detailed items Description Page Input Assign Changes input connector assignment. Source Rename Changes the display name for input source. Hide Sources Removes from the display input sources that are not used. Source Level Adjusts the playback level of the audio input.
Page 168 Contents Connections Playback Settings Tips Appendix Setting items Detailed items Description Page 【When the user is signed out the HEOS Account】 I have a HEOS Account Selects to sign in. Create Account Creates new HEOS Account. Forgot Password If you forgot your password, we'll send you an email with instructions about how to reset HEOS Account 【When the user is signed in the HEOS Account】...
Page 169 Information Shows information about this unit settings, input signals, etc. Usage Data Selects whether or not to send anonymous usage data to Denon. Save & Load Save and restore device settings by using a USB memory device. Setup Lock Protects settings from inadvertent changes.
Page 170 Contents Connections Playback Settings Tips Appendix Menu operations AVR CONTROL AVR CONTROL POWER POWER Press MAIN on the remote control unit to set the MAIN Z 2 MAIN MAIN operating zone to the MAIN ZONE. DEV. V. The MAIN button lights. DEVICE DEVICE MENU...
Page 171 Contents Connections Playback Settings Tips Appendix Audio Make audio-related settings. Subwoofer Level Adjust Bass Sync For contents recorded in multi-channel such as Blu-ray discs, the This setting adjusts the volume level for the subwoofer. recorded low frequency effects (LFE) may be out of synch and delayed. o Subwoofer Level Adjust This function corrects such a delay of low frequency effects (LFE).
Page 172 Contents Connections Playback Settings Tips Appendix o Loudness Management Surround Parameter This sets whether to output as specified in “Dynamic Compression” or You can adjust the surround audio sound field effects to match your output directly without compressing the dynamic range of audio preferences.
Page 173 Contents Connections Playback Settings Tips Appendix o Dynamic Compression o Dialog Control Compress dynamic range (difference between loud and soft sounds). Adjust the volume of dialog in movies, vocals in music, etc. so these can be heard more easily. Automatic dynamic range compression Auto: on/off control according to source.
Page 174 Contents Connections Playback Settings Tips Appendix o Center Spread o Auro-Matic 3D Preset Center Spread expands the center channel signal to left and right front Selects the Auro-Matic 3D Preset for fine tuning the Auro-3D speakers to create a wider frontal audio image for the listener. It is experience to specific audio material.
Page 175 Contents Connections Playback Settings Tips Appendix o Auro-Matic 3D Strength o Delay Time Changes the level of the up-mixed channels in relation to the original Adjust the audio delay time against video to extend the sound field input signal. image. The value ranges from 1 (no up-mixing) to 16 (Maximum level, 0 ms –...
Page 176 Contents Connections Playback Settings Tips Appendix o Room Size o Speaker Select Determine size of acoustic environment. Makes settings for the speakers outputting sound. Small: Simulate acoustics of a small room. Floor: Plays back without height speakers. Simulate acoustics of a medium-small Floor &...
Page 177 Contents Connections Playback Settings Tips Appendix Restorer 0 This item can be set with analog signals or PCM signal (Sample Rate = Compressed audio formats such as MP3, WMA (Windows Media Audio) 44.1/48 kHz) is input. and MPEG-4 AAC reduce the amount of data by eliminating signal 0 This item default setting for “HEOS Music”...
Page 178 Contents Connections Playback Settings Tips Appendix o Adjust Audio Delay The timing mismatch between the picture and sound needs to be Compensates for incorrect timing between video and audio. corrected manually. 0 ms – 500 ms (Default : 0 ms) 0 Audio Delay for game mode can be set when “Video Mode”...
Page 179 Contents Connections Playback Settings Tips Appendix o Power On Level Volume Define the volume setting that is active when the power is turned on. Set the MAIN ZONE (room where the unit is located) volume setting. Last Use the memorized setting from the last o Scale (Default): session.
Page 180 Contents Connections Playback Settings Tips Appendix o MultEQ ® XT32 Audyssey ® MultEQ ® XT32 compensates for both time and frequency Set Audyssey MultEQ XT32, Audyssey Dynamic EQ , Audyssey ® ® characteristics of the listening area based on Audyssey ®...
Page 181 Contents Connections Playback Settings Tips Appendix o Dynamic EQ o Reference Level Offset Solves the problem of deteriorating sound quality as volume is Audyssey Dynamic EQ ® is referenced to the standard film mix level. It decreased by taking into account human perception and room makes adjustments to maintain the reference response and surround acoustics.
Page 182 Contents Connections Playback Settings Tips Appendix o Dynamic Volume o Audyssey LFC™ Solves the problem of large variations in volume level between TV, Adjusts the low frequency band to prevent bass and vibration from movies and other content (between quiet passages and loud being conveyed to neighboring rooms.
Page 183 Contents Connections Playback Settings Tips Appendix o Speaker Selection Graphic EQ Select whether to adjust tones for individual speakers or for all Uses the graphic equalizer to adjust the tone of each speaker. speakers. All: Adjust all speaker tones together. 0 Speakers for which “Graphic EQ”...
Page 184 Contents Connections Playback Settings Tips Appendix o Curve Copy Copy the Flat correction curve created in Audyssey ® Setup. 0 “Curve Copy” is displayed after Audyssey ® Setup has been performed. 0 “Curve Copy” cannot be used when using headphones. o Set Defaults The “Graphic EQ”...
Page 185 Contents Connections Playback Settings Tips Appendix Video Make video-related settings. o Picture Mode Picture Adjust Select the desired picture mode according to the video content and Picture quality can be adjusted. your viewing environment. The standard mode suited for most living Standard: room viewing environments.
Page 186 Contents Connections Playback Settings Tips Appendix o Contrast Adjust picture contrast. 0 The two special adjustment modes, “ISF Day” and “ISF Night”, should be used by a certified technician to adjust the color calibration to match the installation -50 – +50 (Default : 0) conditions.
Page 187 Contents Connections Playback Settings Tips Appendix o HDMI Pass Through HDMI Setup Selects how this unit will transmit HDMI signals to the HDMI output in Make settings for HDMI Audio Out, HDMI Pass Through and HDMI standby power mode. Control settings. Transmits the selected HDMI input NOTE through this unit’s HDMI output when this...
Page 188 Contents Connections Playback Settings Tips Appendix o Pass Through Source o RC Source Select Sets the HDMI connector that inputs HDMI signals when in standby. Set whether to allow this unit to be turned on by the input source select button on the remote control when this unit is on standby.
Page 189 Contents Connections Playback Settings Tips Appendix o HDMI Control o ARC You can link operations with devices connected to HDMI and On the TV connected to the HDMI MONITOR 1 connector, set whether compatible with HDMI Control. to receive sound from the TV via HDMI. Use HDMI Control function.
Page 190 Contents Connections Playback Settings Tips Appendix o TV Audio Switching o Power Off Control Sets automatic switching to the “TV Audio” input when a TV connected Links the power standby of this unit to external devices. via HDMI sends an appropriate CEC control command to this unit. If power to a connected TV is turned off independently of the input source, power Select the “TV Audio”...
Page 191 Contents Connections Playback Settings Tips Appendix o Power Saving o Smart Menu If “TV Speaker” is set as the audio output setting of your TV, this unit is This function can be used to configure the settings of this unit, select automatically set to standby mode to reduce power consumption.
Page 192 Contents Connections Playback Settings Tips Appendix o HDMI Video Output Output Settings Select the HDMI monitor connector to be used. Makes settings for video output. The presence of a TV connected to the Auto(Dual) HDMI MONITOR 1 or HDMI MONITOR 2 (Default): connector is detected automatically, and 0 Can be set when “HDMI”, “COMP”...
Page 193 Contents Connections Playback Settings Tips Appendix o Video Mode o Video Conversion Configure the video processing method to match the type of video The input video signal is converted automatically in conjunction with content. the connected TV. (v p. 290) Auto Process video automatically based on The input video signal is converted.
Page 194 Contents Connections Playback Settings Tips Appendix o Progressive Mode o Resolution Set an appropriate progressive conversion mode for the source video Set the output resolution. You can set “Resolution” separately for signal. HDMI output of the analog video input and HDMI input. The video signal is automatically Auto The resolution supported by the TV...
Page 195 Contents Connections Playback Settings Tips Appendix o Aspect Ratio Component Video Out Set the aspect ratio for the video signals output to the HDMI. Set the zone to which the component video output connector is assigned. 16:9 Output at 16:9 aspect ratio. MAIN ZONE Assigns the component video output (Default):...
Page 196 Contents Connections Playback Settings Tips Appendix o Now Playing On Screen Display Sets the display time for the playback display when the input source is Select the on-screen display user interface preferences. “HEOS Music” or “Tuner”. o Volume Always On Show display continuously.
Page 197 Contents Connections Playback Settings Tips Appendix 4K Signal Format GRelation between the “4K Signal Format” setting and supported resolutionsH Set the 4K signal format to be played back by this unit when the TV or 4K Signal Format Support Color Pixel playback device connected to this unit is HDMI 4K (60Hz/50Hz) signal Standard...
Page 198 Contents Connections Playback Settings Tips Appendix TV Format 0 When setting this to “Enhanced”, we recommend using a “Premium High Speed HDMI Cable” or “Premium High Speed HDMI Cable with Ethernet” that Set the video signal format to be output for the TV you are using. has an “HDMI Premium Certified Cable”...
Page 199 Contents Connections Playback Settings Tips Appendix Inputs Perform settings related to input source playback. You do not have to change the settings to use the unit. Make settings when needed. Input Assign 0 By default, each item is set as follows. By making connections as indicated by the input sources printed on the Input connector audio/video input connectors of this unit, you can just press one of the...
Page 200 Contents Connections Playback Settings Tips Appendix o HDMI o ANALOG Set this to change the HDMI input connectors assigned to the input Set this to change the analog audio input connectors assigned to the sources. input sources. Assign a analog audio input connector to 1 / 2 / 3 / 4 / 5 / 6 / 7 / Assign an HDMI input connector to the 1 / 2 / 3 / 4 / 5 / 6 / Front:...
Page 201 Contents Connections Playback Settings Tips Appendix o VIDEO Source Rename Set this to change the composite video input connectors assigned to Change the display name for input source. the input sources. This is convenient when the name of your device and the input source Assign the video input connector to the name of this unit are different.
Page 202 Contents Connections Playback Settings Tips Appendix Hide Sources Source Level Remove from the display input sources that are not used. This function corrects the playback level of the selected input source’s audio input. Show Use this source. Make this setting if there are differences in the input volume levels (Default): between the different sources.
Page 203 Contents Connections Playback Settings Tips Appendix Input Select Set the audio input mode of each input source. The input modes available for selection may vary depending on the input source. 0 “Input Select” settings are stored for each input source. o Input Mode Set the audio input modes for the different input sources.
Page 204 Contents Connections Playback Settings Tips Appendix Speakers The acoustic characteristics of the connected speakers and listening room are measured and the optimum settings are made automatically. This is called “Audyssey ® Setup”. You do not have to perform Audyssey Setup when you have already performed “Speaker Calibration” in “Setup Assistant”. ®...
Page 205 Contents Connections Playback Settings Tips Appendix o About the main listening position NOTE The main listening position is the position where listeners would 0 Make the room as quiet as possible. Background noise can disrupt the room measurements. Close windows and turn off the power on electronic devices normally sit or where one would normally sit alone within the listening (radios, air conditioners, fluorescent lights, etc.).
Page 206 Contents Connections Playback Settings Tips Appendix Procedure for speaker settings Attach the Sound calibration microphone to the supplied microphone stand or own tripod and install it (Audyssey Setup) ® at the main listening position. When installing the Sound calibration microphone, point the tip of Preparation the microphone toward the ceiling and adjust the height to match the height of the ears of a listener in a seated position.
Page 207 Contents Connections Playback Settings Tips Appendix Connect the Sound calibration microphone to the Select “Start”, then press ENTER. SETUP MIC jack of this unit. Audyssey ® Setup can also make the following settings. Amp Assign The signals output from the SURROUND BACK, HEIGHT1 and HEIGHT2 speaker terminals can be switched in accordance with your speaker environment.
Page 208 Contents Connections Playback Settings Tips Appendix When the following screen is displayed, select “Begin When the detected speaker is displayed, select “Next” Test” and then press ENTER. and then press ENTER. Start the measurement of the first position. Audyssey Setup Speaker Detection Audyssey Setup Select “Begin Test”...
Page 209 Contents Connections Playback Settings Tips Appendix Move the Sound calibration microphone to position 2, Repeat step 8, measuring positions 3 to 8. select “Continue”, then press ENTER. The measurement of the second position starts. Measurements can be made in up to eight positions. 0 To skip measuring the fourth and subsequent listening position, press o to select “Complete”...
Page 210 Contents Connections Playback Settings Tips Appendix When the analysis and storage ends, unplug the Sound Perform the settings for Audyssey Dynamic EQ ® calibration microphone from the SETUP MIC jack on the Audyssey Dynamic Volume ® main unit and then press “Next”. The following screen is displayed during the analysis.
Page 211 Contents Connections Playback Settings Tips Appendix Select “Details” and press ENTER to verify the measurement results. Subwoofers may measure a greater reported distance than the actual distance due to added electrical delay common in subwoofers. NOTE 0 Do not change the speaker connection or subwoofer volume after Audyssey ®...
Page 212 Contents Connections Playback Settings Tips Appendix Error messages An error message is displayed if Audyssey ® Setup could not be completed due to speaker placement, the measurement environment, etc. If an error message is displayed, check the relevant items and perform the necessary measures. Be sure to turn off the power before checking speaker connections. Examples Error details Measures...
Page 213 Contents Connections Playback Settings Tips Appendix o Subwoofer level error message and how to Select “SW Level Matching” and then press ENTER. adjust Adjust the volume control on your subwoofer so that The optimal level of each subwoofer channel for Audyssey ®...
Page 214 Contents Connections Playback Settings Tips Appendix Retrieving Audyssey ® Setup settings If you set “Restore...” to “Restore”, you can return to Audyssey Setup ® measurement result (value calculated at the start by MultEQ XT32) even ® when you have changed each setting manually. Audyssey Setup Your AV receiver can automatically measure the acoustics of your room then optimize your speakers using the included...
Page 215 Contents Connections Playback Settings Tips Appendix Manual Setup Amp Assign Select the power amplifier usage method to match your speaker system. Perform when setting the speakers manually or when changing settings o Assign Mode made in Audyssey ® Setup. If you add or remove a speaker after performing Audyssey Setup, you ®...
Page 216 Contents Connections Playback Settings Tips Appendix Setting to assign the power amplifiers in Setting to assign the power amplifiers in this unit for ZONE3 to 2-channels this unit for front speaker bi-amp 9.1ch + ZONE3: connection to 2-channels. 7.1ch (Bi-Amp) + ZONE2: You can connect speakers for up to 9.1- channels for MAIN ZONE.
Page 217 Contents Connections Playback Settings Tips Appendix o Speakers for ZONE2 / Speakers for ZONE3 / o Floor Speakers for ZONE2/ZONE3 / Speakers for Bi- n Layout Amp/ Speakers for 2ch/ Speakers for Front B Select the floor speakers location. When “Assign Mode” is set to “9.1ch + ZONE2”, “9.1ch + ZONE3”, 5ch &...
Page 218 Contents Connections Playback Settings Tips Appendix o Height n Height Sp Select the number of the height speakers and ceiling speakers used in MAIN ZONE. None: Uses no height and ceiling speakers. Uses a set of (two) height speakers or (Default): ceiling speakers.
Page 219 Contents Connections Playback Settings Tips Appendix n Layout Select the height, ceiling, or Dolby Atmos Enabled speaker location. The layouts that can be selected differ depending on the combinations of “Assign Mode” and “Floor” - “Layout” in the menu. (“ Assign Mode ”...
Page 220 Contents Connections Playback Settings Tips Appendix Settings AUDIO OUT connectors Height Speakers Dolby Speakers NOTE Layout HEIGHT1 HEIGHT2 Front Dolby & Top Rear Front Dolby Top Rear Front Dolby & Rear Height Front Dolby Rear Height Front Height & Surr. Dolby Front Height Surround Dolby Front Height &...
Page 221 Contents Connections Playback Settings Tips Appendix o Top Surr. Out o View Terminal Config. Select the terminal to connect to the Top Surround speaker. This shows how to connect the speaker terminals and PRE OUT connectors for your “Amp Assign” setting on the menu screen. SUBWOOFER 2 Connect the Top Surround speaker to the (Default) ：...
Page 222 Contents Connections Playback Settings Tips Appendix o Center Speaker Config. Set the presence and size of the center speaker. Select whether or not speakers are present, playback capacity for low Use a large speaker that can adequately bass frequencies and speaker size. Large: play back very low bass frequencies.
Page 223 Contents Connections Playback Settings Tips Appendix o Surround o Surr. Back Set the presence and size of the surround speakers. Set the presence, size and number of surround back speakers. Use a large speaker that can adequately Use a large speaker that can adequately Large: Large: play back very low bass frequencies.
Page 224 Contents Connections Playback Settings Tips Appendix o Front Height o Top Front Set the presence and size of the front height speakers. Set the presence and size of the top front speakers. Use a large speaker that can adequately Use a large speaker that can adequately Large: Large: play back very low bass frequencies.
Page 225 Contents Connections Playback Settings Tips Appendix o Surround Dolby o Surr. Height Set the presence and size of the surround Dolby speakers. Set the presence and size of the surround height speakers. Use a large speaker that can adequately Use a large speaker that can adequately Large: Large: play back very low bass frequencies.
Page 226 Contents Connections Playback Settings Tips Appendix o Back Dolby o Top Surround Set the presence and size of the back Dolby speakers. Set the presence and size of the top surround speaker. Use a large speaker that can adequately Use a large speaker that can adequately Large: Large: play back very low bass frequencies.
Page 227 Contents Connections Playback Settings Tips Appendix o Set the distance Distances 0.0 ft – 60.0 ft / 0.00 m – 18.00 m Set distance from listening position to speakers. Measure beforehand the distance from the listening position to each speaker. 0 The speakers that can be selected differ depending on the “Amp Assign”...
Page 228 Contents Connections Playback Settings Tips Appendix o Dolby Speaker Setup Levels Set the distance between the Dolby Atmos Enabled speaker and the Set the volume of the test tone to be the same at the listening position ceiling. when it is output from each speaker. 3.0 ft - 11.0 ft / 0.90 m - 3.30 m (Default: 6.0 ft / 1.80 m) o Test Tone Start A test tone is output from the selected speaker.
Page 229 Contents Connections Playback Settings Tips Appendix o Set the crossover frequency Crossovers 40 Hz / 60 Hz / 80 Hz / 90 Hz / 100 Hz / 110 Hz / 120 Hz / 150 Hz / Set in accordance with the lower limit frequency of the base frequencies 200 Hz / 250 Hz (Default: 80 Hz) that can be played back through each speaker.
Page 230 Contents Connections Playback Settings Tips Appendix o LPF for LFE Bass Set LFE signal playback range. Set this when you want to change the Set subwoofer and LFE signal range playback. playback frequency (low pass filter point) of the subwoofer. o Subwoofer Mode 80 Hz / 90 Hz / 100 Hz / 110 Hz / 120 Hz / 150 Hz / 200 Hz / 250 Hz (Default: 120 Hz)
Page 231 Contents Connections Playback Settings Tips Appendix Front Speaker 2ch Playback Set the front speaker A/B to use for every sound mode. Select the method for setting the speakers used in the 2-channel direct and stereo playback modes. Front speaker A is used. (Default): o Setting Front speaker B is used.
Page 232 Contents Connections Playback Settings Tips Appendix o Subwoofer o SW Mode Set the presence of a subwoofer. Select low range signals to be reproduced by subwoofer. When “2ch Playback” - “Front” is set to Use a subwoofer. (Default): “Large”, only LFE signals are output from the subwoofer.
Page 233 Contents Connections Playback Settings Tips Appendix o Crossover o Level FL / Level FR Set the maximum frequency of the bass signal output from each Adjust the level of each channel. channel to the subwoofer. -12.0 dB – +12.0 dB (Default: 0.0 dB) 40 Hz / 60 Hz / 80 Hz / 90 Hz / 100 Hz / 110 Hz / 120 Hz / 150 Hz / 200 Hz / 250 Hz (Default: 80 Hz) 0 This can be set when “2ch Playback”...
Page 234 Contents Connections Playback Settings Tips Appendix Network To use this unit by connecting it to a home network (LAN), you must configure network settings. If you set up your home network (LAN) via DHCP, set “DHCP” to “On”. (Use the default setting.) This allows this unit to use your home network (LAN). When assigning an IP address to each device manually, you need to assign an IP address to this unit using the “IP Address”...
Page 235 2. Check that your iOS device is connected to the wireless LAN (Wi- o Scan Networks Fi) router and select “Denon AVR-X6400H” from “SET UP NEW Select the network you wish to connect to from the list of possible AIRPLAY SPEAKER...” at the bottom of the Wi-Fi configuration networks shown on the TV screen.
Page 236 Contents Connections Playback Settings Tips Appendix o WPS Router o Manual Use a WPS-compatible router to connect using the push button Enter the name (SSID) and password of the network you wish to method. connect to. 1. Select “Push Button” on the TV screen. 1.
Page 237 DHCP function is set to “On” in the 2. Connect the wireless LAN of the PC or tablet used to “Denon AVR-X6400H” default settings of this unit.
Page 238 Contents Connections Playback Settings Tips Appendix o DHCP o Default Gateway Selects how to connect to the network. When connected to a gateway (router), input its IP address. Configure the network settings o DNS (Default): automatically from your router. Enter the DNS address indicated in the documentation supplied by Off: Configure the network settings manually.
Page 239 Home Theater /Living Room / Family Room / Guest Room / 0 When using the Denon 2016 AVR Remote App or HEOS App, use with the Kitchen / Dining Room / Master Bedroom / Bedroom / Den / “Network Control”...
Page 240 Contents Connections Playback Settings Tips Appendix o Internet Access Diagnostics Checks whether this unit has access to the Internet (WAN). Used to check the network connection. o Physical Connection Failed to connect to the Internet. Check Error: the Internet connection environment or Checks the physical LAN port connection.
Page 241 Contents Connections Playback Settings Tips Appendix HEOS Account Make HEOS Account-related settings. HEOS Account is needed in order to use HEOS Favorites. The menu displayed differs depending on the status of the HEOS Account. You have not signed in You have already signed in o I have a HEOS Account o Signed in As If you already have a HEOS Account, enter the current account name...
Page 242 Contents Connections Playback Settings Tips Appendix General Make various other settings. Language Set the language for display the menu on the TV screen. Configure the settings of the ECO Mode and auto standby mode. English / Français / Español (Default: English) o ECO Mode This mode can reduce the power consumption when the power of the unit is on.
Page 243 Contents Connections Playback Settings Tips Appendix o Power On Default o On Screen Display Set the mode to ECO when the power is on. Display the power consumption of this unit using a meter on the TV screen. The ECO Mode will be set to the previous Last setting before the power was switched Always display the meter on the TV...
Page 244 Contents Connections Playback Settings Tips Appendix o Auto Standby n ZONE2 / ZONE3 When there are no operations for a certain period of time as set here, Set so the unit power automatically switches to standby. the power is automatically shut off even if there is audio or video input. n MAIN ZONE Switches ZONE2/ZONE3 the standby 8 hours:...
Page 245 Contents Connections Playback Settings Tips Appendix o Lch Level ZONE2 Setup / ZONE3 Setup Adjust the left channel output level. Makes settings for audio playback with ZONE2 and ZONE3. -12 dB – +12 dB (Default : 0 dB) o Rch Level 0 Values set for “Volume Limit”...
Page 246: Remote Control Unit
Contents Connections Playback Settings Tips Appendix o HDMI Audio (ZONE2 only) o Volume Limit Selects the audio signal format for playing an HDMI source in ZONE2. Make a setting for maximum volume. Through The HDMI audio signal is passed through 60 (-20 dB) / 70 (-10 dB) / 80 (0 dB) (Default): this unit to the device in ZONE2.
Page 247 Contents Connections Playback Settings Tips Appendix o Mute Level Zone Rename Set the amount of attenuation when muting is on. Change the display title of each zone to one you prefer. Full The sound is muted entirely. MAIN ZONE / ZONE2 / ZONE3 (Default): The default setting is restored for the edited -40 dB :...
Page 248 Contents Connections Playback Settings Tips Appendix Trigger Out 1 / Trigger Out 2 Front Display Select the conditions for activating trigger out. Makes settings related to the display on this unit. For details about how to connect the TRIGGER OUT jacks, see o Dimmer “TRIGGER OUT jacks”...
Page 249 Contents Connections Playback Settings Tips Appendix o Channel Indicators Firmware Sets whether to use the input signal display or output signal display for Checks for the latest firmware information about updates and upgrades, the channel indication on the display. updates the firmware, and sets up the notification message display for Uses the input signal display for the upgrades.
Page 250 Contents Connections Playback Settings Tips Appendix o Auto-Update o Allow Update Turns on Automatic Updates so that futures updates are automatically Enable or disable updates and upgrades for this unit. downloaded and installed when this unit is in standby mode. Enables this unit to receive updates and (Default): upgrades.
Page 251 If the error continues, check the network environment. 0 Information regarding the “Update” function and “Add New Feature” will be announced on the Denon website each time related plans are defined. See the Denon website for details about upgrades.
Page 252 Contents Connections Playback Settings Tips Appendix o Video Information Show the HDMI input/output signals and HDMI monitor information for Show information about this unit settings, input signals, etc. MAIN ZONE. o Audio HDMI Signal Info. Resolution / Color Space / Pixel Depth Show the audio information for MAIN ZONE.
Page 253 Usage Data Displays and sets notifications. To help us improve our products and customer service, Denon collects Also, sets whether or not to display the notification when the power is anonymous information about how you use this unit (such as frequently turned on.
Page 254 Contents Connections Playback Settings Tips Appendix Save & Load Setup Lock Save and restore device settings by using a USB memory device. Protect settings from inadvertent changes. o Lock 0 Use a USB memory device that has at least 128 MB of free space and is formatted to FAT32.
Page 255 Contents Connections Playback Settings Tips Appendix Operating external devices with the remote control unit When preset codes are registered in the included remote control unit, it can then be used to operate any devices you have, such as DVD players or TVs made by different manufacturers.
Page 256 Press and hold down CD and OPTION until the DEV., TV and AVR indicators on the remote are flashing green, Use the following simple method to register the preset codes of Denon then release. Blu-ray Disc players, DVD players and CD players.
Page 257 DEV., TV and AVR indicators on the remote are the device you want to register beforehand in the “Remote Control flashing green, then release. Preset Codes” file. http://manuals.denon.com/AVRX6400H/preset/ Devices to be registered at the AVRX6400HPresetCodes.pdf same time Press and hold down...
Page 258 Contents Connections Playback Settings Tips Appendix Press and hold down the input source button that you want to register the preset code to and SETUP until the DEV., TV and AVR indicators are flashing green. Enter the preset number (5 digits) listed for the device in the Preset Code Table using the number buttons (0 –...
Page 259 Contents Connections Playback Settings Tips Appendix n CBL/SAT group Operating devices (Set top box for satellite (SAT)/cable TV (CBL)/ To operate an external device, press the input source button registered Media player/IP TV) operation with the preset code, followed by one of the buttons in the following tables. Operation buttons Function AVR CONTROL...
Page 260 Contents Connections Playback Settings Tips Appendix n TV group n VCR/PVR group (TV) operation (Video cassette recorder (VCR)/personal video recorder (PVR)) operation Operation buttons Function Operation buttons Function AVR CONTROL AVR CONTROL POWER POWER AVR CONTROL AVR CONTROL POWER POWER Z 2 MAIN MAIN...
Page 261 ENTER ENTER ENTER ENTER selection 0 Depending on the device, the DEVICE X button only performs the power-on operation. (Depending on the device, some Denon models can only be operated with the power turned on.) Front panel Display Rear panel...
Page 262 Contents Connections Playback Settings Tips Appendix Initializing registered preset codes Resetting the remote control unit All the settings are restored to their defaults. Press and hold down MAIN and OPTION until the DEV., Press and hold down DEVICE MENU until the DEV., TV TV and AVR indicators on the remote are flashing and AVR indicators on the remote are flashing green, green, then release.
Page 263 Contents Connections Playback Settings Tips Appendix o Contents Troubleshooting Power does not turn on / Power is turned off Tips Operations cannot be performed through the remote control unit I want the volume not to become too loud by mistake Display on this unit shows nothing I want to keep the volume at the same level when I turn the power No sound comes out...
Page 264 Contents Connections Playback Settings Tips Appendix Tips I want the volume not to become too loud by mistake Set the volume upper limit for “Volume Limit” in the menu beforehand. This prevents children or others from increasing the volume too much by mistake. You can set this for each zone.
Page 265 Contents Connections Playback Settings Tips Appendix I want to set the optimized listening environment after changing the configuration/position of the speakers or changing a speaker to a new Perform Audyssey ® Setup. This automatically makes the optimized speaker settings for the new listening environment. (v p. 204) I want to combine a desired video with the current music Set “Video Select”...
Page 266 Contents Connections Playback Settings Tips Appendix Troubleshooting If a problem should arise, first check the following: 1. Are the connections correct? 2. Is the set being operated as described in the owner’s manual? 3. Are the other devices operating properly? 0 If steps 1 to 3 above do not improve the problem, restarting the device may improve the problem.
Page 267 Contents Connections Playback Settings Tips Appendix Power does not turn on / Power is turned off Power does not turn on. Check whether the power plug is correctly inserted into the power outlet. (v p. 90) Power automatically turns off. The sleep timer is set.
Page 268 Contents Connections Playback Settings Tips Appendix Operations cannot be performed through the remote control unit Operations cannot be performed through the remote control unit. Batteries are worn out. Replace with new batteries. (v p. 9) Operate the remote control unit within a distance of about 23 ft/7 m from this unit and at an angle of within 30°. (v p. 9) Remove any obstacle between this unit and the remote control unit.
Page 269 Contents Connections Playback Settings Tips Appendix No sound comes out No sound comes out of speakers. Check the connections for all devices. (v p. 40) Insert connection cables all the way in. Check that input connectors and output connectors are not reversely connected. Check cables for damage.
Page 270 Contents Connections Playback Settings Tips Appendix Desired sound does not come out The volume does not increase. The maximum volume is set too low. Set the maximum volume using “Limit” on the menu. (v p. 179) Appropriate volume correction processing is performed according to the input audio format and settings, so the volume may not reach the upper limit. No sound comes out with the HDMI connection.
Page 271 Contents Connections Playback Settings Tips Appendix Dolby Atmos, Dolby TrueHD, DTS-HD, Dolby Digital Plus audio is not output. Make HDMI connections. (v p. 78) Check the digital audio output setting on the connected device. On some devices, “PCM” is set by default. DTS Neural:X mode cannot be selected.
Page 272 Contents Connections Playback Settings Tips Appendix Sound is interrupted or noise occurs During playback from the Internet radio or USB memory device, sound is occasionally interrupted. When the transfer speed of the USB memory device is slow, sound may occasionally be interrupted. The network communication speed is slow or the radio station is busy.
Page 273 Contents Connections Playback Settings Tips Appendix No video is shown on the TV No picture appears. Check the connections for all devices. (v p. 74) Insert connection cables all the way in. Check that input connectors and output connectors are not reversely connected. Check cables for damage.
Page 274 Contents Connections Playback Settings Tips Appendix No video from an input source such as a game console is shown on the TV. When special video signals are input from a game console, etc., the Video Conversion function may not function. Connect the input connector to the monitor output connector of the same type.
Page 275 Contents Connections Playback Settings Tips Appendix The menu screen is not displayed on the TV The menu screen or status information screen is not displayed on the TV. The menu screen is only displayed on this unit and a TV connected with an HDMI cable. If this unit is connected to a TV using a different video output connector, operate while watching the display on this unit.
Page 276 Contents Connections Playback Settings Tips Appendix AirPlay cannot be played back The AirPlay icon is not displayed on iTunes / iPhone / iPod touch / iPad. This unit and PC / iPhone / iPod touch / iPad are not connected to the same network (LAN). Connect it to the same LAN as this unit. (v p. 86) The firmware on iTunes / iPhone / iPod touch / iPad is not compatible with AirPlay.
Page 277 Contents Connections Playback Settings Tips Appendix USB memory devices cannot be played back USB memory device is not recognized. Disconnect and reconnect the USB memory device. (v p. 83) Mass storage class compatible USB memory devices are supported. This unit does not support a connection through a USB hub. Connect the USB memory device directly to the USB port. The USB memory device must be formatted to FAT16 or FAT32.
Page 278 Contents Connections Playback Settings Tips Appendix Bluetooth cannot be played back Bluetooth devices cannot be connected to this unit. The Bluetooth function in the Bluetooth device has not been enabled. See the Owner’s Manual of the Bluetooth device to enable the Bluetooth function. Bring the Bluetooth device near to this unit.
Page 279 Contents Connections Playback Settings Tips Appendix The Internet radio cannot be played back A list of broadcasting stations is not displayed. The LAN cable is not properly connected, or the network is disconnected. Check the connection status. (v p. 86) Perform the network diagnostic mode.
Page 280 Contents Connections Playback Settings Tips Appendix Music files on PC or NAS cannot be played back Files stored on a computer cannot be played. Files are stored in a non-compatible format. Record in a compatible format. (v p. 294) Files that are copyright protected cannot be played on this unit. The USB port of this unit cannot be used for connection to a computer.
Page 281 Contents Connections Playback Settings Tips Appendix Various online services cannot be played Various online services cannot be played. The online service may have been discontinued. The HDMI Control function does not work The HDMI Control function does not work. Check that “HDMI Control” in the menu is set to “On”. (v p. 189) You cannot operate devices that are not compatible with the HDMI Control function.
Page 282 Contents Connections Playback Settings Tips Appendix Cannot connect to a wireless LAN network Cannot connect to the network. The network name (SSID), password and encryption setting have not been set up correctly. Configure the network settings according to the setting details of this unit.
Page 283 Contents Connections Playback Settings Tips Appendix When using HDMI ZONE2, the devices does not function properly When using MAIN ZONE, video output is interrupted in HDMI ZONE2. With the same input source selected for MAIN ZONE and ZONE2, when you operate MAIN ZONE, video may be interrupted in HDMI ZONE2. When using HDMI ZONE2, no video or audio is output from the TV in ZONE2.
Page 284 Contents Connections Playback Settings Tips Appendix Update/upgrade error messages If an update/upgrade is interrupted or fails, an error message appears. Display Description Connection failed. Please check your network, then try The network connection is unstable. again. Connection to the server failed. Check your network environment and try the update again.
Page 285: Resetting Factory Settings
Contents Connections Playback Settings Tips Appendix Resetting factory settings If the indicators are incorrect or the unit cannot be operated, restarting the unit may improve the problem. We recommend restarting the unit before returning the settings to the default settings. (v p. 266) If the operations are not improved by restarting the unit, follow the steps below.
Page 286: Resetting Network Settings
Contents Connections Playback Settings Tips Appendix Resetting network settings If network contents cannot be played or the unit cannot connect to the network, restarting the unit may improve the problem. We recommend restarting the unit before returning the settings to the default settings. (v p. 266) If the operations are not improved by restarting the unit, follow the steps below.
Page 287 Contents Connections Playback Settings Tips Appendix About HDMI HDMI is an abbreviation of High-Definition Multimedia Interface, which is an AV digital interface that can be connected to a TV or amplifier. This unit supports input and output of 3D (3 dimensional) video signals With the HDMI connection, high definition video and high quality audio of HDMI.
Page 288 Contents Connections Playback Settings Tips Appendix Auto Lip Sync ARC (Audio Return Channel) This function can automatically correct delay between the audio and This function transmits audio signals from the TV to this unit through video. the HDMI cable and plays back the audio from the TV on this unit Use a TV that is compatible with the Auto Lip Sync function.
Page 289 Contents Connections Playback Settings Tips Appendix o Supported audio formats Copyright protection system In order to play back digital video and audio such as BD video or DVD 2-channel Linear 2-channel, 32 kHz – 192 kHz, 16/20/24 bit video via HDMI connection, both this unit and the TV or player must to support the copyright protection system known as HDCP (High- Multi-channel 7.1-channel, 32 kHz –...
Page 290 Contents Connections Playback Settings Tips Appendix Video conversion function This unit automatically converts the input video signals as shown in the diagram before outputting them to the TV. This unit HDMI-compatible TV Video device Output Input (IN) (MONITOR OUT) Output HDMI signal HDMI signal HDMI connector...
Page 291 Contents Connections Playback Settings Tips Appendix This unit can convert the input video signals to the resolution that is set for “Resolution” in the menu before outputting them to the TV. (v p. 194) HDMI Output signal Input signal 480i/576i 480p/576p 720p 1080i...
Page 292 Contents Connections Playback Settings Tips Appendix Playing back a USB memory devices This unit is compatible with MP3 ID3-Tag (Ver. 2) standard. This unit can show the artwork that was embedded by using MP3 ID3-Tag Ver. 2.3 or 2.4. This unit is compatible with WMA META tags. If the image size (pixels) of an album artwork exceeds 500 ×...
Page 293 Contents Connections Playback Settings Tips Appendix Playing back a Bluetooth device o Maximum number of playable files and folder The limits on the number of folders and files that can be displayed by This unit supports the following Bluetooth profile. this unit are as follows.
Page 294 Contents Connections Playback Settings Tips Appendix Playing back a file saved on a PC or NAS This unit is compatible with MP3 ID3-Tag (Ver. 2) standard. This unit can show the artwork that was embedded by using MP3 ID3-Tag Ver. 2.3 or 2.4. This unit is compatible with WMA META tags.
Page 295 Contents Connections Playback Settings Tips Appendix Playing back Internet Radio Personal memory plus function The most recently used settings (input mode, HDMI output mode, sound o Playable broadcast station specifications mode, tone control, channel level, MultEQ ® XT32, Dynamic EQ, Dynamic Volume, Restorer and audio delay, etc.) are saved for each input source.
Page 296 Contents Connections Playback Settings Tips Appendix Sound modes and channel output S This indicates the audio output channels or surround parameters that can be set. D This indicates the audio output channels. The output channels depend on the settings of “Speaker Config.”. (v p. 222) Channel output Surround Front Dolby...
Page 297 Contents Connections Playback Settings Tips Appendix Channel output Surround Front Dolby Back Dolby Front Dolby Surround Rear Surround Sound mode Atmos Front Surround Top Front Top Rear Atmos Center Back Height Height Atmos Subwoofer Middle Height Enabled Enabled Surround Enabled Dz10 Dz10 Dz10...
Page 298 Contents Connections Playback Settings Tips Appendix Sound modes and surround parameters Surround Parameter Speaker Loudness Dynamic Sound mode Dialog Control Frequency Management Compression Delay Time Select Center Spread Cinema EQ Effect Level Room Size DTS Neural:X Effects Direct/Pure Direct (2-channel) Direct/Pure Direct (Multi-channel) DSD Direct (2-channel) DSD Direct (Multi-channel)
Page 299: Restorer
Contents Connections Playback Settings Tips Appendix Audyssey Surround Parameter Subwoofer Tone Restorer Bass Sync Dialog ® MultEQ Dynamic Audyssey Level Adjust Sound mode Dynamic EQ Auro-Matic Auro-Matic Enhancer Subwoofer XT32 Volume LFC™ z11z12 3D Preset 3D Strength z9z10 z11z12 z11z12 Sz15 Sz15 Direct/Pure Direct (2-channel)
Page 300 Contents Connections Playback Settings Tips Appendix z1 During playback in Pure Direct mode, the surround parameters are the same as in Direct mode. z2 This item can be selected when a Dolby Digital, Dolby Digital Plus, Dolby TrueHD or Dolby Atmos signal is played. z3 This item can be selected when a Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS:X or DTS signal is played.
Page 301 Contents Connections Playback Settings Tips Appendix Types of input signals, and corresponding sound modes F This indicates the default sound mode. S This indicates the selectable sound mode. Multi-channel signal 2-channel signal Dolby Dolby Dolby Sound mode NOTE (Super Dolby Dolby DTS ES DTS ES...
Page 302 Contents Connections Playback Settings Tips Appendix 2-channel signal Multi-channel signal Dolby Dolby Dolby Sound mode NOTE Analog / (Super Dolby Dolby DTS ES DTS ES (Super Digital Digital Digital DTS:X DTS-HD Auro-3D multi- (-HD) Audio Atmos TrueHD Express Dscrt6.1 Mtrx6.1 Audio (+/HD) Plus...
Page 303 Contents Connections Playback Settings Tips Appendix z1 This item can be selected when using any of the Surround Back, Front Height, Top Front, Top Middle, Top Rear, Rear Height, Front Dolby, Surround Dolby or Back Dolby speaker. z2 The default sound mode for the AirPlay playback is “Direct”. z3 This can be selected when the Dolby Atmos signal contains the Dolby TrueHD signal.
Page 304 Contents Connections Playback Settings Tips Appendix Explanation of terms o Audyssey Audyssey LFC™ (Low Frequency Containment) Audyssey LFC™ solves the problem of low frequency sounds disturbing Audyssey Dynamic EQ ® people in neighboring rooms or apartments. Audyssey LFC™ dynamically Audyssey Dynamic EQ ®...
Page 305 Contents Connections Playback Settings Tips Appendix o Auro-3D o Dolby Dolby Atmos Auro-3D ® Introduced first in the cinema, Dolby Atmos brings a revolutionary sense of The Auro-3D technology suite is a groundbreaking new audio technology ® dimension and immersion to the Home Theater experience. Dolby Atmos that combines height-based listening formats with powerful creative tools is an adaptable and scalable object based format that reproduces audio to deliver an unrivaled three-dimensional sound experience.
Page 306 Contents Connections Playback Settings Tips Appendix Dolby Digital Dolby Speaker Technology (Dolby Atmos Enabled speakers) Dolby Digital is a multi-channel digital signal format developed by Dolby A convenient alternative to speakers built into the ceiling, Dolby Atmos Laboratories. Enabled speakers employ the ceiling above you as a reflective surface for reproducing audio in the height plane above the listener.
Page 307 Contents Connections Playback Settings Tips Appendix o DTS DTS-ES™ Discrete 6.1 DTS-ES™ Discrete 6.1 is a 6.1-channel discrete digital audio format Dialog Control adding a surround back (SB) channel to the DTS digital surround sound. Gives you control of the listening experience. You can lift the dialog out Decoding of conventional 5.1-channel audio signals is also possible from the background sounds when clarity and intelligibility are desired.
Page 308 Contents Connections Playback Settings Tips Appendix DTS-HD High Resolution Audio DTS Neural:X DTS-HD High Resolution Audio is an improved version of the conventional Enables an immersive audio experience for older content. DTS Neural:X DTS, DTS-ES and DTS 96/24 signals formats, compatible with sampling can upmix your stereo, 5.1 or 7.1 content to take full advantage of all frequencies of 96 or 48 kHz and up to 7.1-channels of discrete digital speakers in your surround sound system.
Page 309 Contents Connections Playback Settings Tips Appendix o Audio THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED Apple Lossless Audio Codec WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A This is a codec for lossless audio compression method developed by PARTICULAR PURPOSE ARE DISCLAIMED.
Page 310 Contents Connections Playback Settings Tips Appendix MPEG (Moving Picture Experts Group), MPEG-2, MPEG-4 Speaker impedance These are the names for digital compression format standards used for This is an AC resistance value, indicated in Ω (ohms). the encoding of video and audio. Video standards include “MPEG-1 Greater power can be obtained when this value is smaller.
Page 311 Contents Connections Playback Settings Tips Appendix o Video o Network AirPlay ISF (Imaging Science Foundation) is an organization that certifies video AirPlay sends (plays) contents recorded in iTunes or on an iPhone/iPod technicians who are then qualified to carry out calibration and adjustment touch/iPad to a compatible device via the network.
Page 312 This is a simple authentication system for mutual authentication when a Denon Link HD preset character string matches on the wireless LAN access point and Denon Link HD uses the clock of the AV amplifier connected by Denon client. Link HD to achieve HDMI signal transfer with low jitter.
Page 313 Contents Connections Playback Settings Tips Appendix Trademark information Manufactured under license from Audyssey Laboratories™. U.S. and Apple, AirPlay, iPad, iPad Air, iPad Pro and iPhone are trademarks of foreign patents pending. Audyssey MultEQ ® XT32, Audyssey Dynamic Apple Inc., registered in the U.S. and other countries. ®...
Page 314 Contents Connections Playback Settings Tips Appendix The Bluetooth ® word mark and logos are registered trademarks owned For DTS patents, see http://patents.dts.com. Manufactured under license by Bluetooth SIG, Inc. and any use of such marks by D&M Holdings Inc. from DTS, Inc. DTS, the Symbol, DTS and the Symbol together, DTS:X, is under license.
Page 315 Contents Connections Playback Settings Tips Appendix The Wi-Fi CERTIFIED logo is a registered trademark of the Wi-Fi Alliance. Wi-Fi Certification provides assurance that the device has passed the interoperability test conducted by the Wi-Fi Alliance, a group that certifies interoperability among wireless LAN devices. Front panel Display Rear panel...
Page 316 Contents Connections Playback Settings Tips Appendix Specifications o Audio section Power amplifier Rated output: Front: 140 W + 140 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.05 % T.H.D.) 175 W + 175 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.) Center: 140 W (8 Ω/ohms, 20 Hz –...
Page 317 Contents Connections Playback Settings Tips Appendix Analog Input sensitivity: 200 mV Frequency response: 10 Hz – 100 kHz — +1, –3 dB (Direct mode) S/N: 102 dB (IHF–A weighted, Direct mode) Distortion: 0.005 % (20 Hz – 20 kHz) (Direct mode) Rated output: 1.2 V Digital...
Page 318 Contents Connections Playback Settings Tips Appendix o Video section Standard video connectors Input/output level and impedance: 1 Vp-p, 75 Ω/ohms Frequency response: 5 Hz – 10 MHz — 0, –3 dB Color component video connector Input/output level and impedance: Y signal — 1 Vp-p, 75 Ω/ohms signal —...
Page 319 Contents Connections Playback Settings Tips Appendix o Wireless LAN section Network type (wireless LAN standard): Conforming to IEEE 802.11a/b/g/n (Wi-Fi ® compliant) Security: WEP 64 bit, WEP 128 bit WPA/WPA2-PSK (AES) WPA/WPA2-PSK (TKIP) Used frequency range: 2.4 GHz, 5 GHz z1 The Wi-Fi CERTIFIED Logo and the Wi-Fi CERTIFIED On-Product Logo are registered trademarks of the Wi-Fi Alliance.
Page 320 Contents Connections Playback Settings Tips Appendix o Bluetooth section Communications system: Bluetooth Specification Version 3.0 + EDR (Enhanced Data Rate) Transmission power: Bluetooth Specification Power Class 1 Maximum communication range: Approx. 98.4 ft/30 m in line of sight Used frequency range: 2.4 GHz Modulation scheme: FHSS (Frequency-Hopping Spread Spectrum)
Page 321 Contents Connections Playback Settings Tips Appendix Dimensions (Unit : in. (mm)) 17 1/8 (434) 2 3/8 (60) 1 7/8 (45) 13 5/8 (344) 1 7/8 (45) Weight : 31 lbs 15 oz (14.5 kg) Front panel Display Rear panel Remote Index...
Page 322 Game console ..........81 5.1-channel ..........37, 46 General settings ........169, 242 7.1-channel ..........37, 47 9.1-channel ............ 51 Denon Link HD ..........312 Direct sound mode ........146 HDCP ............289 Display ............22 HDMI Control ........151, 189 AirPlay ............
Page 323: Table Of Contents
Contents Connections Playback Settings Tips Appendix Input Assign ..........199 NAS ............. 113 Rear panel ............24 Input settings ........167, 199 Network settings .......... 234 Remote control unit ........28 Input signal ........... 301 Resetting factory settings ......285 Input source ...........
Page 324 Contents Connections Playback Settings Tips Appendix Tips .............. 264 Wi-Fi settings ..........235 Troubleshooting ........... 266 Wired LAN ..........86, 234 TV ............74, 75, 76 Wireless LAN ......... 87, 235 USB memory device ........ 83, 94 ZONE2/ZONE3 ........68, 159 Video camcorder ..........
