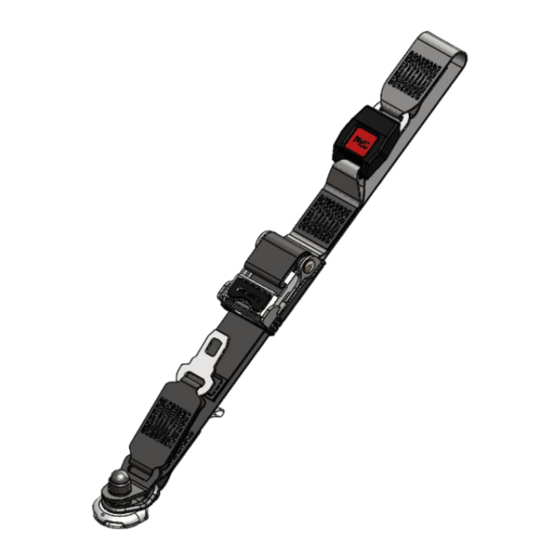

- Page 1 COMPACT MANUAL WHEELCHAIR TIE-DOWN User Manual Applicable to products: T-ROBK, T-ROBT, T-ROBJ, T-SOBK, T-SOBT, T-SOBJ UI12353 Instructions for fitting and use...
- Page 2 If you have any questions about your equipment, please contact us. Once again, thank you for placing your confidence in our products! Safe vehicle adaptation solutions For your safety BraunAbility products are designed and tested according to current directives and standards.
- Page 3 Compact manual wheelchair tie-downs Safety information Limitation of use General guidance Before installing and using Fit and use Fit and use - front tie-down - Rail Fit and use - rear tie-down - Rail Fit and use - front tie-down - Solo Fit and use - rear tie-down - Solo After care Equipment storage and maintenance...
-
Page 4: Safety Information
Compact manual wheelchair tie-downs Safety information Limitation of use The development of BraunAbility kits is a continuous process. Applications are added on a regular basis. For more details contact BraunAbility or look on the BraunAbility website. - Page 5 Compact manual wheelchair tie-downs T-ROBK T-ROBT T-ROBJ T-SOBK T-SOBT T-SOBJ...
-
Page 6: General Guidance
Compact manual wheelchair tie-downs General guidance • Wheelchair Accessories that have not been approved by the Wheelchair Manufacturer must be removed from the wheelchair and secured in the vehicle during transport to reduce the potential for injury. Refer to ‘Instructions For Use in Transport’ provided with the wheelchair or contact wheelchair manufacturer for further guidance. - Page 7 Anchorages should not be installed into unsound materials such as corroded metal, wood, plastic and fibreglass panels, without additional and suitable reinforcement. • The equipment has been tested in a configuration recommended by BraunAbility and any deviation from the recommendations here is the responsibility of the installer/user.
- Page 8 Compact manual wheelchair tie-downs Before installing the wheelchair tie-down occupant restraints • Ensure that the wheelchair is correctly maintained and that the settings of any adjustable parts are made according to ‘Instructions for Use in Transport’. • Whenever possible remove any items of luggage etc that may be attached to the wheelchair and secure or store separately during transport in order to reduce the potential for injury to other passengers traveling in the vehicle.
- Page 9 Compact manual wheelchair tie-downs • Wheelchair users, their caregivers and family are advised to check vehicle specifications to ensure that sufficient floor space is available to accommodate the wheelchair and tie-down system. These distances are based upon the desire to maintain clear zones for potential head excursions of occupants provided with both upper and lower torso restraints.
- Page 10 Compact manual wheelchair tie-downs Fit and use Compact manual wheelchair tie-down Rail floor - front Removing the compact manual The rail will have been installed in the vehicle in accordance with our own wheelchair tie-down and the vehicle converter’s instruction. Position wheelchair within vehicle as required.
- Page 11 Compact manual wheelchair tie-downs Figure 2 Wheelchair reference plane Figure 1 Front securement points 40° 60° 25° 25° 300mm (12in) SIDE VIEW FRONT VIEW Figure 4 Figure 3...
- Page 12 Compact manual wheelchair tie-downs Fit and use Compact manual wheelchair tie-down Rail floor - rear Removing the compact manual The rail will have been installed in the vehicle in accordance with our own wheelchair tie-down and the vehicle converter’s instruction. Position wheelchair within vehicle as required.
- Page 13 Compact manual wheelchair tie-downs Wheelchair reference plane Rear securement points 30° 45° 300mm 10° (12in) 10° REAR VIEW SIDE VIEW NOTE Note that angles indicated are obtained by projecting the angle of each tie-down strap onto a vertical plane parallel to the wheelchair reference plane (side view) or onto a vertical plane that is perpendicular to the wheelchair reference plane (rear view).
- Page 14 Compact manual wheelchair tie-downs Fit and use Compact manual wheelchair tie-down Solo anchor - front Removing the compact manual The Solo floor anchors will have been installed in the vehicle in accordance with our own and the vehicle converter’s instruction. Position the wheelchair wheelchair tie-down within the vehicle as required.
- Page 15 Compact manual wheelchair tie-downs B - rotate 90° A - slide on Figure 8 Figure 7 Wheelchair reference plane Front securement points 40° 60° 25° 25° 300mm (12in) SIDE VIEW FRONT VIEW Figure 3 Figure 4 Figure 9...
- Page 16 Compact manual wheelchair tie-downs Fit and use Compact manual wheelchair tie-down Solo anchor - rear Removing the compact manual Install the Quattro restraints onto the Solo anchors, in the same way as the wheelchair tie-down fronts. When using tie-down with J-hooks or karabiners, ensure that the karabiner / J-hook gates are facing outwards.
- Page 17 Compact manual wheelchair tie-downs Wheelchair reference plane Rear securement points 30° 45° 300mm 10° (12in) 10° REAR VIEW SIDE VIEW NOTE Note that angles indicated are obtained by projecting the angle of each tie-down strap onto a vertical plane parallel to the wheelchair reference plane (side view) or onto a vertical plane that is perpendicular to the wheelchair reference plane (rear view).
- Page 18 • If the vehicle is involved in an accident when any restraints are deployed, remove them from service and replace immediately. If in doubt please contact BraunAbility.
-
Page 19: Warranty
BraunAbility products when used in conjunction with such jointly tested systems. For further details on specific applications please contact the Sales Office. In other situations, using BraunAbility products, for which BraunAbility has not participated in a joint test program, a limited BraunAbility warranty will apply. - Page 20 Accredited by URS as testing laboratory in accordance with ISO/IEC 17025:2005 Quality system certified in accordance with ISO 9001:2008 Illustrations, descriptions and specifications in the user manual are based on current product information. BraunAbility UK Ltd reserves the right to make alterations without previous notice. © 2021 BraunAbility UK Ltd...
-
Page 21: Declaration Of Conformity
The Horseshoe Coat Road ISO 10542:2012 Martock, Somerset, TA12 6EY, RESNA WC-4 2012 Section 18 2001/85/EC R.107.06 Phone: +44 1935 827740 DIN 75078 Email: info@braunability.eu 2018-858-EU www.braunability.eu BraunAbility, June 2021 Declares that the products / T-ROBK, T-ROBJ, T-ROBT, T-SOBK, T-SOBJ, T-SOBT... - Page 22 BraunAbility UK Ltd Unwin House Phone: +44 1935 827740 The Horseshoe, Coat Road Email: info@braunability.eu Martock, Somerset, TA12 6EY, www.braunability.eu...
