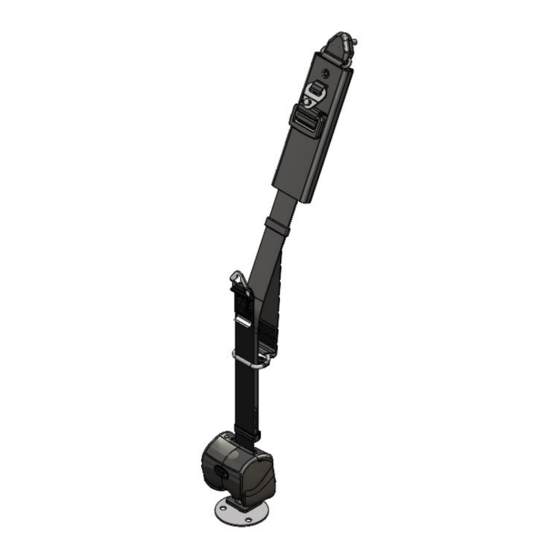

- Page 1 PIN SHOULDER BELT OCCUPANT RESTRAINT User Manual Applicable to products: P-SABB, P-SABR, P-SARB, P-SARR, P-SARB, P-SATR UI12359 Instructions for fitting and use...
- Page 2 If you have any questions about your equipment, please contact us. Once again, thank you for placing your confidence in our products! Safe vehicle adaptation solutions For your safety BraunAbility products are designed and tested according to current directives and standards.
- Page 3 PIN Shoulder Belt Safety information Limitation of use General guidance Before installing and using PIN Shoulder Belt Fit and use Fit and use - PIN Shoulder Belt - Rail Fit and use - PIN Shoulder Belt - Bolted After care Equipment storage and maintenance Warranty ”Declaration of conformity”...
-
Page 4: Safety Information
PIN Shoulder Belt Safety information Limitation of use The development of BraunAbility kits is a continuous process. Applications are added on a regular basis. For more details contact BraunAbility or look on the BraunAbility website. - Page 5 PIN Shoulder Belt P-SABB P-SABR P-SARB P-SARR P-SATB P-SATR...
- Page 6 PIN Shoulder Belt General guidance • Wheelchair Accessories that have not been approved by the Wheelchair Manufacturer must be removed from the wheelchair and secured in the vehicle during transport to reduce the potential for injury. Refer to ‘Instructions For Use in Transport’ provided with the wheelchair or contact wheelchair manufacturer for further guidance.
- Page 7 Anchorages should not be installed into unsound materials such as corroded metal, wood, plastic and fibre glass panels, without additional and suitable reinforcement. • The equipment has been tested in a configuration recommended by BraunAbility and any deviation from the recommendations here is the responsibility of the installer/user.
- Page 8 PIN Shoulder Belt Before installing and using PIN Shoulder Belt occupant restraint • Ensure that the wheelchair is correctly maintained and that the settings of any adjustable parts are made according to ‘Instructions for Use in Transport’. • Whenever possible remove any items of luggage etc that may be attached to the wheelchair and secure or store separately during transport in order to reduce the potential for injury to other passengers traveling in the vehicle.
- Page 9 PIN Shoulder Belt • Wheelchair users, their carers and family are advised to check vehicle specifications to ensure that sufficient floor space is available to accommodate the wheelchair and tie-down system. These distances are based upon the desire to maintain clear zones for potential head excursions of occupants provided with both upper and lower torso restraints.
- Page 10 PIN Shoulder Belt Fit and use PIN Shoulder Belt occupant restraint Rail The rail will have been installed in the vehicle in accordance with our own and the vehicle Removing the PIN Shoulder converter’s instruction. Position the wheelchair within the vehicle as required. Belt Wheelchair tie-downs and occupant lap belt should be fitted before the shoulder belt Fit the shoulder belt ATF (aluminium track fitting) into the rail by aligning the ATF feet...
- Page 11 PIN Shoulder Belt Figure 2 Figure 3 90° 90° Figure 6 Figure 4...
- Page 12 PIN Shoulder Belt Fit and use PIN Shoulder Belt occupant restraint Bolted Bolted occupant restraints will have been installed in the vehicle in accordance with our Removing the PIN Shoulder own and the vehicle converter’s instruction. Note: if fitting hardware, other than that Belt provided in this kit, is to be used, then the fixing bolts should be of an equivalent cross section and an equivalent grade, namely B.S.
- Page 13 PIN Shoulder Belt Figure 3 Figure 4 90° 90° Figure 7...
- Page 14 • If the vehicle is involved in an accident when any restraints are deployed, remove them from service and replace immediately. If in doubt please contact BraunAbility.
-
Page 15: Declaration Of Conformity
The Horseshoe Coat Road ISO 10542:2012 Martock, Somerset, TA12 6EY, RESNA WC-4 2012 Section 18 2001/85/EC R.107.06 Phone: +44 1935 827740 DIN 75078 Email: info@braunability.eu 2018-858-EU www.braunability.eu BraunAbility, June 2021 Declares that the products / P-SABB, P-SARR, P-SARB, P-SATR, P-SATB, P-SABR... -
Page 16: Warranty
BraunAbility products when used in conjunction with such jointly tested systems. For further details on specific applications please contact the Sales Office. In other situations, using BraunAbility products, for which BraunAbility has not participated in a joint test program, a limited BraunAbility warranty will apply. - Page 17 Accredited by URS as testing laboratory in accordance with ISO/IEC 17025:2005 Quality system certified in accordance with ISO 9001:2008 Illustrations, descriptions and specifications in the user manual are based on current product information. BraunAbility UK Ltd reserves the right to make alterations without previous notice. © 2021 BraunAbility UK Ltd...
- Page 18 BraunAbility UK Ltd Unwin House Phone: +44 1935 827740 The Horseshoe, Coat Road Email: info@braunability.eu Martock, Somerset, TA12 6EY, www.braunability.eu...
