Summary of Contents for Dr. Trust 120

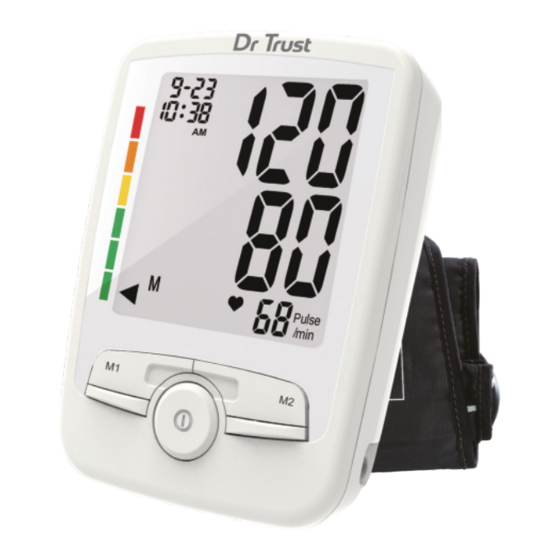

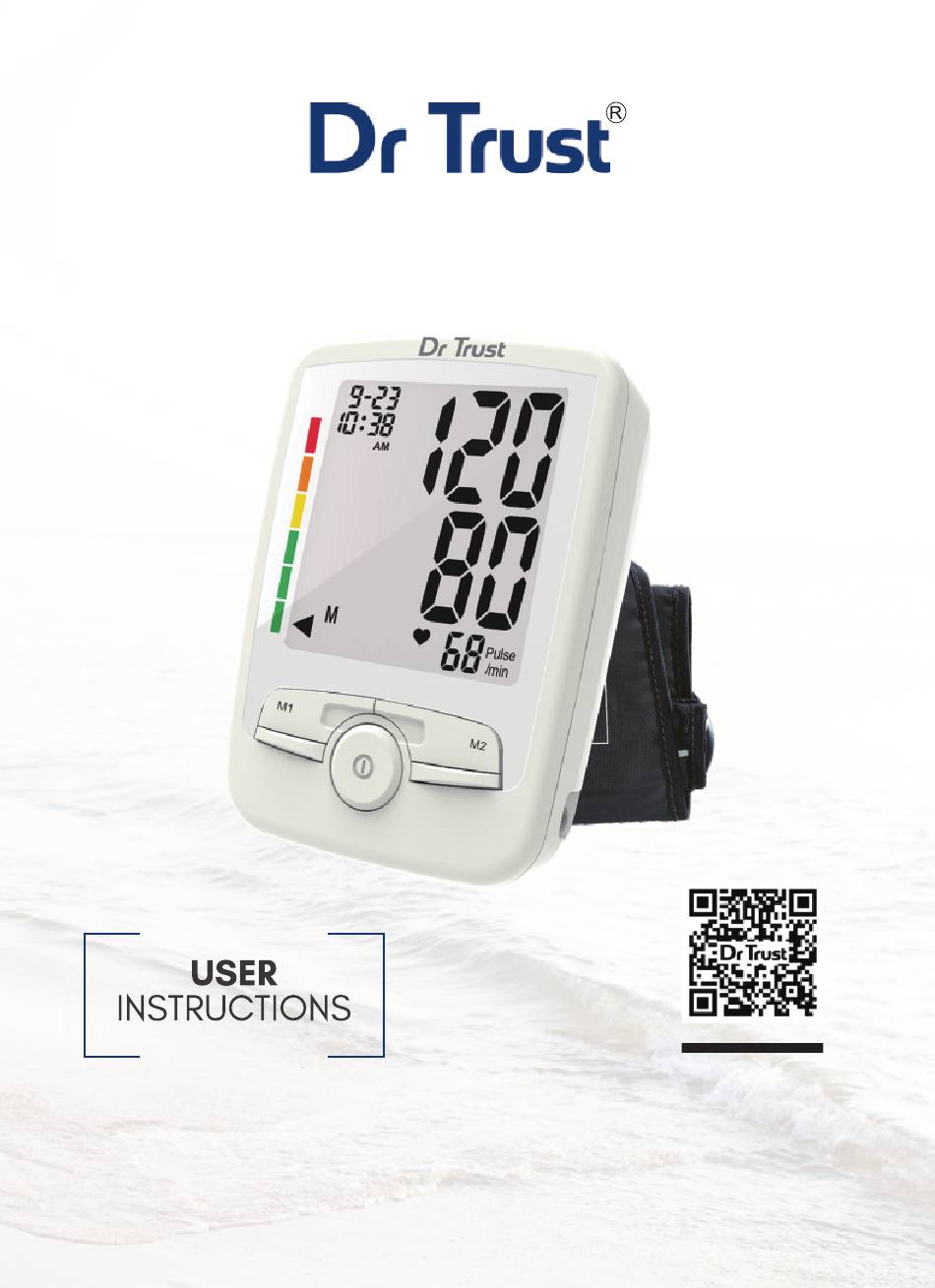

- Page 1 Dr Trust iCheck Max Blood Pressure Monitor -120 Model:120 Scan to View Product Demo Video WWW.DRTRUST.IN/120 Thank you for purchasing Dr Trust iCheck Max Blood Pressure Monitor -120. Please read this instruction manual carefully before start operating the device.
-
Page 2: Table Of Contents
Contents Introduction Important Information Before Use Description of LCD Display Product Identification Battery Installation Setting the Date and Time Placement of the Pressure Sleeve Measurement of Pulse Rate and Blood Pressure Irregular Heartbeat Detector World Health Organization (WHO) Memory Function Troubleshooting Care and Maintenance Technical Specification... -
Page 3: Introduction
INTRODUCTION Dr Trust iCheck Max Blood Pressure Monitor -120 applies the Oscillometric method to measure human systolic / diastolic blood pressure and heart rate. All values are shown on the large LCD screen with backlight and easy to read especially in night. The operating system of this device accommodates two users with storing up to 90 measurements of each user separately. -
Page 4: Description Of Lcd Display
Important Information Before Use 10. Although such cases are rare, for those with an extremely weak pulse or irregular pulse, errors may result which prevent proper measurement. If abnormal variations are noticed, consult with your physician or trained healthcare professional. 11. -
Page 5: Product Identification
Product Identification Air Socket (insert Air connector plug here) LCD Display M2 MEMORY M1 MEMORY Recall Button Recall Button AC Adapter Port START/POWER Button (on/off) Air Connector Plug (connects to Air socket) Air tube www.drtrust.in... -
Page 6: Battery Installation
Battery Installation Low battery warning: It is necessary to replace the batteries when the Low Battery symbol “ ” appears on the display, or when the display does not turn on after the POWER button is pressed. Replacing the Battery: 1. -
Page 7: Setting The Date And Time
Setting the Date and Time It is necessary to set the date and time for the unit every time batteries are initially installed or replaced. 1. Loading 4 AAA alkaline batteries; the year will begin to flash on the display. 2. -
Page 8: Placement Of The Pressure Sleeve
Placement of the Pressure Sleeve It is important to avoid smoking, eating, taking medication, alcohol consumption or physical activity 30 minutes prior to taking a reading If for any reason you are unable to or should not use your left arm, please modify the instructions for cuff... - Page 9 Placement of the Pressure Sleeve 7. The bottom edge of the cuff should be positioned approximately one inch above the elbow joint. 8. Reaching underneath your left arm with your right hand, pull the end of the cuff towards your body to tighten the cuff.
-
Page 10: Measurement Of Pulse Rate And Blood Pressure
Measurement of Pulse Rate and Blood Pressure Please read the preceding portions of this manual prior to taking your first reading. 1. Position the monitor on a flat, stable surface with the digital display in view. 2. Insert the cuff tubing connector into the port on the left side of your monitor. - Page 11 Measurement of Pulse Rate and Blood Pressure 9. To detect the heartbeat, the heartbeat symbol will appear and continuous flashes on the LCD display. 10. Your blood pressure measurement and pulse will display simultaneously on the screen. 11. The Hypertension Indicator will indicate your reading range on the display separately.
-
Page 12: Irregular Heartbeat Detector
Irregular Heartbeat Detector Your digital blood pressure monitor features an Irregular Heartbeat Detector. This feature allows users to accurately monitor blood pressure even if an irregular heartbeat should occur. When an irregular heartbeat is detected, the “ ” icon will appear on the display. -
Page 13: Memory Function
Memory Function Recalling Measurements in Memory: You can recall up to 90 measurements per memory bank, 180 total, plus an average of last 3 currently stored measurements in memory to share with your physician or trained healthcare professional. 1. Press and release the M1 or M2 button. -
Page 14: Troubleshooting
Troubleshooting Problem Probable Cause Recommended Action Nothing appears Replace all batteries with new Batteries are drained. in the display ones. even when the Battery are not correctly aligned with Reinsert batteries in the correct power is turned terminals. position. Replace all batteries with new Batteries are drained. -
Page 15: Care And Maintenance
Care and Maintenance 1. Clean the device and arm cuff carefully only with a slightly moistened cloth. 2. Do not immerse the device in water. It may cause damage if water enters. 3. Do not use any gas, strong detergent, or solvents to clean the device, including the arm cuff. -
Page 16: Technical Specification
Technical Specification • Measuring range : Blood Pressure : 30~280 mmHg Pulse Rate : 40~199 beats/min • Calibration Accuracy : Blood Pressure : ± 3 mmHg Pulse rate : ± 4% of reading • Operating environment : 10°C~40°C (50°F~104°F) with relative humidity up to 85% (non condensing) •... -
Page 17: Emc Tables
EMC Tables 120 is intended for use in the electromagnetic environment specified below. The customer or the user of 120 must make sure that it is used in such an environment. Guidance and manufacturer’s declaration - Electromagnetic emissions Professional healthcare facility... -
Page 18: Explanation Of Symbols
Explanation of Symbols Follow instructions for use Disposal information: Should you wish to dispose of the article, do so in accordance with current regulations. Details are available from your local authority “ON/OFF” (push-push) Type of protection of applied part against electric shock, body floating This product meets the basic safety and essential performance requirements indicated in the IP22... -
Page 19: Customer Support
CONTACT ADDRESS Nureca INC.USA 276 5th Avenue, Suite 704-397, New York (NY) - 10001, USA INDIA Corporate O ce (Mumbai) Nureca Limited 128 Gala Number Udyog Bhavan, 1st Floor Sonawala Lane, Goregaon East Mumbai City Maharashtra 400063 Contact us India: +91-7527013265 /+91-9356658436 Website: www.drtrust.in Corp Website: www.nureca.com... -
Page 20: About Us
www.drtrust.in...
