Summary of Contents for Dr. Trust Afib

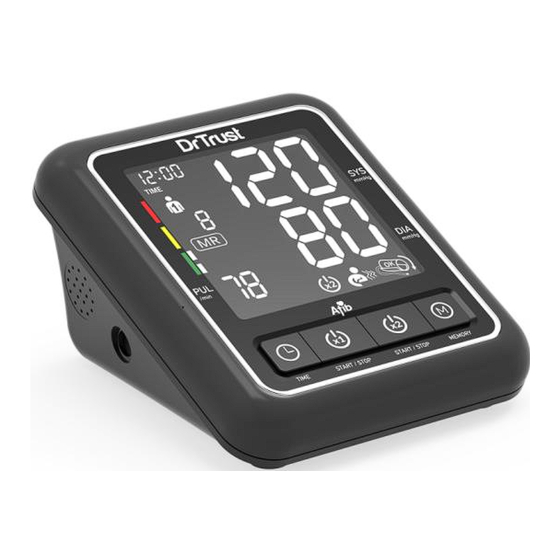

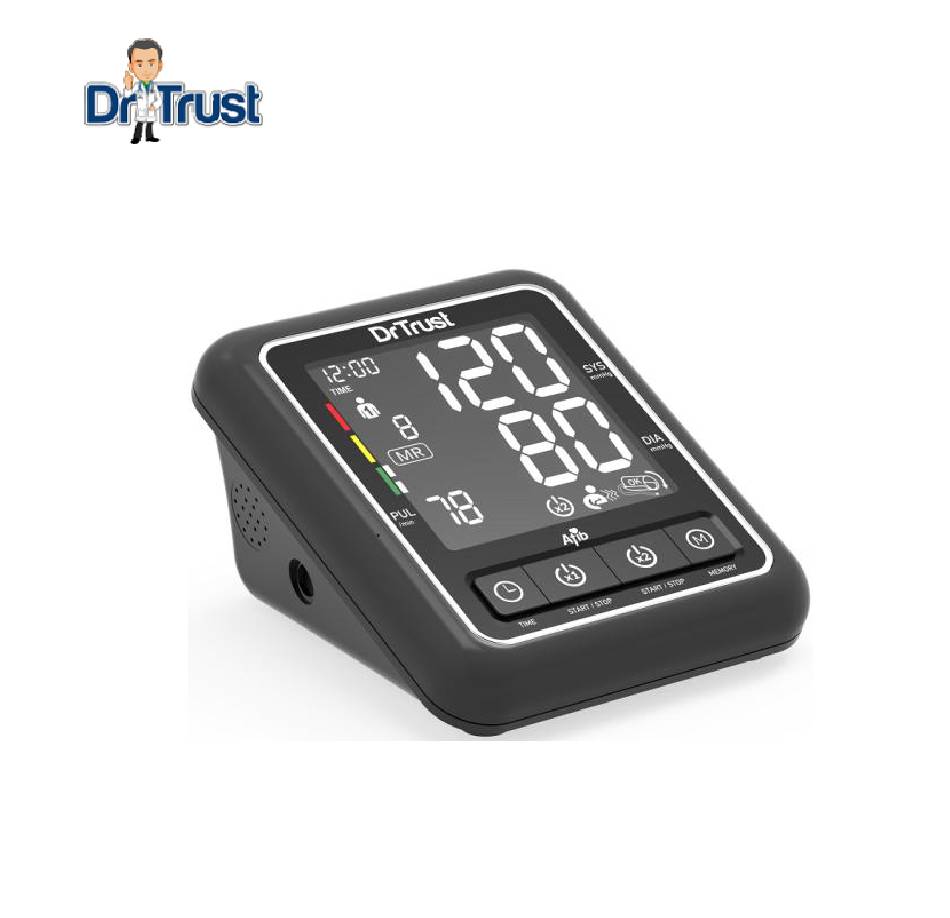

- Page 1 Afib Talk Blood Pressure Monitor Instruction Manual...
-
Page 2: Table Of Contents
? ............LOOD RESSURE RISE 2.2. W ? ..................HICH ALUES ORMAL Important Facts About Atrial Fibrillation (Afib) ............Various Components Of The Blood-Pressure Monitor ..........Putting The Blood-Pressure Monitor Into Operation ............................. NSERTING ATTERIES ..................EADING LANGUAGE SETTING, U .... -
Page 3: Introduction
Introduction 1.1. Features of Afib Talk Afib Talk BP Monitor (with integrated time/date display) is a fully automatic, digital blood-pressure measuring device for use on the arm, which enables very fast and reliable measurement of the systolic and diastolic blood-pressure as well as the pulse frequency by way of the oscillometric method of measuring. -
Page 4: Important Information On The Subject Of Blood-Pressure And Its Measurement
impairment of patient blood circulation. Not intended to be used together with HF surgical equipment. Do not forget: self-measurement means control, not diagnosis or treatment. Unusual values must always be discussed with your doctor. Under no circumstances should you alter the dosages of any drugs prescribed by your doctor. - Page 5 blood-pressure values lie between 90 mmHg and 100 mmHg, likewise, please consult your doctor. Furthermore, regular self-checks will be necessary. With blood-pressure values that are too low, i.e. systolic values under 100 mmHg and/or diastolic values under 60 mmHg, likewise, please consult your doctor. Even with normal blood-pressure values, a regular self-check with your blood-pressure monitor is recommended.
-
Page 6: Important Facts About Atrial Fibrillation (Afib)
How does AFIB impact my family or me? People with AFIB have a five-fold higher risk of getting stroke. Since the chance of having a stroke increases with age, AFIB screening is recommended for people over 65 years and older. However, for people from the age of 50 years with high blood pressure (hypertension), diabetes, coronary heart failure or have had a previous stroke AFIB screening is also recommended. -
Page 7: Various Components Of The Blood-Pressure Monitor
Various components of the blood-pressure monitor... -
Page 8: Putting The Blood-Pressure Monitor Into Operation
Putting the blood-pressure monitor into operation Inserting the batteries a) Insert the batteries (4 x size AA 1.5V), thereby observing the indicated polarity. b) If the battery warning icon appears in the display, the batteries remain 20% power to warn user the batteries will be run out. - Page 9 User selection: This advanced blood pressure monitor allows you to track blood pressure readings for 2 individuals independently. a) Before measurement, make sure you set the unit for the intended user. The unit can track results for 2 individuals. (User 1, User 2) b) Press the TIME button for at least 3 seconds.
-
Page 10: Carrying Out A Measurement
displayed and then the time. The input is now confirmed and the clock begins to run. Further Information With each press of the button (TIME, MEMORY) one input is made (e.g. switching over from hours to minutes mode, or altering the value by +1). However, if you keep the respective button depressed, you can switch more quickly to find the desired value respectively. -
Page 11: Fitting The Cuff
Fitting the cuff Insert air connector into air outlet shown in left photo and please make sure the fitting of the air connector completely and properly to avoid air leakage. The distance between the edge of cuff and the elbow should be approx. -
Page 12: Measuring Procedure
Measuring procedure 6.4.1Measuring in standard mode In this mode has IHB (Irregular Heart Beat) detection but no Afib detection After the cuff has been appropriately positioned, the measurement can begin: Press the button, the pump begins to inflate the cuff. In the display, increasing cuff-pressure is continually displayed. - Page 13 6.4.2Measuring in Afib Mode (2-measurement mode) In Afib mode, 2 measurements are automatically taken in succession and the result is then automatically analyzed and displayed. Because blood pressure constantly fluctuates, a result determined in this way is more reliable than one produced by a single measurement.
- Page 14 Measured result: The measured systolic and diastolic blood- Pressure values as well as the pulse are now displayed. Example 1: Systole 128, Diastole 86, Pulse 68, Afib detected. Icon of IHB (Irregular Heart Beat) and Afib will be appeared Arm movement detected and cuff fit too loose detected...
-
Page 15: Discontinuinga Measurement
Example 2: Systole 128, Diastole 86, Pulse 68, IHB (Irregular Heart Beat) detected , but no Afib detected. Arm movement detected and cuff fit well The measurement results are displayed until you switch the device off. If no button is pressed for 3 minutes, the device switches automatically off Discontinuing a measurement If it is necessary to interrupt a blood pressure measurement for any reason (e.g. -
Page 16: Memory- Cancellation Of All Measurements Attention
Measured under mode the last 3 memory (MR1: Values of the last measurement) (MR2-MR120: Values of the measurement before MR1) Memory– cancellation of all measurements Attention! Before you delete all readings stored in the memory, make sure you will not need refer to the readings at a later date. -
Page 17: Appearance Of The Atrial Fibrillation Indicator For Early Detection
(triplicate measurements). If the AFIB symbol appears again, then you are advised to visit your doctor. If after repeated measurement the AFIB symbol is no longer displayed there is no cause for concern. In such case it is recommended to measure again the next day. - Page 18 you doctor if you continue to get unusual readings. ERR8 Pressure is over 290 mmHg Further Information - The level of blood-pressure is subject to fluctuations even with healthy people. Important thereby is, that comparable measurements always require the same conditions (Quiet conditions)! If, in spite of observing all these factors, the fluctuations are larger than 15mmHg, and/or you hear irregular pulse tones on several occasions, please consult your doctor.
-
Page 19: Care And Maintenance, Recalibration
value although the instrument functions listed under «Common sources of error». Repeat the normally and the values displayed are measurement. normal Please note: Blood pressure fluctuates continually so successive measurements will show some variability. Blood pressure measured differs from Record the daily development of the values and those values measured by the doctor. -
Page 20: Safey,Care And Disposal
11. Safety, care and disposal Safety and protection This instrument may be used only for the purpose described in this booklet. The manufacturer cannot be held liable for the damage caused by incorrect application. These instruments comprise sensitive components and must be treated with caution. Observe ... -
Page 21: Reference To Standards
Batteries and electronic instruments must be disposed of in accordance with the locally applicable regulations, not with domestics waste. 12. Reference to Standards Device standard: Device corresponds to the requirements of the European standard for non-invasive blood- pressure monitor EN1060-1 EN1060-3 EN1060-4 –... -
Page 22: Technical Specifications
Inapplicable baby Type B equipment Cuff Connector AC/DC Adapter Wellkang Tech Consulting Suite Attention consult accompanying B ,29 Harley Street, LONDON documents W1G 9QR ,United Kingdom Keep Dry 14. Technical specifications Oscillometric , corresponding to Korotkoff method: Phase I : systolic , Phase Measurement Procedure: V : diastolic Display:... -
Page 23: Manufacturer's Declaration
EN60601-1, EN60601-1-2 15. Manufacturer's Declaration Afib Talk is intended for use in the electromagnetic environment specified below. The customer or the user of this device should assure that it is used in such an environment. Electromagnetic Emissions: (IEC60601-1-2) - Page 24 (30% dip operation during power mains ) for 25 cycles interruptions, it is recommended <5 % U （95% dip that Afib Talk be powered from an ）for 5 sec. uninterruptible power supply or a battery. Power frequency 3 A/m Not applicable...
- Page 25 If the measured field strength in the location in which Afib Talk is used exceeds the applicable RF compliance level above, it should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the device.
- Page 26 Recommended separation distance between portable and mobile RF communications equipment and Afib Talk. Afib Talk is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of Afib Talk can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and Afib Talk as recommended below, according to the maximum output power of the communications equipment.
