OJ Electronics ADG4 User Manual

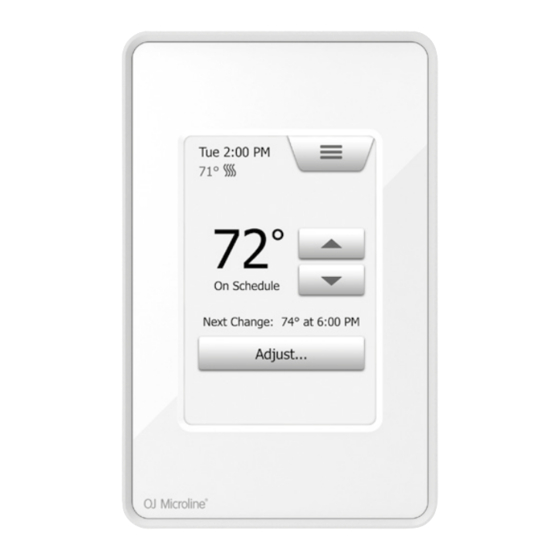

Interactive touch thermostat

Hide thumbs Also See for ADG4:

Quick start manual (2 pages)

page of 62

/ 62
Bookmarks

Quick Links

Download this manual

67371E 06/22 (MTE)

WARNINGS:

To avoid electric shock, disconnect the heating system power supply

WWW.OJELECTRONICS.COM

at the main panel before installation and maintenance of the thermostat.

Keep thermostat air vents clean and free from obstruction. This ther-

UDG4/ADG4

Touch Thermostat

QUICK START GUIDE

GUIDE DE DÉMARRAGE RAPIDE

Interactive

GUÍA DE INICIO RÁPIDO

User Manual

Contents

67370 02/15 (JRK)

Touch

Need help?

Do you have a question about the ADG4 and is the answer not in the manual?

Questions and answers

Summary of Contents for OJ Electronics ADG4

Page 1 To avoid electric shock, disconnect the heating system power supply > WWW.OJELECTRONICS.COM Contents at the main panel before installation and maintenance of the thermostat. Keep thermostat air vents clean and free from obstruction. This ther- © 2022 OJ Electronics A/S...
Page 3 Time Floor Sensor Calibration Installer Settings Heating Schedule Daylight Saving Time Room Sensor Calibration Unit View/Edit Schedule Floor Protection Language Revert to Factory Schedule Factory Reset Information Support User Reset < > PAGE 3 Contents © 2022 OJ Electronics A/S...
Page 4 The thermostat comes with a preset heating schedule that is suitable for most homes. Unless you change the settings, the thermostat will operate according to this preset heating schedule. < > PAGE 4 Contents © 2022 OJ Electronics A/S...
Page 5 Keep thermostat air vents clean and free from obstruction. This ther- < > mostat is an electrical device and must be installed in compliance with PAGE 5 Contents national and/or local electrical codes. Installation must be performed by © 2022 OJ Electronics A/S qualified personnel where required by law.
Page 6 “Arrow Up”, “Arrow Down”, “Arrow Left”, and “Arrow Right” are used to toggle settings and values and to navigate through the menus. The “Arrow Up” and “Arrow Down” buttons are accelerated buttons. Holding either of them will make the value change continuously. < > PAGE 6 Contents © 2022 OJ Electronics A/S...
Page 7 If this does not occur, there is a ground fault! In case of a ground fault, it is important to have the installation checked by a qualified electrician according to local and national regulations. < > PAGE 7 Contents © 2022 OJ Electronics A/S...
Page 8 Try switching the thermostat off and then back on again. If the LED still lights constantly, the GFCI/EGFPD is defective and the thermostat must be replaced. Note: The LED lights up briefly without flashing during every power-up. < > PAGE 8 Contents © 2022 OJ Electronics A/S...
Page 9 Sensor Type ° User Settings Unit Floor Protection Floor Sensor Installer Settings Language Calibration en saver Room Sensor Child Lock Information Calibration Display Brightness Support Temperature Scale Screen Saver Adaptive Function < > PAGE 9 Contents © 2022 OJ Electronics A/S...
Page 10 Cancel Heating is activated with adaptive mode icons Arrow Up Note icons Arrow Down Floor Load screen saver Arrow Left screen saver Arrow Right screen saver screen saver < > PAGE 10 Contents screen saver © 2022 OJ Electronics A/S...
Page 11 The Wizard will take you through tests, which ensure that the thermostat is fully functional. After the tests, the Wizard leads you through a basic setup routine to ensure that you have the right settings. < > PAGE 11 Contents © 2022 OJ Electronics A/S...
Page 12 First you must set the language. The chosen language will become the default language for the thermostat. The language can be changed under Menu/User Settings/Language. 1. Tap the language you prefer. 2. Tap the “Arrow Right” button to continue. < > PAGE 12 Contents © 2022 OJ Electronics A/S...
Page 13 Note: if the thermostat is to operate with an air/room sensor only, the floor sensor test will result in ‘Fail’ being shown. 1. Tap the “Arrow Right” button to continue. < > PAGE 13 Contents © 2022 OJ Electronics A/S...
Page 14 Fault error text is shown on the display. 2. Press the power/reset button on the lower right side of the thermostat to reset the GFCI/EGFPD. 3. Tap the “Arrow Right” button to continue. < > PAGE 14 Contents © 2022 OJ Electronics A/S...
Page 15 7.4 Set the preferred temperature unit 1. Tap the temperature unit that you prefer. 2. Tap the “Arrow Right” button to continue. The temperature unit can be changed under Menu/User Settings/Unit < > PAGE 15 Contents © 2022 OJ Electronics A/S...
Page 16 If you do not know the value for your floor, leave it at the default. This setting can be changed later if a factory reset is performed < > PAGE 16 Contents © 2022 OJ Electronics A/S...
Page 17 Choose which floor sensor type is used with the thermostat. 1. Tap the sensor type installed in the floor. 2. Tap the “Arrow Right” button to continue. The thermostat is calibrated for use with standard sensors from OJ Electronics: ETF-110/99C - 10kΩ (US) ETF-144/99T - 12kΩ (CA) If you want to use the thermostat with the room sensor only, you must complete the Setup Wizard using “Default”...
Page 18 1. Tap the “Arrow” buttons to change the values. 2. Tap the preferred date format. 3. Tap the “Arrow Right” button to continue. The date can be changed under Menu/User Settings/Date < > PAGE 18 Contents © 2022 OJ Electronics A/S...
Page 19 1. Tap the “Arrow” buttons to change the values. 2. Tap the preferred time format. 3. Tap the “Arrow Right” button to continue. The time can be changed under Menu/User Settings/Time < > PAGE 19 Contents © 2022 OJ Electronics A/S...
Page 20 Set the floor protection according to the floor type. 1. Tap the preferred limits that are used to protect the floor. 2. Tap “√” to continue Floor protection settings can be changed under Menu/Installer Settings/Floor Protection. < > PAGE 20 Contents © 2022 OJ Electronics A/S...
Page 21 7.10 Thermostat activation 1. Tap the “√” button to activate the thermostat. < > PAGE 21 Contents © 2022 OJ Electronics A/S...
Page 22 The thermostat comes with a preprogramed schedule for easy and economic heating control of most homes, see 11. Factory Settings: Preset Schedule. The schedule can be changed under Menu/Heating Schedule < > PAGE 22 Contents © 2022 OJ Electronics A/S...
Page 23 9. Operating Choices 9.1 Scheduled operation 9.2 Manual Operation 9.2.1 Manual Operation Adjust 9.2.1.1 For a few hours… 9.2.1.2 For a few days… 9.2.1.3 Permanently 9.3 Regulator Mode < > PAGE 23 Contents © 2022 OJ Electronics A/S...
Page 24 8. Current thermostat operating mode. 9. Information on the next thermostat behavior change. 10. Tap here to adjust the length of time the displayed target temperature/setpoint is to remain valid. < > PAGE 24 Contents © 2022 OJ Electronics A/S...
Page 25 11. Tap here to return to Scheduled Operation. Available only when the thermostat is the Scheduled Operation. operated manually. < > PAGE 25 Contents © 2022 OJ Electronics A/S...
Page 26 When the set time period has elapsed, the thermostat will automatically revert to Scheduled Operation. • Adjust… for a few hours • Adjust… for a few days • Adjust… permanently < > PAGE 26 Contents © 2022 OJ Electronics A/S...
Page 27 4. Tap the “Arrow” buttons for the parameter that you want to change. 5. Confirm your choice with “√” or discard it with “X”. The thermostat will automatically return to the home screen. < > PAGE 27 Contents © 2022 OJ Electronics A/S...
Page 28 The “for a few days...” option can be disabled by or rescheduled by repeating steps 1 to 7. 9. Tap the ON/OFF button to activate/deactivate the function. 10. Confirm your choice with “√” or discard it with “X”. < > PAGE 28 Contents © 2022 OJ Electronics A/S...
Page 29 1. On the home screen, adjust the temperature to the preferred level using the “Arrow Up” and “Arrow Down” buttons. 2. Tap the “Adjust…” button. 3. Then tap the “permanently” button. The thermostat will automatically return to the home screen. < > PAGE 29 Contents © 2022 OJ Electronics A/S...
Page 30 10. Thermostat Setup Menu Heating Schedule Energy Use User Settings Installer Settings screen saver < > PAGE 30 Contents © 2022 OJ Electronics A/S...
Page 31 “The event is inactive” button. The text shown on the button reflects the current activity status of the event. Note! Event 1 is always active. 7. Confirm your choice with “√” or discard it with “X”. < > PAGE 31 Contents © 2022 OJ Electronics A/S...
Page 32 You can then set the schedule for the other days by repeating steps 3 through 8. 10. Once you have finished setting the schedules, tap the “Back” button to return to the Thermostat Setup Menu. < > PAGE 32 Contents © 2022 OJ Electronics A/S...
Page 33 3. You can toggle between the readouts using the “Arrow Right” or “Arrow Left” button. 4. Tap the “Back Arrow” button to return to the menu. 5. Tap on “Edit Energy Tariff…” to change the energy tariff, see “11.3.4 Energy Tariff”. < > PAGE 33 Contents © 2022 OJ Electronics A/S...
Page 34 Note: if an item is grayed out, it is not available due to other settings. Child Lock Display Brightness Screen Saver Date Time Daylight Saving Time ° Unit Language Information Support User Reset < > PAGE 34 Contents © 2022 OJ Electronics A/S...
Page 36 Please note that the child lock will be reactivated when the thermostat returns to screen saver mode – unless it is deactivated under Menu/User Settings/Child Lock. Note: Child Lock is not available with software version 1012N100 < > PAGE 36 Contents © 2022 OJ Electronics A/S...
Page 37 4. Select one of the five levels of brightness using the “Arrow Up” or “Arrow Down” button. 5. Confirm your choice with “√” or discard it with “X”. The thermostat will automatically return to “User Settings”. < > PAGE 37 Contents © 2022 OJ Electronics A/S...
Page 38 • Time shown in large format. Temperature and date shown in small format. (See example) • Screen Off. 5. Confirm your choice with “√” or discard it with “X”. The thermostat will automatically return to “User Settings”. < > PAGE 38 Contents © 2022 OJ Electronics A/S...
Page 39 5. Tap the date format that you prefer. • Use DD-MM-YYYY • Use MM-DD-YYYY 6. Confirm your settings with “√” or discard them with “X”. The thermostat will automatically return to “User Settings”. < > PAGE 39 Contents © 2022 OJ Electronics A/S...
Page 40 5. Tap the time format that you prefer. • Use 24 hours • Use 12 hours (AM/PM) 6. Confirm your settings with “√” or discard them with “X”. The thermostat will automatically return to “User Settings”. < > PAGE 40 Contents © 2022 OJ Electronics A/S...
Page 41 4. Tap the “OFF/ON” button to the setting that you prefer. 5. Confirm the setting with “√” or discard it with “X”. The thermostat will automatically return to “User Settings”. < > PAGE 41 Contents © 2022 OJ Electronics A/S...
Page 42 4. Tap the unit that you prefer: • Celsius • Fahrenheit 5. Confirm your choice with “√” or discard it with “X”. The thermostat will automatically return to “User Settings”. < > PAGE 42 Contents © 2022 OJ Electronics A/S...
Page 43 5. Tap the language that you prefer: • English • French • Spanish 6. Confirm your choice with “√” or discard it with “X”. The thermostat will automatically return to “User Settings”. < > PAGE 43 Contents © 2022 OJ Electronics A/S...
Page 44 6. If “View as text” is selected, the data relevant for support personnel and others is displayed. 7. Tap the “Back” button, several times if necessary, to return to “User Settings”. QR Code is a registered trademark of DENSO WAVE INCORPORATED. < > PAGE 44 Contents © 2022 OJ Electronics A/S...
Page 45 2. Then tap the “User Settings” button to access the various user settings. 3. Tap the “Arrow Right” button to access the second page of User Settings. 4. Tap the “Support” button. 5. Tap the “Back” button to return to “User Settings”. < > PAGE 45 Contents © 2022 OJ Electronics A/S...
Page 46 6. Tap “Reset Thermostat” to reset all user settings to factory default. A confirmation screen is displayed briefly before the thermostat reverts to “User Settings”. All user and WiFi settings are now reset. < > PAGE 46 Contents © 2022 OJ Electronics A/S...
Page 47 Note: if an item is grayed out, it is not available due to other settings. Adaptive Function Open Window Sensor Application Sensor Type Floor Sensor Calibration Room Sensor Calibration Floor Protection Factory Reset < > PAGE 47 Contents © 2022 OJ Electronics A/S...
Page 48 4. Tap the “OFF/ON” button to the setting that you prefer. 5. Confirm your choice with “√” or discard it with “X”. The thermostat will automatically return to “Installer Settings". < > PAGE 48 Contents © 2022 OJ Electronics A/S...
Page 49 6. If an open window is detected by the thermostat, the “Open Window” screen will appear, the function can be canceled by tapping “Cancel”. Note: Open Window is not available with software version 1012N100 < > PAGE 49 Contents © 2022 OJ Electronics A/S...
Page 50 Floor limit temperatures are set under Menu/Installer Settings/Floor Protection. Note that changes made under “Sensor Application” do not influence the “Floor Protection” settings. < > PAGE 50 Contents © 2022 OJ Electronics A/S...
Page 51 The thermostat will automatically return to “Installer Settings”. Note that, when changing Sensor Application, certain menu options may be grayed out and inaccessible as they are not applicable with the current settings. < > PAGE 51 Contents © 2022 OJ Electronics A/S...
Page 52 6. If “Custom” is chosen, you must provide resistance values for the sensor concerned at four given temperatures. Ask the supplier of your sensor for these values. Tap the “Arrow Up” or “Arrow Down” to set the resistance for the various temperatures. < > PAGE 52 Contents © 2022 OJ Electronics A/S...
Page 53 8. When all four values are set, tap the “Arrow Right” button. 9. A warning screen will be displayed. Tap “√” to confirm the use of an alternative sensor. The thermostat will automatically return to “Installer Settings”. < > PAGE 53 Contents © 2022 OJ Electronics A/S...
Page 54 5. Confirm that you want to calibrate the sensor with “√” or cancel with “X”. If the temperature is confirmed with “√”, a confirmation screen will be displayed briefly. The thermostat will automatically return to “Installer Settings”. < > PAGE 54 Contents © 2022 OJ Electronics A/S...
Page 55 5. Confirm that you want to calibrate the sensor with “√” or cancel with “X”. If the temperature is confirmed with “√”, a confirmation screen will be displayed briefly. The thermostat will automatically return to “Installer Settings”. < > PAGE 55 Contents © 2022 OJ Electronics A/S...
Page 57 The thermostat will automatically return to “Installer Settings”. NOTE: If the maximum floor temperature is set too high, temperature sensitive floor types may be permanently damaged. For precise information, please ask your flooring supplier. < > PAGE 57 Contents © 2022 OJ Electronics A/S...
Page 58 6. Tap “Reset Thermostat” if you want to restore the factory settings. A confirmation screen will be displayed. The thermostat will then be reset and the “Startup Wizard” will appear on the screen. Note! All personal settings will be lost. < > PAGE 58 Contents © 2022 OJ Electronics A/S...
Page 59 74°F / 23.5°C √ Saturday-Sunday Event Start time Laminate floor Tile floor Activated 08.00 AM 82°F / 28°C 88°F / 31°C √ 11:00 PM 74°F / 23.5°C 74°F / 23.5°C √ < > PAGE 59 Contents © 2022 OJ Electronics A/S...
Page 60 • Three circles containing dots are shown on the screen; the thermostat cannot be operated. The thermostat is in “Child Lock” mode. See the section titled “Child Lock” in this manual for instructions on how to unlock it. < > PAGE 60 Contents © 2022 OJ Electronics A/S...
Page 61 • The floor is warming up, but more slowly than expected. - Floor protection might be set to “Laminate”, which prevents rapid heating of the floor. - The heating element might have insufficient capacity to heat the floor. < > PAGE 61 Contents © 2022 OJ Electronics A/S...
Page 62 < Contents The OJ trademark is a registered trademark belonging to OJ Electronics A/S · © 2022 OJ Electronics A/S...
