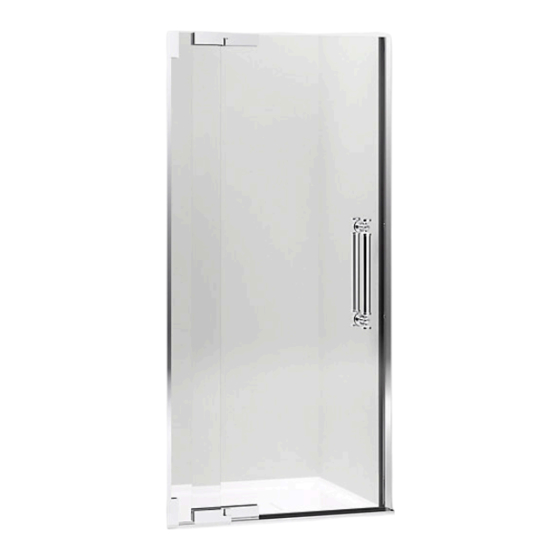

Frameless pivot shower door

Advertisement

Quick Links

Features

CleanCoat
technology creates a protective barrier that
®
repels water, prevents dirt and minerals from collecting, and
makes it easier to remove hard water spots.
Coordinates with Pinstripe faucets, accessories, and
showering components to complete your bathroom.

Material

Frameless, 3/8" (10 mm) thick Crystal Clear tempered glass.

Technology

Includes K-705749 glass, K-705768 handle, and K-705763
hardware components.

Installation

Out-of-plumb adjustability simplifies installation.
Door can be installed to open to the left or right to suit your
bathroom layout.
Not for use in hospitality.
For residential use only.

Recommended Products/Accessories

K-23723 Faucet cleaner

Included Components

Product consists of:
K-705749-L Glass panel and sidelite
K-705763 Shower Door Assembly Kit
K-705768 Shower Door Handles
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
Frameless Pivot Shower Door

Codes/Standards

CPSC 16CFR 1201
ANSI Z97.1
KOHLER
One-Year Limited
®

Warranty

See website for detailed warranty information.

Available Colors/Finishes

Color tiles intended for reference only.
Color Code Description
SHP
Bright Polished Silver
NX
Brushed Nickel
ABV
Anodized Brushed Bronze

Available Glass Options

Code Description
L
Crystal Clear
Pinstripe
®
K-705707-L
