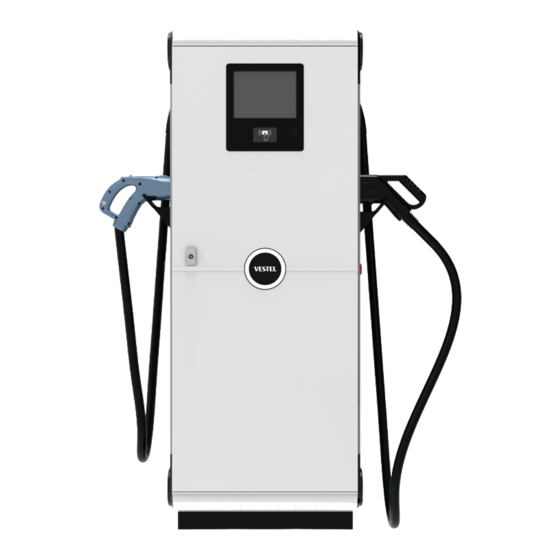

- Page 1 ELECTRIC VEHICLE CHARGER EVC06 Series User Manual...
-
Page 2: Table Of Contents
8.3.5.1 - VEHICLE CONNECTION & CHARGING......18 8.3.5.2 -STOP CHARGING..............20 9 - CIRCUIT BREAKER LOCATIONS FOR CHARGING OUTPUTS............22 10 - ERROR AND FAULT CONDITIONS....................22 10.1 - ERROR CONDITIONS....................23 11 - CLEANING AND MAINTENANCE....................24 IB v1.0.0 01.2022 © 2022 Vestel - All rights reserved English - 1... -
Page 3: 1- Safety Information
1- SAFETY INFORMATION CAUTION RISK OF ELECTRIC SHOCK: CAUTION: VESTEL ELECTRIC VEHICLE CHARGER DEVICE SHALL BE MOUNTED BY A LICENSED OR AN EXPERIENCED ELECTRICIAN AS PER ANY REGIONAL OR NATIONAL ELECTRIC REGULATIONS AND STANDARDS IN EFFECT. CAUTION AC grid connection and load planning of the electric vehicle charging device shall be reviewed and approved by authorities as specified by the regional or national electric regulations and standards in effect. -
Page 4: Ground Connection Warnings
• Use appropriate protection when connecting to the main power distribution cable. IB v1.0.0 01.2022 © 2022 Vestel - All rights reserved English - 3... -
Page 5: Required Upstream Protections
MCCB (Thermic Magnetic Adjustable) must be connected to the upstream distribution box. EVC06- DC- 200 A 60kW+22kW 151A 60CHS EVC06- 200 A 60kW+22kW 151A DC60CCS EVC06- DC- 200 A 60kW+22kW 151A 60CS EVC06- 200 A 60kW 151A DC60C IB v1.0.0 01.2022 © 2022 Vestel - All rights reserved English - 4... -
Page 6: Description
Maximum Current 125 A CCS - 2 Output IEC62196-1 / 3 IEC 61851-1 / 23 / 24 Interface Compliance ISO 15118-1 / 2 / 3 DIN 70121 IB v1.0.0 01.2022 © 2022 Vestel - All rights reserved English - 5... -
Page 7: User Interface & Authentication
5 - CONNECTIVITY LAN Connectivity Ethernet WLAN Connectivity 2.4GHz: 802.11 b/g/n 5GHz: 802.11 a/n/ac Mobile Connectivity GSM 900/1800 UMTS 900/2100 LTE Band 1/3/7/8/20/28A OCPP Specification OCPP 1.6 J IB v1.0.0 01.2022 © 2022 Vestel - All rights reserved English - 6... -
Page 8: Mechanic Specifications
Access Cover For Fan Access Cover for CTB, PLC Board and HMI 10 - Access Cover for Power Modules All images are given for the full version of the product. IB v1.0.0 01.2022 © 2022 Vestel - All rights reserved English - 7... -
Page 9: Plug Charging Cable
Bring the button to open status on top of the charging plug in order to release charging plug from the charger, and unplug the charging plug. Then plug the charging plug to the vehicle to start charging. unlock IB v1.0.0 01.2022 © 2022 Vestel - All rights reserved English - 8... -
Page 10: Ac 22 Kw Socket Outlet
In the main screen on the charging station display, you may either tap the plug you want to use or simply connect that plug to your car. IB v1.0.0 01.2022 © 2022 Vestel - All rights reserved English - 9... -
Page 11: Ac 22 Kw Socket Outlet
AC 22 kW Socket Outlet 8.3.2.1 - VEHICLE CONNECTION & CHARGING Connect charging cable to move to payment screen. Tap your RFID card or scan QR Code to start charging. IB v1.0.0 01.2022 © 2022 Vestel - All rights reserved English - 10... - Page 12 It may take a few seconds for charging session to start. Charging state can be seen in charging page. While charging, charging state can be seen in the main menu. IB v1.0.0 01.2022 © 2022 Vestel - All rights reserved English - 11...
-
Page 13: Stop Charging
8.3.2.2 -STOP CHARGING Click “Stop Charging” to end the charging session. Tap your RFID card or scan QR Code to stop charging. IB v1.0.0 01.2022 © 2022 Vestel - All rights reserved English - 12... - Page 14 Disconnect the charging cable. After disconnection, you will automatically move to the main screen. IB v1.0.0 01.2022 © 2022 Vestel - All rights reserved English - 13...
-
Page 15: Chademo Outlet
8.3.4.1 - VEHICLE CONNECTION & CHARGING Tap your RFID card or scan QR Code to start charging. Connect charging cable to move to payment screen then press “Continue Charging” button. IB v1.0.0 01.2022 © 2022 Vestel - All rights reserved English - 14... - Page 16 It may take a few seconds for charging session to start. Charging state can be seen in charging page. While charging, charging state can be seen in the main menu. IB v1.0.0 01.2022 © 2022 Vestel - All rights reserved English - 15...
-
Page 17: Stop Charging
8.3.4.2 -STOP CHARGING Click “Stop Charging” to end the charging session. Tap your RFID card or scan QR Code to start charging. IB v1.0.0 01.2022 © 2022 Vestel - All rights reserved English - 16... - Page 18 Disconnect the charging cable. After disconnection, you will automatically move to the main screen. IB v1.0.0 01.2022 © 2022 Vestel - All rights reserved English - 17...
-
Page 19: Dc Ccs Outlet
DC CCS Outlet 8.3.5.1 - VEHICLE CONNECTION & CHARGING Connect charging cable to move to payment screen. Tap your RFID card or scan QR Code to start charging. IB v1.0.0 01.2022 © 2022 Vestel - All rights reserved English - 18... - Page 20 It may take a few seconds for charging session to start. Charging state can be seen in charging page. While charging, charging state can be seen in the main menu. IB v1.0.0 01.2022 © 2022 Vestel - All rights reserved English - 19...
-
Page 21: Stop Charging
8.3.5.2 -STOP CHARGING Click “Stop Charging” to end the charging session. Tap your RFID card or scan QR Code to stop charging. IB v1.0.0 01.2022 © 2022 Vestel - All rights reserved English - 20... - Page 22 Disconnect the charging cable. After disconnection, you will automatically move to the main screen. IB v1.0.0 01.2022 © 2022 Vestel - All rights reserved English - 21...
-
Page 23: Circuit Breaker Locations For Charging Outputs
• General Erros: This fault or error effects all four outputs. • Charging Output Errors: Only one socket or plug effected by this fault or error condition. IB v1.0.0 01.2022 © 2022 Vestel - All rights reserved English - 22... -
Page 24: Error Conditions
General error Please check if there is a power outage. Then, check the upstream distribution box circuit breaker. If the outputs are still unavailable please contact authorized service. IB v1.0.0 01.2022 © 2022 Vestel - All rights reserved English - 23... -
Page 25: Cleaning And Maintenance
Do not clean your electric vehicle charging device while charging your vehicle. • Do not wash the device with water. • Do not use abrasive cloths and detergents. Microfiber cloth is recommended. IB v1.0.0 01.2022 © 2022 Vestel - All rights reserved English - 24...
