Clarion M455 Owner's Manual

Clarion am/fm/cd multimedia controller owner manual
Hide thumbs Also See for M455:
Table of Contents

Advertisement

Quick Links

Owner's manual
Mode d'emploi
Manual de instrucciones
Istruzioni per l'uso
M455
MARINE AM/FM/CD MULTIMEDIA CONTROLLER
•
COMBINÉ NAUTIQUE RADIO AM/FM-LECTEUR CD
MULTIMEDIA
•
CONTROLADOR MULTIMEDIA MARINO
DE AM/FM/DISCOS CD
•
UNITÀ DI CONTROLLO MULTIMEDIALE PER USO
MARITTIMO AM/FM/CD

Advertisement

Table of Contents
loading

Related Manuals for Clarion M455

Summary of Contents for Clarion M455

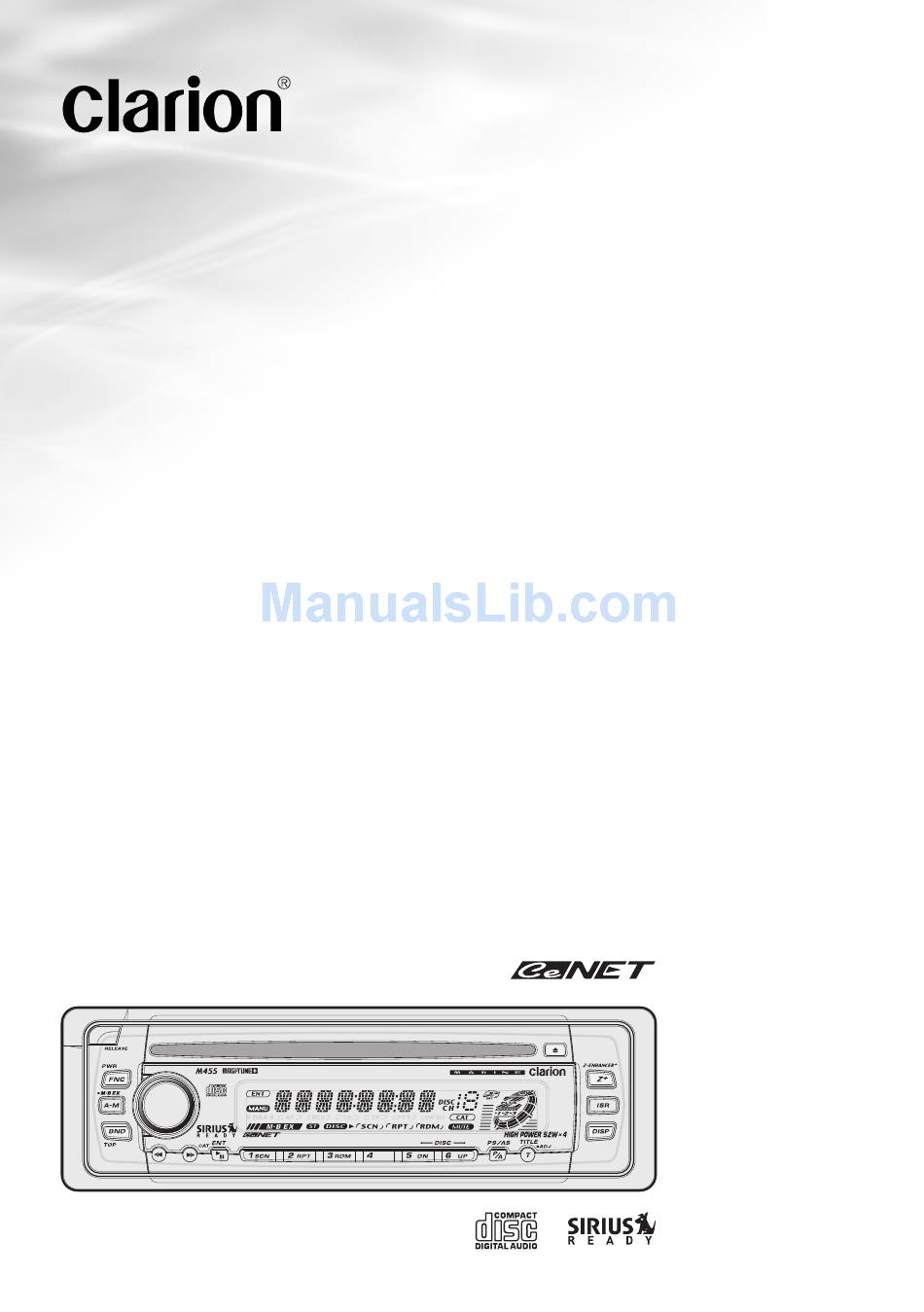

  • Page 1 Owner’s manual Mode d’emploi Manual de instrucciones Istruzioni per l’uso M455 MARINE AM/FM/CD MULTIMEDIA CONTROLLER • COMBINÉ NAUTIQUE RADIO AM/FM-LECTEUR CD MULTIMEDIA • CONTROLADOR MULTIMEDIA MARINO DE AM/FM/DISCOS CD • UNITÀ DI CONTROLLO MULTIMEDIALE PER USO MARITTIMO AM/FM/CD...

  • Page 2: Table Of Contents

    Thank you for purchasing this Clarion product. ∗ Please read this owner’s manual in its entirety before operating this equipment. ∗ After reading this manual, be sure to keep it in a handy place (e.g., glove compartment). ∗ Check the contents of the enclosed warranty card and keep it with this manual.

  • Page 3: Precautions

    CD player or it may damage Bottom View of Source Unit M455 the CD player. • Do not use compact discs that have large scratches, are misshapen, cracked, etc. Use of such discs may cause misoperation or damage.

  • Page 4: Controls

    Remarque: Veuillez déplier cette page et vous référer aux schémas quand vous lisez chaque chapitre. Nota: Cuando lea los capítulos, despliegue esta página y consulte los diagramas. Nota: Assicurarsi di aprire questa pagina e fare riferimento a questi diagrammi quando si legge ciascun capitolo. M455 4. NOMENCLATURE Note: •...

  • Page 5: Major Button Operations When External Equipment Is Connected To This Unit

    • Switch the TV picture mode or VTR (external) picture mode. [a], [d] buttons • Select a station. [BND] (Band) button • Switch the band. • When the button is pressed and held, switch between seek or manual tunings. M455...

  • Page 6: Display Items

    In extreme cold, the screen movement may slow down and the screen may darken, but this is normal. The screen will recover when it returns to normal temperature. M455 : Preset channel indication (1 to 6) Disc number indication (1 to 6)

  • Page 7: Detachable Control Panel

    Be careful not to damage it by pressing on it with fingernails, screwdrivers, etc. DCP Rear Panel Source Unit Front connector Source unit connector Note: • If the DCP is dirty, wipe off the dirt with a soft, dry cloth only. M455...

  • Page 8: Wired Remote Control Unit Operations

    Following operations are enabled by remote control with the Wired Remote Control Unit CMRC1 or CMRC2 (sold separately). WIRED REMOTE CONTROL UNIT [ POWER/SOURCE ] [ BAND/DISC ] M455 Display Items Operation status indication ∗ Frequency, clock, etc. are displayed. [ MUTE/...
  • Page 9 3 seconds or longer will do the operation 30 times faster. CD mode Changing preset stations (in Radio mode) Each time the [a] or [d] buttons are pressed, the preset station switches in the following order: FM1... 1... 6... M455...

  • Page 10: Operations

    Radio mode... ∗ External equipment not connected with CeNET is not displayed. M455 Note:Be sure to read this chapter referring to the front diagrams of chapter “3. CONTROLS” on page 5 (unfold). Adjusting the volume Turning the [ROTARY] knob clockwise increases the volume;...
  • Page 11 Turn the [ROTARY] knob to select the frequency. ∗ The factory default setting is “T<F 10>”. (Adjustment 10 kHz/15 kHz) 4. When the adjustment is complete, press the [A-M] button several times until the function mode is reached. Last M455...

  • Page 12: Radio Operations

    2. Press and hold the [A-M] button for 1 second or longer to turn off the MAGNA BASS EXTEND effect. “M-B EX” goes off from the display. M455 Radio Operations FM reception For enhanced FM performance the tuner includes signal actuated stereo control, Enhanced Multi AGC, Impulse noise reduction circuits and Multipath noise reduction circuits.
  • Page 13 “ISR” appears in the display. Press the [ISR] button again to return to the previous mode. Note: • Radio operations are disabled during ISR mode. Press one of the [DIRECT] buttons to return to the previous mode. M455...

  • Page 14: Cd Operations

    “NO DISC” appears in the display. Pausing play 1. Press the [ ] button to pause play. “PAUSE” appears in the display. M455 2. To resume CD play, press the [ again. Selecting a track Track-up 1. Press the [d] button to move ahead to the beginning of the next track.

  • Page 15: Operations Common To Each Mode

    8. Repeat step 5 to 7 to enter up to 30 message characters. 9. Press and hold the [ ] button for 2 seconds or longer to store the message in memory and cancel the input message. 10.Press the [T] button to return to the previous mode. M455...
  • Page 16 3. Turn the [ROTARY] knob to adjust the contrast. 4. Press the [T] button to return to the previous mode. M455 Selecting AUX IN sensitivity Make the following settings to select the sensitivity when sounds from external devices connected to this unit are difficult to hear even after adjusting the volume.

  • Page 17: Accessories

    • INVLD CH : a channel without a broadcast has been selected, or the receiver may not be activated. • “CALL 888”→“539-SIRI” : a channel not covered by your contract Call Sirius Service Center (1- 888-539-SIRIUS (7474)). Online at siriusradio.com M455...
  • Page 18 Otherwise, seeking continues until an available channel is found. M455 Manual tuning Any channel including channels without broadcasts and channels not covered by the contract can be selected during manual tuning.
  • Page 19 10 seconds. 1. Press and hold the [P/A] button for 1 second or longer to start a preset scan. 2. Press the [P/A] button, a [DIRECT] button, the [a] or [d] button to cancel a preset scan. M455...

  • Page 20: Cd Changer Operations

    1. Press the [a] button to move back to the beginning of the current track. 2. Press the [a] button twice to move to the beginning of the previous track. M455 Fast-forward/fast-rewind Fast-forward Press and hold the [d] button for 1 second or longer.

  • Page 21: Tv Operations

    There are 2 manual tuning methods available: Quick tuning and step tuning. When you are in the step tuning mode, the frequency changes one step at a time. In the quick tuning mode, you can quickly tune the desired frequency. M455...
  • Page 22 2. Press and hold the [P/A] button for 2 seconds or longer. The stations with good reception are stored automatically to the preset channels. M455 Preset scan Preset scan allows the user to view each preset position before it automatically advances to the next preset.

  • Page 23: Troubleshooting

    Replace with a compact disc with no scratches. Let dry for about 1 hour with the power on. Perform a system check. See “Operations Common to Each Mode”, performing a system check section. Ensure the CeNET cables are properly connected. Measure Reset button M455...

  • Page 24: Error Displays

    If an error display other than the ones described above appears, press the reset button. If the problem persists, turn off the power and consult your store of purchase. M455 Cause This is a failure of CD deck’s mechanism.

  • Page 25: Specifications

    Weight / Source unit: 2.64 lb. (1.2 kg) Dimensions / Source unit: 7" (Width) 2" (Height) 6-1/8" (Depth) [178 (W) 50 (H) 155 (D) mm] Note: • Specifications and design are subject to change without notice for further improvement. 4 ch) M455...
  • Page 26 M455...
  • Page 27 Clarion Co., Ltd. All Rights Reserved. Copyright © 2004: Clarion Co., Ltd. PE-2687B Printed in China / Imprimé en Chine / Impreso en China / Stampato in Cina 2004/12 280-8141-00...
