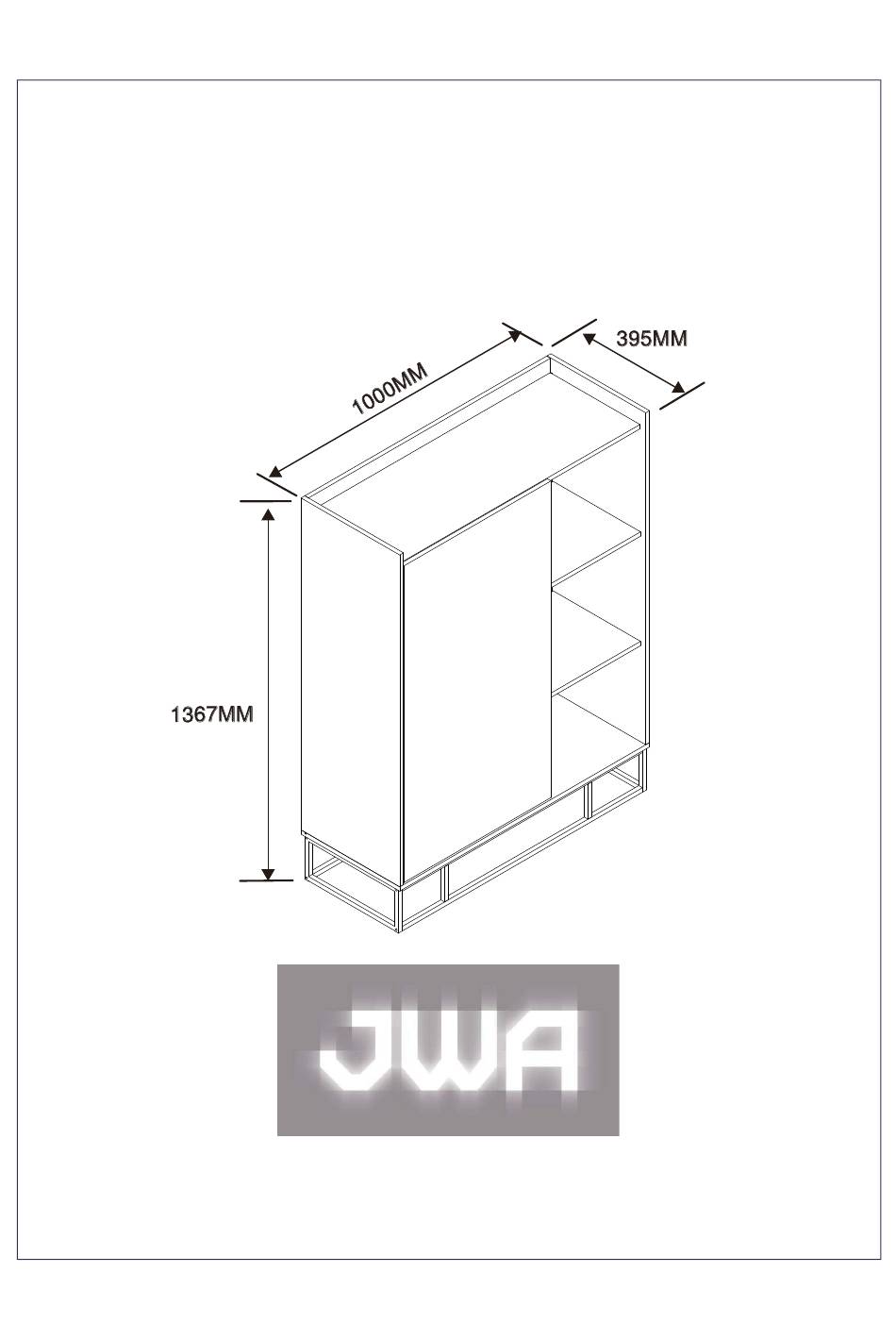

- Page 1 ASSEMBLY INSTRUCTION ELCHE HIGHBOARD ITEM CODE 70459 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when li ing. Product should be assembled as near as possible to the point of use 3. -
Page 3: Parts List
PARTS LIST M7X39mm M14.8X12mm M8X30mm M3.5X14mm 22pcs 22pcs 27pcs 14pcs M6X25mm M6X30mm M6X30mm 1pcs 6pcs 6pcs 4pcs M5X40mm M8X50mm 15pcs 3pcs 1pcs 4pcs M4x30mm M3.5x14mm 6pcs 1pcs SIDE PANEL BACK PANEL SIDE PANEL DOOR METAL PARTS TOP PANEL METAL PARTS MIDDLE PANEL SHELF METAL PARTS... - Page 4 STEP 1: STEP 2:...
- Page 5 STEP 3: STEP 4:...
- Page 6 STEP 5: STEP 6:...
- Page 7 STEP 7: STEP 8:...
- Page 8 STEP 9: STEP 10:...
- Page 9 STEP 11: STEP 12:...
- Page 10 STEP 13:...
- Page 11 STEP 14: ASSEMBLY COMPLETE...
- Page 12 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws.
- Page 13 To protect your furniture, we suggest the following: Avoid placing your furniture in direct sunlight. Do not place furniture directly under windows. Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the nish.
