Summary of Contents for JWA ELGIN 81565

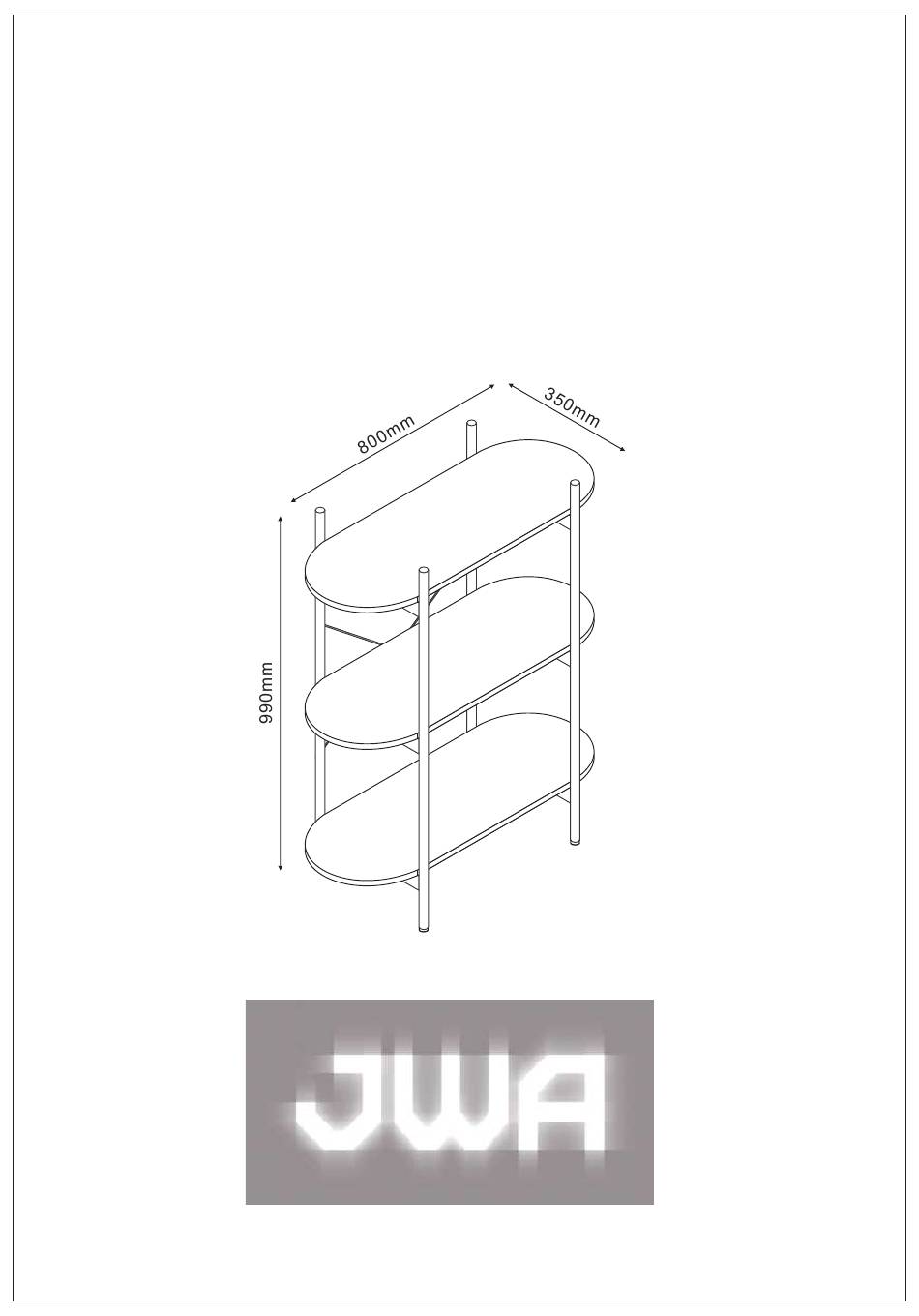

- Page 1 ASSEMBLY INSTRUCTION ELGIN 3 Tier Narrow Bookcase ITEM CODE 81565...
- Page 2 Avoid hard surfaces that may damage the product to the point of use Allow 30min For � person Additional tools required �...
- Page 3 2pcs 2pcs 2pcs Wall...
-
Page 4: Parts List
PARTS LIST M6X50mm ST3.5X14mm M6X35mm M6X12mm 2pcs 18pcs 12pcs 5pcs M8X20X10mm ST4X25mm 2pcs 2pcs 4pcs 2pcs Layer panel Layer panel Main frame Connecting tube Cross bar... - Page 5 STEP 1: 1. Attach G to panel 1 with part E. STEP 2: 1. Attach cross bar with parts D and C.
- Page 6 STEP 3: 1.Attach 4 to 3 with part B. 2.Screw I to 3. STEP 4: 1. Attach 5 to 3 with Part C.
- Page 7 STEP 5: 1.Attach panel 1, 2 to frame with Part A. STEP 6:...
- Page 8 STEP 7: 1.Assembly complete!
- Page 9 To protect your furniture, we suggest the following: · Avoid placing your furniture in direct sunlight. · Do not place furniture directly under windows. · Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
