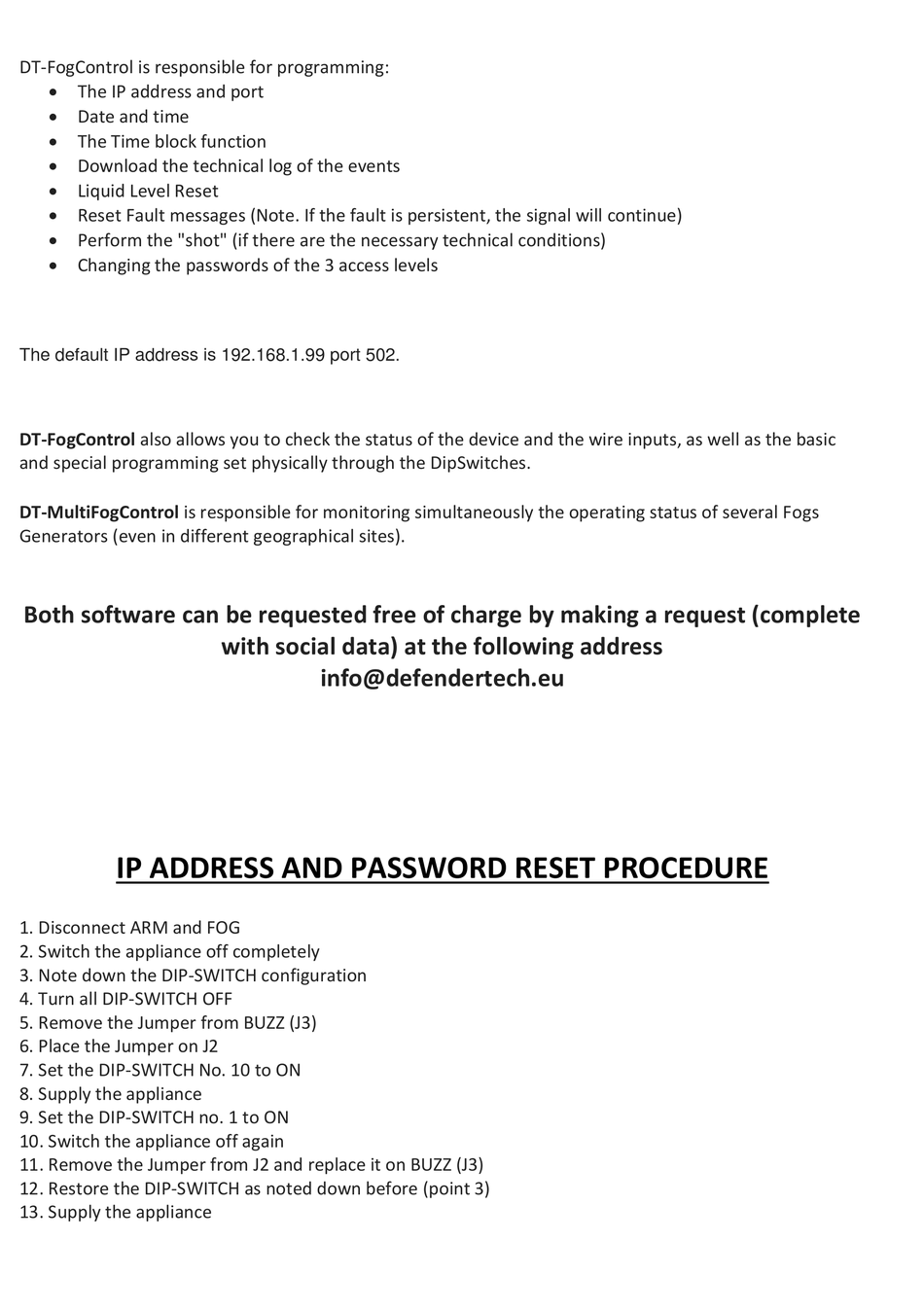

DEFENDERTECH DT-800Lan Installation And Maintenance Manual page 18

DT-FogControl is responsible for programming:
 The IP address and port
 Date and time
 The Time block function
 Download the technical log of the events
 Liquid Level Reset
 Reset Fault messages (Note. If the fault is persistent, the signal will continue)
 Perform the "shot" (if there are the necessary technical conditions)
 Changing the passwords of the 3 access levels
The default IP address is 192.168.1.99 port 502.
DT-FogControl also allows you to check the status of the device and the wire inputs, as well as the basic
and special programming set physically through the DipSwitches.
DT-MultiFogControl is responsible for monitoring simultaneously the operating status of several Fogs
Generators (even in different geographical sites).
Both software can be requested free of charge by making a request (complete
IP ADDRESS AND PASSWORD RESET PROCEDURE
1. Disconnect ARM and FOG
2. Switch the appliance off completely
3. Note down the DIP-SWITCH configuration
4. Turn all DIP-SWITCH OFF
5. Remove the Jumper from BUZZ (J3)
6. Place the Jumper on J2
7. Set the DIP-SWITCH No. 10 to ON
8. Supply the appliance
9. Set the DIP-SWITCH no. 1 to ON
10. Switch the appliance off again
11. Remove the Jumper from J2 and replace it on BUZZ (J3)
12. Restore the DIP-SWITCH as noted down before (point 3)
13. Supply the appliance
with social data) at the following address
info@defendertech.eu
