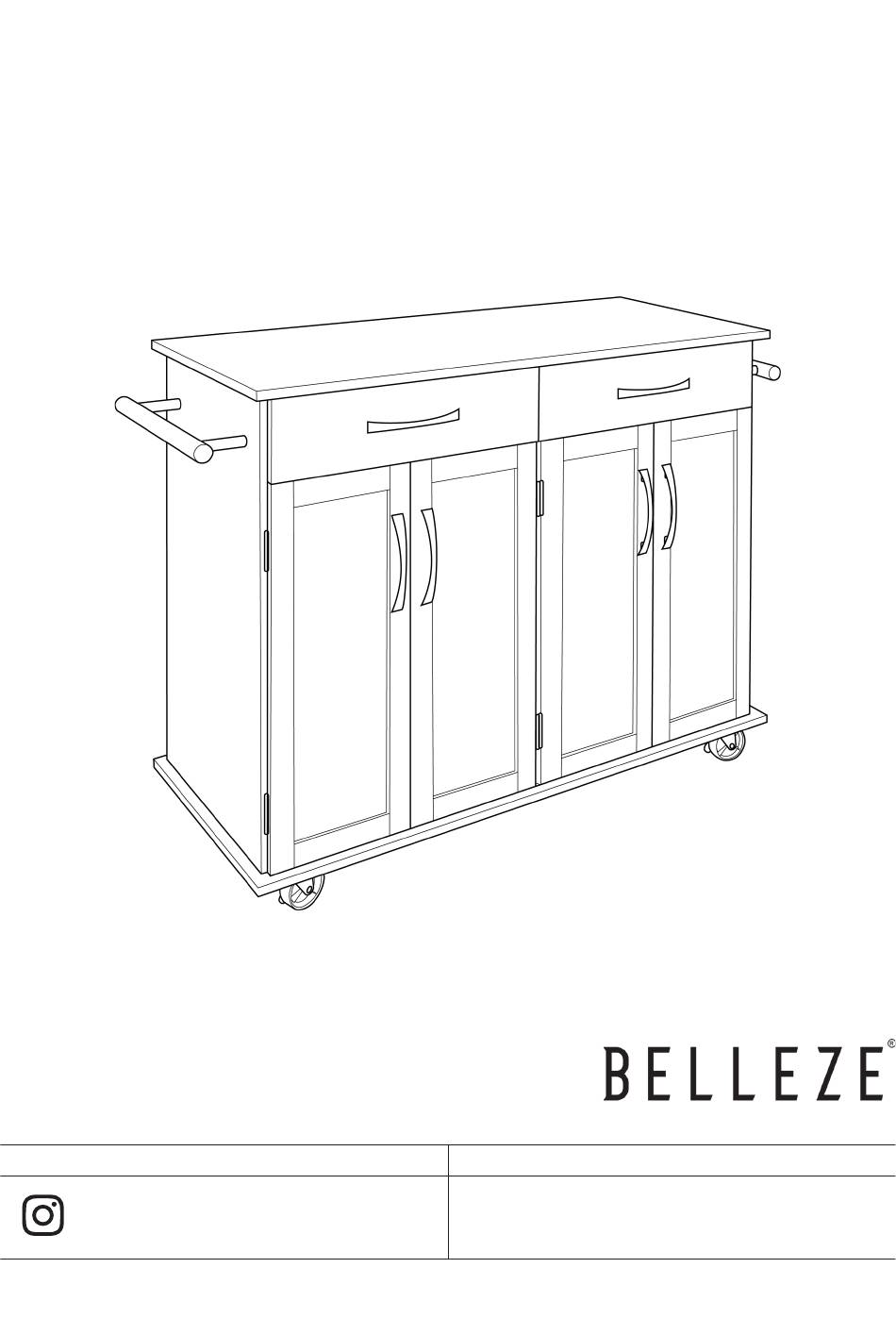

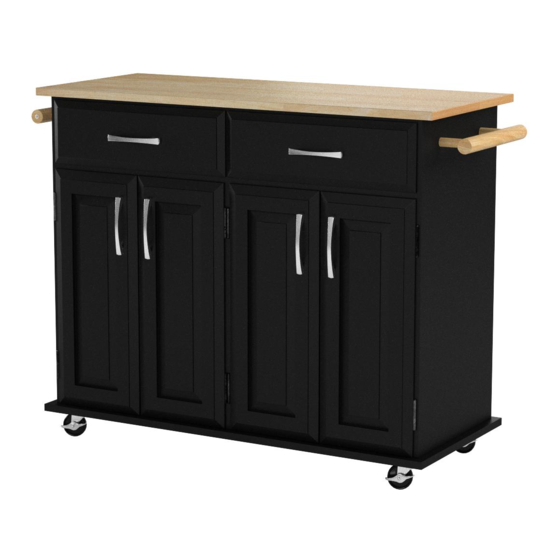

- Page 1 Baldy Kitchen Trolley FOLLOW US: CONTACT INFO: ITEM NO. 014-HG-40901 The instruction booklet contains IMPORTANT support@belleze.com @bellezefurniture safety information. Please read it in full and 1-800-682-6376 keep it for future reference. www.belleze.com...
- Page 2 Scan this QR Code to view our online tutorial Estimated time for assembly: 120 mins Weight limitations are as follows: Maximum Load Maximum Load 80 lb 15 lb Maximum Load 20 lb...
- Page 3 Assemble the furniture on an empty carton, carpet, or rug to prevent scratches or damage. For safety, please keep pets and children away from the assembly area. Ensure the product is fully assembled before use. If you are missing any hardware or products, do not use it until you have restored the missing parts.
- Page 4 PACKAGE CONTENTS...
- Page 5 PACKAGE CONTENTS (A) CODE DESCRIPTION Top Panel Left Panel Center Panel Right Panel Drawer Crossbar Back Crossbar Storage Shelf Bottom Panel Back Panel Left Cabinet Door Right Cabinet Door Drawer Front Panel Drawer Left Panel Drawer Right Panel Drawer Back Panel Drawer Bottom Panel Handle v.04132022...
- Page 6 PACKAGE CONTENTS Install all hardware perpendicular to the opening.
- Page 7 PACKAGE CONTENTS v.04132022...
- Page 8 Required tools for assembly (Not included) Attach slider mounting brackets to the side panels. Attach cam bolts to the side panels.
- Page 9 Attach slider mounting bracket to the right side of the center panel. Attach cam bolts to the right side of the center panel. v.04132022...
- Page 10 Attach slider mounting bracket to the left side of the center panel. Flip the center panel 180°. Attach cam bolts to the left side of the center panel.
- Page 11 Attach the handle to the left legs. Assemble crossbars between the left panel and the center panel . v.04132022...
- Page 12 Assemble crossbars between the center panel and the right panel. Attach wood dowels to the bottom panel.
- Page 13 Attach the bottom panel under the side panels and center panel. Attach casters under the bottom panel. v.04132022...
- Page 14 Slide the back panel to the trolley.
- Page 15 Attach handles to the side of the trolley. v.04132022...
- Page 16 Attach wood dowels to top of the side panels and center panel. Attach cam bolts underneath the top panel.
- Page 17 Attach the top panel to the trolley. v.04132022...
- Page 18 Attach door hinges and counter plates to the cabinet doors.
- Page 19 Attach left cabinate doors to the trolley. Attach door handles to the cabinet doors. v.04132022...
- Page 20 Attach right cabinet doors to the trolley. Attach door handles to the cabinet door.
- Page 21 Attach shelf pegs into the trolley and put on the storage shelf. Attach cam bolts to the drawer front panel. v.04132022...
- Page 22 Assemble the drawer back panel between the drawer left and right panels. Slide the drawer bottom panel into the drawer assembly.
- Page 23 Attach the drawer front panel to the drawer side panels. Attach handle to the drawer front panel. v.04132022...
- Page 24 Attach slider to the side of the drawer. BACK FRONT FRONT BACK...
- Page 25 Slide the drawer into the trolley. v.04132022...
- Page 26 Secure the back panel in place. YOU’RE FINISHED!
- Page 27 Warning Only place items on top of the product if they meet the recommended size and weight limits. Climbing on, stepping on, or placing overweighted objects on the product may cause property damage and/or injuries. Items placed onto this product must be resting on a support surface without hanging over the edges.
- Page 28 FURNITURE CARE AND MAINTENANCE Medium - Density Fiberboard Thank you for your purchase. We want your item to last as long as possible. To ensure the product gives you years of longevity, please follow the recommendations in this care and maintenance guide. MAINTENANCE •...
- Page 29 v.04132022...
- Page 31 © All copyright of this document belongs to BELLEZE . This document may not be printed, translated, reproduced, or distributed in whole or in part without written permission from BELLEZE. v.04132022...
- Page 32 WARRANTY BELLEZE products come with a 1-year warranty from the date of delivery. Register your product on our website to enjoy our limited lifetime warranty! AFTER-SALE SERVICE Encounter any difficulties or missing parts? Contact us at 1-800-682-6376 or email us at support@belleze.com We will send you replacement.
