Summary of Contents for Belleze Ryland 014-HG-40007-WH

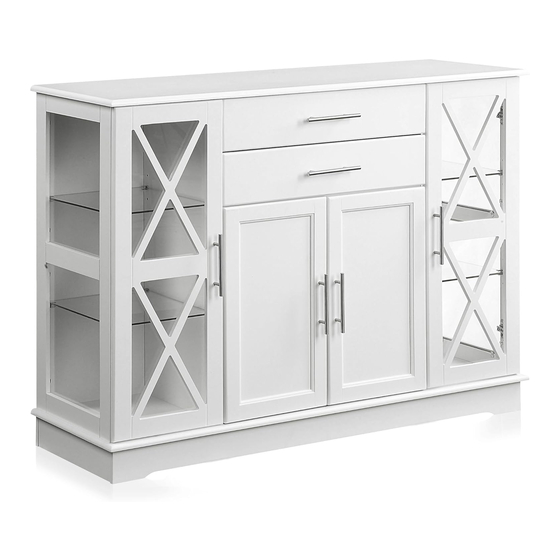

- Page 1 Ryland Sideboard FOLLOW US: CONTACT INFO: ITEM NO. 014-HG-40007 The instruction booklet contains IMPORTANT support@belleze.com @bellezefurniture safety information. Please read it in full and 1-800-682-6376 keep it for future reference. www.belleze.com...
- Page 2 Scan this QR Code to view our online tutorial Estimated time for assembly: 45 mins Weight limitations are as follows: Maximum Load Maximum Load 15 lb 80 lb Maximum Load 20 lb...
- Page 3 Assemble the furniture on an empty carton, carpet, or rug to prevent scratches or damage. For safety, please keep pets and children away from the assembly area. Ensure the product is fully assembled before use. If you are missing any hardware or products, do not use it until you have restored the missing parts.
-
Page 4: Package Contents
PACKAGE CONTENTS... - Page 5 PACKAGE CONTENTS CODE DESCRIPTION Bottom Panel Top Panel Left Side Panel Right Side Panel Left Medial Panel Right Medial Panel Drawer Back Panel Drawer Left Panel Drawer Right Panel Drawer Front Panel Drawer Bottom Panel Side Back Panel Middle Back Panel Middle Crossbar Large Storage Shelf Panel Small Cabinet Door...
- Page 6 PACKAGE CONTENTS 12x+1x 12x+1x 34x+3x 12x+1x 20x+2x 48x+4x Install all hardware perpendicular to the opening.
- Page 7 Required tools for assembly (Not included) Guide for latch and lock assembling system. Assemble the drawer back panel (7) between the drawer left and right panels (8, 9). locked v.12192022...
- Page 8 Slide the drawer bottom panel (11) between the drawer left and right panels. Assemble the drawer front panel (10) to the drawer assembly. locked...
- Page 9 Attach handels to the drawer front panel. Assemble the crossbar (14) between the left and right medial panels (5,6) locked v.12192022...
- Page 10 Assemble the left and right panels (3, 4) and left and right medial panels (5, 6) on the bottom panel (1). locked Slide the side and middle back panels (12, 13) into the assembly.
- Page 11 Assemble the top panel (2) to the sideboard assembly. Secure the back panels in place. v.12192022...
- Page 12 Insert shelf pegs into the sideboard and put on the storage panels (15, 17).
- Page 13 Attach door hinges to the glass cabinet doors (18). Paste the plastic pad on the cabinet door according to the figure. Note: Use the correct door hinge type, glass door hinge (G) Attach door hinges to the small cabinet doors (16). Note: Use the correct door hinge type, wood door hinge (I) v.12192022...
- Page 14 Attach handles to the cabinet doors (16, 18).
- Page 15 Attach the cabinet doors (16, 18) to the sideboard. v.12192022...
- Page 16 Adujust the position of the cabinet doors Up and down In and out Side to side adjustment by adjustment by adjustment using loosening the screws loosening the screws the front adjustment on the mounting on the hinge arm. screw on the hinge. plate.
- Page 17 Slide the drawers into the sideboard. Note: Place the slidable part tothe front position before sliding in. Attach anti-tipping straps to the back of the sideboard. v.12192022...
- Page 18 device to prevent the furniture from tipping over. • Mark the drill position on the wall with a pencil. • Drill a small hole on the marked position. • Insert a wall anchor into the drilled hole. • Fixed the anti-tipping strap to the wall with provided screws. YOU’RE FINISHED!
- Page 19 Warning Only place items on top of the product if they meet the recommended size and weight limits. Climbing on, stepping on, or placing overweighted objects on the product may cause property damage and/or injuries. Items placed onto this product must be resting on a support surface without hanging over the edges.
- Page 20 FURNITURE CARE AND MAINTENANCE Medium - Density Fiberboard Thank you for your purchase. We want your item to last as long as possible. To ensure the product gives you years of longevity, please follow the recommendations in this care and maintenance guide. MAINTENANCE •...
- Page 21 v.12192022...
- Page 23 © All copyright of this document belongs to BELLEZE . This document may not be printed, translated, reproduced, or distributed in whole or in part without written permission from BELLEZE. v.12192022...
-
Page 24: Warranty
WARRANTY BELLEZE products come with a 1-year warranty from the date of delivery. Register your product on our website to enjoy our limited lifetime warranty! AFTER-SALE SERVICE Contact us at 1-800-682-6376 or email us at support@belleze.com We will send you replacement.
