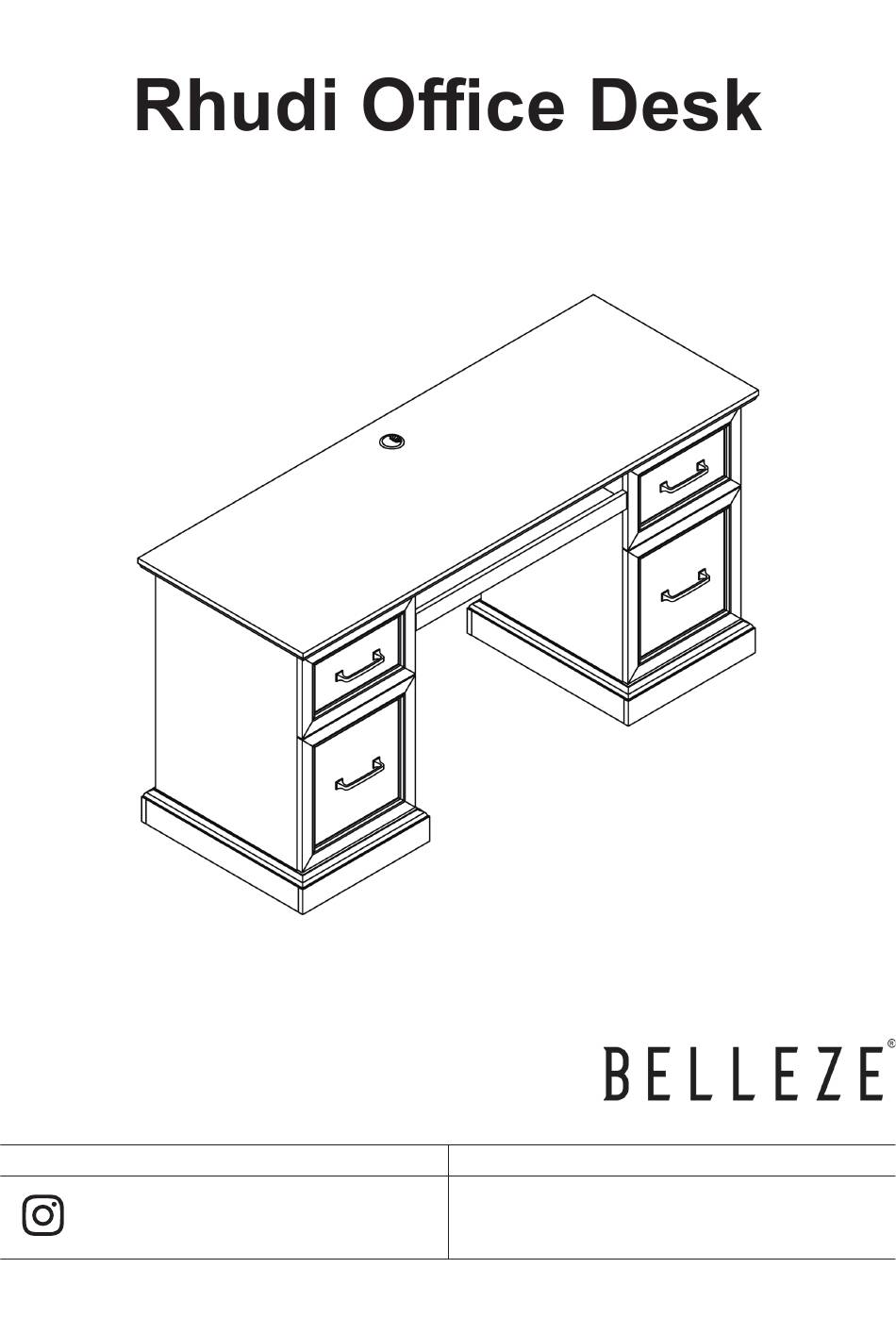

- Page 1 FOLLOW US: CONTACT INFO: ITEM NO. 014-HG-40744 The instruction booklet contains IMPORTANT support@belleze.com @bellezefurniture safety information. Please read it in full and 1-800-682-6376 keep it for future reference. www.belleze.com...
- Page 2 Scan this QR Code to view our online tutorial Estimated time for assembly: 120 mins Weight limitations are as follows: Maximum Load 30 lb Maximum Load 120 lb Maximum Load 20 lb...
- Page 3 Assemble the furniture on an empty carton, carpet, or rug to prevent scratches or damage. For safety, please keep pets and children away from the assembly area. Ensure the product is fully assembled before use. If you are missing any hardware or products, do not use it until you have restored the missing parts.
-
Page 4: Package Contents
PACKAGE CONTENTS... - Page 5 PACKAGE CONTENTS(A) DESCRIPTION CODE Table T op Panel PACKAGE CONTENTS(B) DESCRIPTION CODE Bottom Panel Left Lateral Panel Left Medial Panel Right Medial Panel Right Lateral Panel Side Back Panel Keyboard Tray Panel Keyboard Tray Front Panel Drawer Divider Strip Center Back Panel Long Base Strip Short Base Strip Small Drawer Front Panel...
- Page 6 PACKAGE CONTENTS 70x + 4x 54x + 4x 16x + 1x 52x + 4x 32x + 3x 70x + 4x 32x + 3x 60x + 4x 16x + 1x Install all hardware perpendicular to the opening.
- Page 7 Required tools for assembly (Not included) Attach corner connectors to the base strips (12, 15). v.01232024...
- Page 8 Insert wood dowels to the long base strips (12). Attach cam bolts to the short base strips (15).
- Page 9 Assemble the short base strips (15) to the long base strips (12). Assemble the base strips assemblies to the bottom panels (2). v.01232024...
- Page 10 Attach cam bolts to the bottom panels (2). Insert wood dowels to the side back panels (7).
- Page 11 Detach sliders from the slide brackets Slide Bracket Slider Attach slide brackets to the lateral panels (3, 6). Note: Make sure to insert screws in the correct opening. v.01232024...
- Page 12 Attach slide brackets to both sides of the medial panels (4, 5). Note: Make sure to insert screws in the correct opening. Flip 180° Flip 180°...
- Page 13 Attach cam bolts to both sides of the medial panels (4, 5). Flip 180° Flip 180° v.01232024...
- Page 14 Attach cam bolts to the lateral panels (3, 6). Insert wood dowels to the lateral panels (3, 6).
- Page 15 Insert wood dowels to the medial panels (4, 5), drawer divider strips (10), and the center back panel (11). v.01232024...
- Page 16 Assemble a side back panel (7) and a drawer divider strips (10) between the left lateral panel (3) and left medial panel (4). Then repeat the same with the right lateral panel (6) and right medial panel (5).
- Page 17 Assemble the base assembly underneath each drawer shelf assembly. v.01232024...
- Page 18 Attach cam bolts to the table top panel (1), and drawer front panels (16, 17).
- Page 19 Assemble the center back panel (11) between the medial panels (4, 5). v.01232024...
- Page 20 Assemble the table top panel (1) on top of the drawer shelf assemblies.
- Page 21 Attach sliders to the small drawer side panels (27, 28). Note: Make sure to insert screws in the correct opening. v.01232024...
- Page 22 Attach sliders to the large drawer side panels (31, 32). Note: Make sure to insert screws in the correct opening.
- Page 23 Insert wood dowels to the small drawer side panels (27, 28) and the small drawer back panels (29). Note: Make sure to use the correct hardware. v.01232024...
- Page 24 Insert wood dowels to the large drawer side panels (31, 32) and the large drawer back panels (33). Note: Make sure to use the correct hardware.
- Page 25 Assemble the small drawer back panels (29) between the small drawer side panels (27, 28). Then assemble the large drawer back panels (33) between the large drawer side panels (31, 32). v.01232024...
- Page 26 Slide the small drawer bottom panels (30) into the small drawer assemblies, then slide the large drawer bottom panels ((34) into the large drawer assemblies.
- Page 27 Assemble the drawer front panels (16, 17) to the drawer assemblies. Note: Make sure to use the correct hardware. v.01232024...
- Page 28 Attach handles to the drawer front panels.
- Page 29 Slide the hang rail position to accommodate different file sizes. v.01232024...
- Page 30 Slide drawers into the drawer shelves of the table. Slide the slider plate to the forward position. Up and down adjustment by loosening the screws on the slide runner.
- Page 31 Attach cam bolts to the keyboard tray front panel (9). Insert wood dowels to the keyboard tray panel (8). v.01232024...
- Page 32 Assemble the keyboard tray front panel (9) to the tray panel (8). Attach sliders to the side of the keyboard tray. Note: Make sure to insert screws in the correct opening.
- Page 33 Slide the keyboard tray into the table and put the cable hole cover onto the table top panel. Slide the slider plate to the forward position. YOU’RE FINISHED! v.01232024...
- Page 34 Warning Only place items on top of the product if they meet the recommended size and weight limits. Climbing on, stepping on, or placing overweighted objects on the product may cause property damage and/or injuries. Items placed onto this product must be resting on a support surface without hanging over the edges.
- Page 35 © All copyright of this document belongs to BELLEZE. This document may not be printed, translated, reproduced, or distributed in whole or in part without written permission from BELLEZE.
-
Page 36: Warranty
WARRANTY BELLEZE products come with a 1-year warranty from the date of delivery. AFTER-SALE SERVICE Contact us at 1-800-682-6376 or email us at We will send you replacement. Hassle free! No need to worry about repackaging and sending your item back.
