Belleze Tate 014-HG-40752 Manual

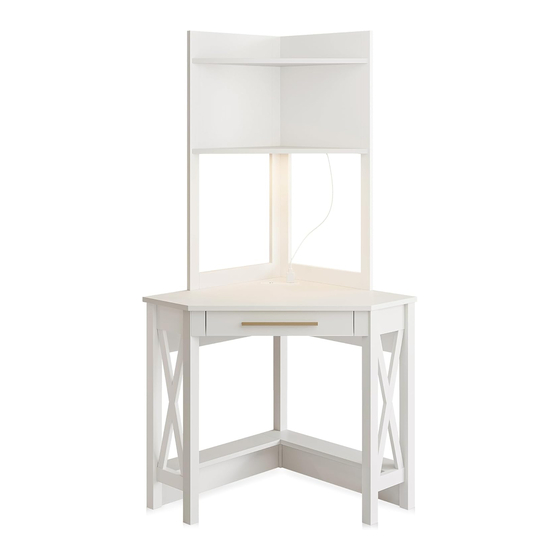

Corner desk
Hide thumbs

Advertisement

Table of Contents

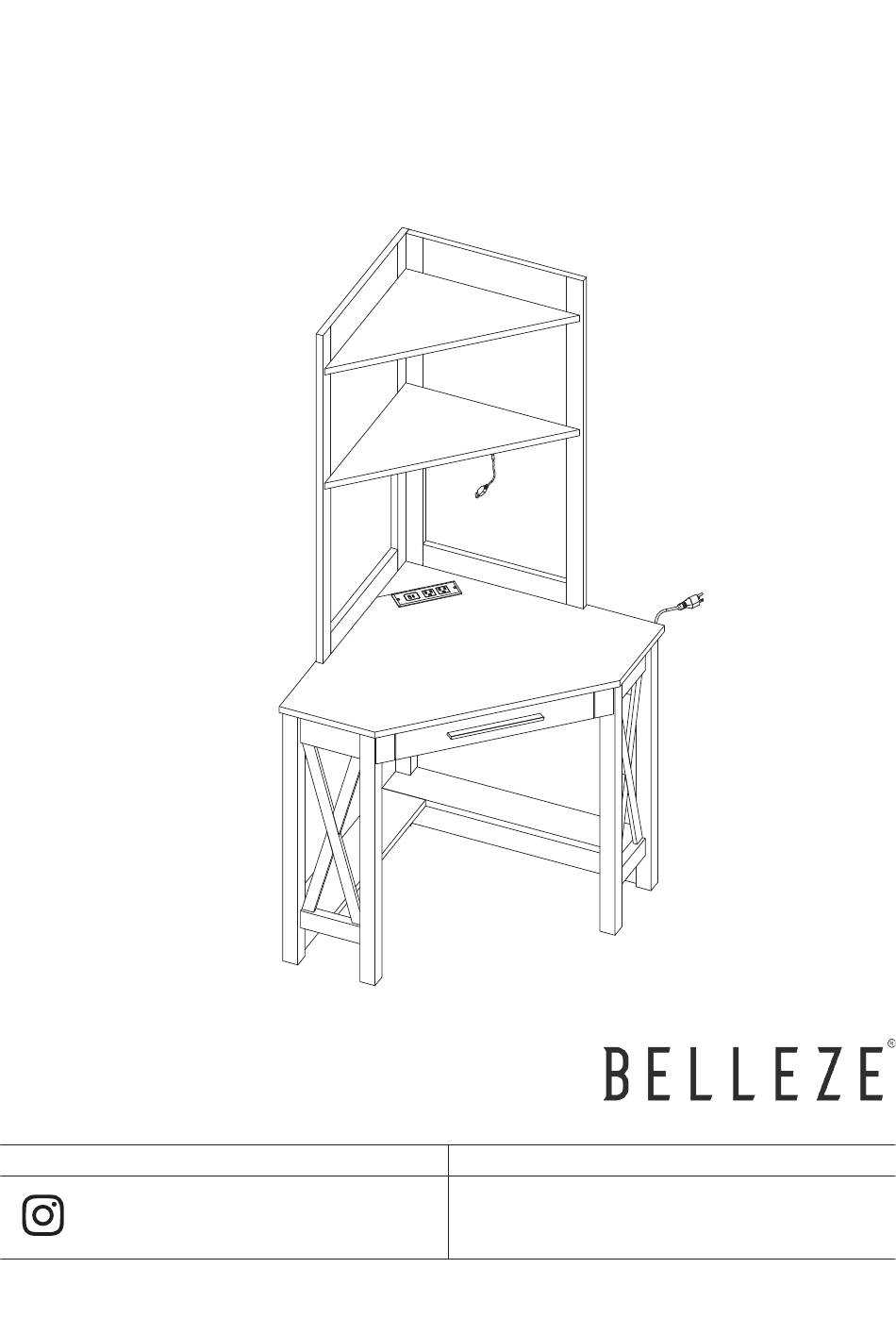

Tate Corner Desk
FOLLOW US:
@bellezefurniture
CONTACT INFO:
support@belleze.com
1-800-682-6376
www.belleze.com
ITEM NO. 014-HG-40752
The instruction booklet contains IMPORTANT
safety information. Please read it in full and
keep it for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tate 014-HG-40752 and is the answer not in the manual?

Questions and answers

Related Manuals for Belleze Tate 014-HG-40752

Summary of Contents for Belleze Tate 014-HG-40752

  • Page 1 Tate Corner Desk FOLLOW US: CONTACT INFO: ITEM NO. 014-HG-40752 The instruction booklet contains IMPORTANT support@belleze.com @bellezefurniture safety information. Please read it in full and 1-800-682-6376 keep it for future reference. www.belleze.com...
  • Page 2 Scan this QR Code to view our online tutorial Estimated time for assembly: 70 mins Weight limitations are as follows: Maximum Load 20 lb Maximum Load 60 lb Maximum Load 10 lb...
  • Page 3 Assemble the furniture on an empty carton, carpet, or rug to prevent scratches or damage. For safety, please keep pets and children away from the assembly area. Ensure the product is fully assembled before use. If you are missing any hardware or products, do not use it until you have restored the missing parts.

  • Page 4: Package Contents

    PACKAGE CONTENTS...
  • Page 5 PACKAGE CONTENTS CODE DESCRIPTION Table Top Panel Top Shelf Panel Lower Shelf Panel Left Shelf Frame Right Shelf Frame Left Table Leg Right Table Leg Back Panel Left Foot Rest Panel Right Foot Rest Panel Right Base Panel Back Leg Left Medial Panel Right Medial Panel Front Decoration Panel...
  • Page 6 PACKAGE CONTENTS 59x + 4x 54x + 4x 59x + 4x 45x + 4x 12x + 1x Install all hardware perpendicular to the opening.
  • Page 7 Install all hardware perpendicular to the opening. v.08252023...
  • Page 8 Slides Must Be Separated Before Assembly. After Separated, Set Aside Until Needed for Assembly. Mount Cage Lever Runner STEP 1: Extend Slide STEP 2: Push Lever UP STEP 3: Remove Runner Runner Mount...
  • Page 9 Required tools for assembly (Not included) Attach cam bolts to the table legs (6, 7). v.08252023...
  • Page 10 Attach cam bolts to foot rest panels (9, 10) and back leg (12). Insert wood dowels to the table legs (6, 7), and the foot rest panels (9, 10).
  • Page 11 Insert wood dowels to the back panels (8) and the base panels (11, 22). Assemble the left foot rest panel (9) to the left base panel (22), then assemble the right foot panel (10) to the right base panel (11). v.08252023...
  • Page 12 Assemble the right base panel (11) and the back panel (8) to the back leg (12). Assemble the left base panel (22) and back panel (8) to the back leg (12).
  • Page 13 Assemble the right table leg (7) to the right base panel (11) and the back panel (8). Assemble the left table leg (6) to the left base panel (22) and the back panel (8). v.08252023...
  • Page 14 Attach the connection plate between the left foot rest panel (9) and the right foot rest panel (10).
  • Page 15 Attach cam bolts to the underside of the table top panel (1) and to the front decoration panels (15). Insert wood dowels to the shelf panels (2, 3) and the medial panels (13, 14). v.08252023...
  • Page 16 Assemble front decoration panels (15) to the medial panels (13, 14). Attach the slider brackets to the medial panels (13, 14). Note: Make sure to insert screws in the correct opening.
  • Page 17 Assemble the table top panel (1) on top of the base assembly. v.08252023...
  • Page 18 Assemble the medial panels (13, 14) underneath the table top panel (1). cam bolts to the shelf frame (4, 5).
  • Page 19 wood dowels to the shelf frame (4, 5). Assemble shelf panels (2, 3) to the shelf frame (5). v.08252023...
  • Page 20 Assemble left shelf frame (4) to the shelf panels (2, 3).
  • Page 21 Further secure the left shelf frame (4) to the right shelf frame (5). Attach cam bolts on top of the table top panel (1). v.08252023...
  • Page 22 Assemble the shelf on top of the table.
  • Page 23 Attach sliders to the drawers left and right panels (18, 19). Assemble the drawer back panel (17) between the drawer left and right panels (18, 19). v.08252023...
  • Page 24 Slide the drawer bottom panels ( ) into the drawer assembly. Assemble the drawer support panel (20) to the drawer tray assembly.
  • Page 25 cam bolts to the drawer front panel (16). Attach drawer handle to the drawer front panel (16). v.08252023...
  • Page 26 Assemble drawer front panel (16) to the drawer tray assembly.
  • Page 27 Slide the drawer into the table. Slide the slider plate to the forward position. Up and down adjustment by loosening the screws on the drawer slide. v.08252023...
  • Page 28 Attach the power hub on top of the table top panel.
  • Page 29 Attach anti-tipping straps to the back of the shelf panels. v.08252023...
  • Page 30 device to prevent the furniture from tipping over. • Mark drill positions on the wall with a pencil. • Drill a small hole on the marked position. • Insert wall anchors into the drilled holes. • Zip tie the rack to the anti-tipping devices.
  • Page 31 Connect the power adapter to the LED light strip cable, then plugthe power adapter to a wall power outlet，and then connedtpower hub cable to an wall electirc outlet, and then connect the power hub cable to an wall electirc outlet. YOU’RE FINISHED! v.08252023...
  • Page 32 USER INSTRUCTION (REMOTE CONTROL) Decrease Increase Flash 7 Strobe 7 Static Color Shortcut Flash 16 Strobe 16 Press the ON button to turn on the light. Static Color Shortcut Each button is assign to a color, press the button to select your desire color. Increase Press the increase button to increase brightness in static color mode.
  • Page 33 Warning Only place items on top of the product if they meet the recommended size and weight limits. Climbing on, stepping on, or placing overweighted objects on the product may cause property damage and/or injuries. Items placed onto this product must be resting on a support surface without hanging over the edges.
  • Page 34 FURNITURE CARE AND MAINTENANCE Medium - Density Fiberboard Thank you for your purchase. We want your item to last as long as possible. To ensure the product gives you years of longevity, please follow the recommendations in this care and maintenance guide. MAINTENANCE •...
  • Page 35 © All copyright of this document belongs to BELLEZE . This document may not be printed, translated, reproduced, or distributed in whole or in part without written permission from BELLEZE. v.08252023...

  • Page 36: Warranty

    WARRANTY BELLEZE products come with a 1-year warranty from the date of delivery. Register your product on our website to enjoy our limited lifetime warranty! AFTER-SALE SERVICE Contact us at 1-800-682-6376 or email us at support@belleze.com We will send you replacement.

This manual is also suitable for:

Tate 014-hg-40752-whTate 014-hg-40752-bro
