AOC-SLG4-4E4T
User's Guide
Revision 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AOC-SLG4-4E4T and is the answer not in the manual?

Questions and answers

Summary of Contents for Supermicro AOC-SLG4-4E4T

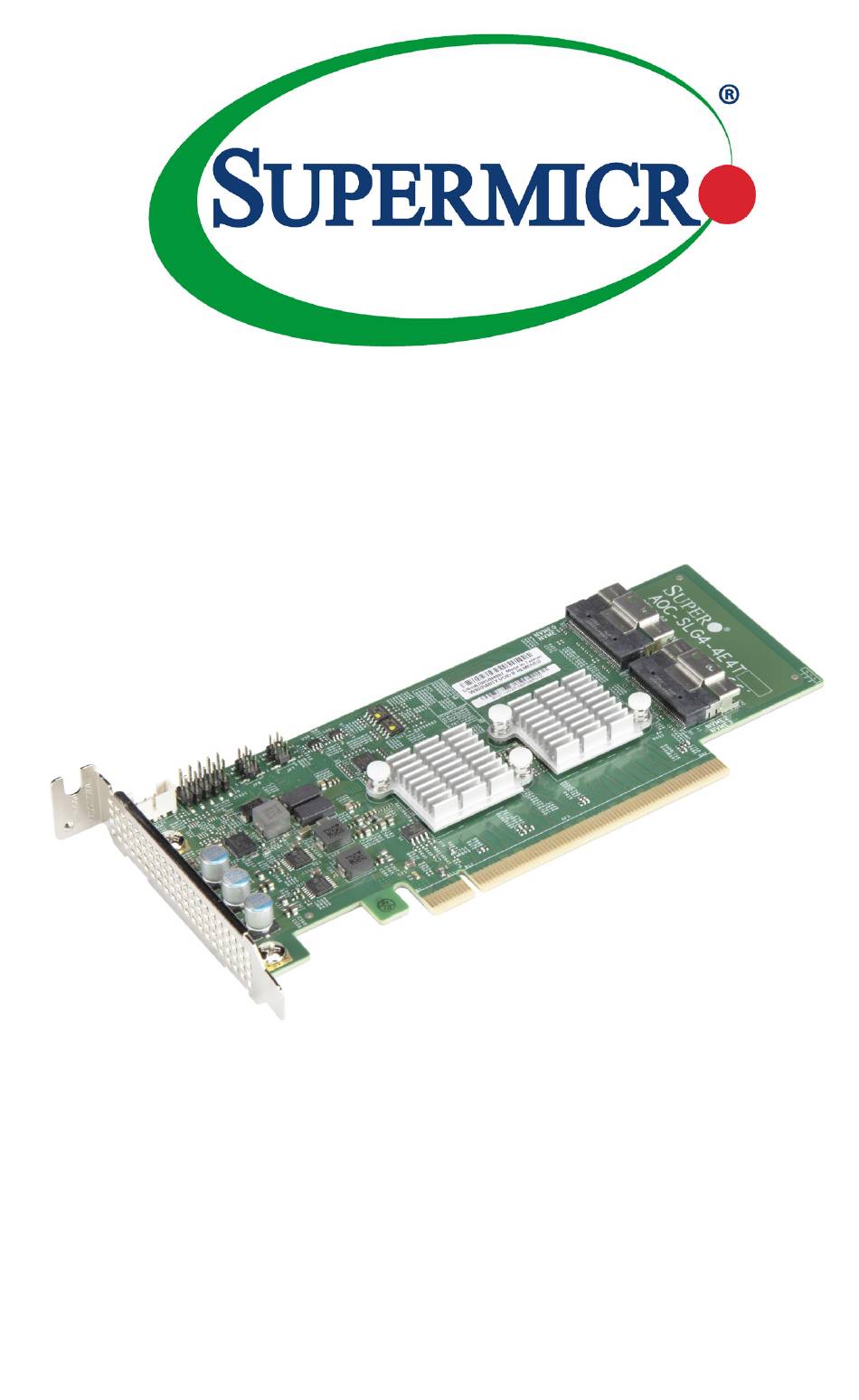

  • Page 1 AOC-SLG4-4E4T User's Guide Revision 1.0...
  • Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
  • Page 3: Preface

    It provides information for the installation and use of the AOC-SLG4-4E4T expansion card. About this Expansion Card The Supermicro NVMe AOC-SLG4-4E4T features two internal NVMe SlimSAS connectors for high-performance storage connectivity. This card is built on the latest PCIe NVMe retimer technology. Streamlined for the growing demand for...
  • Page 4: Returning Merchandise For Service

    You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number. When returning the AOC-SLG4-4E4T card to the manufacturer, the RMA number should be promi- nently displayed on the outside of the shipping carton, and the shipping package is mailed prepaid or hand-carried.
  • Page 5: Contacting Supermicro

    Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML...
  • Page 6: Table Of Contents

    AOC-SLG4-4E4T Expansion Card User's Guide Table of Contents Preface About this User's Guide ....................iii About this Expansion Card.................... iii An Important Note to the User ..................iii Returning Merchandise for Service ................iv Contacting Supermicro ....................v Chapter 1 Overview Overview ......................1-1 Technical Specifications ..................
  • Page 7: Chapter 1 Overview

    Overview Congratulations on purchasing your expansion card from an acknowledged leader in the industry. Supermicro products are designed with the utmost attention to detail to provide you with the highest standards in quality and performance. For product support and updates, please visit our website at http://www.supermicro.com/...
  • Page 8 AOC-SLG4-4E4T Expansion Card User's Guide Notes...
  • Page 9: Chapter 2 Hardware Components

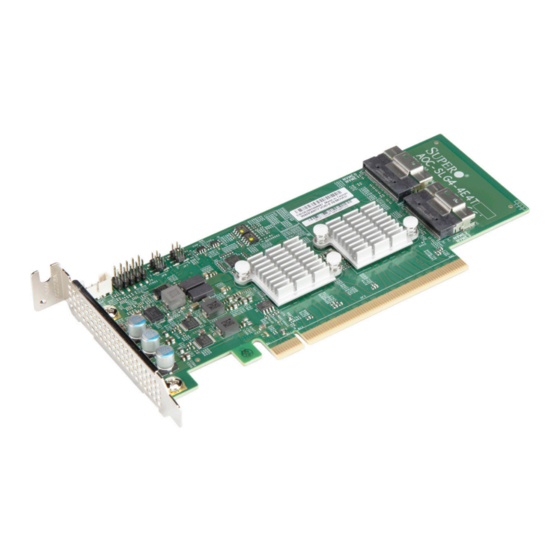

    Chapter 2: Hardware Components Chapter 2 Hardware Components Expansion Card Layout and Components Figure 2-1. AOC-SLG4-4E4T The AOC-SLG4-4E4T is a low-profile expansion card with an aggregate four-port NVMe internal Host Bus Adapter. The following pages describe the components and settings for the AOC-SLG4-4E4T.
  • Page 10: Major Components

    AOC-SLG4-4E4T Expansion Card User's Guide Major Components The following are the major components that make up the AOC-SLG4-4E4T expan- sion card: Figure 2-2. AOC-SLG4-4E4T Layout AOC-SLG4-4E4T Component Description NVMe Connector NVMe 0 and NVMe 1 NVMe Connector NVMe 2 and NVMe 3...
  • Page 11: Connectors And Leds

    Chapter 2: Hardware Components Connectors and LEDs NVMe Connectors There are two NVMe connectors on the expansion card. Figure 2-3. NVMe Connectors AOC-SLG4-4E4T Component Description NVMe connector, designated NVMe 0 and NVMe 1 NVMe connector, designated NVMe 2 and NVMe 3...
  • Page 12: Chapter 3 Installation

    Chapter 3: Installation Chapter 3 Installation Static-Sensitive Devices Electrostatic Discharge (ESD) can damage electronic com ponents. To avoid dam- aging your expansion card, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD. Precautions •...
  • Page 13: Before Installation

    Depending upon which motherboard is used and which slot in the motherboard is selected, a riser card may or may not be required to install the AOC-SLG4-4E4T. 1. Power down the system, remove the power cords from the rear of the power supply and remove the system cover.
  • Page 14: Static-Sensitive Devices

    Chapter 3: Installation Static-Sensitive Devices Electrostatic Discharge (ESD) can damage electronic com ponents. To avoid dam- aging your expansion card, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD. Precautions •...
  • Page 15: Chapter 4 Bios Settings

    Chapter 4: BIOS Settings Chapter 4 BIOS Settings Depending on the system, motherboard, and BIOS version, the following BIOS settings may be necessary for the proper operation of NVMe drives. Changing Retimer Settings Follow the steps below to use the Configuration Utility. 1.
  • Page 16 AOC-SLG4-4E4T User's Guide 5. Select North Bridge. 6. Select IIO Configuration.
  • Page 17 Chapter 4: BIOS Settings 7. Select the appropriate IOU option and then select x4x4x4x4. 8. Enter the IIO DFX Configuration menu. 9. Select CPU1 Configuration. 10. Select the appropriate port option. 11. Under Preset Settings, select DN Tx Preset and modify it to P7.
  • Page 18 AOC-SLG4-4E4T User's Guide (Disclaimer Continued) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency com- munication devices, or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
