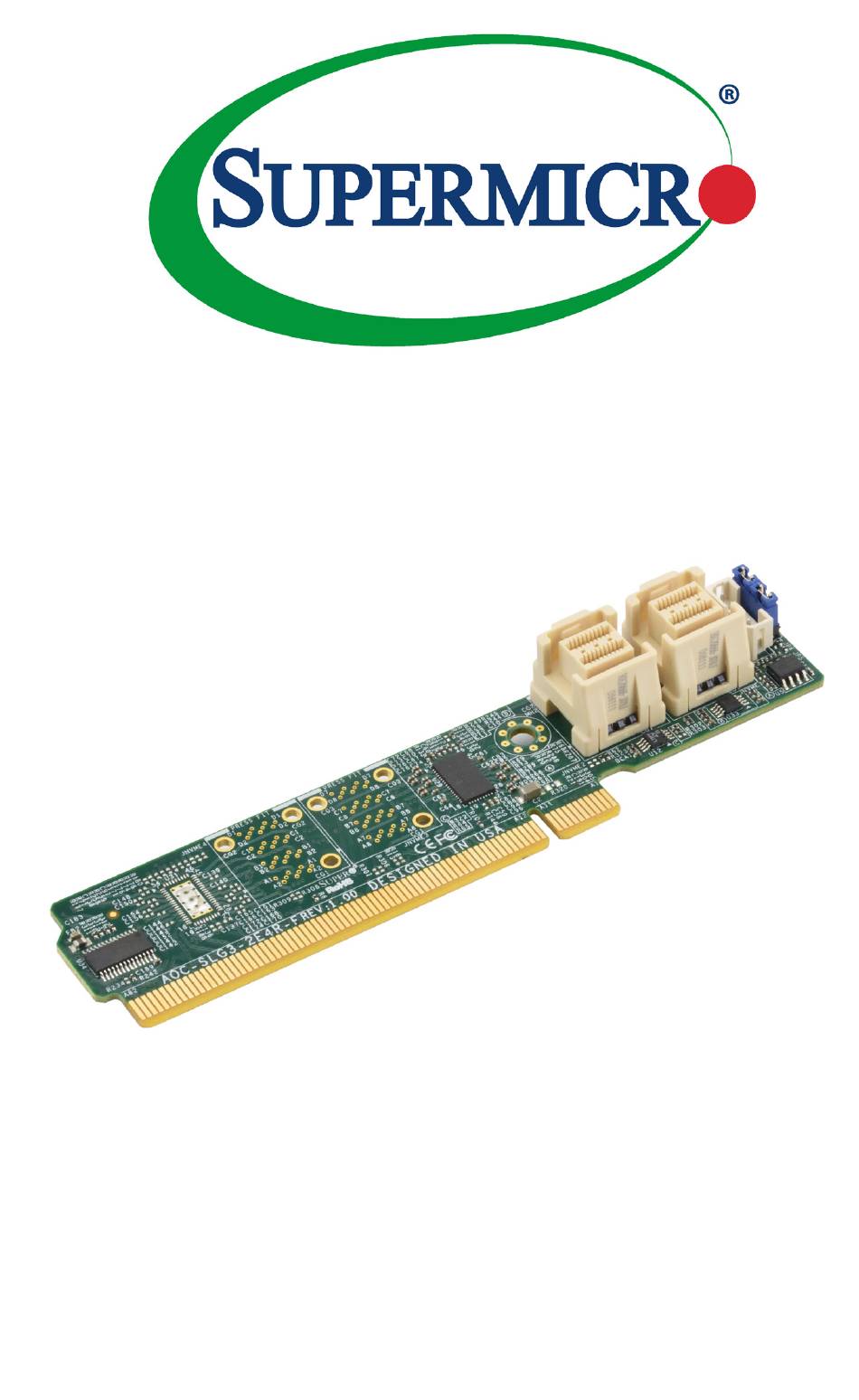

- Page 1 AOC-SLG3-2E4R-F User's Guide Revision 1.0...
- Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
-
Page 3: About This Expansion Card

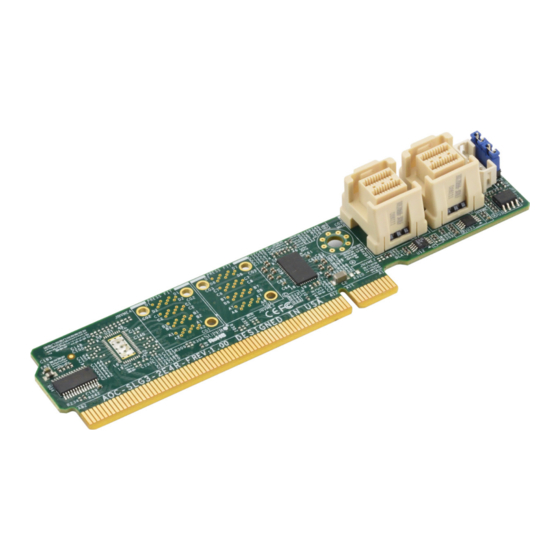

The Supermicro NVMe AOC-SLG3-2E4R-F features two internal NVMe connectors (SFF 8643) for high-performance storage connectivity. This HBA card is built on the latest PCIe NVMe redriver technology. The AOC-SLG3-2E4R-F is streamlined to meet the growing demand for increased data throughput and scalability require- ments across the enterprise-class server platforms. -
Page 4: Returning Merchandise For Service
You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number. When returning the AOC-SLG3-2E4R-F card to the manufacturer, the RMA number should be promi- nently displayed on the outside of the shipping carton, and the shipping package is mailed prepaid or hand-carried. -
Page 5: Contacting Supermicro
Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML... -
Page 6: Table Of Contents
AOC-SLG3-2E4R-F Expansion Card User's Guide Table of Contents Preface About this User's Guide ....................iii About this Expansion Card.................... iii An Important Note to the User ..................iii Returning Merchandise for Service ................iv Contacting Supermicro ....................v Chapter 1 Overview Overview ......................1-1 Technical Specifications .................. -
Page 7: Chapter 1 Overview
Overview Congratulations on purchasing your expansion card from an acknowledged leader in the industry. Supermicro products are designed with the utmost attention to detail to provide you with the highest standards in quality and performance. For product support and updates, please visit our website at http://www.supermicro.com/... - Page 8 AOC-SLG3-2E4R-F Expansion Card User's Guide Notes...
-
Page 9: Chapter 2 Hardware Components
Chapter 2: Hardware Components Chapter 2 Hardware Components Expansion Card Layout and Components Figure 2-1. AOC-SLG3-2E4R-F The AOC-SLG3-2E4R-F is a low-profile expansion card with an aggregate dual-port NVMe internal Host Bus Adapter. The following pages describe the components and settings for the AOC-SLG3-2E4R-F. -
Page 10: Major Components
AOC-SLG3-2E4R-F Expansion Card User's Guide Major Components The following are the major components that make up the AOC-SLG3-2E4R-F expansion card: AOC-SLG3-2E4R-F REV: 1.00 DESIGNED IN USA Figure 2-2. AOC-SLG3-2E4R-F Layout AOC-SLG3-2E4R-F Component Description NVMe Connectors JNVMe1 and JNVMe2 Jumper JP5... -
Page 11: Connectors And Leds
Chapter 2: Hardware Components Connectors and LEDs NVMe Connectors There are two NVMe connectors on the expansion card. AOC-SLG3-2E4R-F DESIGNED IN USA REV: 1.00 Figure 2-3. NVMe Connectors AOC-SLG3-2E4R-F Component Description NVMe connector, designated JNVMe2 NVMe connector, designated JNVMe1... -
Page 12: Front Jumper Location And Settings
AOC-SLG3-2E4R-F Expansion Card User's Guide Front Jumper Location and Settings AOC-SLG3-2E4R-F REV: 1.00 DESIGNED IN USA Figure 2-4. Front Jumpers Explanation of Jumpers To modify the operation of the backplane, Connector Pins jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. -
Page 13: Chapter 3 Installation
Chapter 3: Installation Chapter 3 Installation Static-Sensitive Devices Electrostatic Discharge (ESD) can damage electronic com ponents. To avoid dam- aging your expansion card, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD. Precautions •... -
Page 14: Before Installation
Depending upon which motherboard is used and which slot in the motherboard is selected, a riser card may or may not be required to install the AOC-SLG3-2E4R-F. Refer to the chart below to determine the method of installation for your expansion card. - Page 15 5. Connect the CBL-CDAT-0674 data cable to the JN- VI2C connector on the motherboard. If more than one AOC-SLG3-2E4R-F expansion card is used on the same CPU, then only the lowest-numbered slot expansion card needs to be connected to the motherboard's JNVI2C.
-
Page 16: Static-Sensitive Devices
AOC-SLG3-2E4R-F Expansion Card User's Guide Static-Sensitive Devices Electrostatic Discharge (ESD) can damage electronic com ponents. To avoid dam- aging your expansion card, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD. - Page 17 Chapter 3: Installation Notes...
- Page 18 AOC-SLG3-2E4R-F Expansion Card User's Guide (Disclaimer Continued) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency com- munication devices, or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
