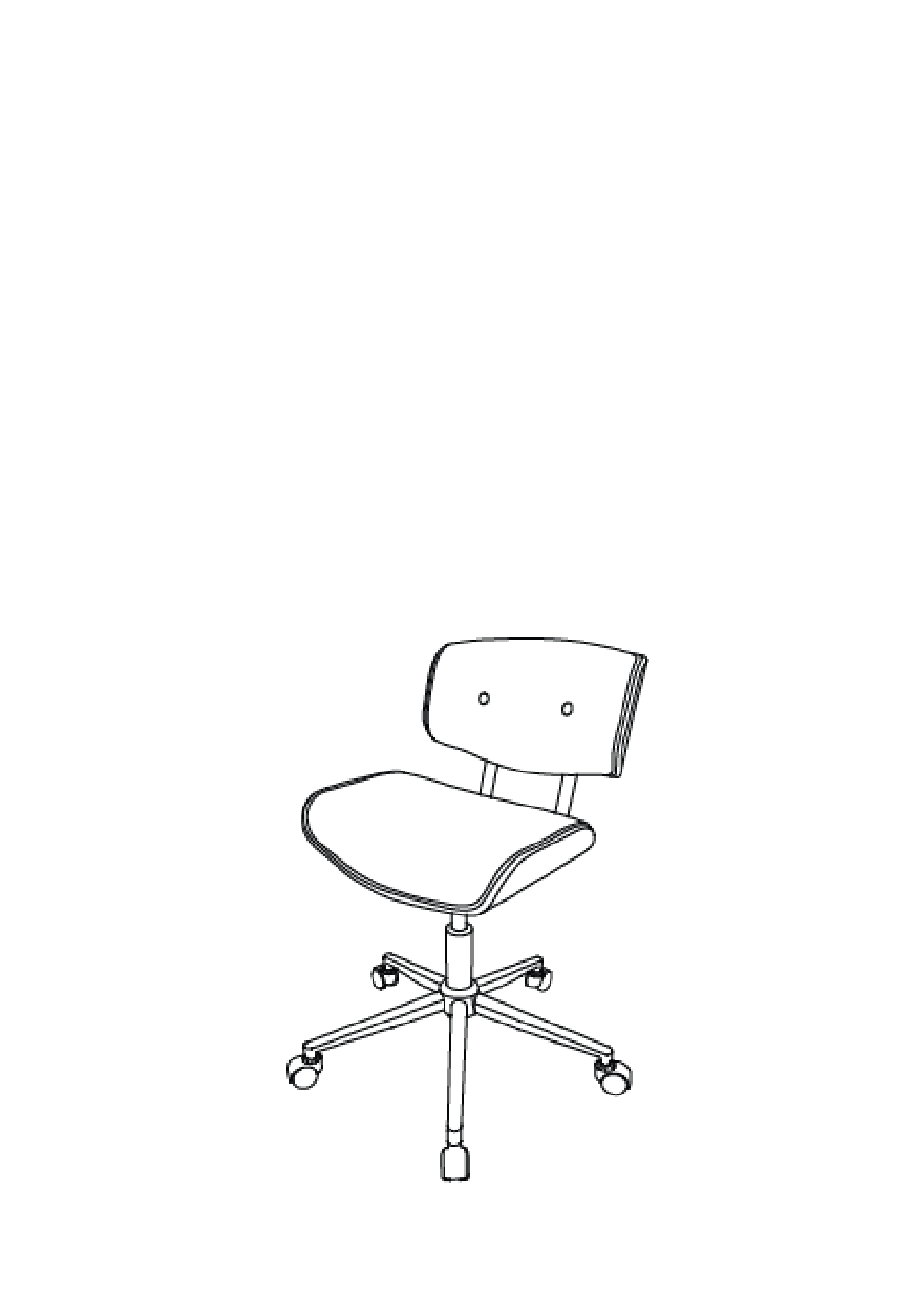

- Page 1 BENTWOOD OFFICE CHAIR...
- Page 2 FOR REPLACEMENT PARTS OR HELP WITH ASSEMBLY PLEASE CONTACT US PLEASE ENSURE TO HAVE THE MODEL FROM THE PACKAGING OR INSTRUCTION BOOKLET TO RETURN THE PRODUCT: PLEASE CONTACT THE RETAILER WHERE THE ITEM WAS PURCHASED FROM...
-
Page 3: Safety Information
IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. -
Page 4: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION PARTS DESCRIPTION BACK SEAT CONNECTOR QTY 1 QTY 1 QTY 1 GAS LIFT BASE MECHANISM QTY 1 QTY 1 QTY 1 CASTER WHEELS QTY 5 NEED HELP? For help with assembly or if you are missing a part, Please call customer service... -
Page 5: Hardware Description
PRE-ASSEMBLY INFORMATION HARDWARE DESCRIPTION ALLEN KEY SCREW ALLEN KEY SCREW ALLEN KEY M6 X 25 mm M6 X20 mm QTY 1 QTY 8 QTY 4 NEED HELP? For help with assembly or if you are missing a part, Please call customer service... - Page 6 ASSEMBLY STEP 1 Align the holes on the Connector (3) with the Seat (2) and Back (1). Insert Allen Key Screws (A) through the Connector (3) to the Seat (2) and Back (1) and tighten.
- Page 7 ASSEMBLY STEP 2 Align the holes on the Mechanism (6) to the Seat (2). Insert Allen Key Screws (B) into pre-drilled holes and tighten.
- Page 8 ASSEMBLY STEP 3 Insert the Castor Wheels (7) to the Base (5). Remove the plastic cap from the Gas Lift (4) and place the Gas Lift (4) in the middle of the Base (5).
- Page 9 ASSEMBLY STEP 4 Place the assembled seat on the Gas Lift (4). Please note the hole of the Mechanism (6) should aim to the top of the Gas Lift (4).
- Page 10 ASSEMBLY STEP 5 Press the lever on the Mechanism (6) to raise the seat up or down.
-
Page 11: Warranty
WARRANTY Thank you for purchasing our product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights. In case of any malfunction of your product (failure, missing parts, etc.) please contact us at our toll free service line or by email us.
