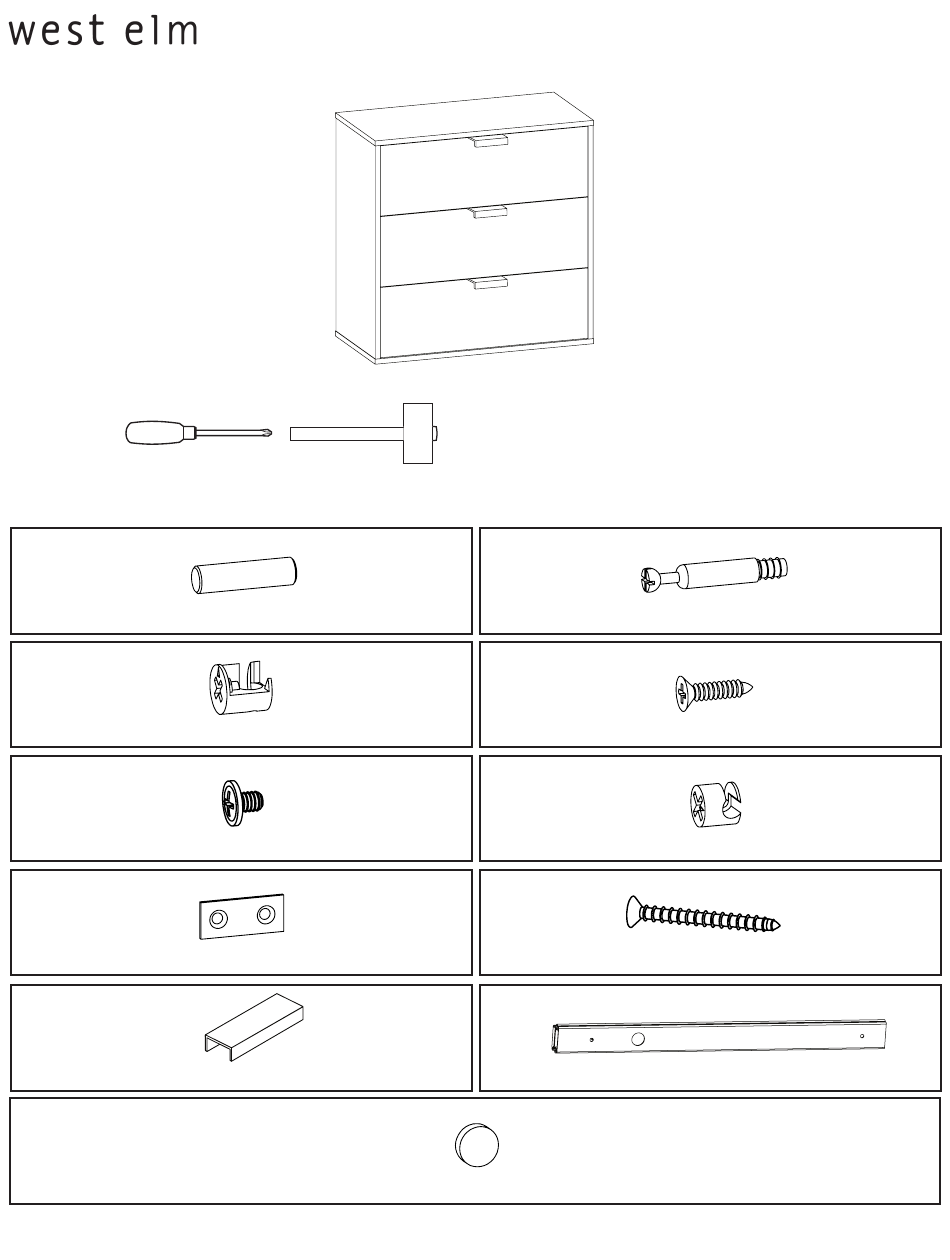

! Tools required:
! Do not throw away packaging materials until assembly is complete.
! Assemble this item on a soft surface, such as cardboard or carpet, to protect finish.
A
wooden dowel 8x
C
large cam lock 8x
E
small dome screw 6x
G
mounting plate x
J
drawer handle with screws 3x
M
98223 / 9899 - 0/07
bergen closet wide 3 drawer
B
D
F
I
L
felt pad 6x
cam screw 4x
smalll screw 4x
small cam lock 6x
large screw 6x
drawer glide 6x
Page of 7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for West Elm bergen
Summary of Contents for West Elm bergen
- Page 1 3 drawer assembly instructions ! Tools required: ! Do not throw away packaging materials until assembly is complete. ! Assemble this item on a soft surface, such as cardboard or carpet, to protect finish. wooden dowel 8x...
- Page 2 3 drawer assembly instructions . Attach drawer glides (L) to side panels using small screws (D) as shown. The FRONT of each drawer glide should be fastened through the third round hole from the front of the glide. The BACK of each drawer glide should be fastened through the first round hole from the back of the glide.
- Page 3 3 drawer assembly instructions 3. Insert large cam locks (C) into holes in side panels. Make sure arrow on face of each cam lock is pointed in the direction of the hole in the edge of each panel as shown.
- Page 4 3 drawer assembly instructions 5. Fasten side panels to bottom panel as shown. Fit cam screws into cam locks and tighten using a phillips screwdriver. 6. Slide back panel into groove. Make sure panel slides all the way into the bottom panel groove.
- Page 5 3 drawer assembly instructions 8. Insert small cam locks (F) into each drawer side panel. Make sure arrow on face of each cam lock is pointed in the direction of the hole on the edge of each panel as shown.
- Page 6 3 drawer assembly instructions . Attach drawer fronts to drawer sides. Fit cam screws into cam locks and tighten using a phillips screwdriver. 2. Attach drawer handles (J) to drawer fronts using the 2 screws supplied with each handle. Tighten using phillips screwdriver.
- Page 7 3 drawer assembly instructions 3. Slide drawers onto glides and fasten together with small dome screws (E) from inside the drawer into the hole in the glide. Tighten with a phillips screwdriver. 4. Multiple units can be attached together as shown using small screws (D) and mounting plates (G). If combining side-by-side use felt pads (M) between units to minimize scratching.
