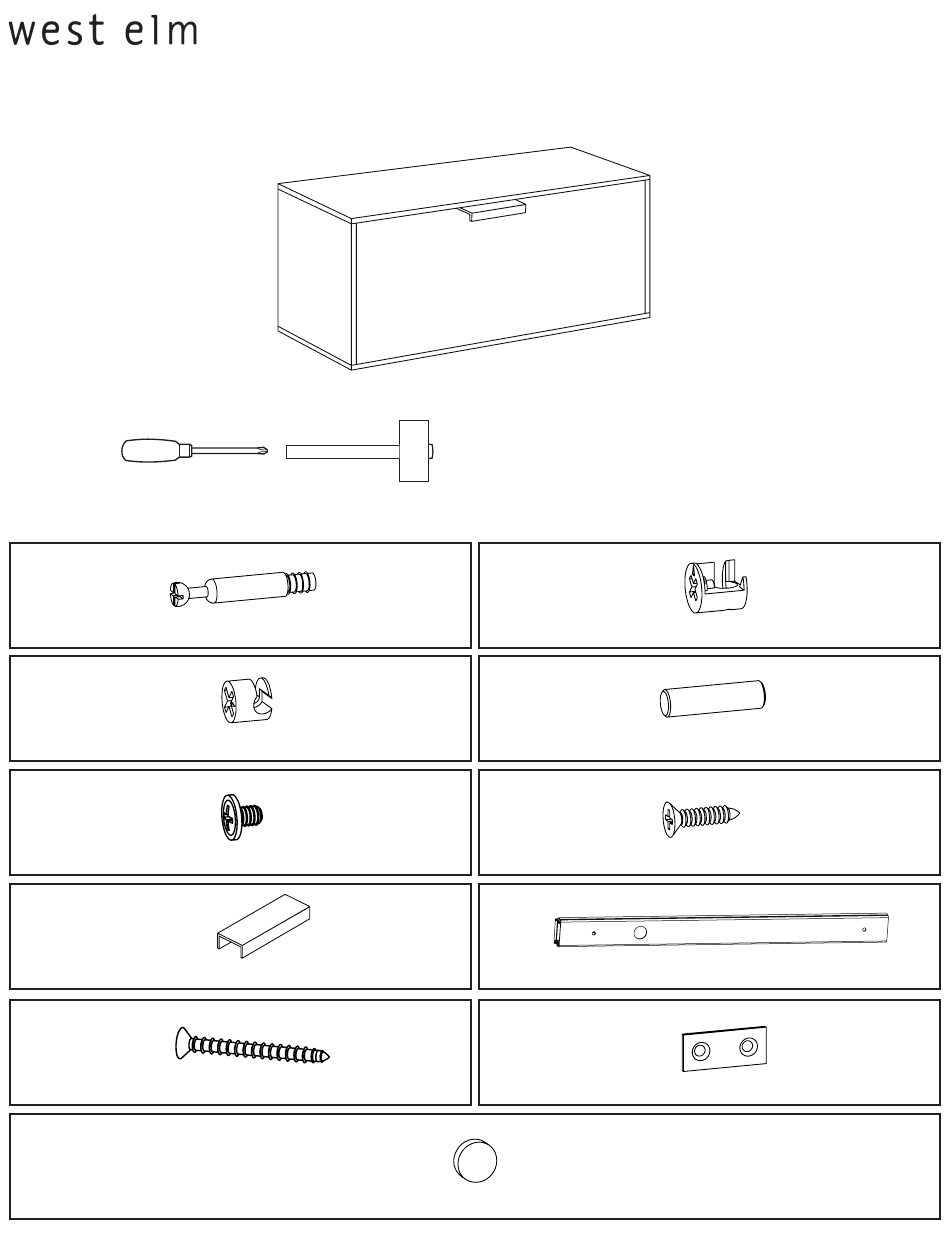

! Tools required:
! Do not throw away packaging materials until assembly is complete.
! Assemble this item on a soft surface, such as cardboard or carpet, to protect finish.
A
C
E
small dome screw 2x
H
drawer handle with screws 1x
L
O
9181330 / 9181314 - 04/07
cam screw 12x
small cam lock 4x
large screw 4x
bergen closet wide 1 drawer
B
D
F
K
M
felt pad 6x
large cam lock 8x
wooden dowel 8x
smalll screw 6x
drawer glide 2x
mounting plate 1x
Page 1 of 6
Advertisement
Table of Contents
Related Manuals for West Elm bergen closet wide 1 drawer
Summary of Contents for West Elm bergen closet wide 1 drawer
- Page 1 1 drawer assembly instructions ! Tools required: ! Do not throw away packaging materials until assembly is complete. ! Assemble this item on a soft surface, such as cardboard or carpet, to protect finish. large cam lock 8x...
- Page 2 1 drawer assembly instructions 1. Fasten drawer glides (K) to side panels using small screws (F). Tighten screws with phillips screwdriver. Be sure to insert screws through the correct holes on each glide as shown . top edge...
- Page 3 1 drawer assembly instructions 4. Insert cam screws (A) into top and bottom panels as shown and tighten with phillips screwdriver. 5. Fasten side panels to bottom panel. Fit cam screws into cam locks and tighten using phillips screwdriver.
- Page 4 1 drawer assembly instructions 7. Fasten top panel to side panels. Fit cam screws into cam locks and tighten using phillips screwdriver. Attach felt pads (O) to base. 8. Insert cam screws (A) into drawer front panel as shown and tighten with phillips screwdriver.
- Page 5 1 drawer assembly instructions 10. Slide drawer bottom panel into grooves as shown. Gently insert back panel into sides and secure using large screws (L). Tighten screws with a phillips screwdriver. 11. Pull out drawer glides and fit drawers into drawer glides. Fasten drawer to glide from inside the drawer using small dome screws (E).
- Page 6 1 drawer assembly instructions 13. Multiple units can be attached together as shown using small screws (F) and mounting plates (M). CARE INSTRUCTIONS Hardware may loosen over time. Periodically check that all connections are tight. Wipe with a soft, dry cloth. To protect finish, avoid the use of chemicals and household cleaners.
