ASROCK D1622D4I User Manual

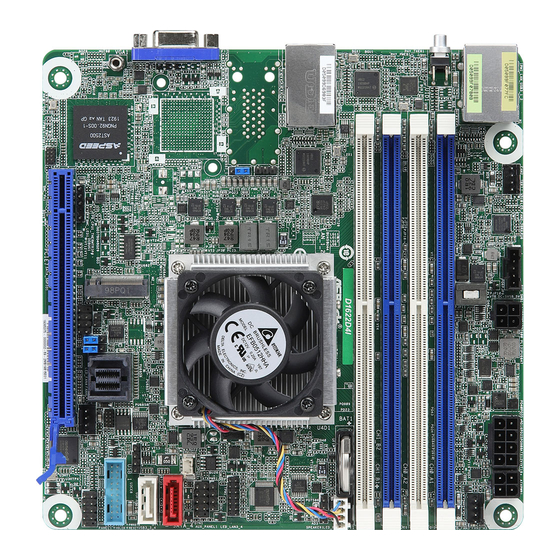

Server/workstation motherboard
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
D1622D4I
D1600D4I-2L2T
User Manual
Version 1.0
Published January 2020
Copyright©2020 ASRock Rack INC. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D1622D4I and is the answer not in the manual?

Questions and answers

Related Manuals for ASROCK D1622D4I

Summary of Contents for ASROCK D1622D4I

  • Page 1 D1622D4I D1600D4I-2L2T User Manual Version 1.0 Published January 2020 Copyright©2020 ASRock Rack INC. All rights reserved.
  • Page 2 In no event shall ASRock Rack, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock Rack has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
  • Page 3 Contact Information If you need to contact ASRock Rack or want to know more about ASRock Rack, you’re welcome to visit ASRock Rack’s website at www.ASRockRack.com; or you may contact your dealer for further information. ASRock Rack Incorporation 6F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,...

  • Page 4: Table Of Contents

    Contents Chapter 1 Introduction Package Contents Specifications Unique Features Motherboard Layout Onboard LED Indicators I/O Panel Block Diagram Chapter 2 Installation Screw Holes Pre-installation Precautions Installation of Memory Modules (DIMM) Expansion Slots (PCI Express Slots) Jumper Setup Onboard Headers and Connectors ATX PSU / DC-IN Power Connections Unit Identification purpose LED/Switch Driver Installation Guide...
  • Page 5 3.1.2 Navigation Keys Main Screen Advanced Screen 3.3.1 CPU Configuration 3.3.2 DRAM Configuration 3.3.3 Chipset Configuration 3.3.4 Storage Configuration 3.3.5 ACPI Configuration 3.3.6 USB Configuration 3.3.7 Super IO Configuration 3.3.8 Serial Port Console Redirection 3.3.9 H/W Monitor 3.3.10 Runtime Error Logging 3.3.11 Intel SPS Configuration 3.3.12 Instant Flash Security...
  • Page 6 Chapter 4 Software Support Install Operating System Support CD Information 4.2.1 Running The Support CD 4.2.2 Drivers Menu 4.2.3 Utilities Menu 4.2.4 Contact Information Chapter 5 Troubleshooting Troubleshooting Procedures Technical Support Procedures Returning Merchandise for Service...

  • Page 7: Chapter 1 Introduction

    In case any modifications of this manual occur, the updated version will be available on ASRock Rack website without further notice. You may find the latest memory and CPU support lists on ASRock Rack website as well. ASRock Rack’s Website: www.ASRockRack.com If you require technical support related to this motherboard, please visit our website for specific information about the model you are using.

  • Page 8: Specifications

    1.2 Specifications D1622D4I / D1600D4I-2L2T MB Physical Status Form Factor Mini-ITX Dimension 6.7'' x 6.7'' (17.02 cm x 17.02 cm) Processor System Supports Intel® Xeon® D 1600 Processor Chipset System Memory Capacity - 4x DDR4 DIMM slots - Supports up to 128GB DDR4 ECC RDIMM...
  • Page 9 ClearCMOS 1 (short pad) FanFail LED System BIOS BIOS Type 16MB AMI UEFI Legal BIOS - Plug and Play (PnP) - ACPI 2.0 Compliance Wake Up Events BIOS Features - SMBIOS 2.8.0 Support - ASRock Rack Instant Flash...
  • Page 10 Hardware Monitor - CPU/PCH/DDR/LAN/Storage Temperature Sensing Temperature - MB/Card side Temperature Sensing - Fan Tachometer - Fan Multi-Speed Control - CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, Voltage 1.05V_PCH, +BAT, 3VSB, 5VSB Support OS Linux®...

  • Page 11: Unique Features

    . With this utility, you can press the <F6> key during the POST or the <F2> key to enter into the BIOS setup menu to access ASRock Rack Instant Flash. Just launch this tool and save the new BIOS file to your USB flash drive, floppy disk or hard drive, then you can update your BIOS only in a few clicks without preparing an additional floppy diskette or other complicated flash utility.

  • Page 12: Motherboard Layout

    64 bit, 288-pin module, Blue) CH0_A2 ( DDR4, 64 bit, 288-pin module, White) CH1_B1 ( DDR4, 64 bit, 288-pin module, Blue) CH1_B2 ( DDR4, 64 bit, 288-pin module, White) D1622D4I BAT1 D1600D4I-2L2T FAN1 LAN1 LAN2 SPEAKER1 LAN4 LAN3 (D1600D4I-2L2T only)
  • Page 13 D1622D4I / D1600D4I-2L2T Description System Fan Connector (FAN2) PSU SMBus (PSU_SMB1) SATA Power Connector (HDDPWR1)* ATX 12V Power Connector (ATX12V1) ATX 4-PIN Power Connector (ATXPWR1 (ATX 24pin-to-4pin) System Fan Connector (FAN3) 2 x 288-pin DDR4 DIMM Slots (CH0_A1, CH1_B1) 2 x 288-pin DDR4 DIMM Slots (CH0_A2, CH1_B2)

  • Page 14: Onboard Led Indicators

    1.5 Onboard LED Indicators FAN2 FAN3 CH0_A1 ( DDR4, 64 bit, 288-pin module, Blue) CH0_A2 ( DDR4, 64 bit, 288-pin module, White) CH1_B1 ( DDR4, 64 bit, 288-pin module, Blue) CH1_B2 ( DDR4, 64 bit, 288-pin module, White) FAN1 BAT1 SPEAKER1 X557-AT2 CLRMOS1...

  • Page 15: I/O Panel

    D1622D4I / D1600D4I-2L2T 1.6 I/O Panel No. Description No. Description Dedicated IPMI LAN Port* LAN RJ-45 Port (LAN1)* 10G LAN RJ-45 Port (LAN4)** USB 3.2 Gen1 Ports (USB3_1_2) (D1600D4I-2L2T only) 10G LAN RJ-45 Port (LAN3)** UID Switch/LED (UID1) (D1600D4I-2L2T only)
  • Page 16 **There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications. ACT/LINK LED SPEED LED ACT/LINK LED SPEED LED 1G LAN Port (LAN1, LAN2) LED Indications Activity / Link LED Speed LED Status Description Status...

  • Page 17: Block Diagram

    D1622D4I / D1600D4I-2L2T 1.7 Block Diagram PCIE x1...
  • Page 18 PCIE x1...

  • Page 19: Chapter 2 Installation

    D1622D4I / D1600D4I-2L2T Chapter 2 Installation This is a Mini-ITX form factor (6.7'' x 6.7'', 17.0 cm x 17.0 cm) motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it.

  • Page 20: Installation Of Memory Modules (Dimm)

    2.3 Installation of Memory Modules (DIMM) This motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM slots, and supports Dual Channel Memory Technology. 1. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR4 DIMM pairs. 2.
  • Page 21 D1622D4I / D1600D4I-2L2T...

  • Page 22: Expansion Slots (Pci Express Slots)

    2.4 Expansion Slots (PCI Express Slots) There is 1 PCI Express slots on this motherboard. PCIE slot: PCIE7 (PCIE 3.0 x16 slot) is used for PCI Express x16 lane width cards. Installing an expansion card Step 1. Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged.

  • Page 23: Jumper Setup

    D1622D4I / D1600D4I-2L2T 2.5 Jumper Setup The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is “Open”. The illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”...

  • Page 24: Onboard Headers And Connectors

    2.6 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard. Serial ATA3 Connectors These two Serial ATA3 (SATA3) (SATA_4) connectors support SATA...
  • Page 25 D1622D4I / D1600D4I-2L2T ALERT PSU SMBus PSU SMBus monitors the SMBCLK (PSU_SMB1) status of the power supply, fan (see p.6, No. 2) and system temperature. SMBDATA System Panel Header This header accommodates PLED+ PLED- PWRBTN# (9-pin PANEL1) several system front panel func- (see p.6, No.
  • Page 26 System Fan Connectors Please connect the fan cables to (4-pin FAN1) the fan connectors and match (see p.6, No. 9) the black wire to the ground pin. FAN_VOLTAGE_CONTROL FAN_SPEED (4-pin FAN2) All fans supports Fan Control. FAN_SPEED_CONTROL (see p.6, No. 1) FAN_SPEED_CONTROL (4-pin FAN3) FAN_SPEED...
  • Page 27 D1622D4I / D1600D4I-2L2T ATX 12V Power The motherboard provides one Connector 8-pin 12V power connector (8-pin ATX12V1) which is a required input for (see p.6, No. 4) either DC-IN 12V or ATX +12V power source. When using ATX power, it is...
  • Page 28 SATA Power Connector Please use a SATA power cable (DC-IN Mode) to connect this SATA Power (4-pin HDDPWR1) Connector and your SATA +12V (see p.6, No. 3) HDD for supplying power from the motherboard, when using DC-IN mode without SATA power supply. *Caution: Misconnection between the ATXPWR1 and the HDDPWR1 con- nectors may permanently damage the...

  • Page 29: Atx Psu / Dc-In Power Connections

    D1622D4I / D1600D4I-2L2T 2.7 ATX PSU / DC-IN Power Connections This motherboard supports both +12V DC and ATX power input. Please refer to the table below for the required connections between the motherboard and the power supply. Connector DC-IN ATX PSU...

  • Page 30: Unit Identification Purpose Led/Switch

    2.8 Unit Identification purpose LED/Switch With the UID button, You are able to locate the server you’re working on from behind a rack of servers. Unit Identification When the UID button on the purpose LED/Switch front or rear panel is pressed, (UID1) the front/rear UID blue LED indicator will be turned on.

  • Page 31: Dual Lan And Teaming Operation Guide

    D1622D4I / D1600D4I-2L2T 2.10 Dual LAN and Teaming Operation Guide Dual LAN with Teaming enabled on this motherboard allows two single connections to act as one single connection for twice the transmission bandwidth, making data transmission more effective and improving the quality of transmission of distant images.

  • Page 32: M.2_Ssd (Ngff) Module Installation Guide

    2.11 M.2_SSD (NGFF) Module Installation Guide The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. This M.2_SSD (NGFF) Socket 3 can accommodate a M.2 PCI Express module up to Gen3 x4 (32 Gb/s) only.

  • Page 33: Chapter 3 Uefi Setup Utility

    D1622D4I / D1600D4I-2L2T Chapter 3 UEFI Setup Utility 3.1 Introduction This section explains how to use the UEFI SETUP UTILITY to configure your system. The UEFI chip on the motherboard stores the UEFI SETUP UTILITY. You may run the UEFI SETUP UTILITY when you start up the computer.

  • Page 34: Navigation Keys

    3.1.2 Navigation Keys Please check the following table for the function description of each navigation key. Navigation Key(s) Function Description Moves cursor left or right to select Screens Moves cursor up or down to select items + / - To change option for the selected items <Tab>...

  • Page 35: Main Screen

    D1622D4I / D1600D4I-2L2T 3.2 Main Screen Once you enter the UEFI SETUP UTILITY, the Main screen will appear and display the system overview. The Main screen provides system overview information and allows you to set the system time and date.

  • Page 36: Advanced Screen

    3.3 Advanced Screen In this section, you may set the configurations for the following items: CPU Configuration, DRAM Configuration, Chipset Configuration, Storage Configuration, ACPI Configura- tion, USB Configuration, Super IO Configuration, Serial Port Console Redirection, H/W Monitor, Runtime Error Logging, Intel SPS Configuration and Instant Flash. Setting wrong values in this section may cause the system to malfunction.

  • Page 37: Cpu Configuration

    D1622D4I / D1600D4I-2L2T 3.3.1 CPU Configuration Intel SpeedStep Technology Intel SpeedStep technology allows processors to switch between multiple frequencies and voltage points for better power saving and heat dissipation. CPU turbo ratio can be fixed when Intel SpeedStep Technology set Disabled and Intel Turbo Boost Technology set En- abled.
  • Page 38 Limit is exceeded. Short Duration Power Limit Configure Package Power Limit 2 in watts. When the limit is exceeded, the CPU ratio will be lowered immediately. A lower limit can protect the CPU and save power, while a higher limit may improve performance. Intel Hyper Threading Technology Intel Hyper Threading Technology allows multiple threads to run on each core, so that the overall performance on threaded software is improved.
  • Page 39 D1622D4I / D1600D4I-2L2T CPU C6 State Support Enable C6 deep sleep state for lower power consumption. Enhanced Halt State(C1E) Enable Enhanced Halt State (C1E) for lower power consumption. Hardware P-States Disable: Hardware chooses a P-state based on OS Request (Legacy P-States)

  • Page 40: Dram Configuration

    3.3.2 DRAM Configuration Enforce POR Enforce POR - Enforces Plan Of Record restrictions for DDR4 frequency and voltage programming. Disable - Disables this feature. DRAM Frequency If [Auto] is selected, the motherboard will detect the memory module(s) inserted and assign the appropriate frequency automatically. Channel Interleaving Select to configure Channel Interleaving settings.

  • Page 41: Chipset Configuration

    D1622D4I / D1600D4I-2L2T 3.3.3 Chipset Configuration MMCFG Base Use this item to select MMCFG Base. MMIO High Base Use this item to select MMIO High Base. MMIO High Size Use this item to select MMIO High Size. Above 4G Decoding Enable or disable 64bit capable Devices to be decoded in Above 4G Address Space (only if the system supports 64 bit PCI decoding).
  • Page 42 Onboard LAN2 Use this to enable or disable the Onboard LAN function. The default value is [Auto]. Onboard VGA Use this to enable or disable the Onboard VGA function. The default value is [Auto]. *This item is not available when the Primary Graphic Adapter is set to [Onboard VGA]. VT-d Intel(R) Virtualization Technology for Directed I/O helps your virtual machine monitor better utilize hardware by improving application compatibility and reliability, and provid-...

  • Page 43: Storage Configuration

    D1622D4I / D1600D4I-2L2T 3.3.4 Storage Configuration Hard Disk S.M.A.R.T. S.M.A.R.T stands for Self-Monitoring, Analysis, and Reporting Technology. It is a monitoring system for computer hard disk drives to detect and report on various indicators of reliability. SATA Controller Use this item to enable or disable SATA Controllers.

  • Page 44: Acpi Configuration

    3.3.5 ACPI Configuration PCIE Devices Power On Allow the system to be waked up by a PCIE device and enable wake on LAN. Ring-In Power On Use this item to enable or disable Ring-In signals to turn on the system from the powersoft- off mode.

  • Page 45: Usb Configuration

    D1622D4I / D1600D4I-2L2T 3.3.6 USB Configuration Legacy USB Support Enable or disable Legacy OS Suppor t for USB 2.0 dev ices. If you encounter USB compatibility issues it is recommended to disable legacy USB support. Select UEFI Setup Only to support USB devices under the UEFI setup and Windows/Linux...

  • Page 46: Super Io Configuration

    3.3.7 Super IO Configuration SOL Configuration Use this item to set parameters of SOL. Serial Port Use this item to enable or disable the serial port (COM). Change Settings Use this item to select an optimal setting for Super IO device.

  • Page 47: Serial Port Console Redirection

    D1622D4I / D1600D4I-2L2T 3.3.8 Serial Port Console Redirection Console Redirection Use this option to enable or disable Console Redirection. If this item is set to Enabled, you can select a COM Port to be used for Console Redirection. Console Redirection Settings Use this option to configure Console Redirection Settings, and specify how your computer and the host computer to which you are connected exchange information.
  • Page 48 Bits Per Second Use this item to select the serial port transmission speed. The speed used in the host computer and the client computer must be the same. Long or noisy lines may require lower transmission speed. The options include [9600], [19200], [38400], [57600] and [115200]. Data Bits Use this item to set the data transmission size.
  • Page 49 D1622D4I / D1600D4I-2L2T computer and the host computer to which you are connected exchange information. Redirection COM Port Select a COM port to display redirection of Legacy OS and Legacy OPROM Messages. Resolution On Legacy OS, the Number of Rows and Columns supported redirection.

  • Page 50: H/W Monitor

    3.3.9 H/W Monitor In this section, it allows you to monitor the status of the hardware on your system, includ- ing the parameters of the CPU temperature, motherboard temperature, CPU fan speed, chassis fan speed, and the critical voltage. Watch Dog Timer This allows you to enable or disable the Watch Dog Timer.

  • Page 51: Runtime Error Logging

    D1622D4I / D1600D4I-2L2T 3.3.10 Runtime Error Logging WHEA Support Use this item to enable or disable Windows Hardware Error Architecture. System Error Use this item to enable or disable System Error feature. When it is set to [Enabled], you can configure Memory Error and PCIE Error log features.
  • Page 52 PCIE Uncorrected Error Enable Use this item to enable or disable PCIe Uncorrectable errors. PCIE Fatal Error Enable Use this item to enable or disable PCIe Fatal errors.

  • Page 53: Intel Sps Configuration

    D1622D4I / D1600D4I-2L2T 3.3.11 Intel SPS Configuration SPS screen displays the Intel SPS Configuration information, such as Operational Firmware Version and Firmware State.

  • Page 54: Instant Flash

    3.3.12 Instant Flash Instant Flash is a UEFI flash utility embedded in Flash ROM. This convenient UEFI update tool allows you to update system UEFI without entering operating systems ® first like MS-DOS or Windows . Just save the new UEFI file to your USB flash drive, floppy disk or hard drive and launch this tool, then you can update your UEFI only in a few clicks without preparing an additional floppy diskette or other compli- cated flash utility.

  • Page 55: Security

    D1622D4I / D1600D4I-2L2T 3.4 Security In this section, you may set or change the supervisor/user password for the system. For the user password, you may also clear it. Supervisor Password Set or change the password for the administrator account. Only the administrator has authority to change the settings in the UEFI Setup Utility.

  • Page 56: Key Management

    3.4.1 Key Management In this section, expert users can modify Secure Boot Policy variables without full authenti- cation. Factory Key Provision Install factory default Secure Boot keys after the platform reset and while the System is in Setup mode. Install Default Secure Boot Keys Please install default secure boot keys if it’s the first time you use secure boot.
  • Page 57 D1622D4I / D1600D4I-2L2T Remove 'UEFI CA' from DB Device Guard ready system must not list ‘Microsoft UEFI CA’ Certificate in Autho- rized Signature database (db). Restore DB defaults Restore DB variable to factory defaults. Platform Key(PK) Enroll Factory Defaults or load certificates from a file: 1.
  • Page 58 1. Public Key Certificate: a) EFI_SIGNATURE_LIST b) EFI_CERT_X509 (DER) c) EFI_CERT_RSA2048 (bin) d) EFI_CERT_SHAXXX 2. Authenticated UEFI Variable 3. EFI PE/COFF Image(SHA256) Key Source: Factory, External, Mixed Forbidden Signatures Enroll Factory Defaults or load certificates from a file: 1. Public Key Certificate: a) EFI_SIGNATURE_LIST b) EFI_CERT_X509 (DER) c) EFI_CERT_RSA2048 (bin)
  • Page 59 D1622D4I / D1600D4I-2L2T Key Source: Factory, External, Mixed OsRecovery Signatures Enroll Factory Defaults or load certificates from a file: 1. Public Key Certificate: a) EFI_SIGNATURE_LIST b) EFI_CERT_X509 (DER) c) EFI_CERT_RSA2048 (bin) d) EFI_CERT_SHAXXX 2. Authenticated UEFI Variable 3. EFI PE/COFF Image(SHA256)

  • Page 60: Boot Screen

    3.5 Boot Screen In this section, it will display the available devices on your system for you to configure the boot settings and the boot priority. Boot Option #1 Use this item to set the system boot order. Boot Option #2 Use this item to set the system boot order.
  • Page 61 D1622D4I / D1600D4I-2L2T Setup Prompt Timeout Configure the number of seconds to wait for the UEFI setup utility. Bootup Num-Lock If this item is set to [On], it will automatically activate the Numeric Lock function after boot-up. Boot Beep Select whether the Boot Beep should be turned on or off when the system boots up. Please note that a buzzer is needed.

  • Page 62: Csm(Compatibility Support Module)

    3.5.1 CSM(Compatibility Support Module) Enable to launch the Compatibility Support Module. Please do not disable unless you’re running a WHCK test. If you are using Windows Server 2012 R2 or later ver- sions 64-bit UEFI and all of your devices support UEFI, you may also disable CSM for faster boot speed.
  • Page 63 D1622D4I / D1600D4I-2L2T PCIE M2_1 Slot OpROM Use this item to select slot storage and Network Option ROM policy. In Auto option, the default is Disabled with NVMe device, but it is Legacy with other devices. (This item can't select Video Option ROM policy.)

  • Page 64: Event Logs

    3.6 Event Logs Change Smbios Event Log Settings This allows you to configure the Smbios Event Log Settings. When entering the item, you will see the followings: Smbios Event Log Use this item to enable or disable all features of the SMBIOS Event Logging during system boot.

  • Page 65: Server Mgmt

    D1622D4I / D1600D4I-2L2T 3.7 Server Mgmt Wait For BMC Wait For BMC response for specified time out. BMC starts at the same time when BIOS starts during AC power ON. It takes around 90 seconds to initialize Host to BMC interfaces.

  • Page 66: System Event Log

    3.7.1 System Event Log SEL Components Change this to enable ro disable event logging for error/progress codes during boot. Erase SEL Use this to choose options for earsing SEL. When SEL is Full Use this to choose options for reactions to a full SEL. Log EFI Status Codes Use this item to disable the logging of EFI Status Codes or log only error code or only progress code or both.

  • Page 67: Bmc Network Configuration

    D1622D4I / D1600D4I-2L2T 3.7.2 BMC Network Configuration BMC Out of Band Access Enabled/Disabled BMC Out of band Access. Lan Channel (Failover) Manual Setting IPMI LAN If [No] is selected, the IP address is assigned by DHCP. If you prefer using a static IP address, toggle to [Yes], and the changes take effect after the system reboots.
  • Page 68 The default login information for the IPMI web interface is: Username: admin Password: admin For more instructions on how to set up remote control environment and use the IPMI man- agement platform, please refer to the IPMI Configuration User Guide or go to the Support website at: http://www.asrockrack.com/support/ipmi.asp...

  • Page 69: Bmc Tools

    D1622D4I / D1600D4I-2L2T 3.7.3 BMC Tools Load BMC Default Settings Use this item to Load BMC Default Settings. KCS Control Use this item to configure KCS Settings.

  • Page 70: Exit Screen

    3.8 Exit Screen Save Changes and Exit When you select this option, the following message “Save configuration changes and exit setup?” will pop-out. Press <F10> key or select [Yes] to save the changes and exit the UEFI SETUP UTILITY. Discard Changes and Exit When you select this option, the following message “Discard changes and exit setup?”...
  • Page 71 4.2.4 Contact Information If you need to contact ASRock Rack or want to know more about ASRock Rack, welcome to visit ASRock Rack’s website at http://www.ASRockRack.com; or you may contact your...
  • Page 72 Chapter 5 Troubleshooting 5.1 Troubleshooting Procedures Follow the procedures below to troubleshoot your system. Always unplug the power cord before adding, removing or changing any hardware com- ponents. Failure to do so may cause physical injuries to you and damages to motherboard components.
  • Page 73 1. Verify if the battery on the motherboard provides ~3VDC. Install a new battery if it does not. 2. Confirm whether your power supply provides adaquate and stable power. Other problems... 1. Try searching keywords related to your problem on ASRock Rack’s FAQ page: http://www.asrockrack.com/support...
  • Page 74 5.2 Technical Support Procedures If you have tried the troubleshooting procedures mentioned above and the problems are still unsolved, please contact ASRock Rack’s technical support with the following information: 1. Your contact information 2. Model name, BIOS version and problem type.
