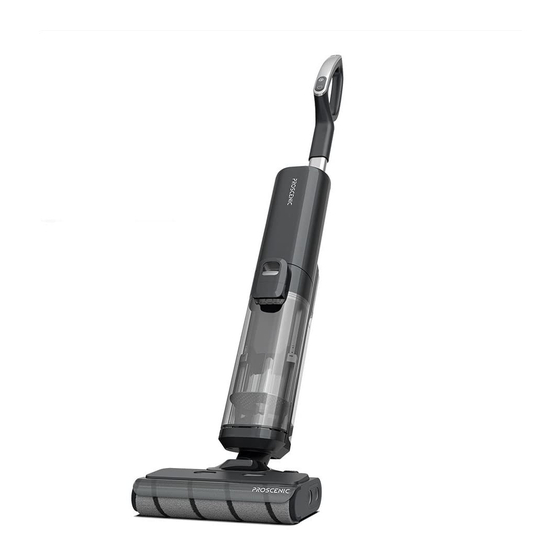

Proscenic Wash Vac F20 User Manual

Proscenic Wash Vac F20 User Manual

Cordless wet dry vacuum cleaner

Advertisement

User's manual
Wash Vac F20 Cordless Wet Dry Vacuum Cleaner
Live Smart,
Live Easy.
Proscenic Technology Co., Ltd.
Service support
Web:www.proscenic.com
E-mail:support@proscenic.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Wash Vac F20 and is the answer not in the manual?

Questions and answers

Summary of Contents for Proscenic Wash Vac F20

  • Page 1 User's manual Wash Vac F20 Cordless Wet Dry Vacuum Cleaner Live Smart, Proscenic Technology Co., Ltd. Live Easy. Service support Web:www.proscenic.com E-mail:support@proscenic.com...
  • Page 3: Table Of Contents

    Contents Precautions About Your Product Product Use Product Maintenance Troubleshooting Product Specification...
  • Page 4: Precautions

    • Use only indoors on non-carpeted floor surfaces such as vinyl, tile, sealed wood, etc. Be careful not to run over loose objects or carpet edges. • Use only the battery pack and charger specified by the Proscenic. Using any other battery pack may cause personal injury and fire risk.
  • Page 5 Precautions FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 6: About Your Product

    Battery Charging Slot Charging Base Cleaning Cleaning Roller Brush Brush Solution APP下载和连网操作指南 User's manual Wash Vac F20 Cordless Wet Dry Vacuum Cleaner 下载APP, 通过手机应用商店搜索 “Proscenic” 下载或扫二维码, 注册并登录账号。 第一步: 设备组装完成后, 充满电后从充电座拿开, 直立于地面上, 短按电源键开 机, 此时处于待机状态。 第二步: 长按电源键�秒 , 进入配网模式或重置WiFi。 配网模式: Wi-Fi灯白色慢闪, �次/秒。...
  • Page 7 About Your Product Display Indicator Diagram WiFi Indicator Suction Power Loop Roller Brush Air Drying Indicator Bacteriostasis Sterilization Mode Indicator Indicator SMART Mode Suction Mode Indicator SMART MAX Indicator MAX Mode Fan Abnormal Indicator Indicator Roller Brush Error Error Indicator Indicator Accessories Cleaning Tool:...
  • Page 8: Product Use

    Product Use Wall-mounted Charging Stand Installation Assembly 1. To assemble the handle, insert it directly into the appliance until you hear a click. 2. To disassemble the handle, use a tool (such as a screwdriver) to release the handle by pressingthe spring, and then lift the released handle from the appliance.
  • Page 9 Product Use Operation 1. Press the power button and the appliance 2. Press the function button to switch will start in SMART by default. Press it among SMART, MAX, Sterilization and again to turn off. Suction Modes. 3. Long-press the power button for 5s to 4.
  • Page 10 Product Use 7. When the appliance is charged on the charging base, you can press the self-cleaning button to automatically clean the roller brush and tube. After the self-cleaning, the Sterilization UV Light and fan will be turned on automatically after a delay of 5s.
  • Page 11: Product Maintenance

    Product Maintenance To get the best performance and prevent odors, thoroughly clean and dry the clean water tank, dirty water tank, filters, cleaning tool, roller brush and roller brush cover after each use. After maintenance, place the appliance vertically on the charging base and store them in a dry place indoors.
  • Page 12 Product Maintenance Roller brush self-cleaning 1. After use, put this appliance back to the charging dock for self-cleaning. Press the self-cleaning button to start the process. 2. After completion, you will hear the voice prompt “Cleaning completed, please clean the dirty water tank”. Note: Before self-cleaning, the battery level should exceed 20%, the dirty water tank should be emptied, and the water level of the clean...
  • Page 13 Product Maintenance Roller brush top cover 1. Grab the front handle while holding down the button, and pull up to remove it. 2. Wash it with water. 3. Make sure the cover is locked in place when installed, to avoid water leakage. click Roller Brush 1.
  • Page 14: Troubleshooting

    Install the filter; Clean the filter and tube The filter is dirty of the tube the motor is blocked. Error indicator flashes Shut down and restart after 2 minutes. If it still doesn't work, please contact the Voice prompt: Motor fault customer service: support@proscenic.com Fan error...
  • Page 15: Product Specification

    Product Specification Product model WashVac F20 Charging input 100~240V 21.6V, 4000mAh Voltage and electric quantity Rated power 200W Running time SMART: ~40min MAX: ~25min Charging time Water flow rate 45~200mL/min Clean Water Tank Capacity Dirty Water Tank Capacity 0.9L Water Resistant IPX4...
  • Page 16 Proscenic Technology Co., Ltd. (Authorized manufacturer) Shenzhen Proscenic Technology Co., Ltd. (manufacturer) Floor 8, Block A, building 5, Tusincere Park, Longcheng street, Longgang district, Shenzhen City, China Proscenic Technology INC. 36 South 18th Avenue Suite A, Brighton CO 80601 United States...
  • Page 17 F20 英文说明书 美规 Design Date: 2022-01-07 物料编码 成品尺寸 210*140mm / 16P 工 艺 封面封底过哑膜 / 骑马钉 封面/封底: 200G铜版纸 材 质 内页: 80G书纸 印刷要求 4C双面印刷 版 本 V1.11...
