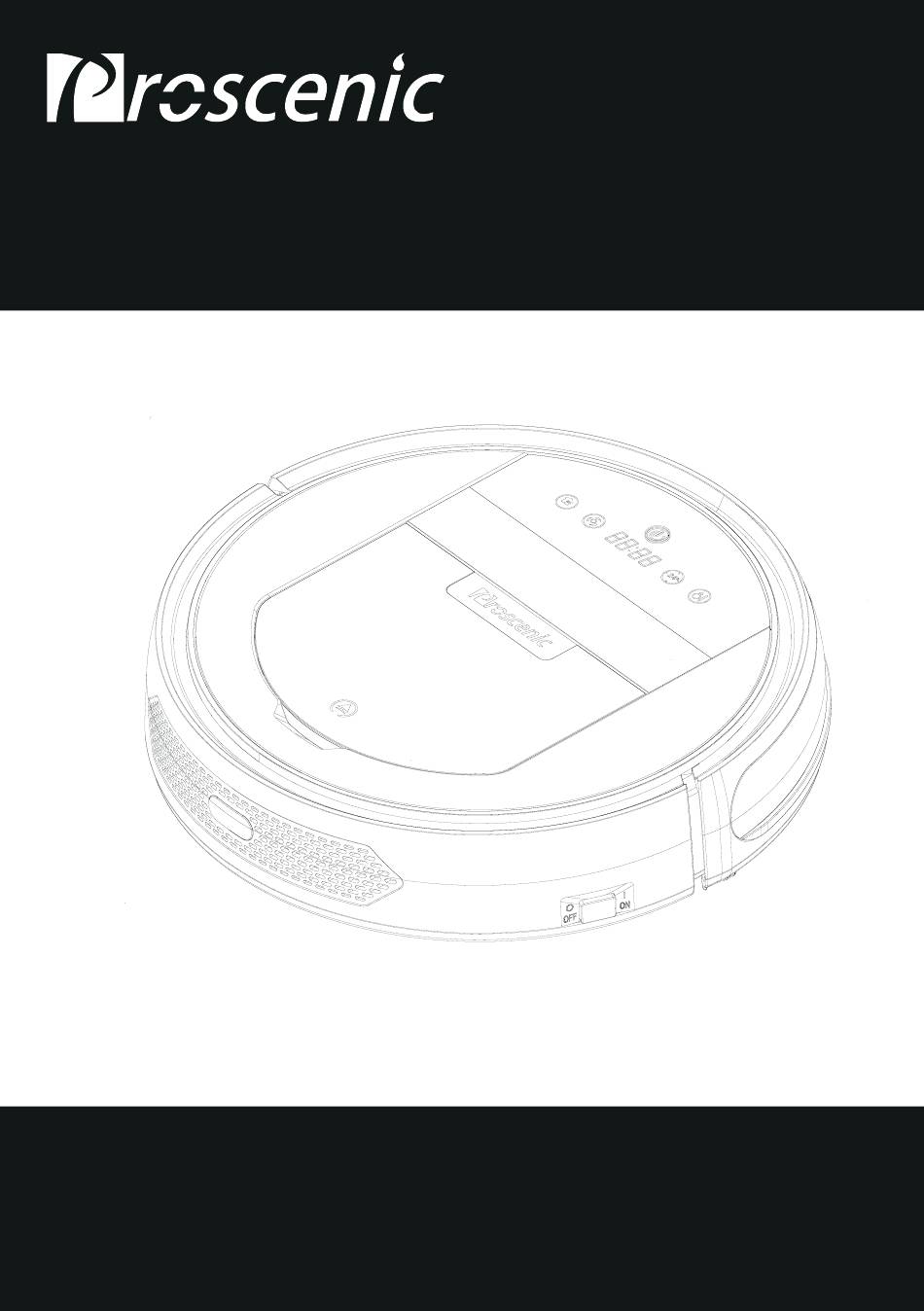

- Page 1 User Manual BL828 APPLICABLE TO 790T Please keep this user manual in your sight, read it thoroughly and carefully before using this product.
-
Page 2: Table Of Contents
Contents Safety Instructions -------------------------------------------------2-7 Product Features ----------------------------------------------------8-9 Humanized Designs-----------------------------------------------------8 Washable Dust bin -----------------------------------------------------8 Automatic Navigation -------------------------------------------------9 Product Components ---------------------------------------------10-14 Main Body and Accessories -------------------------------------------10 Main Body Diagram ---------------------------------------------------11 Dust Bin and Roller Brush Kit -----------------------------------------12 Docking Station and Remote Control ----------------------------------13 Display Panel ----------------------------------------------------------14 Product Operation ------------- ----------------------------------15-20 Battery Charging ------------------------------------------------------15... -
Page 3: Safety Instructions
Before using this product, please read the safety instructions and follow all regular safety precautions. Warranty service is not applicable to any damage caused by violation of instructions. Proscenic sweeping robot is a sophisticated product which is restricted for indoor cleaning only. DO NOT use the robot for non-cleaning purpose. - Page 4 Safety Instructions Safety Instructions of Product, Charging dock, power adapter and other accessories. Warning Only authorized technicians can disassemble the product. Users are not allowed to disassemble, repair or modify the product. Otherwise it may possibly cause electric shock, No Disassembling malfunction and leading to injuries.
- Page 5 Safety Instructions Never use the product under environment with volatile substance to avoid possibility of fire and danger. Prohibited This product is a sophisticated machine for indoor use only. Only use the product indoors. DO NOT leave the product to children without supervision. Otherwise it may cause injury.
- Page 6 Safety Instructions Turn off the power switch when you don't need to use this product for a long time. Battery leakage may cause fire, injury or pollution to enviroment. Cut off power source when using power adapter and disconnect the plug from socket. Other -wise, it may cause fire.
- Page 7 Safety Instructions Unplug when not using the product to avoid short circuit. Do not dissemble the batter y, other wise, it will cause leakage, overheating and explosion. No Disassembling Do not keep necklace, hairpin and other metal materials together with this product during transportation. Prohibited Do not throw the battery into fire or heat the battery.
- Page 8 We have made our best efforts to make sure the precision and completeness of this user manual. Any mistakes or omission are found, we sincerely thank you for giving us feedback through our feedback email feedback@proscenic.tw...
-
Page 9: Product Features
Product Features This is an outstanding and extraordinary automatic cleaning robot which is well equipped with not only cleaning function, double side brushes, strong vacuuming suction, but also with interchangeable roller brush kit and vacu -um suction kit Intelligent Suction Adjustment This product is able to automatically adjust its suction power when different floor environments are detected. -
Page 10: Automatic Navigation
Product Features Automatic Maps Navigation 1. Before use, place the robot flat on floor. 2. Turn on power switch, next, touch“Clean” button on main body or the “ON/OFF” button on remote. The display panel shows a countdown from “5, 4, 3, 2, 1” with voice prompt “System rebuilding, please wait” 3. -
Page 11: Product Components
Product Components Main Body and Accessories Description Quantity Main Body Docking Station Adapter Remote Control (batter y not included) Water Tan HEPA Filter Side Brush Mopping cloth User Manual PLAN HOME ON/OFF MODE CLOCK EDGE... -
Page 12: Main Body Diagram
Product Components Main Body Diagram Touch Key LED Display Cover Bumper Bumper Strip Power Switch Roller Brush Component Suction Component Left wheel Bottom Cover Left Side Brush Right Wheel Charging Socket Front Wheel Auto Charging Pole Right Side Brush Batter y Cover Dust Bin... -
Page 13: Dust Bin And Roller Brush Kit
Product Components Dust Bin Kit Primary filter Handle Dust bin HEPA filter HEPA filter shelf Roller Brush Kit Roller brush coverplate Roller brush bushing Ball bearing Roller brush Bearing gluesheath Roller brush holder... -
Page 14: Docking Station And Remote Control
Product Components Docking Station Power Indicator Top Cover Charging Poles Charging Socket Remote 1. Display Screen 2. Auto Charging 3. Direction Button PLAN HOME (Only Effective in Standby Mode) 4. Edge Cleaning (Only Effective in Standby Mode) 5. Clock Setting ON/OFF 6. -
Page 15: Display Panel
Product Components Display Panel scheduling Clean charging EDGE CLEAN panel it shows the time setting, charging status, and error codes by using numbers Button A. Press this button to activate from sleep mode to standby mode. In standby mode, press this button and hold it for more than 3 seconds to go into sleep mode. -
Page 16: Product Operation
Product Operation Battery Charging 1. Docking station placement Place docking station against the wall and remove obstacles from within 1 meter at two sides and about 2 meters in front of the station, as shown in the right figure. If the robot has been shut down, power on the robot by pressing the power switch. -
Page 17: Power On/Standby/Sleep Mode
Product Operation Starting Up / Standby / Sleeping / Power Off 1. Starting up a. Make sure the power switch is on(The power switch is at the right side of main body) b. In standby mode, press on main body or ON/OFF on remote control to start cleaning. -
Page 18: Scheduling
Product Operation c. Press to enter minute-setting mode, the right two numbers on LED panel will flash. Press to increase it or “Clean” to decrease it. d. Press button to save the setting, then press “schedule” to exit (Before the setting is saved, if press “Schedule” to exit, the current setting will be invalid). -
Page 19: Cleaning Modes
Product Operation Note: The numbers show on remote is delay time during scheduling. For example: If current time is 8:00am, and remote setting number is 01:00. If it has been successfully saved, the robot will start working in1 hour. It means 9:00am has been scheduled as working time and the robot will start cleaning at 9:00am everyday. - Page 20 Product Operation b. Choose area cleaning “mode 2”, the screen on remote will show “MODE 2” and the robot will clean about 2*2m square area line by line. c. Choose area cleaning “mode 3”, the screen on remote will show “MODE 3” and the robot will clean about 3*3m square area line by line.
-
Page 21: Dual Modes Switching(Vacuuming And Sweeping)
Product Operation Vacuuming and Sweeping Switching (Applicable to certain models, consult your customer service) The suction kit and the roller brush kit are replaceable. You can install accordingly as below as your need Roller Brush Component Suction Component Left wheel Bottom Cover Left Side Brush... -
Page 22: Product Maintenance
Product Maintenance Cleaning Side Brushes 1 .Make sure side brushes are not damaged and no foreign matter among them. 2. Use cleaning kit or cloth to clean side brushes. 3. Remove side brushed and put them in warm water for five seconds can solve side brushes tangling and deformation. -
Page 23: Cleaning Sensors And Wheels
Cleaning Sensors and Wheels Slightly wipe all the sensors and wheels, as marked in figure below, with soft cleaning cloth or tool. Cleaning Charging Poles Clean the charging poles, as marked in figure below, with soft cleaning cloth or tool. Clean the charging poles with soft dry cloth when there is bad contact. -
Page 24: Cleaning Roller Brush Kit
Product Maintenance Kit Cleaning Roller Brush Take out and disassemble the roller brush kit as shown in figure below, and clean it with soft cleaning cloth or tool. (The roller brush axle is washable) Note: Please re-install the roller brush axle after it is fully dry. -
Page 25: Product Specifications
Product Specifications Product Specifications Item Classification Detail Diameter 350mm Mechanical Height 99mm Specifications 3.7Kg Weight Electrical 14.4V Power Rating Specifications Auto Charging/ Manual Charging Type Charging Cleaning Cleaning Mode Auto, Area , Edge, Schedule Specifications Charging Time 4~6 hours Cleaning Time 100 mins Touch pad (LED display) Main Body Button Type... -
Page 26: Troubleshooting
If above solution does not work, please try below: a. Reset the robot by switching off the unit and then turn it on, and check again. b. If it still does not work after reset, contact after sales support service@proscenic.tw... -
Page 27: Mobile App Quick Start
Mobile APP Quick Start Proscenic Mobile APP is available on iOS and Android. 1. Go to Apple App Store (iOS) or Google Play (Android), search “Proscenic”, download and install. 2. Run the app and signup an account for the first time.
