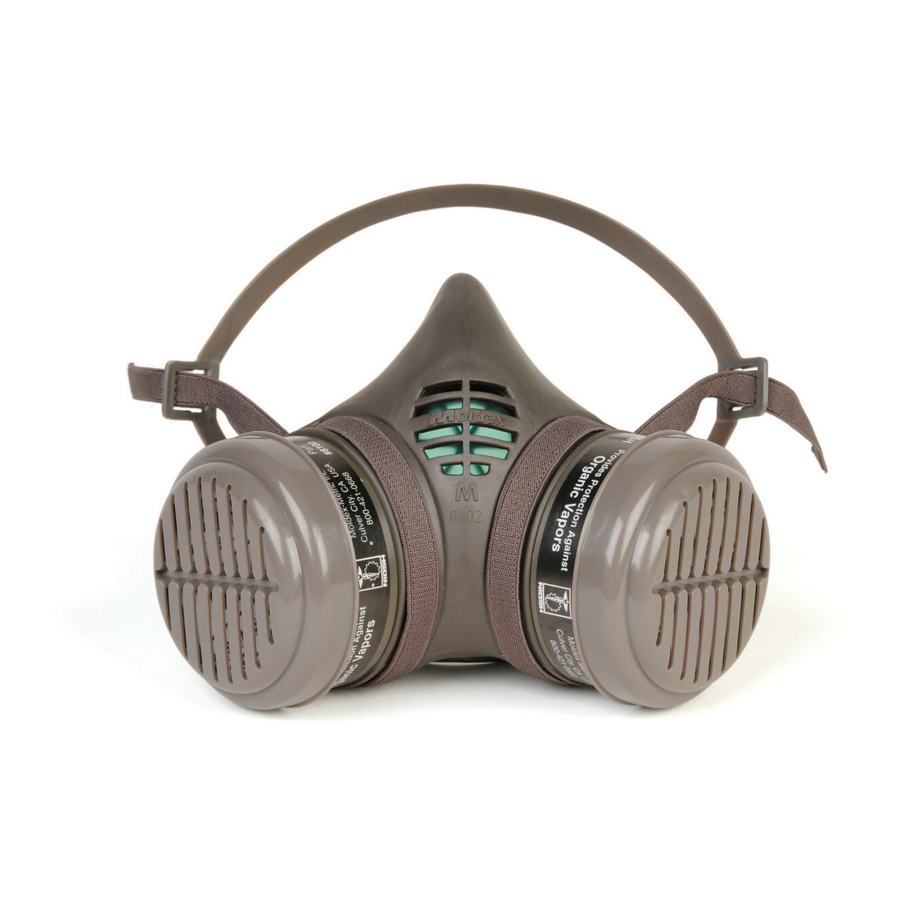

Moldex 8000 Series Quick Start Manual

8000 SERIES

1. CARTRIDGE REPLACEMENT

First inspect the facepiece to cartridge sealing surface to
make sure it's clean and undamaged. Only use cartridges
from sealed bags. To attach cartridge to facepiece, press
firmly into opening until both surfaces are tightly sealed
together at all points. Check to see that it is seated
properly, both on the inside and outside and flush
against the facepiece. Check the inhalation diaphragms
for dirt or damage and see that they are seated properly.
To remove cartridge, pull and lever out of the facepiece.
DISKS/FILTERS

1. DISK/FILTER HOLDER ASSEMBLY

Before assembling disk filter holder, inspect the facepiece sealing surface, to make sure it
is clean and undamaged. To attach holder to facepiece, press firmly into opening until both
surfaces are tightly sealed together at all points. Check to see that the holder is properly
sealed, both on the inside and the outside, and flush against the facepiece. Insert disk or
filter into retainer ring, so that the side indicated is
away from face. Check to see that disks or filters are
properly seated. Check the inhalation diaphragms for
dirt or damage and see that they are properly seated.
Warning: Only use 8900 filter/disk holders with 8900
filter/disk series or 8755. Only use 8920 disk piggyback
adapter with 8940 filter/disk. Failure to do so may result
in sickness or death.

2. FILTER AND DISK SERVICE LIFE

Leave contaminated area and replace filters, disks or cartridges, if they become damaged,
soiled, torn, or if you experience increased breathing resistance.

3. FILTER REPLACEMENT

(8020 FILTER HOLDER RETAINER)
To remove the old filter, gently pull off the filter retainer.
Place a new filter inside the retainer so that the side
indicated is away from face. Replace the retainer.
Warning: Use the 8020 filter holder retainer with the
8910 or 8970 filters only. Failure to do so may result in
sickness or death.
