TRIM ROD ASSEMBLY KIT
L6 VERADO
IMPORTANT: This document is written to aid our dealers and company service personnel in the proper installation or service
of our products. Persons who are not familiar with these or similar products produced by Mercury Marine, and who have not
been trained in the recommended servicing or installation procedures should have the work performed by an authorized
Mercury Marine dealer. Improper installation or servicing of the Mercury product could result in damage to the product or
personal injury to the installer or persons operating the product. Always refer to the appropriate Mercury Marine service
manual for component removal and installation instructions.
NOTE: After completing installation, these instructions should be placed with the product for the owner's future use.

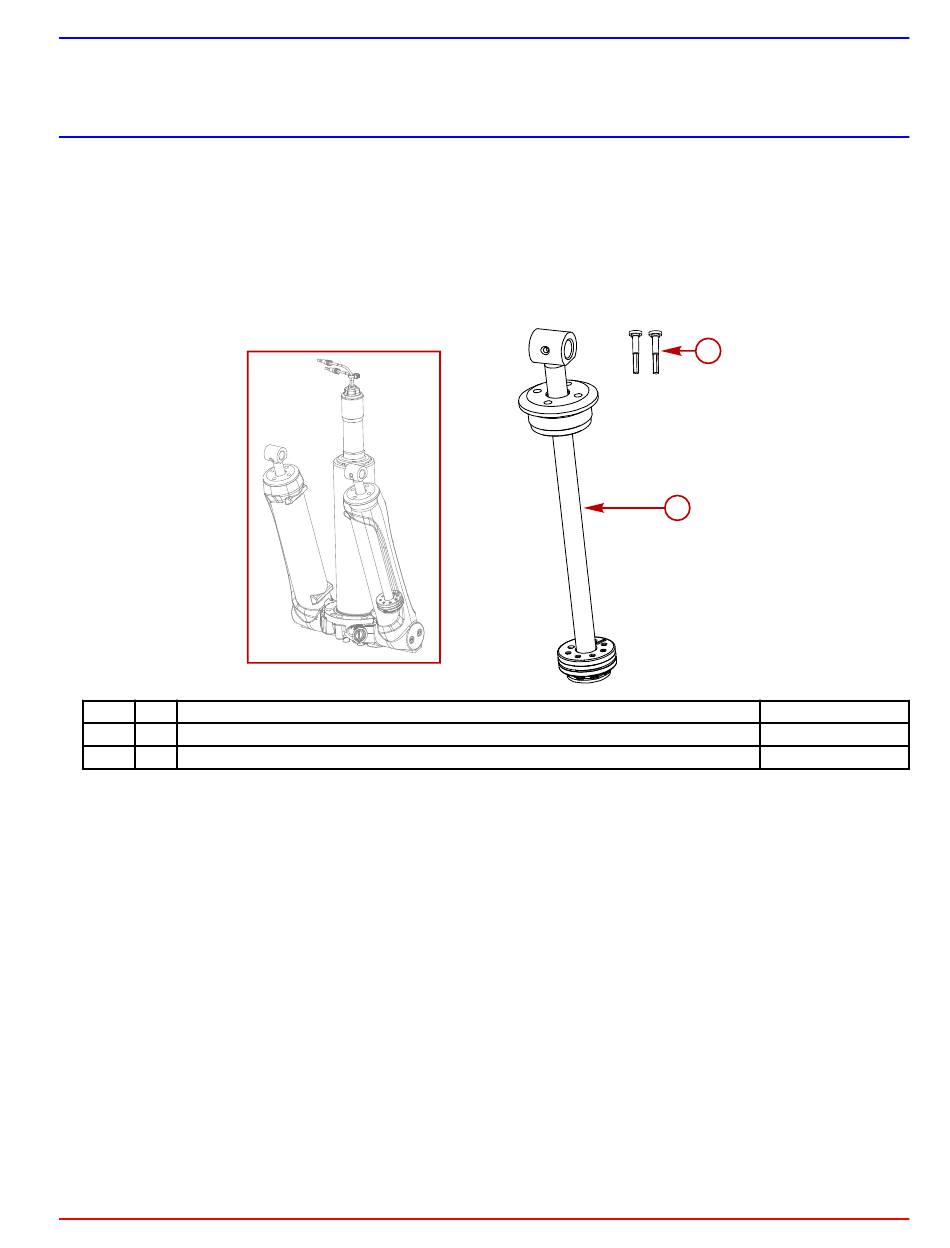

Components Contained in Kit
Ref.
Qty.
a
1
Shock rod assembly
b
2
Trilobe pin
Trim Cylinder Rod Kit Installation
Power Trim System Removed from Outboard
1.
If the power trim system was removed from the outboard, refer to Power Trim ‑ Trim Cylinder and Pivot Pin in the
appropriate service manual for removal and installation instructions.
2.
After installing the components, fill and bleed the power trim system. Refer to Check Fluid and Purge the Power Trim
System in the appropriate service manual.
Power Trim System Installed on Outboard
Removal
NOTE: If the power trim system is installed on the outboard, the trim cylinder rod assembly may be removed without removing
the complete power trim system from the outboard.
1.
Engage the tilt lock. Refer to Power Trim ‑ Power Trim System in the appropriate service manual.
2.
Remove the trim cylinder rod ends from the mount cradle. Refer to Power Trim ‑ Power Trim System in the appropriate
service manual.
90-8M0118300 eng MARCH 2016
Description
© 2016 Mercury Marine
b
a
6430
Part Number
NSS
821539
Page 1 / 4
Advertisement
Table of Contents
Related Manuals for Mercury VERADO L6
Summary of Contents for Mercury VERADO L6
- Page 1 IMPORTANT: This document is written to aid our dealers and company service personnel in the proper installation or service of our products. Persons who are not familiar with these or similar products produced by Mercury Marine, and who have not been trained in the recommended servicing or installation procedures should have the work performed by an authorized Mercury Marine dealer.
- Page 2 Lubricate the O‑ring with clean power steering fluid on the end cap assembly. Install the new trim rod assembly. Tighten the end cap to the specified torque. Refer to Trim Cylinder Reassembly in the appropriate service manual for component installation. Page 2 / 4 © 2016 Mercury Marine 90-8M0118300 eng MARCH 2016...
- Page 3 Fluid and Purge the Power Trim System in the appropriate service manual. Tube Ref No. Description Where Used Part No. Power Trim and Steering Power trim system 92-858074K01 Fluid 90-8M0118300 eng MARCH 2016 © 2016 Mercury Marine Page 3 / 4...
- Page 4 TRIM ROD ASSEMBLY KIT Products of Mercury Marine © MERCURY MARINE. All rights reserved. Reproduction in whole or in part without permission is prohibited. Alpha, Axius, Bravo One, Bravo Two, Bravo Three, Circle M with Waves Logo, K-planes, Mariner, MerCathode,...
