Parallax Easy Bluetooth Manual

Easy Bluetooth (#30085)

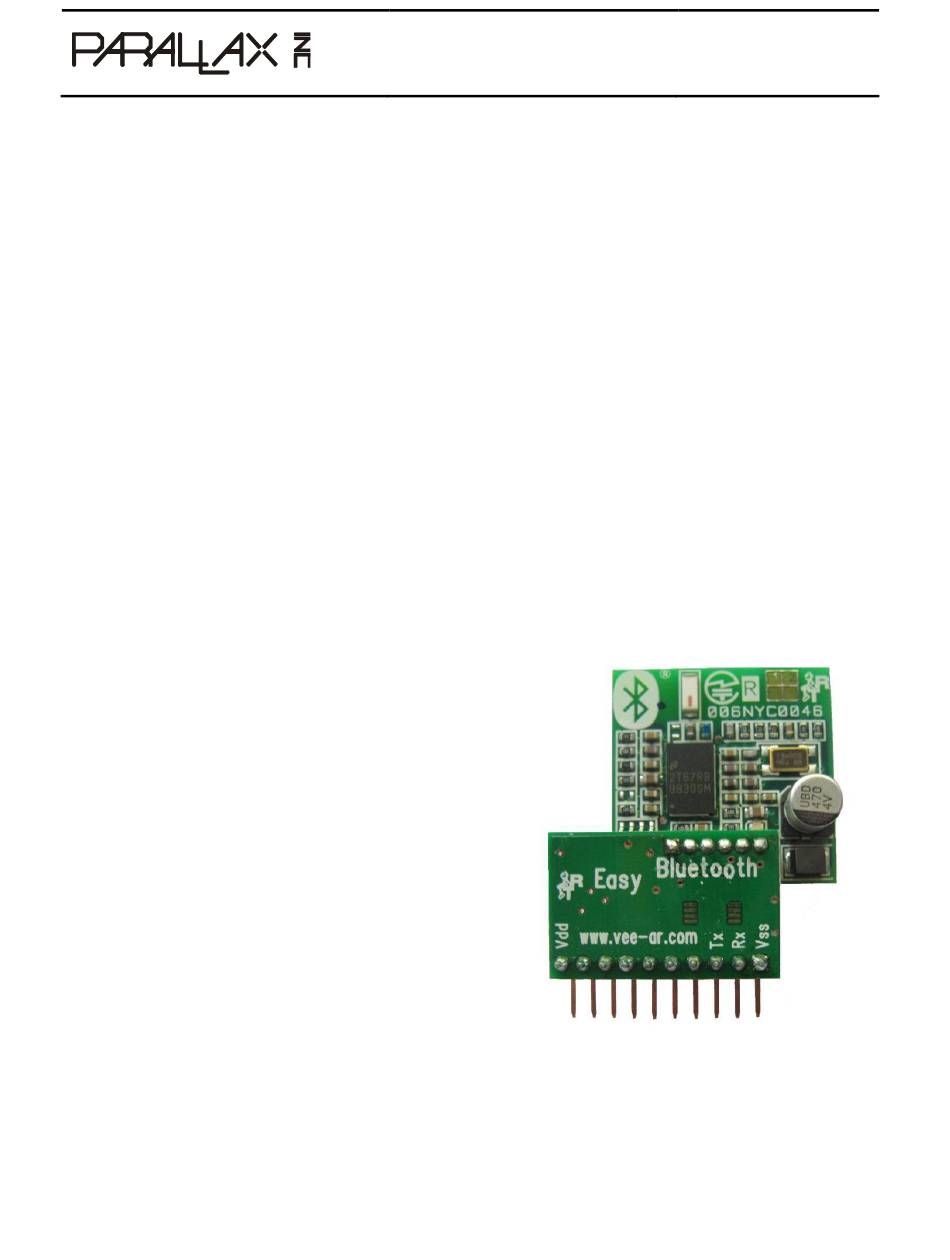

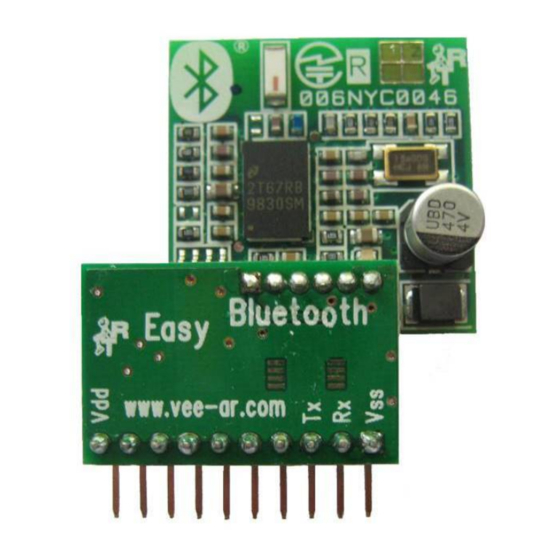

The Easy Bluetooth is a RoboTech RBT-001 Bluetooth serial module with an adapter specifically designed
to be used with the Parallax Board of Education
Bluetooth can plug into any 0.1 inch spacing development platform which allows it to be breadboard
friendly, and also easy to implement into a soldering application. The module has two parts, the RBT-001
module and the SIP with voltage regulator PCB. With the on-board regulator, the module can be
connected to voltages higher than 3.3 VDC, such as the Board of Education regulated supply (+5 VDC)
without worry of damaging the unit; while the RX and TX can utilize serial communication at CMOS and
TTL levels.
Features

1.x & 2.0 Bluetooth Compliant

Class 2 Operation (nominal range up to 30 meters)

10-pin SIP package for breadboard, perfboard, or Board of Education AppMod Header

On-board regulator for safe operations across various voltages

CMOS & TTL Compatible
Key Specifications

Power requirements: 3.3 to 5.5 VDC

Communication: UART Command/Data Port
supports for up to 921.6k baud

Operating temperature: +32 to +113 °F
(0 to +45 °C)

Dimensions: 1.40 x 1.79 x .49 in (34.41 x 45.65
x 12.51 mm)
Application Ideas

Control a Boe-Bot via Bluetooth from a PC, Cell
Phone, or another Bluetooth module

Communicate with a device or project wirelessly
Packing List

RBT-001 Module

10-pin SIP with connector Module
(pre-assembled with RTB-001)
