TSL1401-DB (#28317): Linescan Camera Module

Product Overview

General Description
The TSL1401-DB is a daughterboard that provides a TAOS TSL1401R 128-pixel linear array sensor and a
lens. It is designed to plug into a motherboard (e.g. MoBoStamp-pe (p/n 28300), MoBoProp (p/n 28303,
in development), Propeller Backpack (p/n 28327)) or the DB-Expander (p/n 28325). This module will
allow its host system to "see" in one dimension. Two- dimensional vision can also be achieved by moving
either the subject or the sensor in a direction perpendicular to the sensor axis.
Features
Provides vision in one dimension with 128-pixel resolution.
•
Three-line serial interface with analog intensity output for each pixel.
•
Included 7.9mm lens provides a field of view equal to subject distance.
•
Plug-compatible with Parallax motherboards.
•
Coprocessor driver firmware for the MoBoStamp-pe available for download.
•
Can be interfaced directly to a BASIC Stamp for some functions.
•
Onboard accessory socket for strobe output or 50/60Hz fluorescent light sync input.
•
Runs from 3.3V or 5V supplies. (5V is needed for the optional LED strobe attachment.)
•
Applications
Measure height, width, diameter, thickness.
•
Locate objects, lines, edges, gaps, holes.
•
Count items; measure conveyor coverage.
•
Determine volume, shape, orientation.
•
Read simple barcodes.
•
Learn the principles of machine vision.
•
What's Included
What You Need to Provide
Parallax motherboard, or DB-Expander with BASIC Stamp and carrier board (such as the BOE).
•
© Bueno Systems, Inc. • TSL1401-DB (2009.10.01)
Office: (916) 624-8333
Fax: (916) 624-8003
Sales: (888) 512-1024
Support: (888) 997-8267
®
Web Site: www.taosinc.com
Sales: sales@taosinc.com

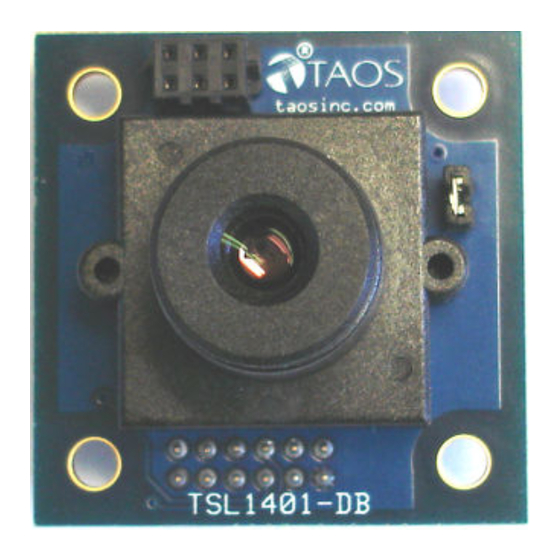

TSL1401-DB with lens.
®
Office: (972) 673-0759
Fax: (972) 943-0610
