Summary of Contents for Clarion TB851P

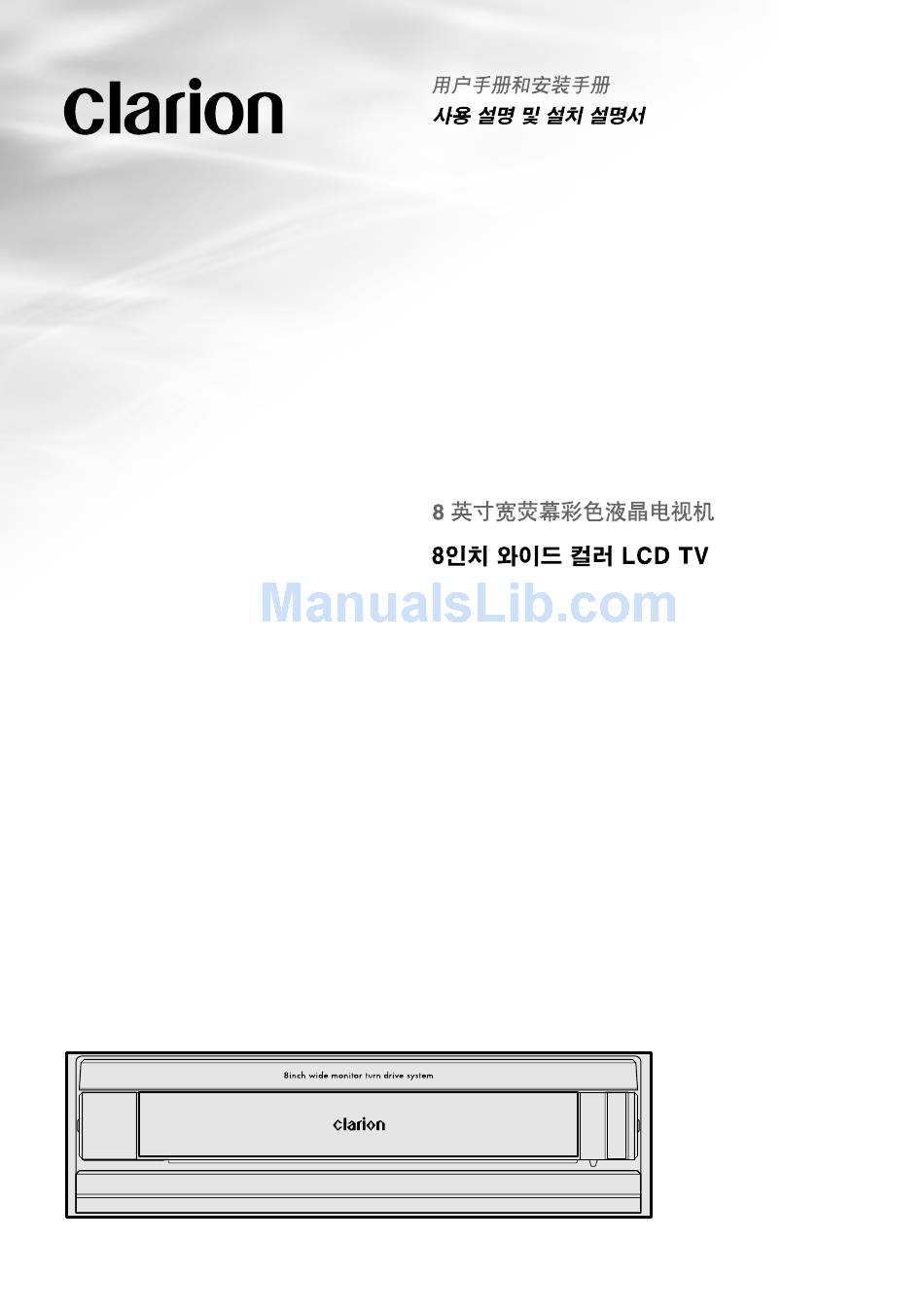

- Page 1 Owner’s manual & Installation manual TB851P/ TB853W 8-INCH WIDE COLOUR LCD TV...
-
Page 2: Table Of Contents
Thank you for purchasing this Clarion TB851P/TB853W. ∗ This owner’s manual is for the TB851P/TB853W. ∗ Please read this owner’s manual completely before operating this equipment. ∗ After reading this manual, be sure to keep it in a handy place (e.g., glove compartment). -
Page 3: Precautions
• when power is turned on right after this unit was installed • when external equipment was connected or removed • when the power was cut off due to battery replacement, etc. TB851P/TB853W Be sure to unfold and read the next page. TB851P/TB853W... -
Page 4: Controls
[ ENT ] [ WIDE ] [ DISP ] Note: Be sure to unfold this page and refer to the front diagrams as you read each chapter. TB851P/TB853W 4. PART NAMES Operating Buttons Note: • Be sure to read this chapter while referring to the front diagrams in chapter “3. CONTROLS” on page 5 (unfold). -
Page 5: Remote Control
• Do not short-circuit, disassemble or heat the [ ADJ ] batteries. • Do not dispose of batteries into fire or flames. • Dispose of spent batteries properly. [ WIDE ] [ CH.LIST ] Rear side AA (SUM-3/1.5V) Batteries Rear cover TB851P/TB853W... - Page 6 Either 8 or 12 screens can be set on this multiscreen. See “Set the number of multiscreens”. (See page 17.) TB851P/TB853W This was set to “FULL WIDE” prior to shipping. Besides Full Wide, you can also select “CINEMA1” (cinema 1), “CINEMA2”...
-
Page 7: Operation
1. Every time the [TILT] button is pressed, the LCD panel tilts forward or backward at up to about 20 degrees. The adjusted angel is stored in the memory. Note: • Do not move the LCD panel by hand. TB851P/TB853W... - Page 8 TV ➔ VTR1 ➔ VTR2 ➔ VISUAL1 ➔ VISUAL2 ➔ TV ➔ ... • The media source you select appears on the screen (superimpose) for 7 seconds. Changing settings on the TB851P model The factory settings on this model may sometimes have to be changed according to usage conditions.
-
Page 9: Tv Operation
Watching TV Note: • For your safety, the TB851P/TB853W has a safety function which turns off the picture when the car is moving, so only the audio can be heard. The picture can only be watched when the car is stopped and the parking brake is applied. - Page 10 • The screen display turns off so you can enjoy just the audio. • Press the button once again to return to the original state (screen display). TB851P/TB853W Selecting the screen size Five screen size are supported: normal, wide, full wide, cinema1 and cinema2.
-
Page 11: Operating With An External Device
• To ensure driving safety, video images will not appear on the screen while the vehicle is moving. The VTR images are viewable only when the vehicle parking brake is engaged. • Audio cannot be heard in VISUAL mode. TB851P/TB853W... - Page 12 • Connect the reverse gear signal wire from the power supply box of the CCD camera to the positive (+) backlamp wire. • A caution message appears during display of the camera images. See “Setting the caution message for use during CCD camera operation”. (See page 18.) TB851P/TB853W...
-
Page 13: Changing The Settings (Adjust Mode)
2. Press the [w] or [z] button to select the item to set. 3. Press the [A] or [D] button to select the setting value. 4. Press the [ENT] button to return to the original screen. (BRIGHT adjustment) (Main screen during TV mode) TB851P/TB853W... - Page 14 2. Press the [A] or [D] button to select ON or OFF. Switching the FM modulator audio output (only on TB851P) FM modulator is a system for temporarily converting audio signals on this unit to FM signals and playing them back as FM stereo on the car audio radio section.
- Page 15 1. Select “LIST” on the ADJ_OTHER screen. 2. Press the [A] or [D] button and select “8” or “12”. Select the country (only on TB851P) Setting the country name here, automatically sets the video standard and audio frequency band for that country.
- Page 16 CCD camera operation This setting can be made while the CCD camera image is displayed. ∗ The factory setting is at “ON”. 1. Select “CAUTION” on the ADJ_OTHER screen. 2. Press the [A] or [D] button and select “ON” or “OFF”. TB851P/TB853W...
-
Page 17: Troubleshooting
Possible poor antenna reception due to mountains or buildings, etc. Check again in a different location and position. Possible signal interference from other vehicles, power lines, streetcars, etc. Check reception later after changing your location. Volume level might be set at minimum. Adjust once more. Action TB851P/TB853W... -
Page 18: Specifications
TFT(thin-film transistor) active matrix driving Pixels: 336,960 (1440 ✕ 234) TV Tuner Tuning system: PLL synthesizer system Reception channels: • TB851P VHF: CCIR 2 to 12 ch (47 to 230 MHz) NEW ZEALAND 1 to 11 ch (44 to 230 MHz) -
Page 19: Installation And Wire Connection Manual
9. SAMPLE SYSTEMS ... 28 5 Bag for accessories (No. 2) Hook plate ... 2 Cord clamp Rubber cap Special screw 6 Universal mounting bracket 7 Remote control unit 8 Battery (for remote control unit) 9 Outer Escutcheon Car battery Figure 1 TB851P/TB853W... -
Page 20: General Cautions
1. Do not open the case. There are no user serviceable parts inside. If you drop anything into the unit during installation, consult your dealer or an authorized CLARION service centre. CAUTIONS ON INSTALLATION 1. Prepare all articles necessary for installing the main unit before starting. -
Page 21: Installing The Main Unit
182 mm Hole Screwdriver Outer escutcheon Notes: 1) Some car models require special mounting kits for proper installation. Consult your Clarion dealer for details. 2) Fasten the front stopper securely to prevent the main unit from coming loose. Instrument panel Hole... - Page 22 Note 1: In some cases, the centre panel may require some modification (trimming, filling, etc.). TB851P/TB853W direction of arrow to remove it. Repeat the same for the other side to remove the springs from the both sides. (Figure 7) 2.
-
Page 23: Removing The Main Unit
Note: There are various types of fuse holders. Do not let the battery side touch other metal parts. CAUTION After connecting, secure the lead with a clamp or insulation tape for protection. Fuse holder Figure 10 Spring Fuse (15A FUSE) TB851P/TB853W... -
Page 24: Wire Connection
TV antenna input Connect to 4-line diversity antenna (sold separately). ∗1 ∗1: Connect the CCD camera power supply box. VTR2 is connected to this connector using CCA-389-500 (AV adapter cable 8-Pin ←→ RCA 3-Pin). TB851P/TB853W Black White Black Yellow Black Yellow... - Page 25 2. Lay the vehicle wire as shown and fold the stopper towards the arrows. Vehicle parking brake lamp ground wire Tighten with long-nose pliers or similar tool until the latch engages TB851P/TB853W Latch Parking brake wire from this unit Parking brake wire from this...
-
Page 26: Sample Systems
■ Sample System 1 DVD Receiver CeNET CD changer Video device connector cable CCA-623-500 (sold separately) CCD camera (sold separately) Power supply box TB851P/TB853W Yellow TV antenna input Visual input 1 Yellow Black Visual input 2 Yellow Gray Audio out... - Page 27 Clarion Co., Ltd. QZ-8000K All Rights Reserved. Copyright © 2005: Clarion Co., Ltd. 280-8212-00 Printed in Japan / 2005/3 (Y·Y)
