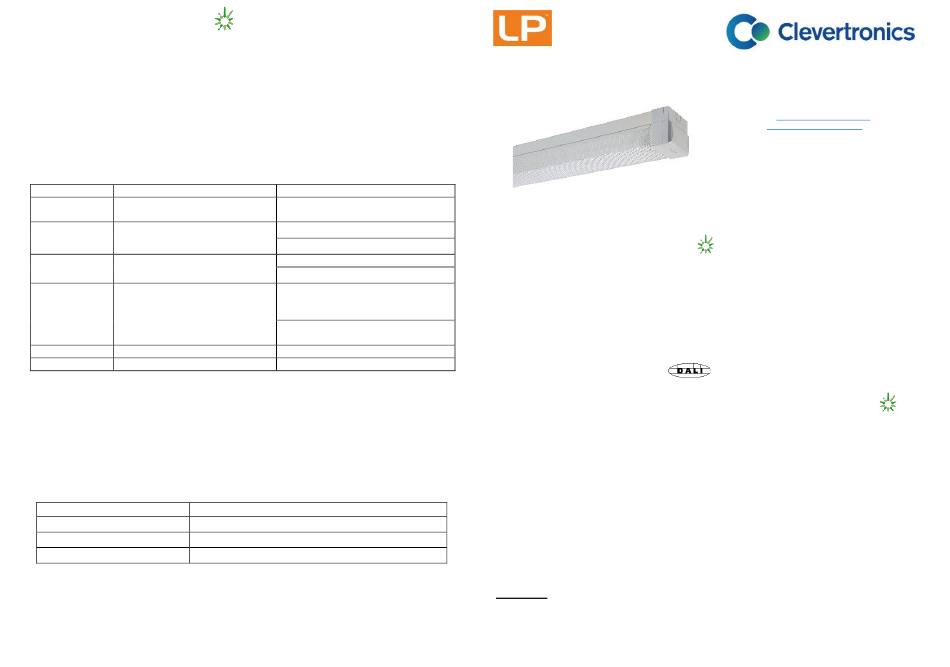

Clevertronics LP CBS2LEDS-DIF Series Installation And Maintenance Instruction

Clevertest and Clevertest Plus
Refer to the supplementary operation guide supplied with the Product.
After Power ON, the Status LED on a Clevertest Plus enabled fitting will display a rapid Green or Red
flashing for a period up to 2 minutes.
Zoneworks, HIVE (HV/HVG) and DATA Monitored Options
Fittings with part numbers -ZW, -HV, -HVG, -DATA
(nodes). These fittings are monitored using either Powerline Carrier Technology that utilize the power
cable to provide data communication, RF transceiver modules operating in the ISM band or a dedicated
data cable to/from data routers installed on a dedicated data trunk connected to a central Server (can also
be connected via Ethernet/Internet/Fibre). Zoneworks software on the server is used to monitor,
coordinate testing and collate test data from each fitting. Zoneworks Fittings can be commissioned by a
single push of the test switch or by scanning the supplied barcode. The LED Test Switch indicator provides
a multifunction indication of the status of the fitting during testing and normal operation:
Option State
ZW, HV, HVG,
Commissioned
DATA
ZW, DATA Un-commissioned
Un-commissioned
HV, HVG
With network connectivity
Un-commissioned
HV, HVG
Without network connectivity
ZW, DATA Emergency Light Test In Progress
HV, HVG Emergency Light Test In Progress
In the case of the DATA version a 2-way "figure 8" cable and terminal block facilitates the connection to
the DATA network via a multi-drop bus (daisy chain connection). For further information of installation of
a Zoneworks system, please refer to the Zoneworks Users Guide and Commissioning Guide (incl. DATA
version)
DALI EM Option
LP battens with part numbers -DALI are fitted with DALI modules (nodes) that facilitate connection and
rd
integration to 3 Party Lighting Control Systems. Before installing the -DALI batten, please confirm that
the Lighting Control System has the capability to monitor DALI Emergency Luminaires. The batten will
be addressed and configured into the control system by the Lighting Control System Commissioning
Technicians and not Clevertronics.
State LED Operation
Commissioned/ Un-commissioned LED on Solid (Green)
Emergency Light Test in progress LED flashes at 1s On (Yellow) & 1s Off
"IDENTIFY COMMAND"
Lamp and Status LED Flash for 30 seconds
A 2-way "figure 8" cable and terminal block facilitates the connection to the DALI network OR a 5/6way
"structured wiring system" lead and plug facilitating the power and DALI connection. DALI connections
are marked as Da Da.
are fitted with Zoneworks communications modules
LED Operation
LED on Solid (Green)
Batt plugged-in: yellow 1s, green 1s
Batt unplugged: red 1s, off 1s
Batt plugged-in: yellow 1s, green 1s
Batt unplugged: red 1s, off 1s
Batt plugged-in: yellow 250mS, green
250mS, yellow 250mS, green 250mS,
green 1s
Batt unplugged: red 250mS, off
250mS, red 250mS,off 250mS, off 1s
LED flashes at yellow 5s , 0ff 1s
LED flashes at yellow 1s , 0ff 1s
LP™ Sustained Emergency LED Battens
Installation & Maintenance Instruction Leaflet
Designed in Australia to comply with the
requirements of AS2293.3: 2005 and AS/NZS
CISPR15: 2011.
NOTE: Standard product codes with this symbol
enabled with Clevertest Plus capability. Please refer to
the operation guide supplied with the product for details.
Models:
CBS2LEDS-DIF-yy-zz-vv-xx
Testing: Manual Test yy = Blank
Zoneworks yy = ZW
Zoneworks DATA yy = DATA
DALI yy = DALI
HIVE yy = HV/HVG
Clevertest yy = CT (NOTE: Products supplied with the Clevertest Plus Symbol
activated with Clevertest PLUS capability. Please refer to the operation guide
supplied with the product for details).
Spare Parts:
1550050 Replacement Battery
1100634 Replacement 240V LED Strip
1100641 Replacement 240V LED Strip (For -4HR)
AUM02370170001 Replacement Emergency Driver
AUM02870100001 / AUM02970060001 Replacement Emergency Driver (For -HV / -HVG)
AUM02270170002 Replacement Emergency Driver (For -DALI)
AUM02370080001 Replacement Emergency Driver (For -4HR)
8002695 Replacement Emergency LED Board
1330029 Replacement 240V Driver
1330038 Replacement 240V Driver
Important:
It is illegal for anyone, except for a licensed electrician to install or maintain this product. Before installation,
the electricity supply has been switched off and isolated. Installation must be carried out in accordance with the relevant
Australian and International Standards.
Victoria (Head Office & Manufacturing)
Website: www.clevertronics.com.au
Email: info@clevertronics.com.au
Phone: +61 3 9559 2700
Fax: +61 3 9559 2799
New South Wales
Phone: +61 2 8805 6400
Fax: +61 2 8805 6444
Queensland
Phone: +61 7 3442 9700
Fax: +61 7 3442 9777
South Australia/Northern Territory
Phone: +61 8 8301 8800
are
Fax: +61 8 8351 8286
Western Australia
Phone: +61 8 9207 0000
Fax: +61 8 9207 0088
New Zealand
Phone: +64 800 548 448
Options:
On/Off Sensor Control zz = MS
DALI Driver zz = DD
Black Colour xx = BLK
4 Hour Battery vv = 4HR
(-DD Option)
1942311 V1.3
are
ensure that
6 May 2022
