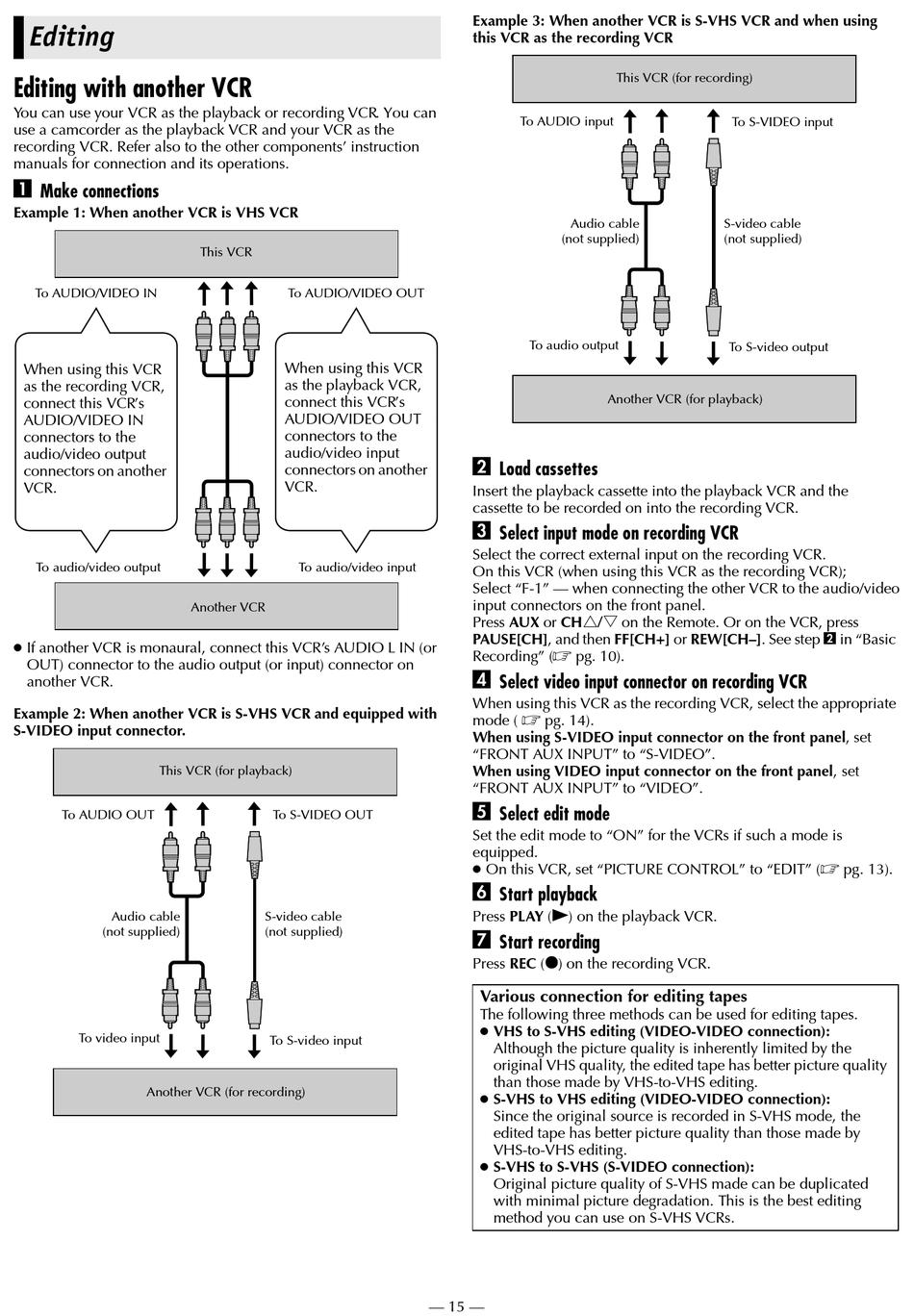

Editing

Editing with another VCR

You can use your VCR as the playback or recording VCR. You can
use a camcorder as the playback VCR and your VCR as the
recording VCR. Refer also to the other components' instruction
manuals for connection and its operations.
A
Make connections
Example 1: When another VCR is VHS VCR
To AUDIO/VIDEO IN
When using this VCR
as the recording VCR,
connect this VCR's
AUDIO/VIDEO IN
connectors to the
audio/video output
connectors on another
VCR.
To audio/video output
● If another VCR is monaural, connect this VCR's AUDIO L IN (or
OUT) connector to the audio output (or input) connector on
another VCR.
Example 2: When another VCR is S-VHS VCR and equipped with
S-VIDEO input connector.
This VCR (for playback)
To AUDIO OUT
Audio cable
(not supplied)
To video input
Another VCR (for recording)
This VCR
To AUDIO/VIDEO OUT
When using this VCR
as the playback VCR,
connect this VCR's
AUDIO/VIDEO OUT
connectors to the
audio/video input
connectors on another
VCR.
To audio/video input
Another VCR
To S-VIDEO OUT
S-video cable
(not supplied)
To S-video input
Example 3: When another VCR is S-VHS VCR and when using
this VCR as the recording VCR
To AUDIO input
Audio cable
(not supplied)
To audio output
B
Load cassettes
Insert the playback cassette into the playback VCR and the
cassette to be recorded on into the recording VCR.
C
Select input mode on recording VCR
Select the correct external input on the recording VCR.
On this VCR (when using this VCR as the recording VCR);
Select "F-1" — when connecting the other VCR to the audio/video
input connectors on the front panel.
Press AUX or CH /
r
PAUSE[CH], and then FF[CH+] or REW[CH–]. See step 2 in "Basic
Recording" ( pg. 10).
D
Select video input connector on recording VCR
When using this VCR as the recording VCR, select the appropriate
mode ( pg. 14).
When using S-VIDEO input connector on the front panel, set
"FRONT AUX INPUT" to "S-VIDEO".
When using VIDEO input connector on the front panel, set
"FRONT AUX INPUT" to "VIDEO".
E
Select edit mode
Set the edit mode to "ON" for the VCRs if such a mode is
equipped.
● On this VCR, set "PICTURE CONTROL" to "EDIT" (
F
Start playback
Press PLAY ( ) on the playback VCR.
4
G
Start recording
Press REC ( ) on the recording VCR.
7
Various connection for editing tapes
The following three methods can be used for editing tapes.
● VHS to S-VHS editing (VIDEO-VIDEO connection):
Although the picture quality is inherently limited by the
original VHS quality, the edited tape has better picture quality
than those made by VHS-to-VHS editing.
● S-VHS to VHS editing (VIDEO-VIDEO connection):
Since the original source is recorded in S-VHS mode, the
edited tape has better picture quality than those made by
VHS-to-VHS editing.
● S-VHS to S-VHS (S-VIDEO connection):
Original picture quality of S-VHS made can be duplicated
with minimal picture degradation. This is the best editing
method you can use on S-VHS VCRs.
— 15 —
This VCR (for recording)
To S-VIDEO input
S-video cable
(not supplied)
To S-video output
Another VCR (for playback)
on the Remote. Or on the VCR, press
t
pg. 13).
