Summary of Contents for Cookology FOD60SS

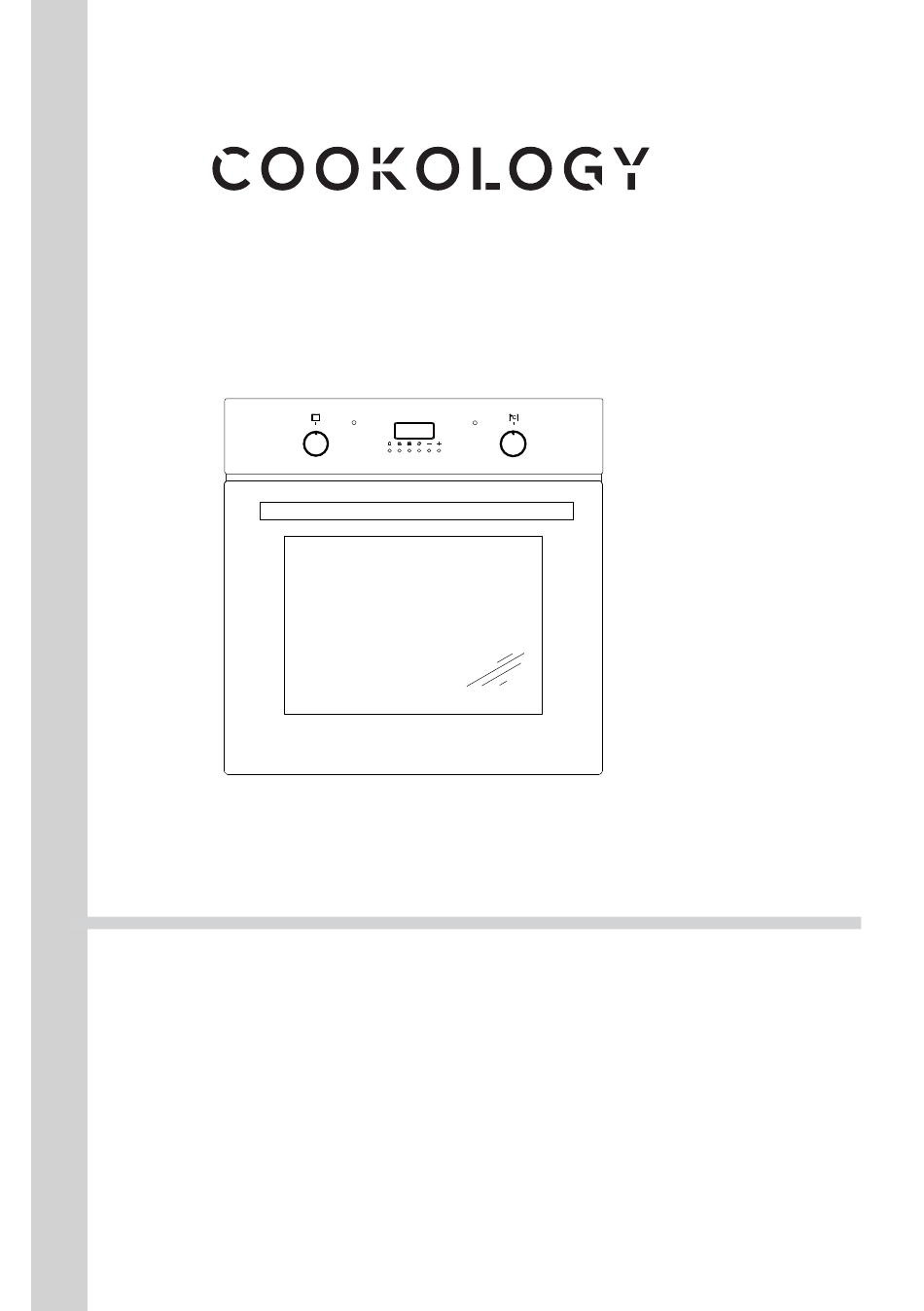

- Page 1 Instruction Manual BUILT-IN OVEN MODEL: FOD60SS FOD60BK...
- Page 2 Warning 1）The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. children being supervised not to play with the appliance. 2）During use the appliances becomes hot.
- Page 3 Warning switch in the fixed wiring in accordance with the wiring rules. 14）This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 4 DEAR CUSTOMER, The oven is exceptionally easy to use and extremely efficient.After reading the instruction manual,operating the oven will be easy. Before being packaged and leaving the manufacturer,the oven was thoroughly checked with regard to safety and functionality. Before using the appliance,please read the instruction manual carefully. By following these instructions carefully you will be able to avoid any problems in using the appliance.
-
Page 5: Table Of Contents
TABLE OF CONTENTS Safety instructions..................3 Specifications of the appliance................7 I n s t a l l a t i o n ....................8 Operation.................... -
Page 6: Safety Instructions
SAFETY INSTRUCTIONS NOTE Ensure there is a grounded socket nearby behind the unit A dedicated power circuit is recommended for the unit but not required Additional electrical appliances on the same circuit may exceed the current amperage rating for that circuit If after the installation of your unit the circuit breaker trips or the fuse fails on a repeated basis... - Page 7 SAFETY INSTRUCTIONS ! The panels adjacent to the oven must be made of heat resistant material ! Cabinets with a veneer exterior must be assembled with glues which can withstand temp ℃. erature of up to 100 ! Keep combustible materials such as curtains drapes...
- Page 8 HOW TO SAVE ENERGY Using energy in a respon- sible way not only saves money but also helps the environment.So let's save energy!And this is how you can do it: ! Do not uncover the pan too often ( a watched pot never boils!) Do not open the oven door unnecessarily often.
- Page 9 UNPACKING DISPOSAL OF THE APPLIANCE Old appliances should not sim- During transportation,protec- tive packaging was used to ply be disposed of with normal protect the appliance against household waste,but should any damage.After unpack- be delivered to a collection and ing,please dispose recycling centre for electric and electronic equipment.A symbol...
-
Page 10: Specifications Of The Appliance
SPECIFICATIONS OF THE APPLIANCE... - Page 11 Aperture Dimensions Product Dimensions Height: 595mm 600mm Width: 595mm 560mm Depth: 560mm(min) 530mm...
- Page 12 Fitting guidelines The oven is manufactured to work with single- phase alternating current(220V-240V/ 50Hz).The connection diagram is also found on the cover of the connection box. Remem-ber that the connection wire should match the connection type and the power rating of the oven.
-
Page 13: Operation

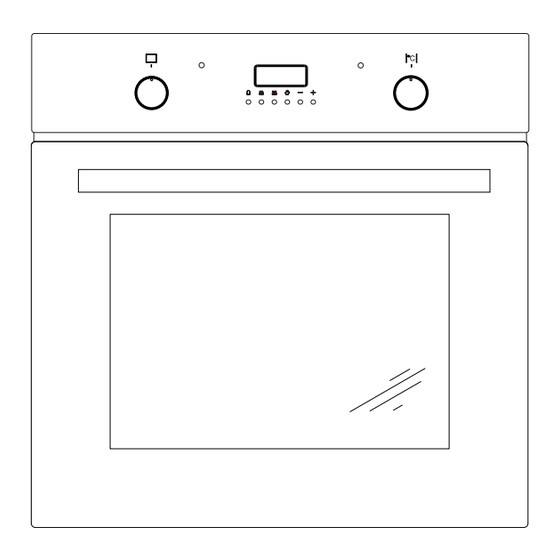

OPERATION Before first use ! Remove packaging,clean the interior of the oven. ! Take out and wash the oven fittings with warm water and a little washing- up liquid. ! Switch on the ventilation in the room or open a window. ! Heat the oven (to a temperature of 250℃, for approx,30 min.),remove any stains and wash carefully. - Page 14 OPERATION Main Body 1 Oven function selection knob 2 Temperature control knob 3 Oven door handle 4 Yellow function operation signal light 5 Red temperature regulator signal light 6 Keep-press 7 Display...
- Page 15 OPERATION Control Panle 3 4 5 6 7 8 1) Oven function selector knob 2) Thermostat control knob 3) Minute minder button 4) Duration button 5) End cook button 6) Manual operation button 7) Minus button 8) Plus button 9) LED display A) Power indicator light B) Oven operating light 10 Auto funciton symbol...
- Page 16 OPERATION Selecting manual operation mode After your appliance is connected to your mains supply for the first time, the numbers on the timer display will flash. Before you can select a cooking function or set a temperature, you must set the appliance into “manual operation”...
- Page 17 OPERATION ·Once the display has got to your desired countdown time, let go of the minus and plus buttons. The minu te minder symbol (11) will appear on the timer display. ·Once a countdown time has been set, it is possible to shorten or lengthen the time by using the minus or plus buttons.
- Page 18 OPERATION Setting the end cook function This function is similar to the duration function, however instead of selecting a period of time that you wish the oven to switch off after. You select the time of day that you wish the oven to switch off at.
- Page 19 OPERATION ·The oven will calculate what time it needs to switch on at, so that your food will cook for the length of time that you selected. It will automatically switch itself on, once it reaches the time of day that it has calculated. ·When the time of day reaches the end of cooking time that you set, the oven will switch off and an alarm will sound.
- Page 20 OPERATION...
- Page 21 OPERATION Defrosting This function allows all frozen foods to be rapidly and delicately thawed thanks to the internal fan. Central element with fan On This cooking mode allows homogenous distribution of the heat inside the oven. Making it possible to cook several items of food at the same time.
- Page 22 OPERATION...
-
Page 23: Cleaning And Maintenance
CLEANING AND MAINTENANCE By ensuring proper cleaning and mainte- Replacement of the oven light bulb nance of your cooker you can have a sig- nificant influence on the continuing fault-free In order to avoid the possibility of an operation of your appliance. electric shock ensure that the appliance is switched off before replacing the bulb. - Page 24 CLEANING AND MAINTENANCE Removing the doors Remove the inner glass panel a. Glass door has two plastic fixed blocks. Use a slotted screwdriver to insert into the hole of the plastic fixed block and gently pry it. c. Gently close the oven door until you hear b.
- Page 25 CLEANING AND MAINTENANCE Install inner glass. b. Install the upper left fixed block and a. After cleaning the inner glass from pay attention to the view button., the top to the plastic fixed block, c. Insert the heat sink into the upper left fixed block, d.
-
Page 27: Technical Data
TECHINCAL DATA Voltage rating 220-240V~ 50/60 Hz Power rating max.1.8kw Cooker dimensions H/W/D 59. 5/ 59. 5/53.0 mm 60 L Usable capacity of the oven﹡ Weight Approx.26kg...
