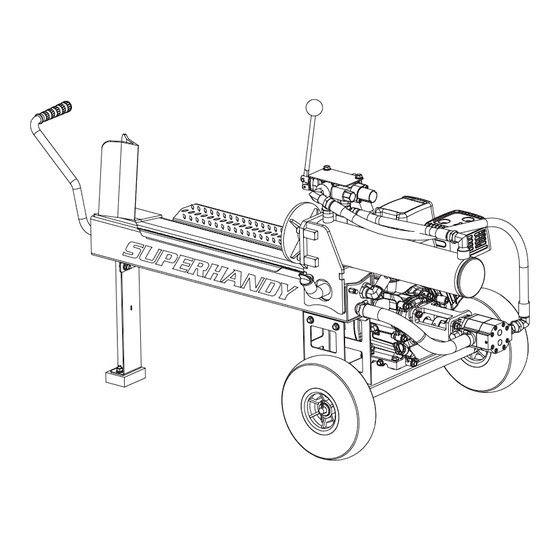

20 TON Gas Powered Hydraulic Log Splitter
Instruction Manual
SKU# GUO077
WARNING:
Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety
rules and other basic safety precautions may result in serious personal injury.
Save these instructions in a safe place and on hand so that they can be read when required.
Keep these instructions to assist in future servicing.
REV 04/23/21
Advertisement
Table of Contents
Related Manuals for Super Handy GUO077
Summary of Contents for Super Handy GUO077
- Page 1 20 TON Gas Powered Hydraulic Log Splitter Instruction Manual SKU# GUO077 WARNING: Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Save these instructions in a safe place and on hand so that they can be read when required.
-
Page 2: Table Of Contents
INDEX TECHNICAL SPECIFICATIONS ---------------------------------------------------------------------------------------------------------- 1 SAFETY DEFINITIONS ---------------------------------------------------------------------------------------------------------------------- 2 SAFETY SYMBOLS ----------------------------------------------------------------------------------------------------------------------- 2~3 SAFETY GUIDELINES ------------------------------------------------------------------------------------------------------------------- 4~5 FUEL SAFETY -------------------------------------------------------------------------------------------------------------------------------- 5 CONTROLS AND FEATURES ----------------------------------------------------------------------------------------------------------- 6 PARTS LIST ----------------------------------------------------------------------------------------------------------------------------------- 6 ASSEMBLY --------------------------------------------------------------------------------------------------------------------------------- 7~8 EXPANDED DRAWINGS ------------------------------------------------------------------------------------------------------------------ 9 OPERATION ----------------------------------------------------------------------------------------------------------------------------- 10~11 MAINTENANCE AND STORAGE ------------------------------------------------------------------------------------------------------ 11 TROUBLE SHOOTING... -
Page 3: Safety Definitions
SAFETY DEFINITIONS The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and their explanations, deserve your careful attention and review. The safety warnings do not by themselves eliminate any danger. The instructions or warnings they give are not substitutes for proper accident prevention measures and care while using the product. - Page 4 SYMBOL MANING Always keep feet away from the wedge and the ram. Moving parts can crush or cut. Hot Surface. To reduce the risk of injury or damage, avoid contact with any hot surface. Open Flame alert. Fuel and its vapors are extremely flammable and explosive. Keep fuel away from open flames, sparks, pilot lights, heat, and other potential ignition sources.
-
Page 5: Safety Guidelines
DANGER indicates a hazardous situation which, if not avoided,will result in serious injury and possibly death. WARNING indicates a potential hazardous situation which, if not avoided, could result in serious injury or death. CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. NOTICE indicates information considered important, but not hazard-related (e.g., messages relating to property damaged). -
Page 6: Fuel Safety
Rapid retraction of the starter cord will pull hand and arm towards the engine faster than you can let go. Unintentional startup can result in entanglement, traumatic amputation or laceration. Broken bones, fractures, bruises or sprains could result. When starting engine, pull the starter cord slowly until resistance is felt and then pull rapidly to avoid kickback. Parts of the hydraulic circuit (cylinder, pump, valve-body, hoses) can become very hot during operation. -
Page 7: Controls And Features
CONTROLS AND FEATURES 1. Handle 2. Splitting Wedge 3. Support Leg – Supports log splitter while operating. 4. Splitting Support Beam---DO NOT PUNCTURE The hydraulic tank is inside. 5. Hydraulic cylinder base. 6. 10" Wheels 7. Hydraulic Oil Dipstick – Add or check Hydraulic oil level. 8. -
Page 8: Assembly
ASSEMBLY Recommended tools: Needle nose pliers Recommended tools: Ratchet Wrench (12mm 13mm) Recommended tools: Ratchet Wrench (12mm) Recommended tools: Ratchet Wrench (12mm 13mm) Recommended tools: Allen wrench (6mm) - Page 9 Recommended tools: Needle nose pliers Recommended tools: Slotted screwdriver Recommended tools: Wrench (27mm)
-
Page 10: Expanded Drawings
EXPANDED DRAWINGS Part No. Description Q’ty Part No. Description Q’ty Cotter Pin Filter Screen Flat Washer Plug Of Oil Dipstick 10 " Wheel Hydraulic Cylinder Kit Flange Nut Spring Washer Hexagon Flange Bolt M8x40mm Hexagon Socket Head Cap Screw M10x35mm Bottom Plate Primary Beam Kit Hexagon Flange Bolt M8x20mm... -
Page 11: Operation
OPERATION 1. Read the Operator’s Manual completely before attempting to use this log splitter. 2. Do not allow anyone to operate your log splitter who has not read the Operator’s Manual or has not been instructed on the safe use of the log splitter. 3. -
Page 12: Maintenance And Storage
8. Shut-off engine (see Stopping the Engine in the Operation section). 9. Hydraulic oil can be added appropriately when the cylinder thrust is insufficient. For safety reasons, hydraulic oil, oil and fuel are not included in the package. MAINTENANCE AND STORAGE 1.
